Product Overview
The MOOG D633-460B is a high-performance direct drive servo valve from the MOOG D633 series, engineered for precision electrohydraulic control in demanding industrial and motion control systems. Unlike conventional two-stage servo valves that rely on hydraulic pilot pressure and torque motor flapper-nozzle assemblies, the D633-460B utilizes MOOG’s direct drive technology, in which a high-force linear force motor directly actuates the valve spool. This architecture eliminates pilot stage dependency and minimizes internal leakage, delivering exceptional dynamic response, high resolution, and outstanding repeatability. The valve serves as the critical control element in closed-loop hydraulic systems, precisely metering flow and direction in proportion to an electrical command signal to regulate position, velocity, force, or pressure of actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Direct Drive Servo Valve (Proportional & Servo Valve) |
| Model Designation | MOOG D633-460B |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated system pressure) |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Interface with MOOG electrical connector |
| Actuation Principle | Linear Force Motor Direct Spool Drive (No Pilot Stage) |
| Spool Configuration | Four-Way, Three-Position Closed-Center Spool |
| Command Signal | Analog Voltage / Current Command with Integrated Electronics |
| Dynamic Response | High Bandwidth (Frequency Response up to 100+ Hz at rated amplitude) |
| Internal Leakage | Minimal (Direct drive design eliminates pilot flow losses) |
Engineering Features & Advantages
- Precision Performance: The direct drive linear force motor provides extremely high spool positioning resolution and repeatability, enabling accurate flow metering for closed-loop control of position, velocity, and force with minimal hysteresis and threshold.
- Pilot-Free Architecture: Elimination of the hydraulic pilot stage removes sensitivity to supply pressure fluctuations and reduces internal leakage, resulting in lower energy consumption and more stable performance across varying operating conditions.
- High Dynamic Response: The direct spool actuation delivers fast step response and high frequency bandwidth, making the D633-460B ideal for high-cycle applications requiring rapid and precise directional control.
- Contamination Tolerance: The robust spool-and-sleeve design with hardened metering edges offers improved resistance to fluid contamination compared to nozzle-flapper pilot stages, extending service life in industrial environments.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The valve serves as the critical control element in closed-loop hydraulic systems, precisely metering flow and direction in proportion to an electrical command signal to regulate position, velocity, force, or pressure of actuators.
PRODUCT IMAGES

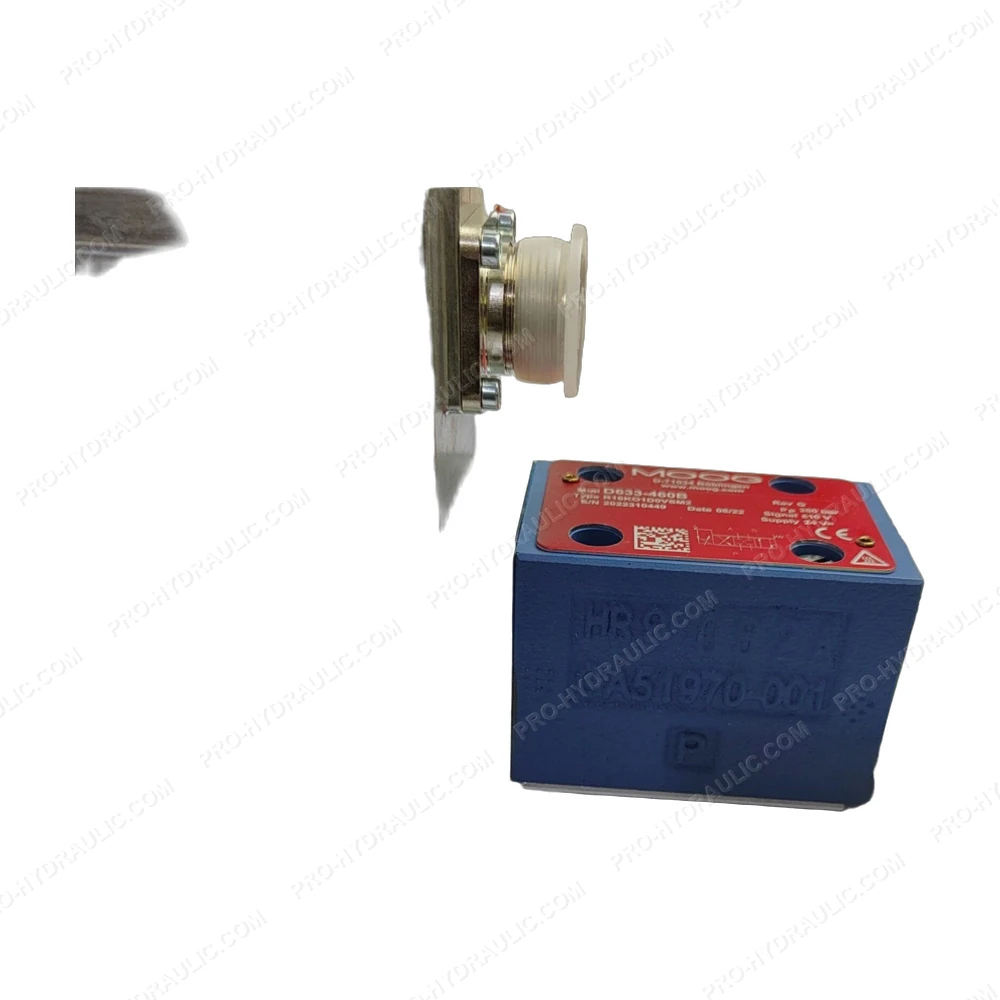

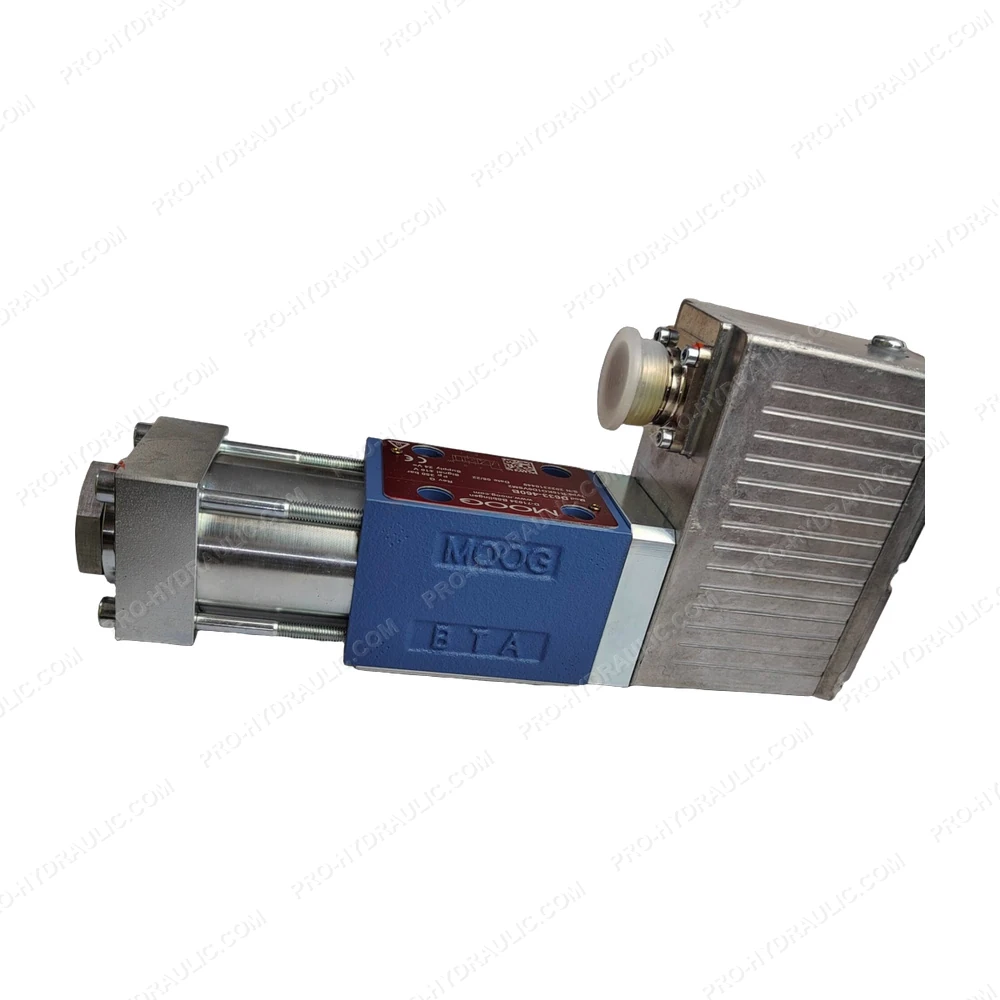

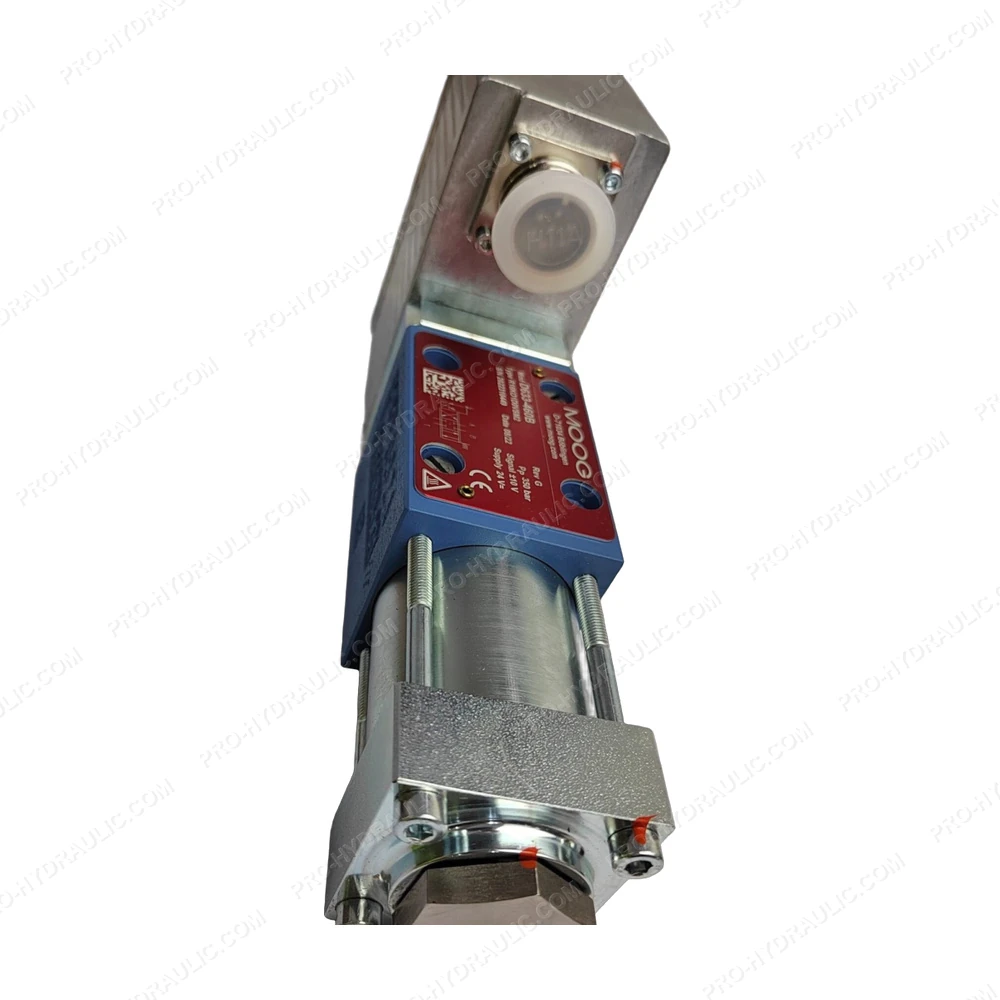

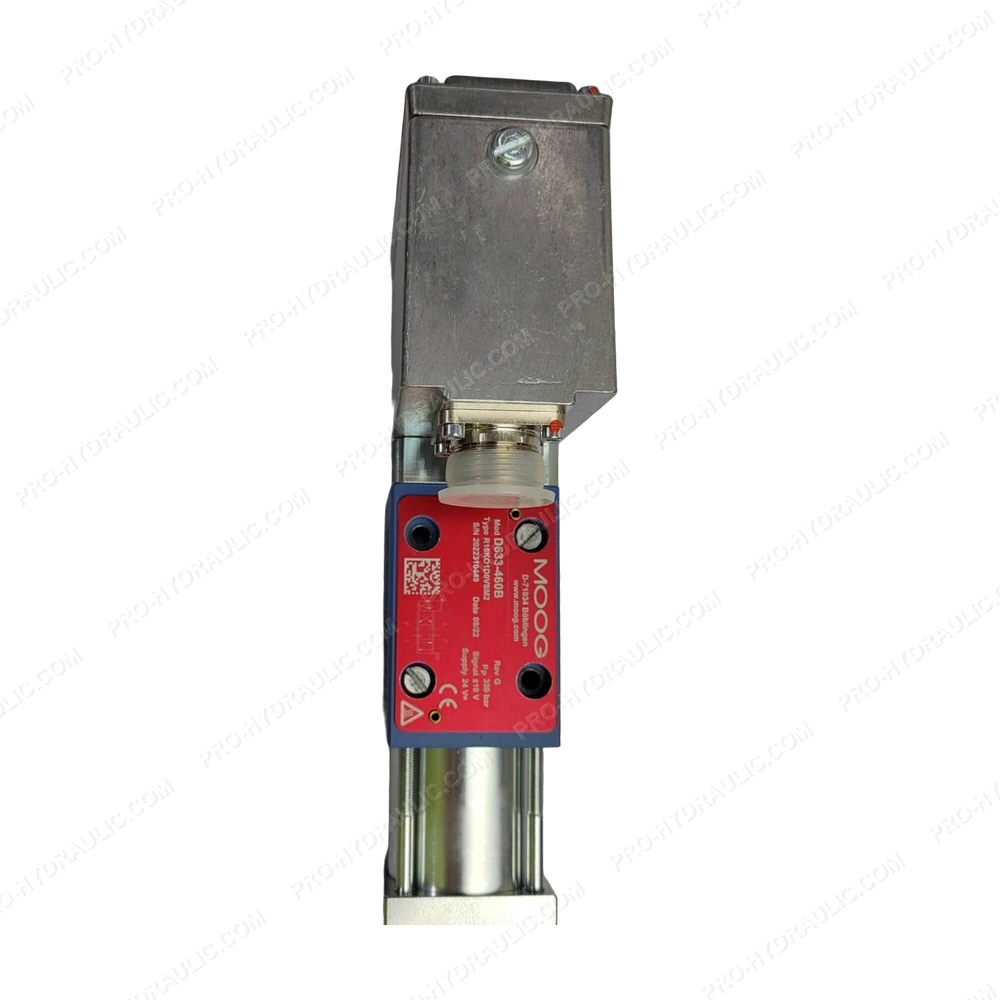

MOOG D633-460B Direct Drive Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D633-460B Servo Valve. This US-made high-performance hydraulic component features a two-stage design with spool position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
