Product Overview
The MOOG D633Z532B / R16KO1F0NSS2 is a high-performance direct drive servo valve from the MOOG D633 series, engineered for precision electrohydraulic control in demanding industrial and motion control systems. Utilizing MOOG’s advanced Direct Drive Valve (DDV) technology, this servo valve eliminates the need for a pilot stage by directly coupling a high-force linear force motor to the spool, resulting in exceptional dynamic response, high resolution, and superior contamination tolerance. The D633 series is a two-stage design with spool position feedback, delivering precise flow control proportional to the electrical input signal. With its robust construction and ISO 4401 mounting interface, this valve is ideally suited for closed-loop position, velocity, and force control applications where accuracy and repeatability are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Direct Drive Servo Valve (Proportional & Servo Valve) |
| Model Designation | D633Z532B / R16KO1F0NSS2 |
| Series | MOOG D633 Direct Drive Servo Valve |
| Operating Pressure | Up to 350 bar (5075 psi) rated |
| Rated Flow | Nominal 5–40 L/min depending on spool configuration |
| Mounting & Connection | ISO 4401 / CETOP standard interface, subplate mounting |
| Actuation Type | Linear force motor (direct drive, no pilot stage) |
| Feedback | Integrated spool position transducer (LVDT) |
| Seal Material | NBR / FKM (dependent on configuration) |
Engineering Features & Advantages
- Precision Performance: Direct drive architecture delivers high-resolution spool positioning with excellent repeatability and minimal hysteresis, ensuring accurate flow metering for closed-loop control.
- High Dynamic Response: Absence of a pilot stage results in fast step response and high frequency response, ideal for demanding motion profiles.
- Contamination Tolerance: Robust spool and sleeve design with large flow passages enhances resistance to particulate contamination, reducing downtime and maintenance costs.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with a rugged linear force motor and wear-resistant spool/sleeve pairing.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG D633 series valves, ensuring drop-in replacement without system modification.
Typical Industrial Applications
This MOOG D633 direct drive servo valve is widely used in high-precision industrial applications including plastic injection molding
PRODUCT IMAGES

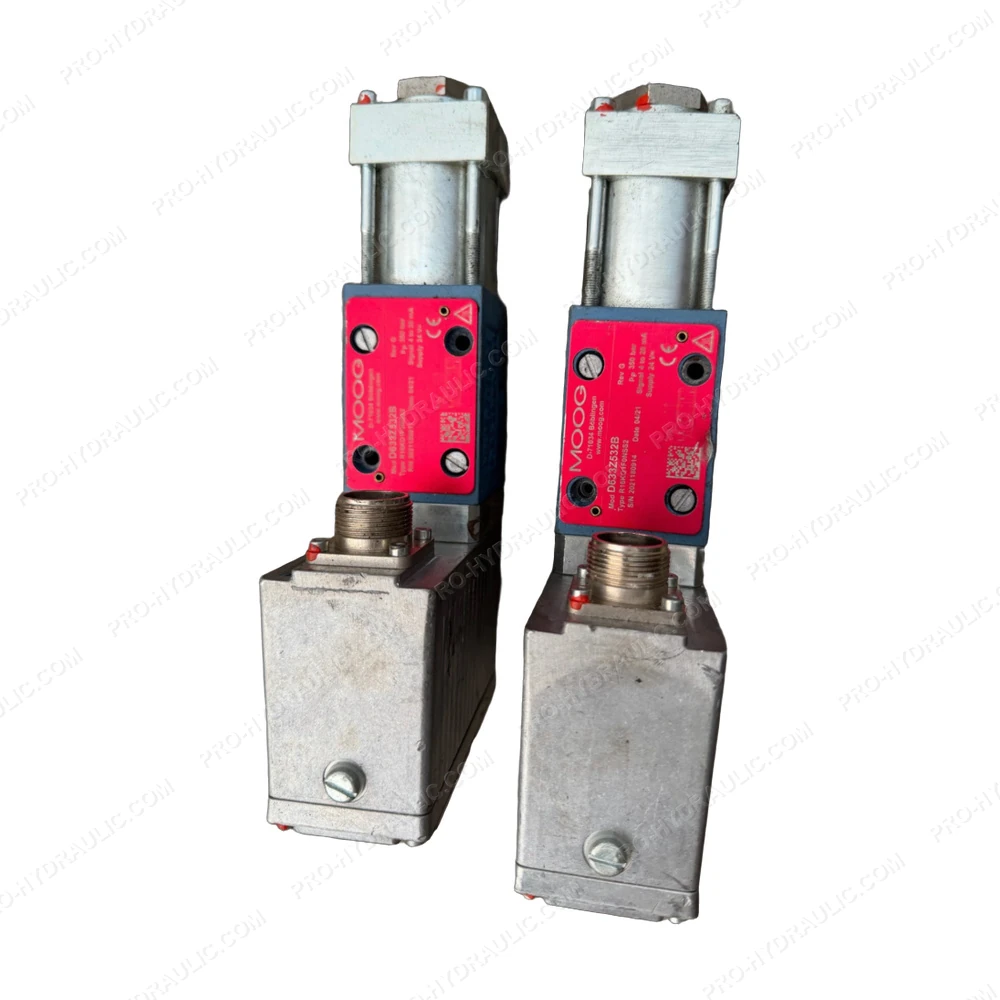

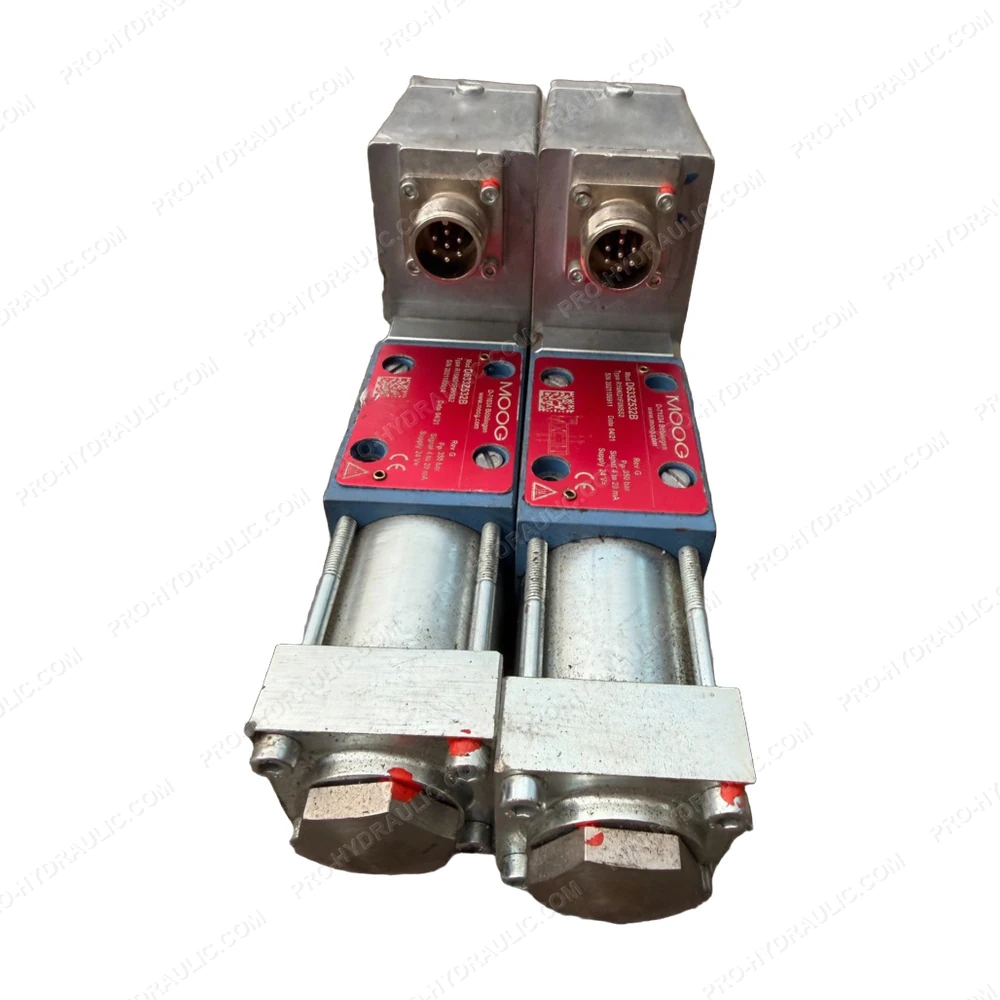

MOOG D633Z532B / R16KO1F0NSS2 Direct Drive Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D633Z532B / R16KO1F0NSS2 Servo Valve. This Germany-made 24V hydraulic component features a two-stage design with spool position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
