Product Overview
The MOOG D634-319C / R40K02M0NSP2 is a high-performance direct drive servo valve from the Moog D634 series, engineered for precise electrohydraulic control in demanding industrial and motion control systems. Unlike conventional two-stage pilot-operated servo valves, the D634 utilizes a direct drive actuation principle in which a high-force linear force motor (LFM) acts directly on the valve spool, eliminating the need for hydraulic pilot stages and their associated internal leakage paths. This design delivers exceptional dynamic response, high resolution, and superior repeatability, making it ideal for closed-loop position, velocity, and force control applications. The valve features integrated spool position feedback via an LVDT (Linear Variable Differential Transformer), ensuring accurate spool positioning proportional to the electrical command signal. With its robust construction, high contamination tolerance, and fail-safe spool return mechanism, the D634-319C is a premier choice for critical industrial servo applications requiring reliability and precision.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Direct Drive Servo Valve (Proportional & Servo Valve) |
| Model Designation | D634-319C / R40K02M0NSP2 |
| Manufacturer | MOOG |
| Actuation Principle | Direct Drive Linear Force Motor (LFM) with integrated LVDT spool position feedback |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Rated Flow | Model-dependent (D634 series typically 5 to 100 L/min at 70 bar valve pressure drop) |
| Spool Configuration | 4-way, 3-position closed-center spool (standard) |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Electrical Command Signal | Analog ±10 V DC or ±10 mA (model-dependent) |
| Filtration Requirement | ISO 4406 cleanliness code 17/15/12 or better recommended |
Engineering Features & Advantages
- Precision Performance: Direct drive architecture eliminates pilot-stage leakage and delivers high-resolution spool positioning with excellent repeatability, low hysteresis, and fast dynamic response for closed-loop control.
- High Contamination Tolerance: The absence of a hydraulic pilot stage and fine orifice components significantly improves resistance to fluid contamination, reducing downtime and maintenance costs in industrial environments.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With its robust construction, high contamination tolerance, and fail-safe spool return mechanism, the D634-319C is a premier choice for critical industrial servo applications requiring reliability and precision.
PRODUCT IMAGES

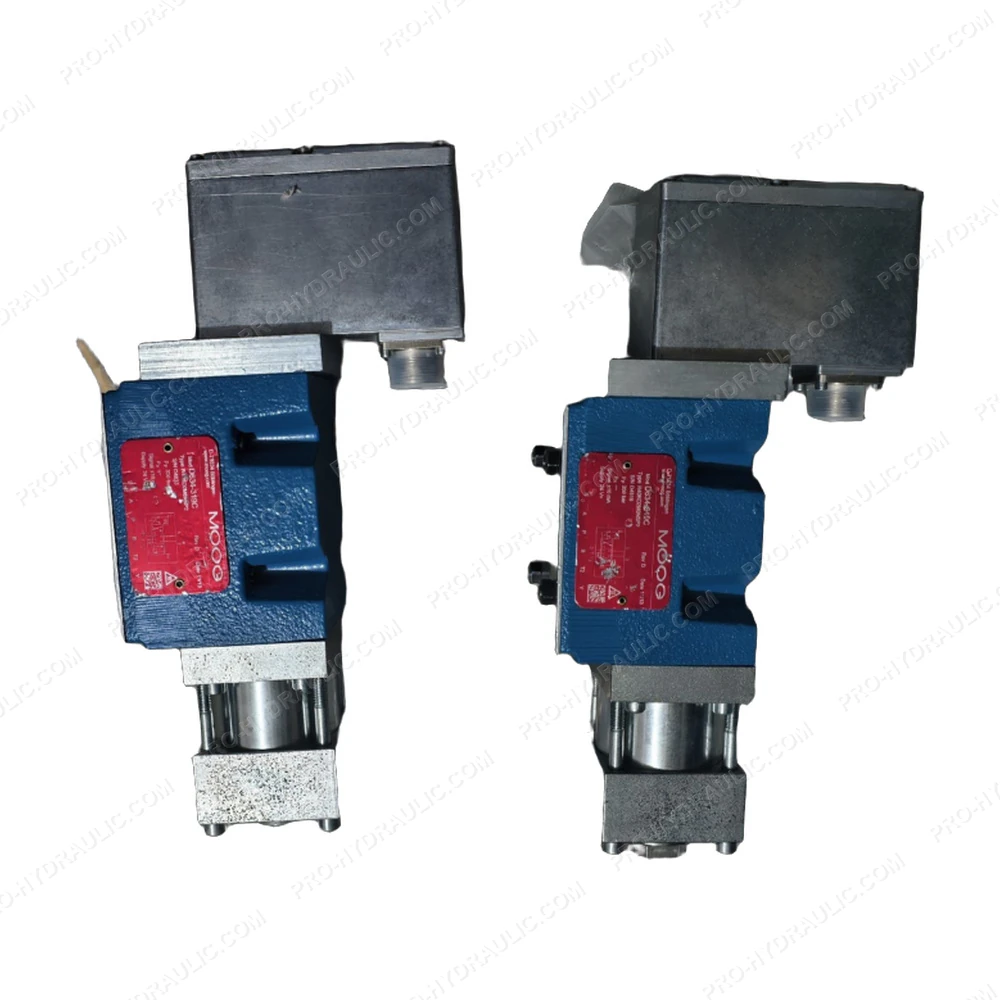

MOOG D634-319C / R40K02M0NSP2 Direct Drive Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D634-319C / R40K02M0NSP2 Servo Valve. This Germany-made high-performance hydraulic component features a two-stage design with mechanical feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
