Product Overview
The MOOG D634-514A / R40KO2M0NSP2 is a high-performance, two-stage servo proportional valve engineered by MOOG, the global benchmark in electrohydraulic motion control. This valve operates on a nozzle-flapper pilot stage principle that hydraulically actuates a robust, high-flow main spool, delivering infinitely variable directional and flow control proportional to an electrical input signal. Designed for demanding closed-loop position, velocity, force, and pressure control applications, the D634 series provides exceptional dynamic response, minimal hysteresis, and superior repeatability. Its integrated spool position feedback ensures precise metering independent of pressure fluctuations, making it a critical control element in high-precision industrial and testing machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Nozzle-Flapper Pilot) |
| Model Designation | D634-514A / R40KO2M0NSP2 |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow | Model-specific (e.g., 40 L/min at 70 bar valve pressure drop) |
| Mounting & Connection | ISO 4401 / CETOP 5 (NG10) Subplate Interface |
| Electrical Interface | Standard 6-pin + PE Connector, Integrated Amplifier Options |
| Spool Configuration | Critical Center, Zero-Lapped (Standard for Position Control) |
Engineering Features & Advantages
- Precision Performance: The nozzle-flapper pilot stage provides high-resolution flow metering with extremely low threshold and hysteresis, enabling accurate velocity and position control in closed-loop systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a rugged main stage spool and a contamination-resistant pilot stage design.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM MOOG D634 series standards, ensuring drop-in replacement without system modification.
- Dynamic Response: High-response pilot stage and optimized main spool design deliver fast step responses and high-frequency response for demanding motion profiles.
- Integrated Feedback: Spool position feedback ensures precise flow output independent of varying load pressures, enhancing system stability.
Typical Industrial Applications
This MOOG servo proportional valve is widely deployed in high-precision industrial scenarios including plastic injection molding machines (clamp and injection axis control), metallurgical presses (thickness and force regulation), CNC machine tools (feed and spindle positioning), and dynamic testing systems (fatigue and structural test rigs). It is also a critical component in steam and gas turbine control, marine steering systems, and advanced robotics where precise hydraulic motion control is paramount.
PRODUCT IMAGES

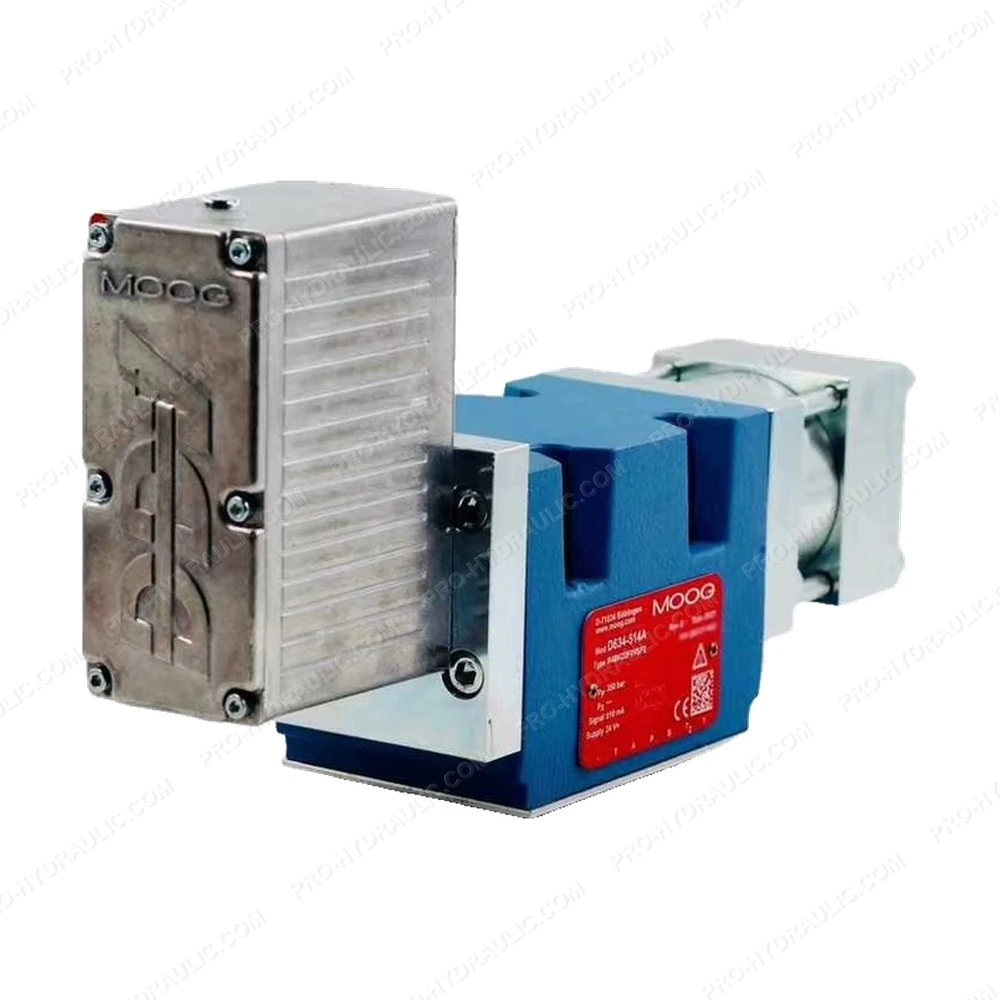

MOOG D634-514A / R40KO2M0NSP2 Servo Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D634-514A / R40KO2M0NSP2 Servo Proportional Directional Control Valve. This Germany-made hydraulic component features a high-response spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
