Product Overview
The MOOG D635-101E / R08FB1F0NSS2M is a high-performance servo proportional valve from the MOOG D635 series, engineered for precise electrohydraulic control in demanding industrial and mobile applications. This two-stage servo valve utilizes a torque motor pilot stage driving a spool-type main stage, delivering exceptional dynamic response, high resolution, and repeatable flow control proportional to an electrical input signal. The D635 platform is widely recognized for its robust construction, minimal hysteresis, and superior threshold characteristics, making it the preferred choice for closed-loop position, velocity, and force control systems where accuracy and reliability are critical. The R08FB1F0NSS2M configuration denotes a specific spool type, rated flow, and electrical interface tailored to match OEM requirements for direct drop-in replacement.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Spool-Type) |
| Model Designation | MOOG D635-101E / R08FB1F0NSS2M |
| Operating Pressure | Up to 315 bar (standard industrial grade, dependent on spool configuration) |
| Rated Flow | Nominal 8 L/min pilot stage reference (main stage flow per spool type R08) |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Electrical Interface | Proportional solenoid / torque motor with integrated position feedback |
| Control Signal | Analog ±10 V DC or ±10 mA (typical MOOG standard) |
| Hysteresis | < 0.5% (typical for D635 series) |
| Response Time | High dynamic response, suitable for closed-loop control (typically < 10 ms) |
Engineering Features & Advantages
- Precision Metering: The torque motor pilot stage and precision-ground spool deliver exceptionally fine flow resolution and minimal deadband, ensuring accurate proportional control of actuator position, velocity, and force.
- High Dynamic Response: Optimized pilot stage hydraulics enable fast valve response times, critical for high-cycle industrial processes and closed-loop servo control systems.
- Low Hysteresis & Threshold: Superior magnetic and hydraulic design minimizes hysteresis and threshold, providing repeatable performance and consistent part quality in precision applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to contamination and thermal stress.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The D635 platform is widely recognized for its robust construction, minimal hysteresis, and superior threshold characteristics, making it the preferred choice for closed-loop position, velocity, and force control systems where accuracy and reliability are critical.
PRODUCT IMAGES

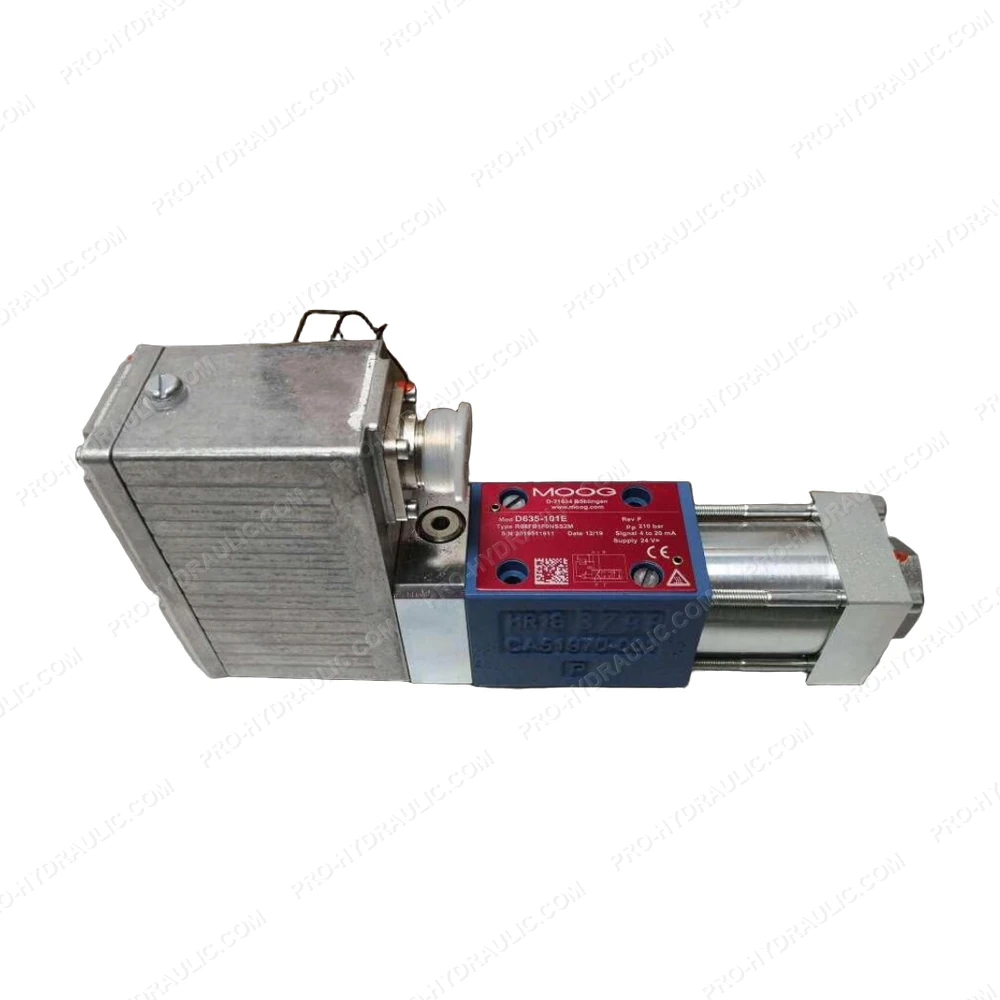

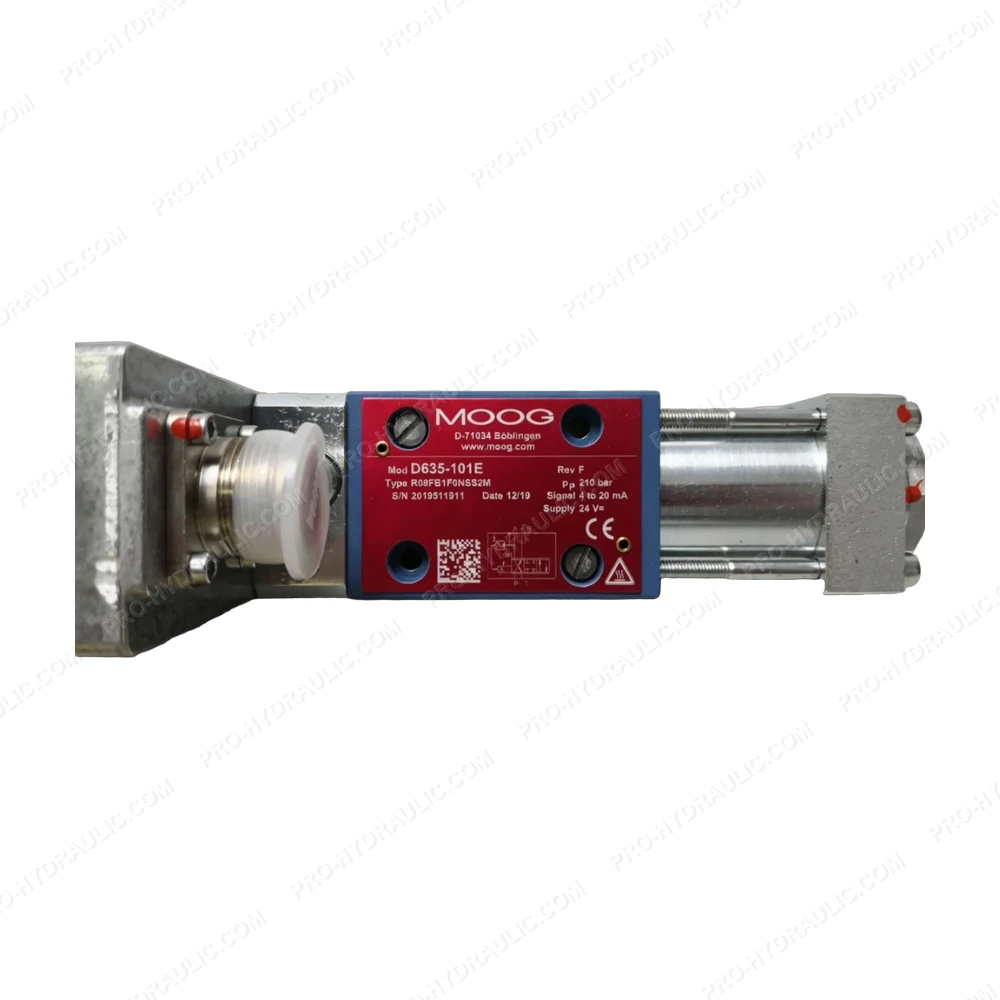

MOOG D635-101E / R08FB1F0NSS2M Servo Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D635-101E / R08FB1F0NSS2M Servo Proportional Valve. This Germany-made high-response hydraulic valve features a two-stage design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
