Product Overview
The MOOG D636-267A-0001 / R04J01F0HXES-00K1A1 is a high-performance servo proportional valve from the MOOG D636 series, engineered for precise electrohydraulic control of flow direction and magnitude in demanding industrial motion systems. Utilizing a closed-loop servo jet pilot stage acting on a robust spool-type main stage, this valve delivers exceptional dynamic response, high resolution, and minimal hysteresis. The D636 platform is a proven two-stage design widely specified for position, velocity, force, and pressure control loops where repeatability and fast settling times are critical. With its integrated spool position feedback and standardized interface, the D636-267A-0001 serves as a direct-fit replacement for OEM servo valve installations in high-cycle industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Spool-Type) |
| Model Designation | D636-267A-0001 / R04J01F0HXES-00K1A1 |
| Manufacturer | MOOG |
| Pilot Stage Principle | Servo jet / nozzle-flapper type electrohydraulic pilot |
| Main Stage | Four-way sliding spool with position feedback |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Rated Flow | Per D636 size class (nominal 40–100 L/min at 70 bar Δp) |
| Input Signal | Analog ±10 V DC / ±10 mA (differential command) |
| Hysteresis | < 0.5% of rated stroke (typical) |
| Mounting & Connection | Standard ISO 4401 / MOOG subplate interface |
| Fluid Compatibility | Mineral-based hydraulic oil per ISO VG 32–68 |
Engineering Features & Advantages
- Precision Performance: Servo jet pilot stage provides high spool positioning resolution, low threshold, and excellent dynamic response for closed-loop position, velocity, and force control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original MOOG specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With its integrated spool position feedback and standardized interface, the D636-267A-0001 serves as a direct-fit replacement for OEM servo valve installations in high-cycle industrial machinery.
PRODUCT IMAGES

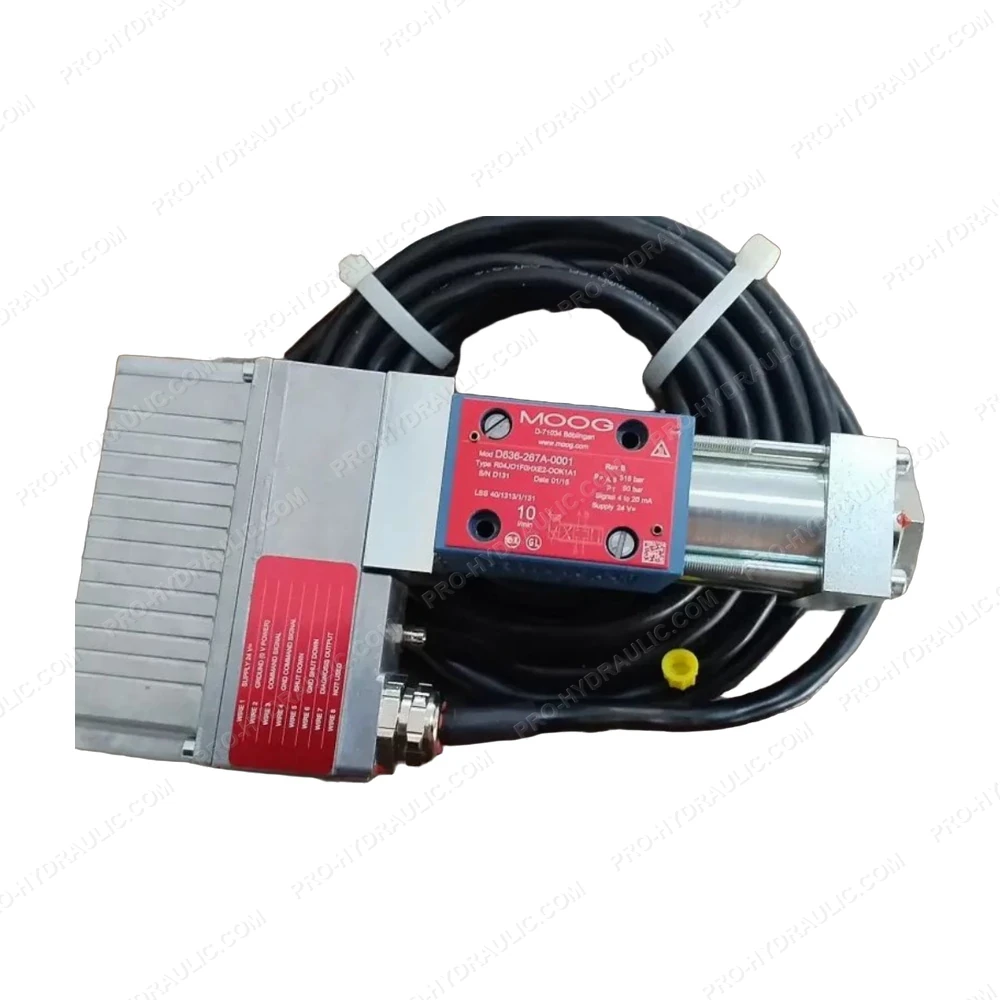

MOOG D636-267A-0001 / R04J01F0HXES-00K1A1 Servo Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D636-267A-0001 / R04J01F0HXES-00K1A1 Servo Valve. This Germany-made 24V DC hydraulic component features a high-response two-stage design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
