Product Overview
The MOOG D639-1037-1001 / P60KX6M0VEA2FBOK1K1 is a high-performance servo proportional valve engineered by Moog, the global benchmark in electrohydraulic motion control. Operating on a two-stage, closed-loop feedback principle, this valve converts low-power electrical command signals into precisely modulated hydraulic flow and pressure outputs. The D639 series is designed for demanding industrial applications requiring exceptional dynamic response, high resolution, and repeatable positioning accuracy. Its pilot-operated spool architecture delivers smooth, infinitely variable control of actuator velocity, force, and position, making it a critical component in closed-loop servo systems where precise motion fidelity is non-negotiable.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Pilot-Operated) |
| Model Designation | D639-1037-1001 / P60KX6M0VEA2FBOK1K1 |
| Manufacturer | Moog Inc. |
| Operating Pressure | Up to 315 bar (system pressure, typical for D639 series) |
| Rated Flow | Model-dependent (P60 spool designation), nominal flow at 70 bar valve pressure drop |
| Spool Configuration | P60KX6M0 — Zero-lapped, critical-center spool for position/velocity control |
| Electrical Interface | Integrated servo amplifier with position feedback (LVDT) |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Seal Material | FKM (Fluorocarbon) for high-temperature and fire-resistant fluid compatibility |
| Filtration Requirement | ISO 4406 cleanliness code 17/15/12 or better recommended |
Engineering Features & Advantages
- Precision Performance: The zero-lapped, critical-center spool design provides infinitely variable flow control with minimal deadband, ensuring high-resolution actuator positioning and smooth velocity transitions in closed-loop servo systems.
- Integrated Servo Feedback: An internal LVDT (Linear Variable Differential Transformer) continuously monitors spool position, enabling the integrated amplifier to correct for flow forces, temperature drift, and supply pressure fluctuations in real time.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its pilot-operated spool architecture delivers smooth, infinitely variable control of actuator velocity, force, and position, making it a critical component in closed-loop servo systems where precise motion fidelity is non-negotiable.
PRODUCT IMAGES

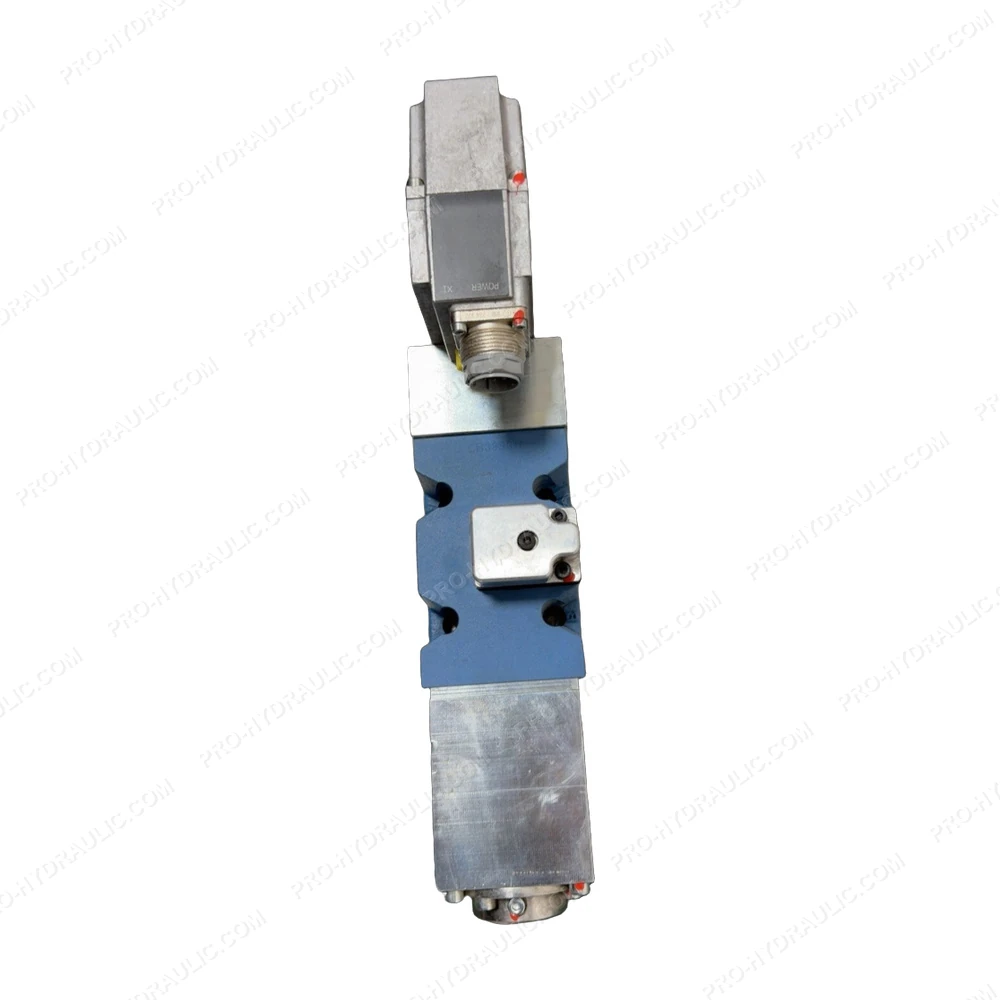

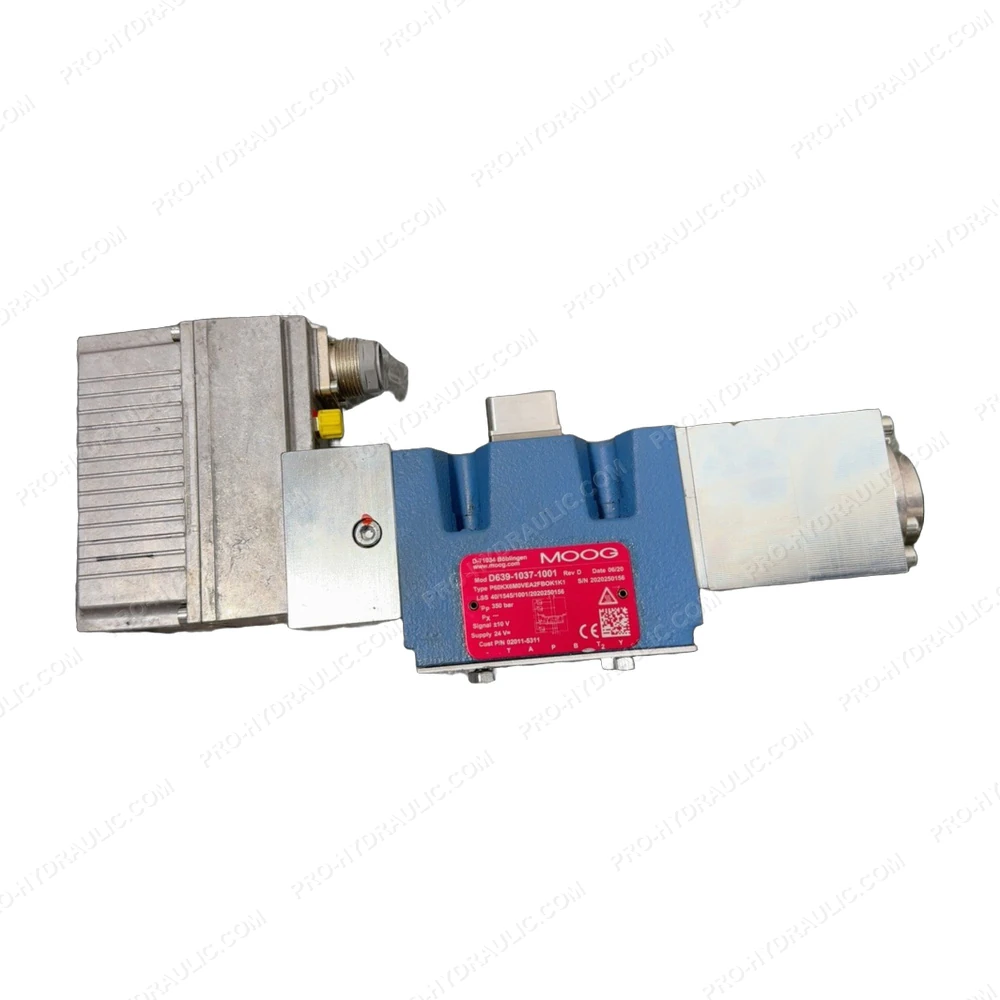

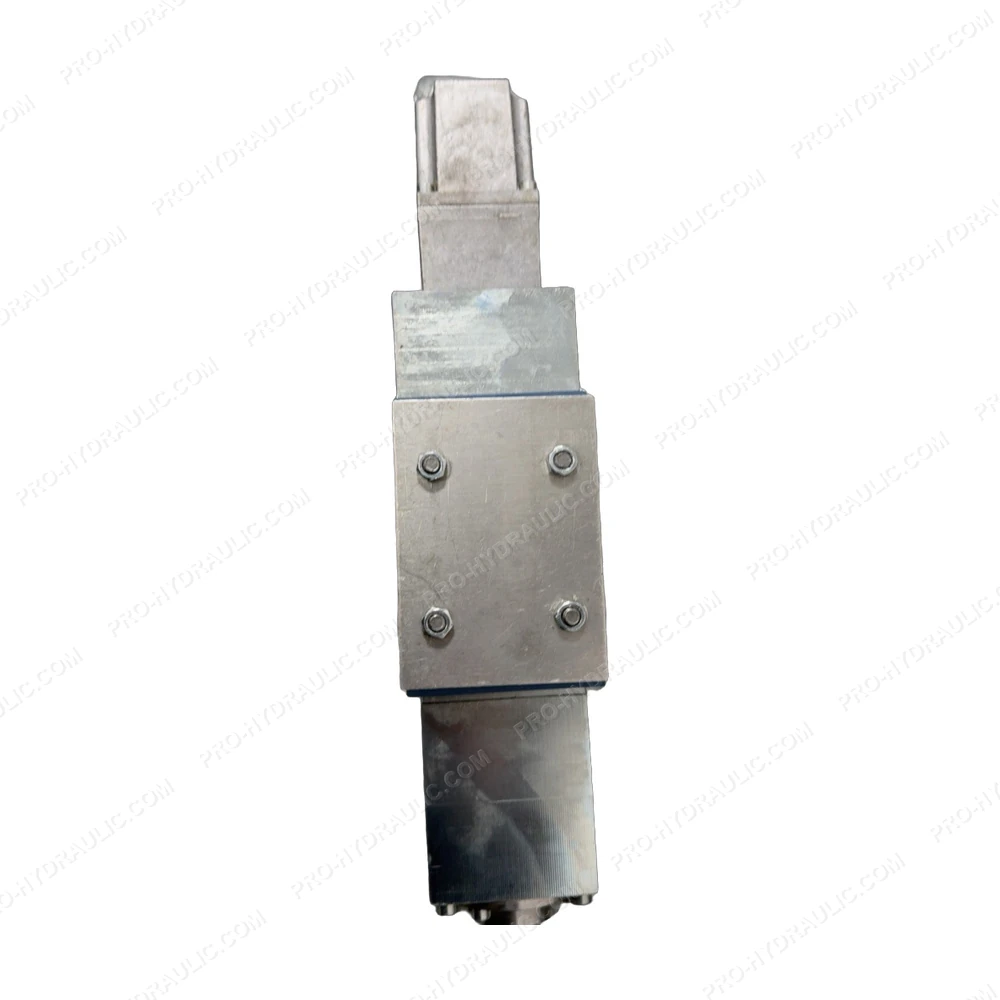

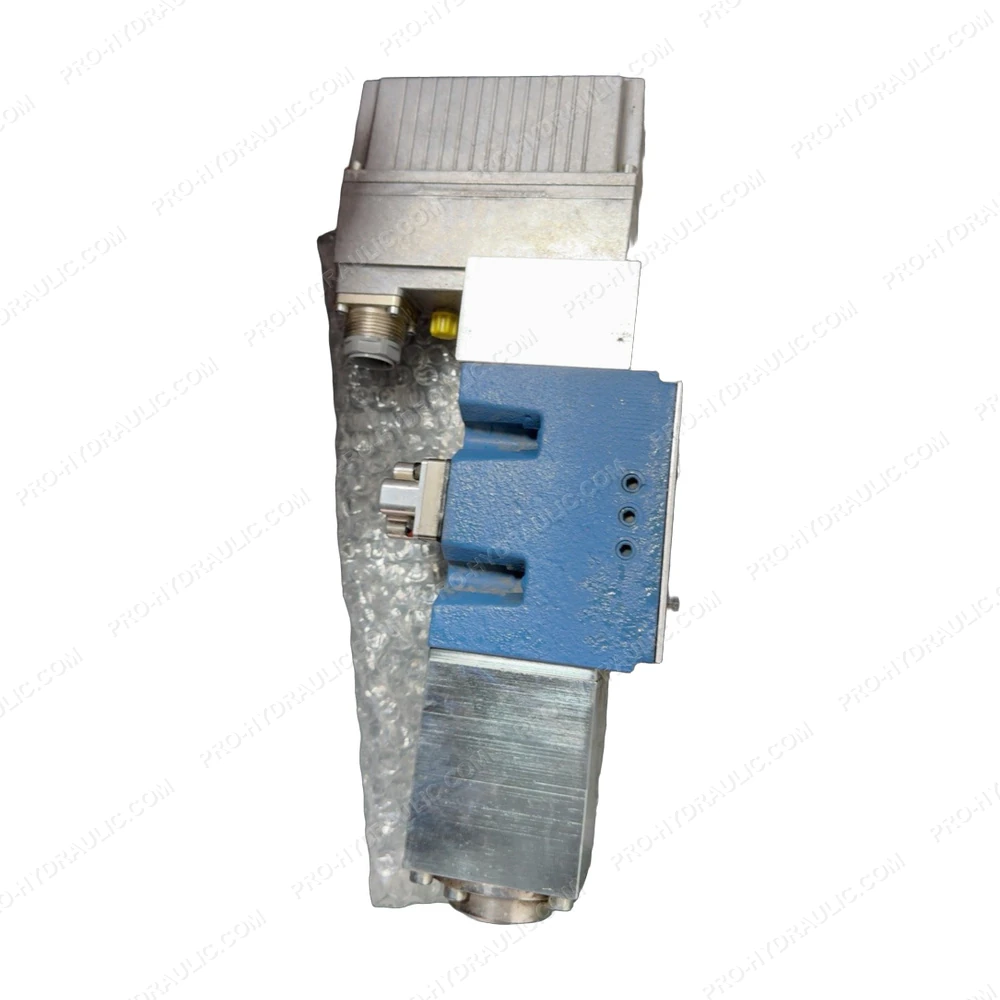

MOOG D639-1037-1001 / P60KX6M0VEA2FBOK1K1 Servo Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D639-1037-1001 / P60KX6M0VEA2FBOK1K1 Servo Proportional Valve. This Germany-made 24 VDC hydraulic component features a high-response spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
