Product Overview
The MOOG D661-4598C / G35JOAA6VSX2HA is a high-performance servo proportional valve from the MOOG D661 series, engineered for precise electrohydraulic control of position, velocity, force, and pressure in demanding industrial and motion control systems. Utilizing a two-stage design with a torque-motor pilot stage and a spool-type main stage, this valve delivers exceptional dynamic response, high resolution, and excellent repeatability. The D661 platform is widely recognized as an industry benchmark for closed-loop control, offering superior contamination tolerance and long service life. The G35JOAA6VSX2HA configuration designation defines the specific spool type, rated flow, coil voltage, and electrical interface, making it a direct-fit solution for OEM and retrofit applications requiring precise proportional and servo control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Spool-Type) |
| Model Designation | D661-4598C / G35JOAA6VSX2HA |
| Manufacturer | MOOG |
| Series | D661 Series Servo Proportional Valve |
| Operating Pressure | Up to 350 bar (5,080 psi) rated system pressure |
| Rated Flow | Nominal 35 L/min at 70 bar valve pressure drop (per spool configuration) |
| Pilot Stage | Torque-motor driven, nozzle-flapper type |
| Main Stage | Four-way, closed-center spool with position feedback |
| Electrical Interface | Integrated valve electronics (OBE) with analog command input |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Seal Material | FKM (Viton) / NBR options per configuration |
| Fluid Compatibility | Mineral-based hydraulic oils, HLP/HM per DIN 51524 |
Engineering Features & Advantages
- Precision Performance: The servo proportional valve (two-stage, spool-type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The G35JOAA6VSX2HA configuration designation defines the specific spool type, rated flow, coil voltage, and electrical interface, making it a direct-fit solution for OEM and retrofit applications requiring precise proportional and servo control.
PRODUCT IMAGES

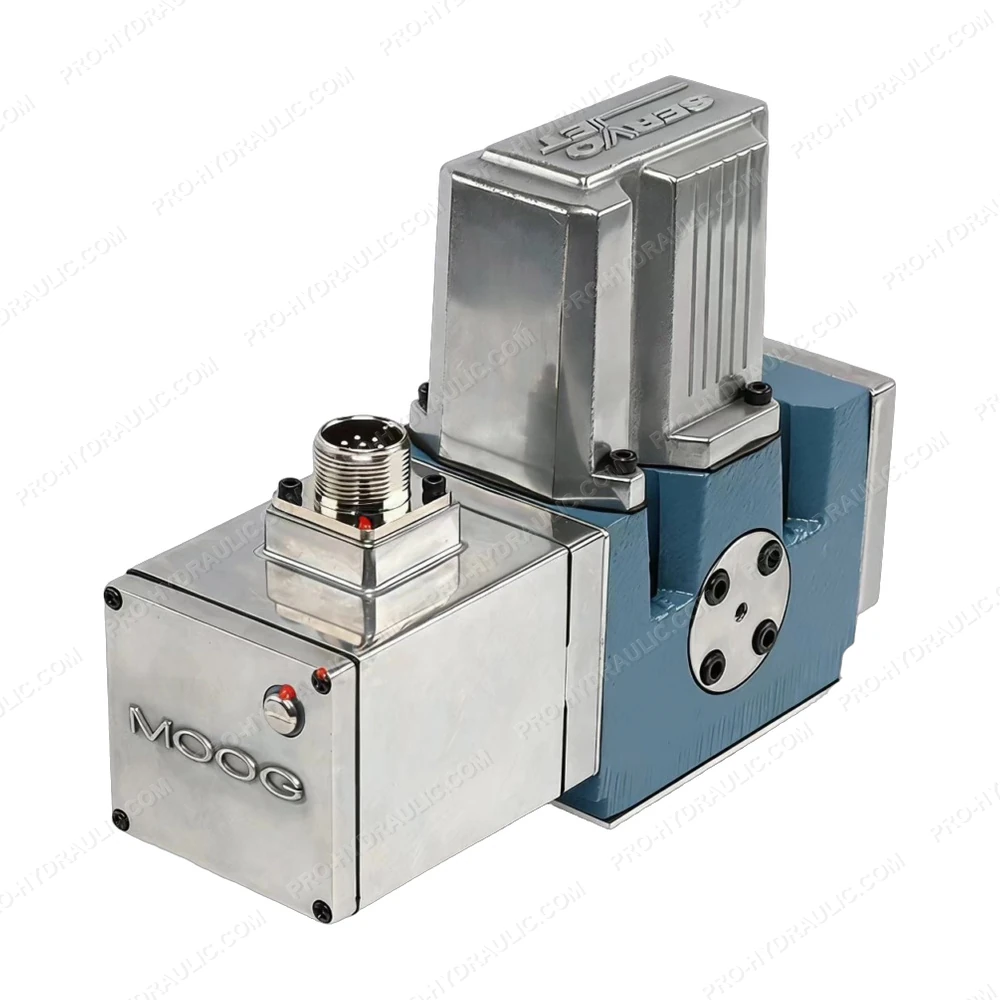

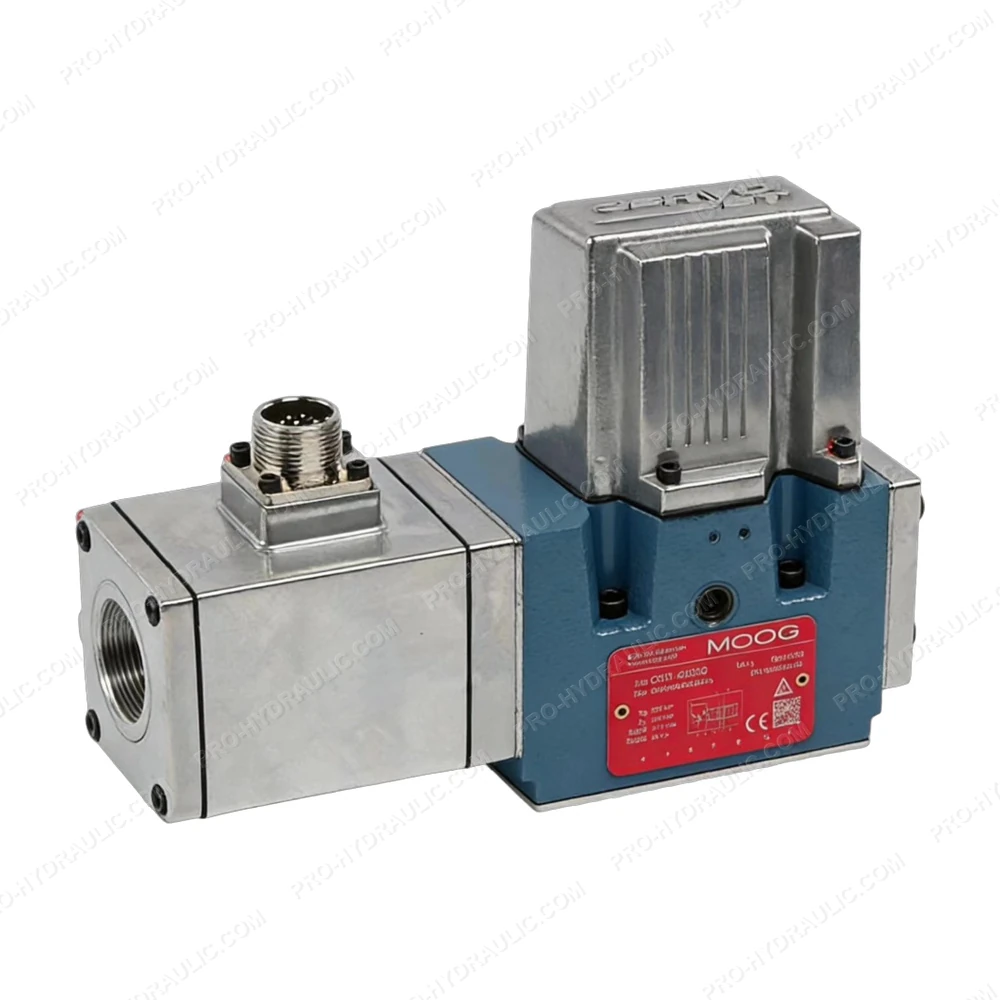

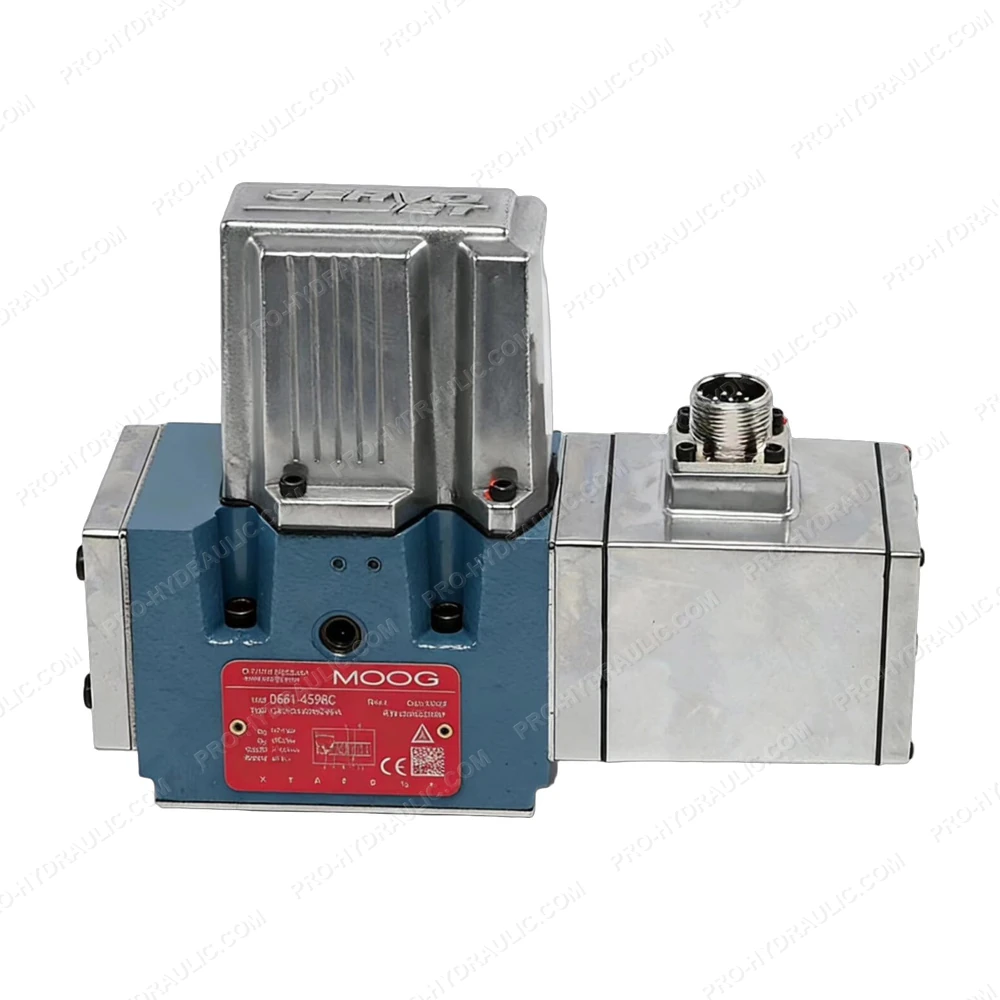

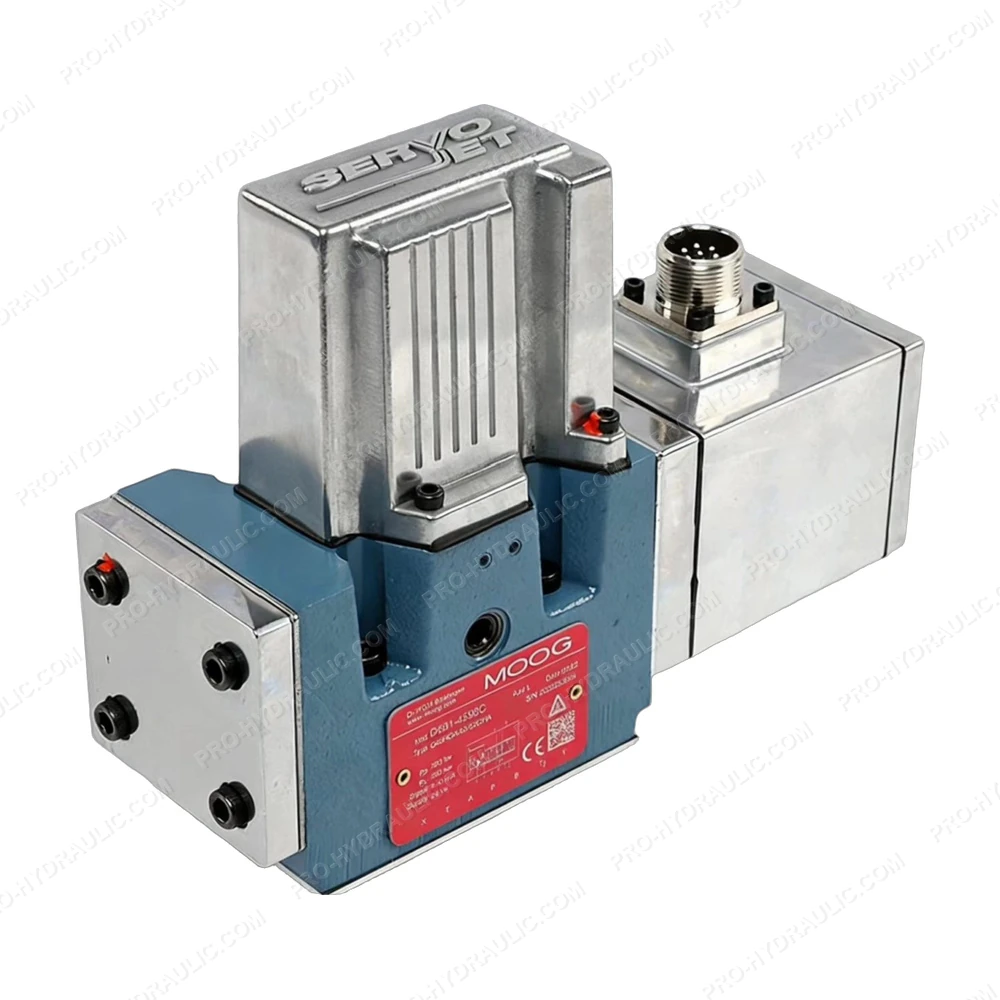

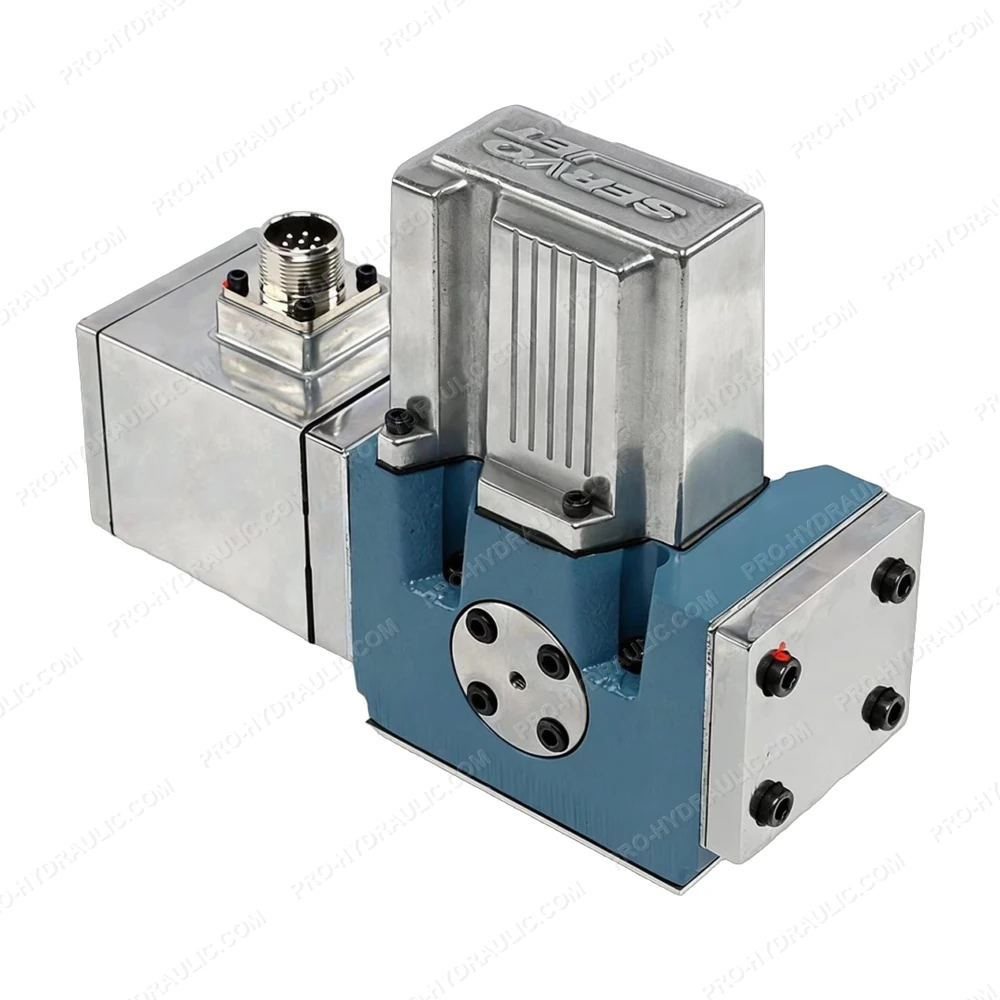

MOOG D661-4598C / G35JOAA6VSX2HA Servo Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D661-4598C / G35JOAA6VSX2HA Servo Valve. This Germany-made high-response hydraulic valve features a two-stage design with spool position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
