Product Overview
The MOOG D661-4598C / R02J D6D1NNE4 is a high-performance servo proportional valve from the MOOG D661 series, engineered for precision electrohydraulic control in demanding industrial and mobile applications. Utilizing MOOG’s proven two-stage servo valve design, this unit features a torque-motor-driven pilot stage that hydraulically actuates a precision spool within the main stage, delivering exceptionally fast dynamic response, high flow capacity, and superior resolution. The D661 platform is widely regarded as the industry benchmark for closed-loop position, velocity, and force control, offering outstanding repeatability and minimal hysteresis. With its robust construction and field-proven reliability, the D661-4598C is the ideal choice for applications requiring precise metering of hydraulic flow in response to low-power electrical command signals.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Spool-Type) |
| Model Designation | D661-4598C / R02J D6D1NNE4 |
| Series | MOOG D661 Series |
| Operating Pressure | Up to 350 bar (5,080 psi) rated |
| Rated Flow | Model-dependent (typically 5–100 L/min at 70 bar valve drop) |
| Pilot Stage | Torque motor with hydraulic pilot spool |
| Main Stage | Precision-ground 4-way spool with position feedback |
| Electrical Command | Analog ±10 V DC / ±10 mA (differential) |
| Mounting & Connection | ISO 4401 / CETOP standard subplate interface |
| Seal Material | NBR / FKM (application-dependent) |
| Fluid Compatibility | Mineral-based hydraulic oil per ISO VG 32–68 |
Engineering Features & Advantages
- Precision Performance: Two-stage torque-motor pilot design delivers high-resolution spool positioning with minimal hysteresis and excellent repeatability, ensuring accurate flow metering for closed-loop control systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original MOOG specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With its robust construction and field-proven reliability, the D661-4598C is the ideal choice for applications requiring precise metering of hydraulic flow in response to low-power electrical command signals.
PRODUCT IMAGES

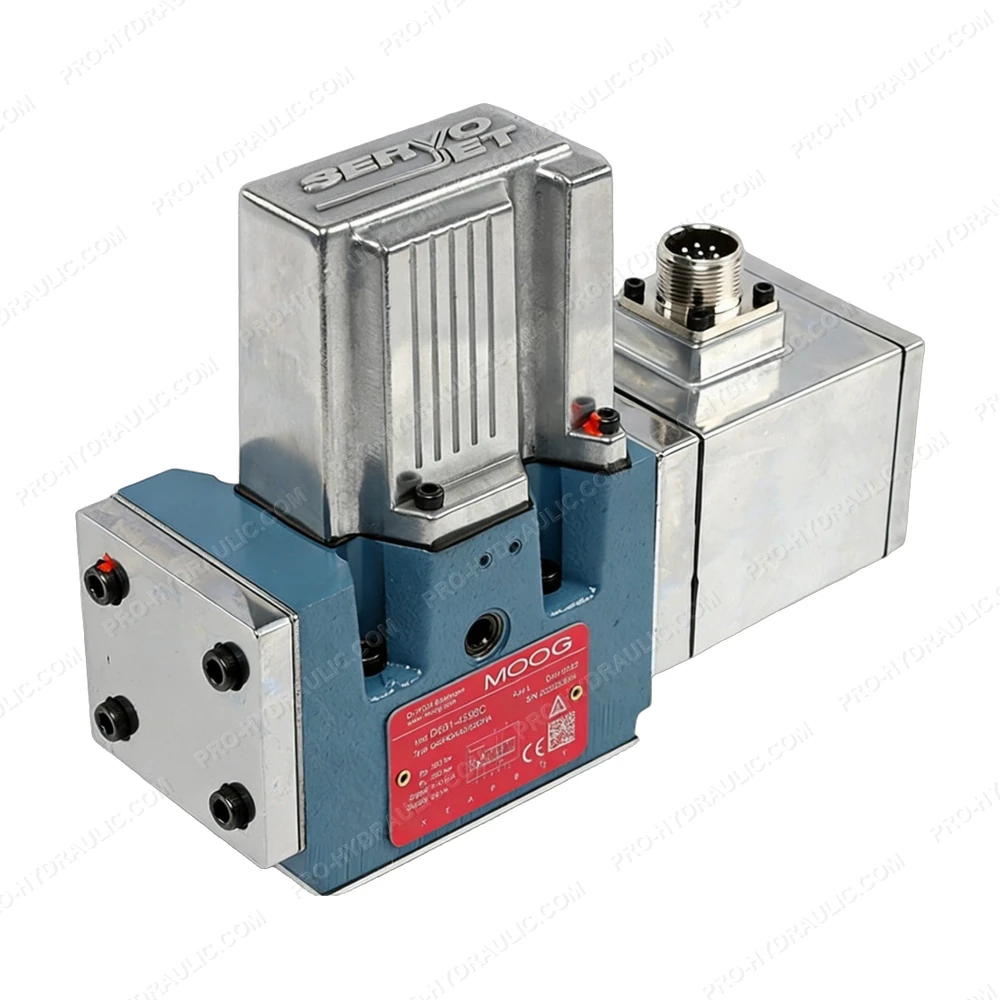

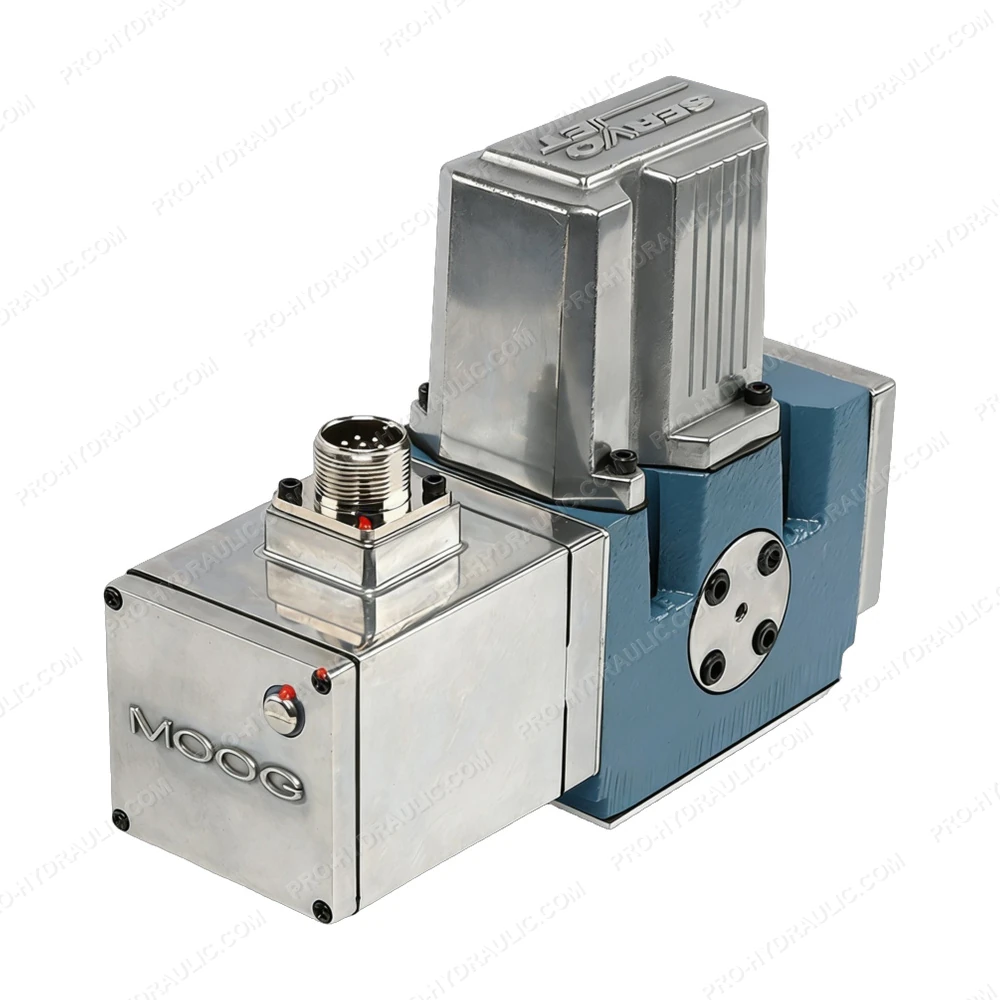

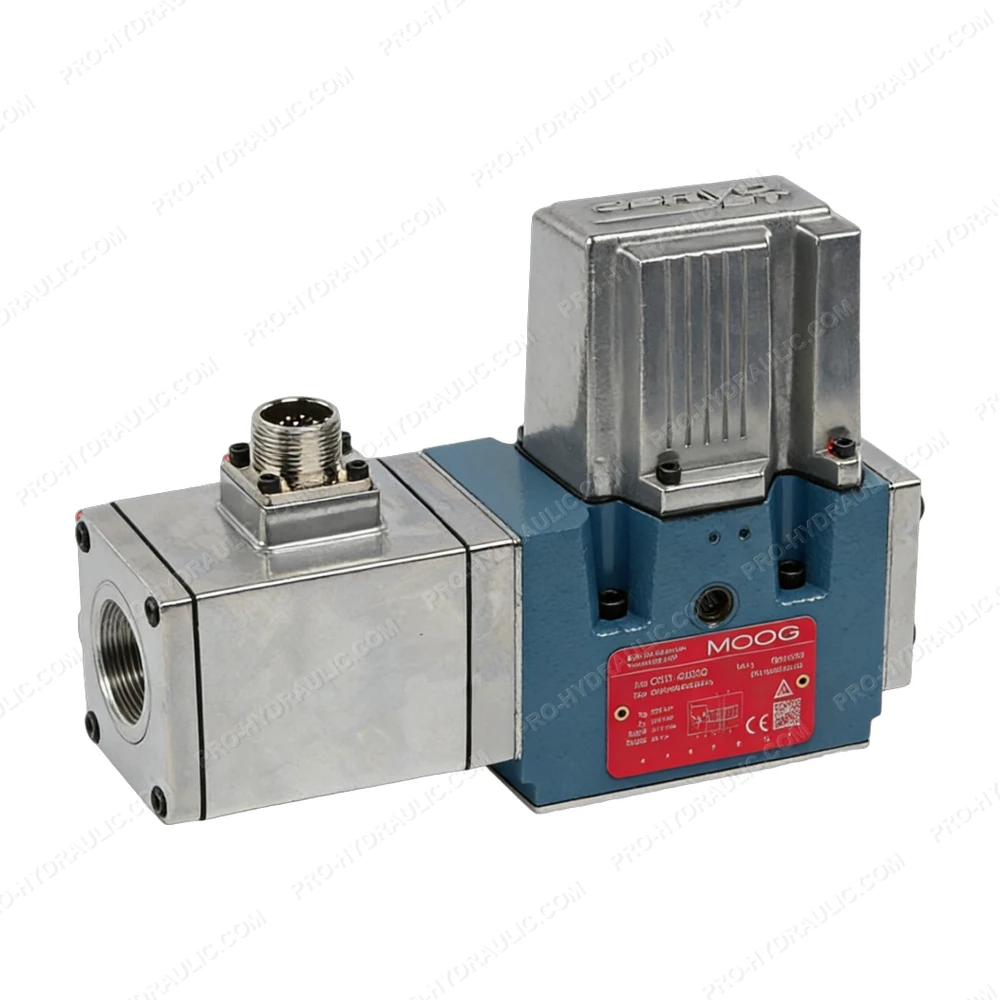

MOOG D661-4598C / R02J D6D1NNE4 Servo Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D661-4598C / R02J D6D1NNE4 Servo Proportional Valve. This Germany-made hydraulic component features a high-response pilot stage, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
