Product Overview
The MOOG D662Z4615K / P02JXMF6VSX5-A is a high-performance servo proportional valve from the MOOG D662 series, engineered for precise electrohydraulic control in demanding industrial and mobile applications. Utilizing MOOG’s proven two-stage servo jet pilot design, this valve delivers exceptional dynamic response, high flow capacity, and superior contamination tolerance. The D662 platform is widely recognized as an industry benchmark for closed-loop position, velocity, and force control, offering seamless integration with modern digital control systems. This valve serves as a critical control element in hydraulic circuits requiring fast, accurate, and repeatable actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Jet Pilot Operated) |
| Model Designation | D662Z4615K / P02JXMF6VSX5-A |
| Series | MOOG D662 Series |
| Operating Pressure | Up to 350 bar (5,080 psi) rated |
| Rated Flow | Model-dependent, up to 400 L/min at 70 bar valve pressure drop |
| Pilot Stage | Integrated jet pilot with permanent magnet torque motor |
| Spool Configuration | 4-way, 3-position, closed-center (standard) |
| Electrical Interface | Standard MOOG valve connector, ±10 VDC or ±10 mA command signal |
| Mounting & Connection | ISO 4401 / CETOP standard subplate mounting interface |
| Filtration Requirement | ISO 4406 cleanliness code 18/16/13 or better recommended |
| Seal Material | FKM (Viton) / NBR depending on fluid compatibility |
Engineering Features & Advantages
- Precision Performance: The MOOG jet pilot stage provides high spool actuation force with minimal sensitivity to contamination, ensuring consistent, repeatable valve positioning and superior closed-loop control accuracy in dynamic applications.
- Fast Dynamic Response: Optimized torque motor and pilot design deliver high-frequency response, enabling precise tracking of rapidly changing command signals for demanding motion control profiles.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The D662 platform is widely recognized as an industry benchmark for closed-loop position, velocity, and force control, offering seamless integration with modern digital control systems.
PRODUCT IMAGES

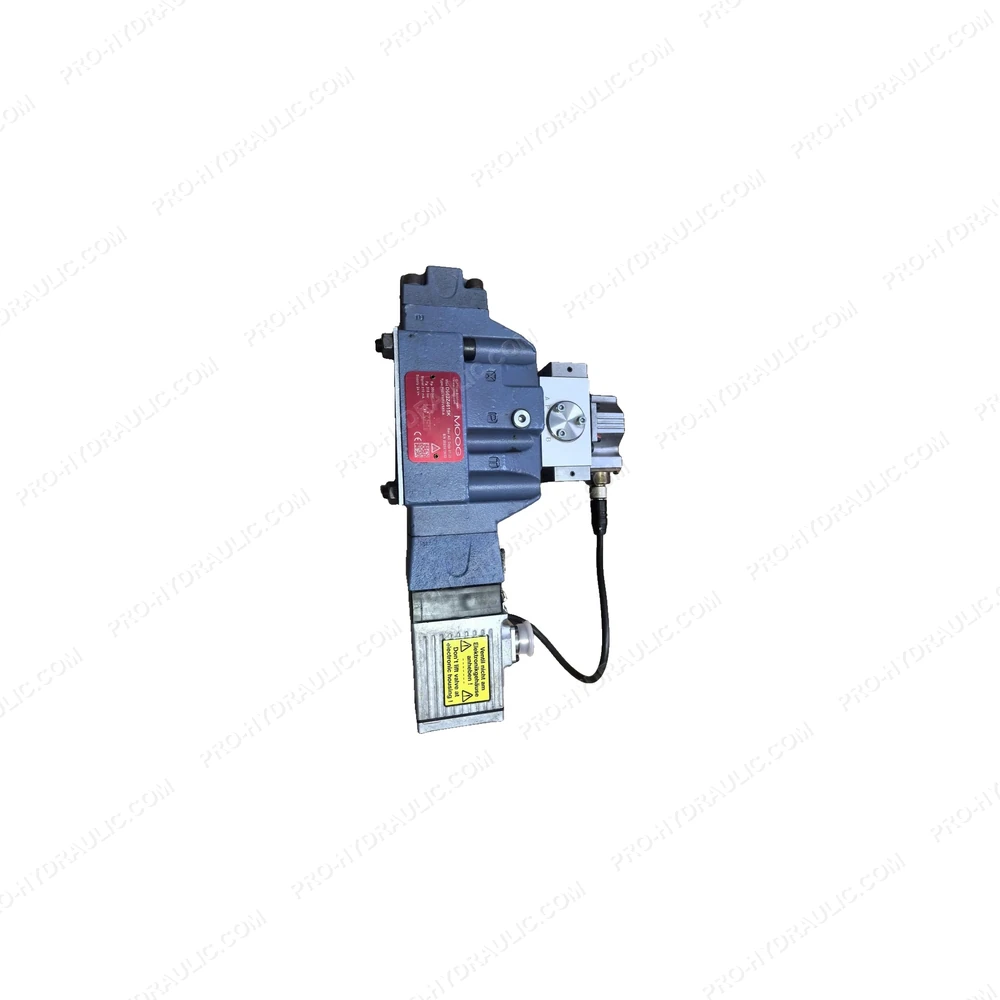

MOOG D662Z4615K / P02JXMF6VSX5-A Servo Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D662Z4615K / P02JXMF6VSX5-A Servo Proportional Valve. This US-made hydraulic component features a high-response pilot stage, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
