Product Overview
The MOOG D664Z5703 is a high-performance servo proportional valve from the MOOG D664 series, engineered for precise electrohydraulic control of flow and pressure in demanding industrial and mobile applications. Featuring MOOG’s proven two-stage design with a torque motor pilot stage and a spool-type main stage, this valve delivers exceptional dynamic response, high resolution, and excellent repeatability. The D664Z5703 is a direct-operated, closed-loop servo proportional valve designed for position, velocity, force, and pressure control in hydraulic systems requiring fast response and precise metering. Its robust construction and advanced spool geometry ensure minimal hysteresis, low leakage, and long service life, making it a critical component in high-precision motion control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Servo Proportional Valve (Two-Stage, Spool-Type) |
| Model Designation | MOOG D664Z5703 |
| Operating Pressure | Up to 350 bar (5075 psi) rated, standard industrial grade |
| Rated Flow | Model-dependent (D664 series typically 5–100 L/min at 70 bar valve drop) |
| Pilot Stage | Torque motor with dual nozzle-flapper or jet-pipe design |
| Main Stage | Precision-ground spool in hardened sleeve, closed-center configuration |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Electrical Interface | Standard MOOG valve connector, analog command signal (±10 V or 4–20 mA) |
| Hysteresis | < 0.5% of rated signal (typical for D664 series) |
| Response Time | High dynamic response, suitable for closed-loop control (typically 10–30 ms step response) |
Engineering Features & Advantages
- Precision Metering & Control: The two-stage spool design with torque motor pilot provides extremely fine flow resolution and minimal deadband, enabling accurate position, velocity, and force control in closed-loop hydraulic systems.
- High Dynamic Response: Fast step response and high frequency response make the D664Z5703 ideal for applications requiring rapid actuation and precise trajectory tracking.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The D664Z5703 is a direct-operated, closed-loop servo proportional valve designed for position, velocity, force, and pressure control in hydraulic systems requiring fast response and precise metering.
PRODUCT IMAGES

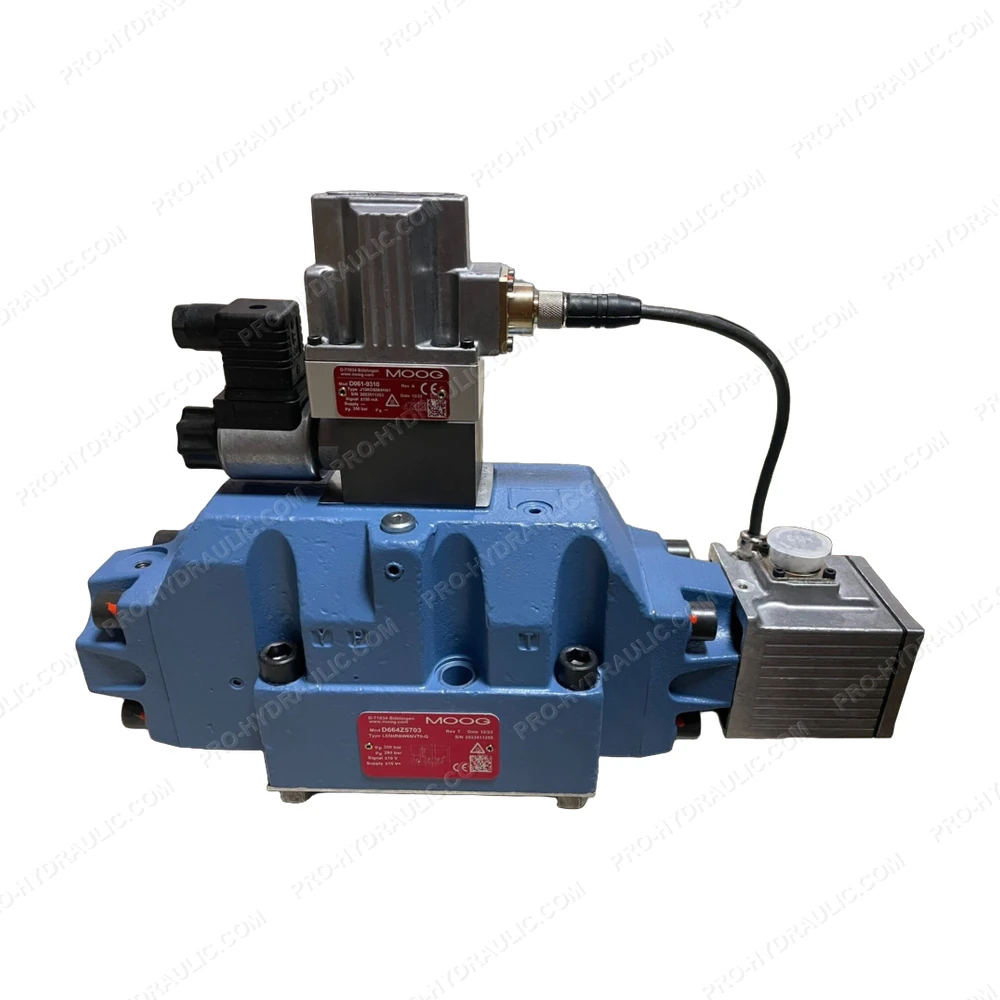

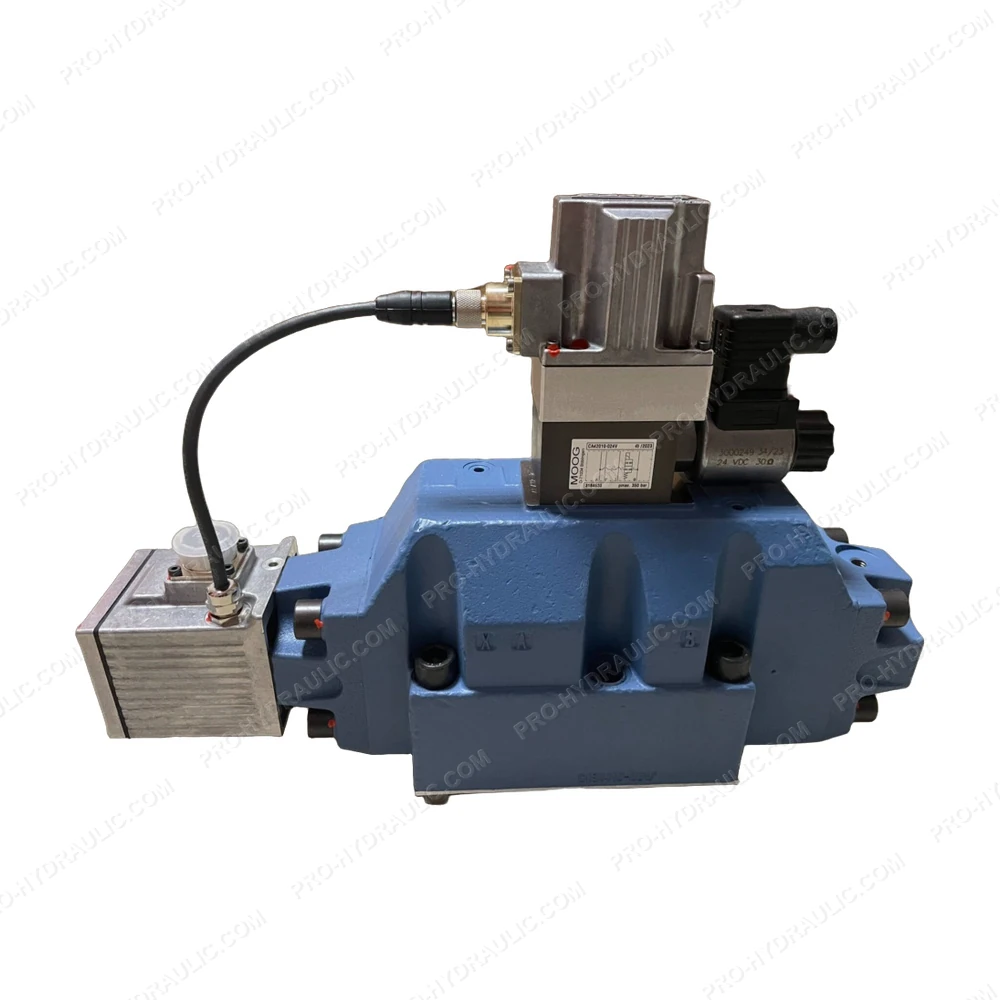

MOOG D664Z5703 Servo Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D664Z5703 Servo Proportional Valve. This Germany-made high-response hydraulic valve features a two-stage design with spool position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
