Product Overview
The MOOG D765-606G / S04J0GAEUSA0 is a high-performance, two-stage electrohydraulic servo valve engineered by MOOG, the global benchmark in precision motion control. Operating on a nozzle-flapper pilot stage with a spool-type main stage, this valve converts low-power electrical command signals into highly accurate hydraulic flow and pressure outputs. It is designed for closed-loop position, velocity, and force control in demanding industrial and aerospace-derived motion systems where dynamic response, resolution, and long-term null stability are critical. The D765 series is a proven workhorse in applications requiring fast response times, minimal hysteresis, and precise metering of hydraulic fluid.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electrohydraulic Servo Valve (Two-Stage, Nozzle-Flapper Pilot) |
| Model Designation | D765-606G / S04J0GAEUSA0 |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar / 315 bar rated, depending on configuration) |
| Rated Flow | Nominal 4–40 L/min at 70 bar per land (model-dependent) |
| Pilot Stage | Nozzle-flapper with integrated filter and orifice assembly |
| Main Stage | Four-way, closed-center spool with precision-ground metering lands |
| Mounting & Connection | Standard ISO 4401 / MOOG subplate interface, 4-way port configuration |
| Electrical Interface | Standard MOOG torque motor connector, dual coil configuration |
| Hysteresis | < 3% of rated current (typical) |
| Threshold | < 0.5% of rated current (typical) |
Engineering Features & Advantages
- Precision Performance: The nozzle-flapper pilot stage delivers extremely high resolution and fast dynamic response, enabling accurate metering of flow and pressure for closed-loop control with minimal deadband and hysteresis.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust torque motor construction and contamination-resistant pilot filtration ensuring long service life in high-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG D765 series servo valves, ensuring drop-in replacement without modification to manifolds or control electronics.
- Direct Fit Replacement: Precision-manufactured to original MOOG specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The D765 series is a proven workhorse in applications requiring fast response times, minimal hysteresis, and precise metering of hydraulic fluid.
PRODUCT IMAGES

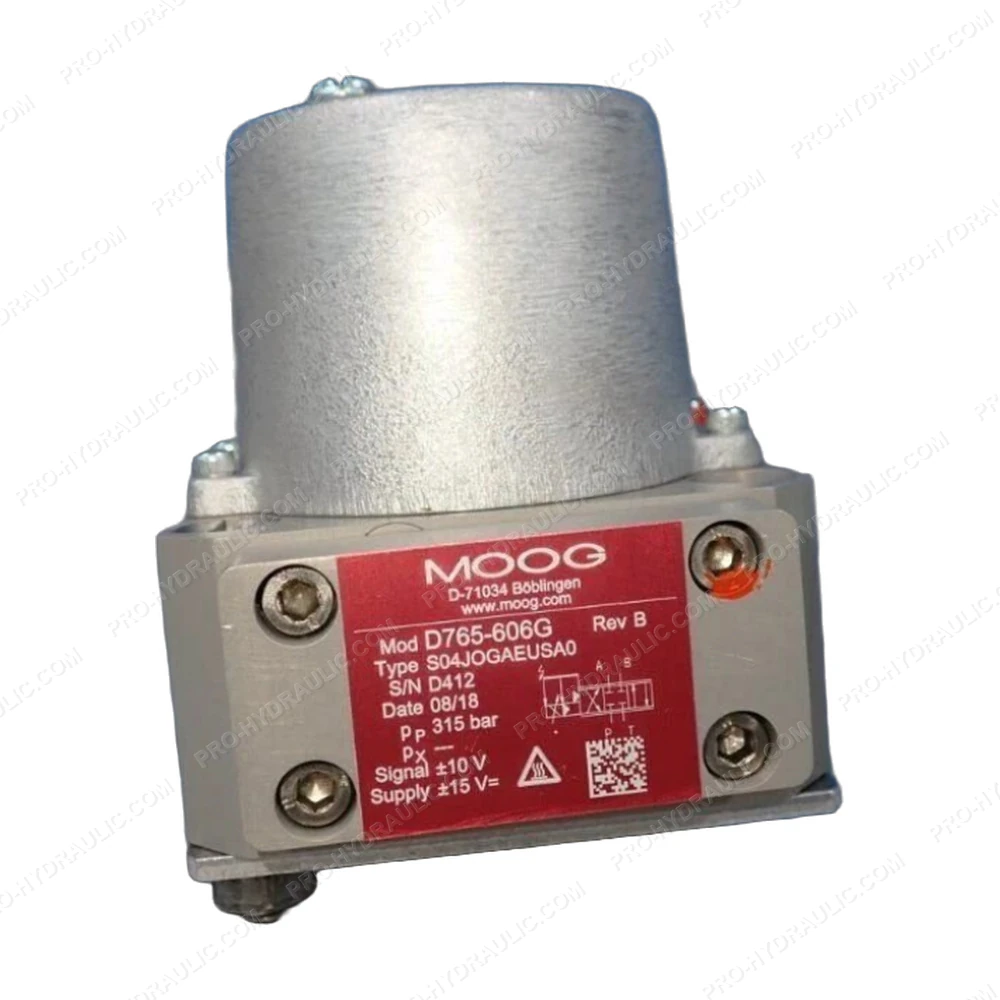

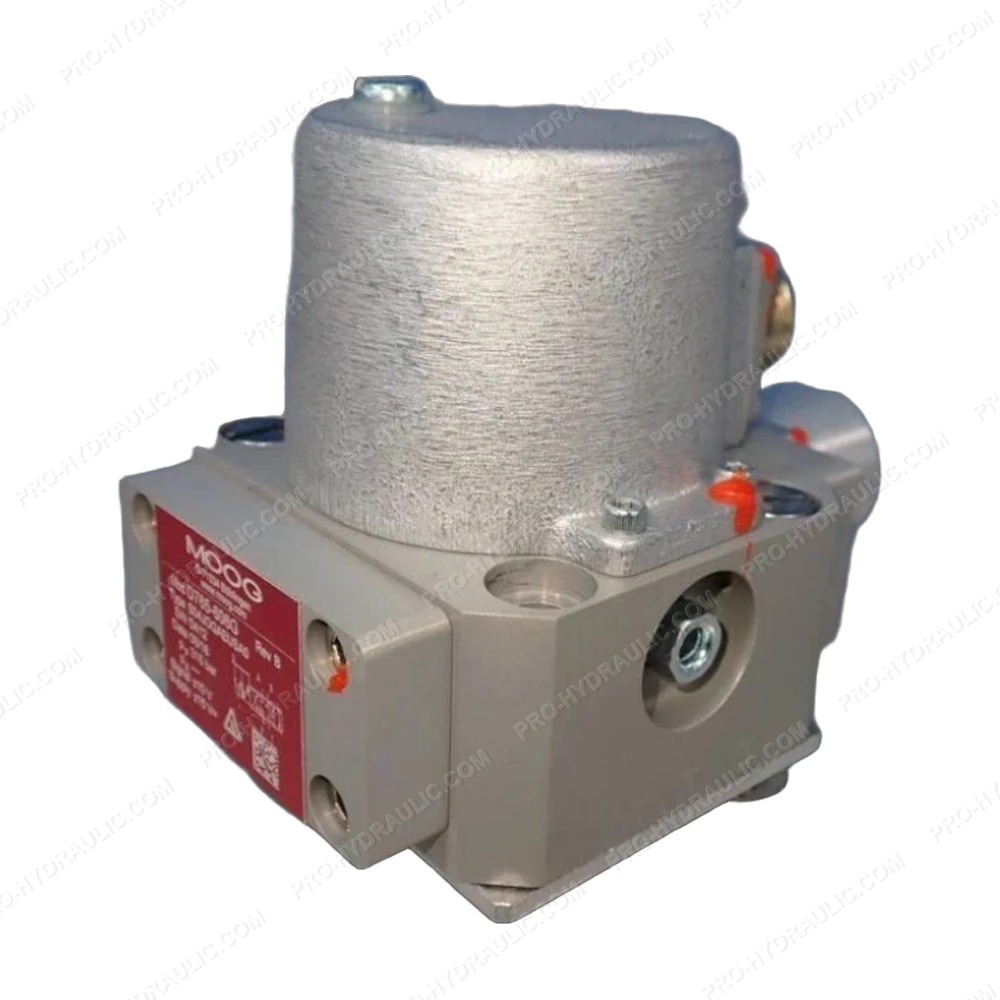

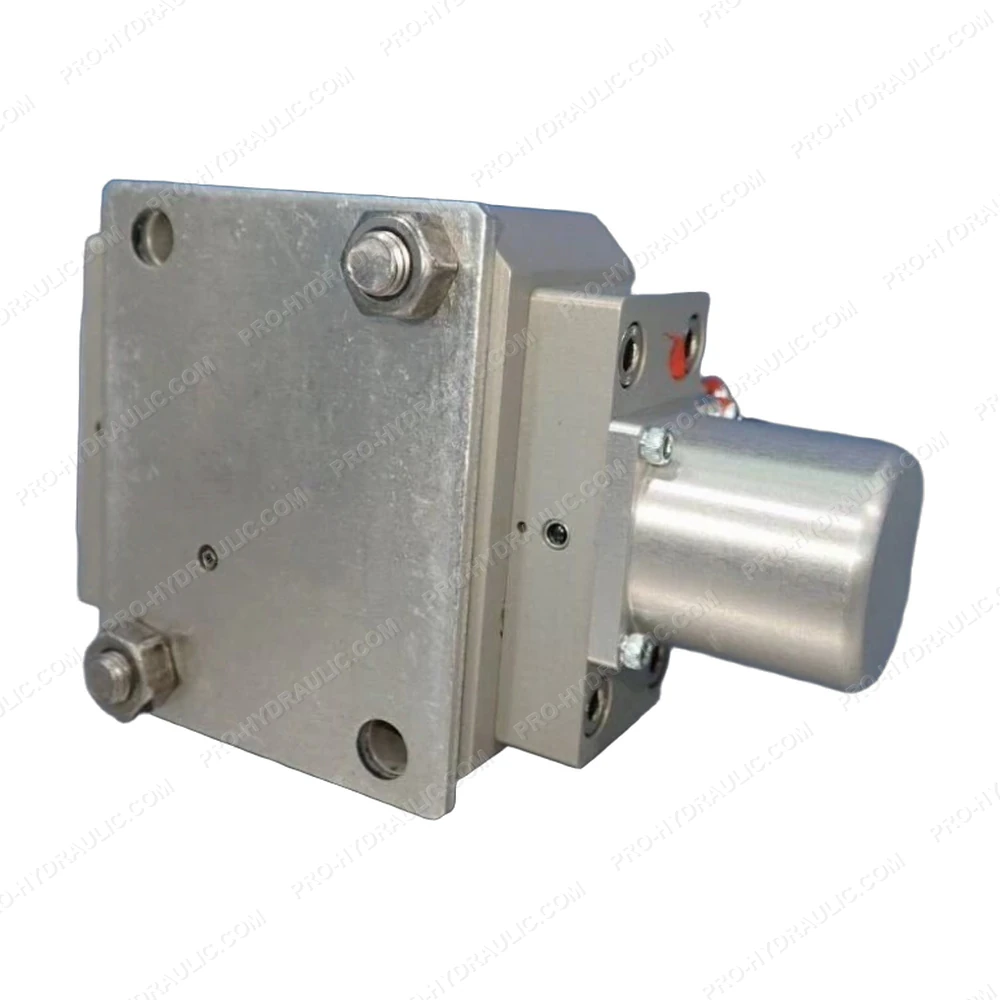

MOOG D765-606G / S04J0GAEUSA0 Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG D765-606G / S04J0GAEUSA0 Servo Valve. This Germany-made 24V DC hydraulic component features a high-performance servo design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
