Product Overview
The MOOG G761-3008B is a high-performance, two-stage electrohydraulic servo valve manufactured by MOOG, the global benchmark in precision motion control. It operates on a nozzle-flapper pilot stage (first stage) that hydraulically deflects a spool within the second-stage sliding spool assembly, delivering infinitely variable, bidirectional flow control proportional to the electrical input current. Designed for closed-loop position, velocity, force, and pressure control, the G761-3008B serves as the critical interface between electronic command signals and high-pressure hydraulic actuation in demanding industrial and aerospace-grade motion systems. Its dry torque motor, rugged spool-in-bushing design, and field-proven mechanical feedback architecture ensure fast dynamic response, minimal hysteresis, and long-term null stability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electrohydraulic Servo Valve (Two-Stage, Nozzle-Flapper Pilot / Spool Second Stage) |
| Model Designation | MOOG G761-3008B |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar / 3,000 psi rated supply) |
| Rated Flow | Nominal 38 L/min (10 gpm) at 70 bar (1,000 psi) per land, model-dependent |
| Rated Input Current | ±40 mA (differential, standard torque motor coil) |
| Hysteresis & Threshold | < 3% and < 0.5% of rated current respectively |
| Mounting & Connection | Standard ISO 4401 / MOOG subplate interface with 4-bolt flange pattern |
| Hydraulic Fluid | Mineral-based hydraulic oil, ISO VG 32–68, cleanliness ISO 4406 16/13 or better |
Engineering Features & Advantages
- Precision Performance: The nozzle-flapper pilot stage delivers extremely high resolution and low threshold, enabling accurate micro-positioning and smooth velocity control in closed-loop servo systems.
- Fast Dynamic Response: High spool drive force and low inertial mass yield rapid step response and wide frequency bandwidth, essential for high-cycle industrial motion profiles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a dry torque motor isolated from hydraulic fluid and a hardened, wear-resistant spool-in-bushing assembly for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG G761 series OEM standards, ensuring drop-in interchangeability without subplate or piping modification.
Typical Industrial Applications
The MOOG G761-3008B is deployed across heavy industrial and high-precision motion control scenarios, including plastic injection molding machines requiring precise injection and clamp force control, metallurgical presses and rolling mill gauge control
PRODUCT IMAGES

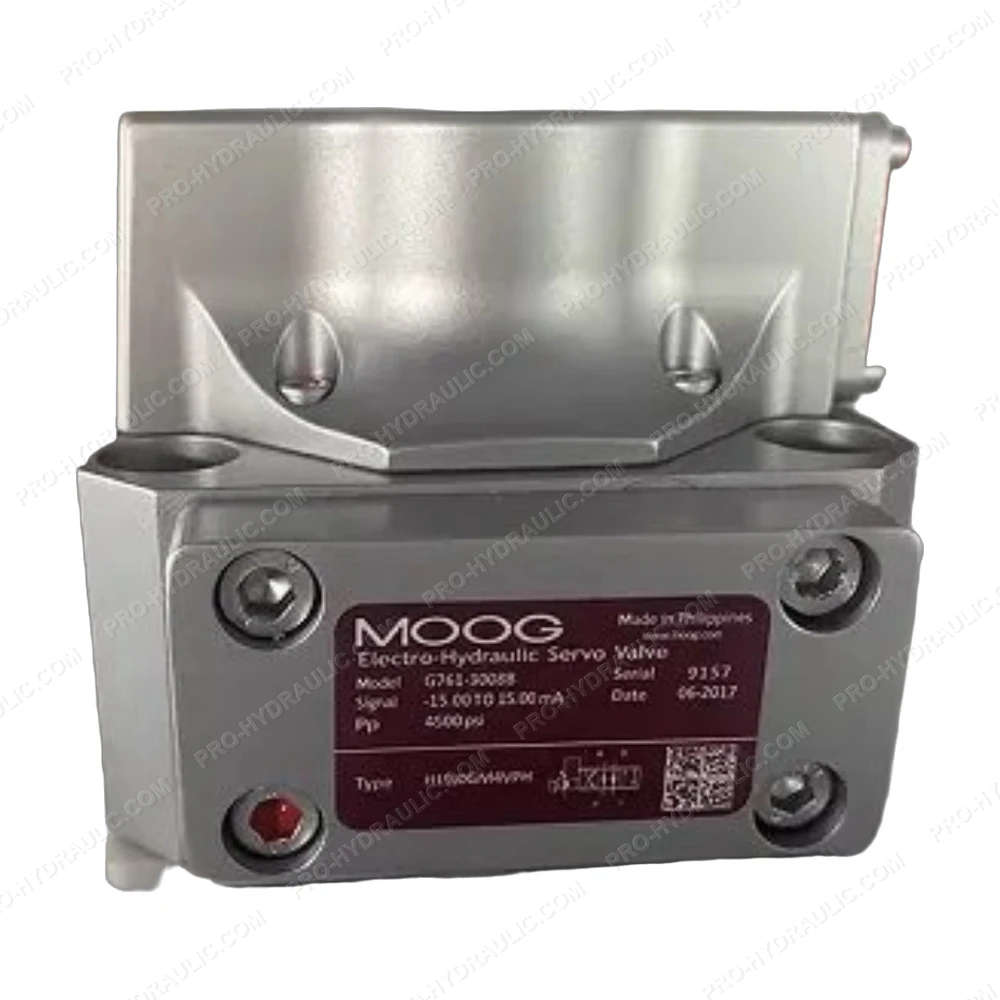

MOOG G761-3008B Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG G761-3008B Servo Valve. This USA-made high-performance hydraulic component features a two-stage design with mechanical feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
