The NACHI CTS-G01-2-11 is a heavy-duty industrial modular flow control valve engineered for precise regulation of actuator speed within hydraulic power circuits. Designed to sandwich directly between a directional control valve and a subplate, it provides meter-in or meter-out control without additional piping, reducing leak points and installation time in compact manifold assemblies.
NACHI CTS-G01-2-11 Technical Specifications
| Manufacturer | NACHI |
| Model | CTS-G01-2-11 |
| Valve Type | Modular Flow Control Valve |
| Mounting Standard | ISO 4401 / CETOP 3 (NG6) |
| Nominal Flow Rate | Up to 30 L/min |
| Maximum Operating Pressure | 250 bar |
| Adjustment Type | Manual screw with locknut |
| Fluid Compatibility | Mineral-based hydraulic oil |
| Body Material | Cast iron |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Sandwich-style modular body mounts directly to CETOP 3 / ISO 4401 interfaces
- Pressure-compensated flow regulation maintains set flow regardless of load variation
- Fine-thread manual adjustment screw with locking nut for stable setting retention
- Compact cast-iron construction with high-pressure internal passages
- Compatible with standard NACHI modular stack configurations
Industrial Applications
- Machine tool hydraulic power units
- Injection molding machine circuits
- Press and forming equipment
- Material handling and lifting systems
- General industrial hydraulic manifolds
For technical inquiries, dimensional drawings, or replacement support for NACHI CTS-G01-2-11, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

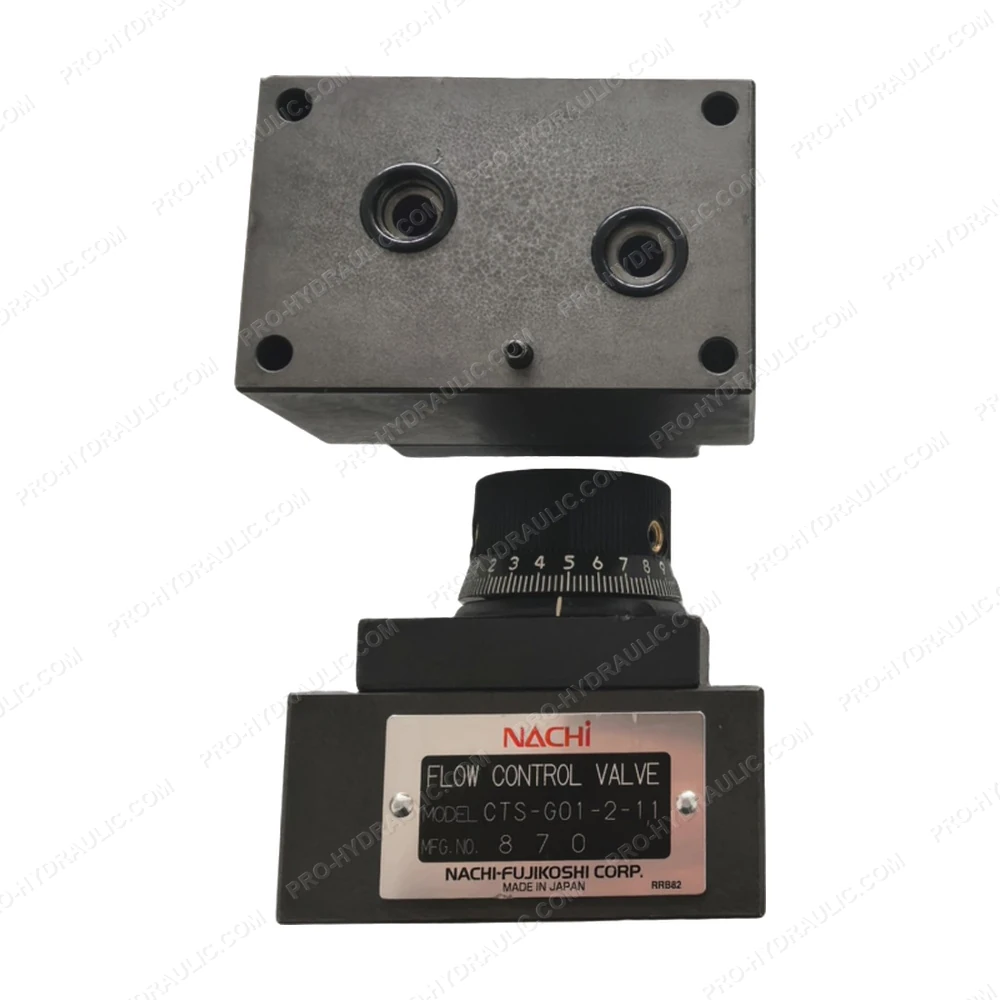

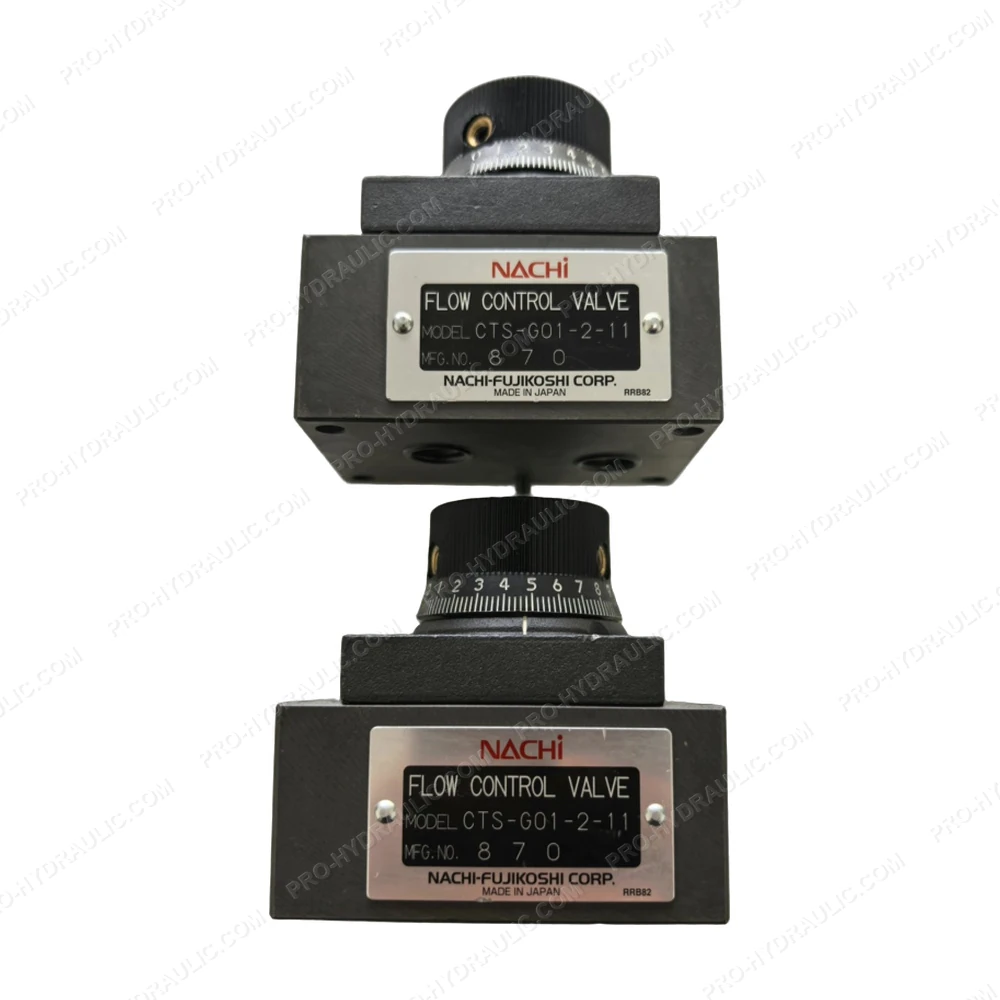

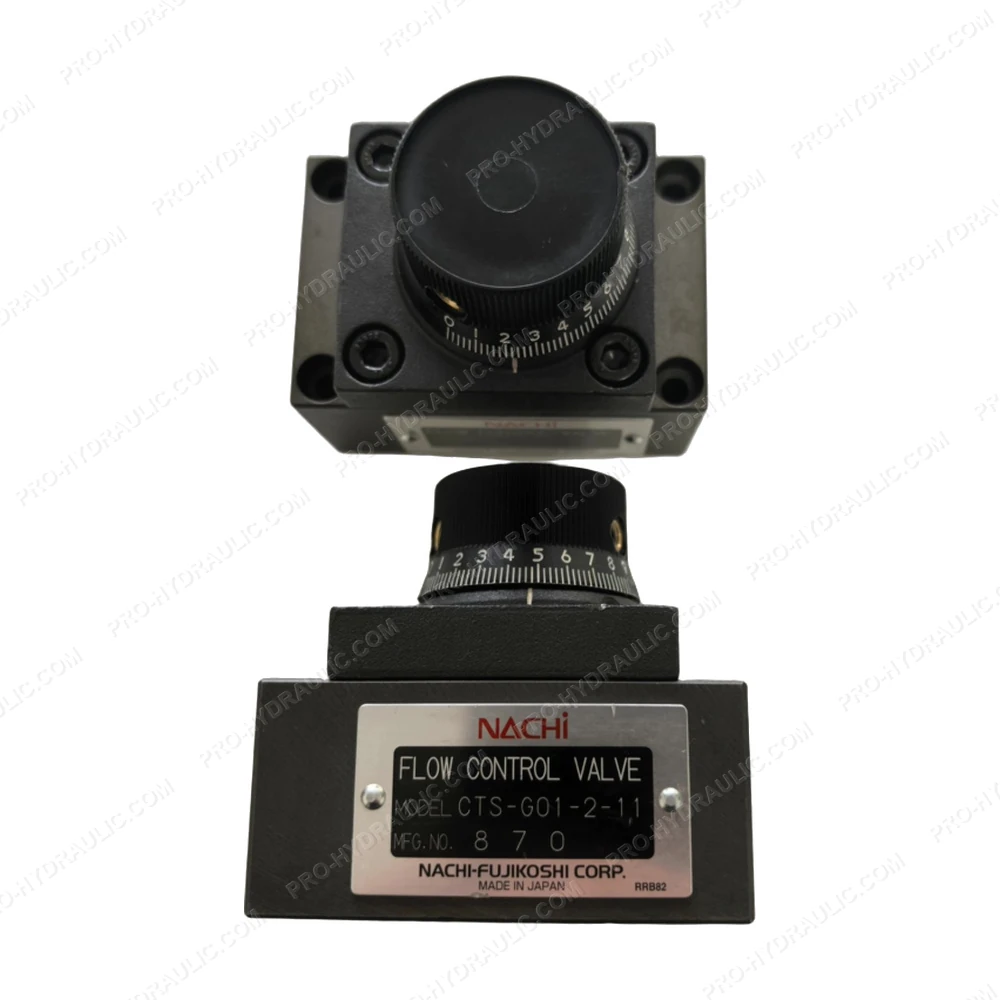

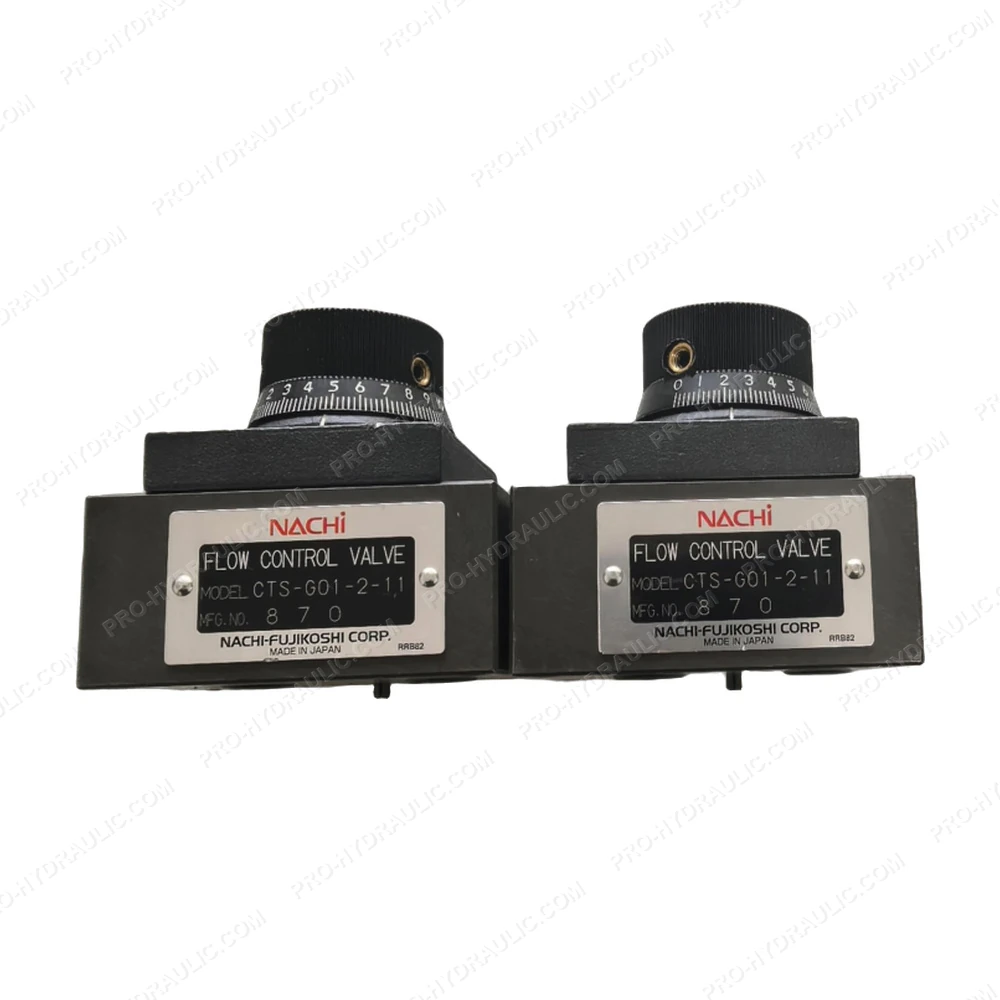

NACHI CTS-G01-2-11 Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NACHI CTS-G01-2-11 Modular Flow Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
