Product Overview
The NACHI OCP-G03-A1-J50 is a modular counterbalance valve from the Nachi OCP series, engineered to provide precise load-holding and controlled lowering functions within industrial hydraulic systems. Designed around the NG6 (CETOP 3 / ISO 4401-03) modular interface, this valve is sandwiched between a directional control valve and a subplate or manifold, regulating return-line flow to prevent uncontrolled actuator descent under overrunning or gravity-induced loads. The OCP-G03-A1-J50 combines a pilot-operated counterbalance cartridge with an integral check function, delivering stable pressure setting, low internal leakage, and repeatable response across demanding duty cycles. As a modular component, it eliminates the need for separate line-mounted hardware, simplifying circuit architecture and reducing potential leak points in high-pressure industrial installations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Counterbalance Modular Valve (Flow Control & Modular Valve) |
| Model Designation | OCP-G03-A1-J50 |
| Manufacturer | NACHI (Nachi-Fujikoshi) |
| Mounting Interface | NG6 / CETOP 3 / ISO 4401-03 Modular Sandwich Pattern |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Nachi OCP series) |
| Function | Pilot-Operated Counterbalance with Integral Check |
| Adjustment | Manual Pressure Setting (Locknut-Protected Adjustment Screw) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Pilot-operated spool and poppet geometry delivers accurate, repeatable pressure setting for controlled load lowering and reliable holding of suspended loads without drift.
- Integrated Check Function: The built-in free-flow check permits unrestricted flow in the actuating direction, ensuring fast cylinder extension while the counterbalance function governs the return path.
- Modular Sandwich Design: Conforms to the NG6 / CETOP 3 interface, allowing direct stacking between directional valves and subplates for compact, leak-minimized circuit construction.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and stable performance across wide temperature and pressure ranges.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Nachi OCP-G03 series standards for drop-in service and retrofit.
Typical Industrial Applications
The NACHI OCP-G03-A1-J50 is widely deployed in hydraulic circuits requiring dependable load holding and controlled descent, including plastic injection molding machines, metallurgical presses and rolling equipment, construction and marine hydraulic systems, and CNC machine tools with vertical or gravity-loaded axes. It is equally suited to material handling equipment, die-casting machinery, and general industrial power units
PRODUCT IMAGES

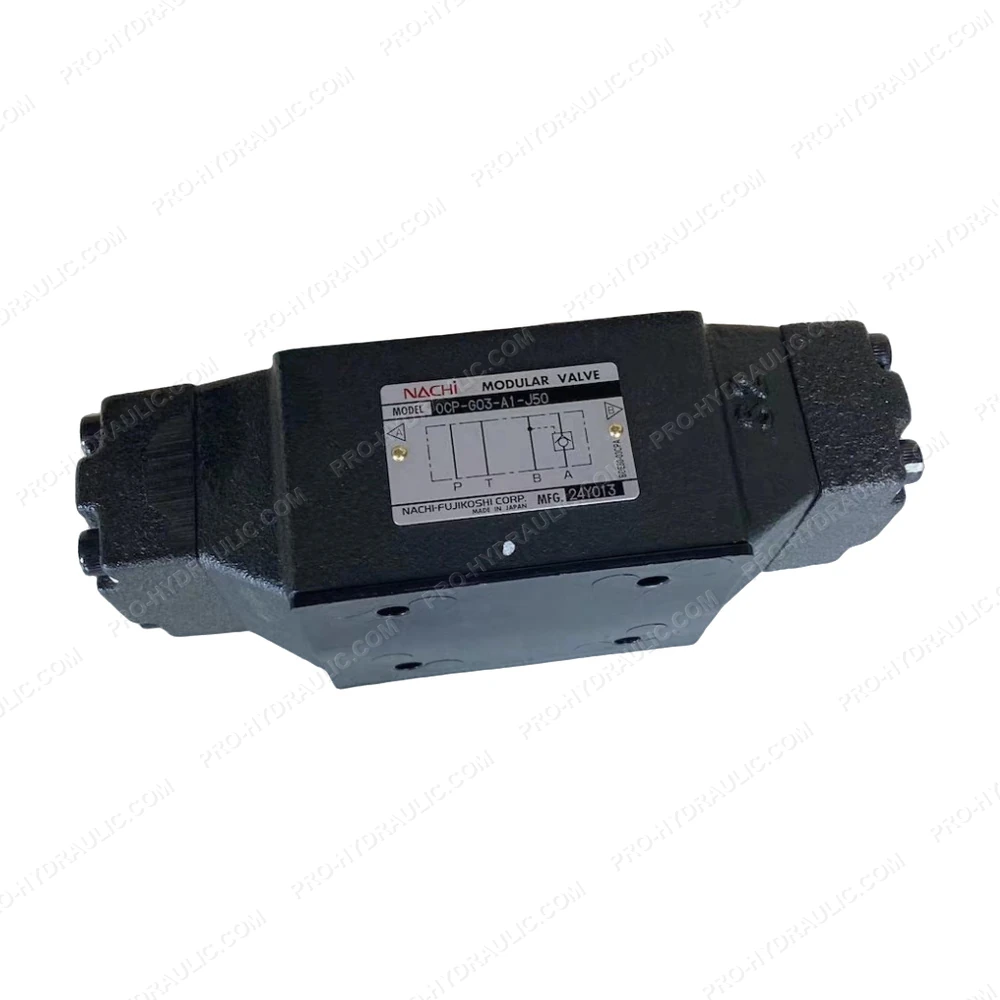

NACHI OCP-G03-A1-J50 Counterbalance Modular Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NACHI OCP-G03-A1-J50 Solenoid Operated Directional Control Valve. This Japan-made 100V AC hydraulic component features a spring-centered, 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
