Product Overview
The NACHI SS-G01-C5-FR-E2-31 is a solenoid operated directional control valve from the NACHI SS series, engineered for precise control of hydraulic fluid flow direction in industrial power units. This valve utilizes a wet-armature solenoid design that shifts a precision-ground spool within a hardened valve body, directing flow between ports to extend, retract, or hold hydraulic actuators. As a standard directional control valve, it serves as a critical interface between the hydraulic power source and the machine’s actuation circuit, providing reliable switching, holding, and directional control functions in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | SS-G01-C5-FR-E2-31 |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO / NACHI Interface (Subplate Mounting) |
| Spool Configuration | C5 Spool Type (Closed Center) |
| Actuation Method | Solenoid Operated (Spring Return / Spring Centered) |
| Electrical Connection | E2 Solenoid Coil with DIN Connector |
| Flow Capacity | Rated for standard industrial flow rates (NG6 / CETOP 3) |
Engineering Features & Advantages
- Precision Spool Metering: The C5 spool configuration provides precise flow control with minimal internal leakage, ensuring accurate actuator positioning and stable holding under load.
- Wet-Armature Solenoid Design: The E2 solenoid coil operates with high efficiency and reduced heat generation, delivering consistent shifting force and extended service life in continuous duty cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened spool and body components resisting wear and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM NACHI SS series standards, ensuring drop-in installation without modification.
- Fast Response Time: Optimized solenoid and spring return mechanism delivers rapid spool shifting for high-cycle machine operations.
Typical Industrial Applications
This NACHI directional control valve is widely deployed in plastic injection molding machines for mold open/close and ejector circuits, metallurgical presses for ram advance and retract control, CNC machine tools for tool clamping and pallet changing, and general industrial hydraulic power units requiring reliable directional flow control. It is also suitable for construction and marine hydraulic systems where precise actuator command and dependable holding performance are essential.
PRODUCT IMAGES

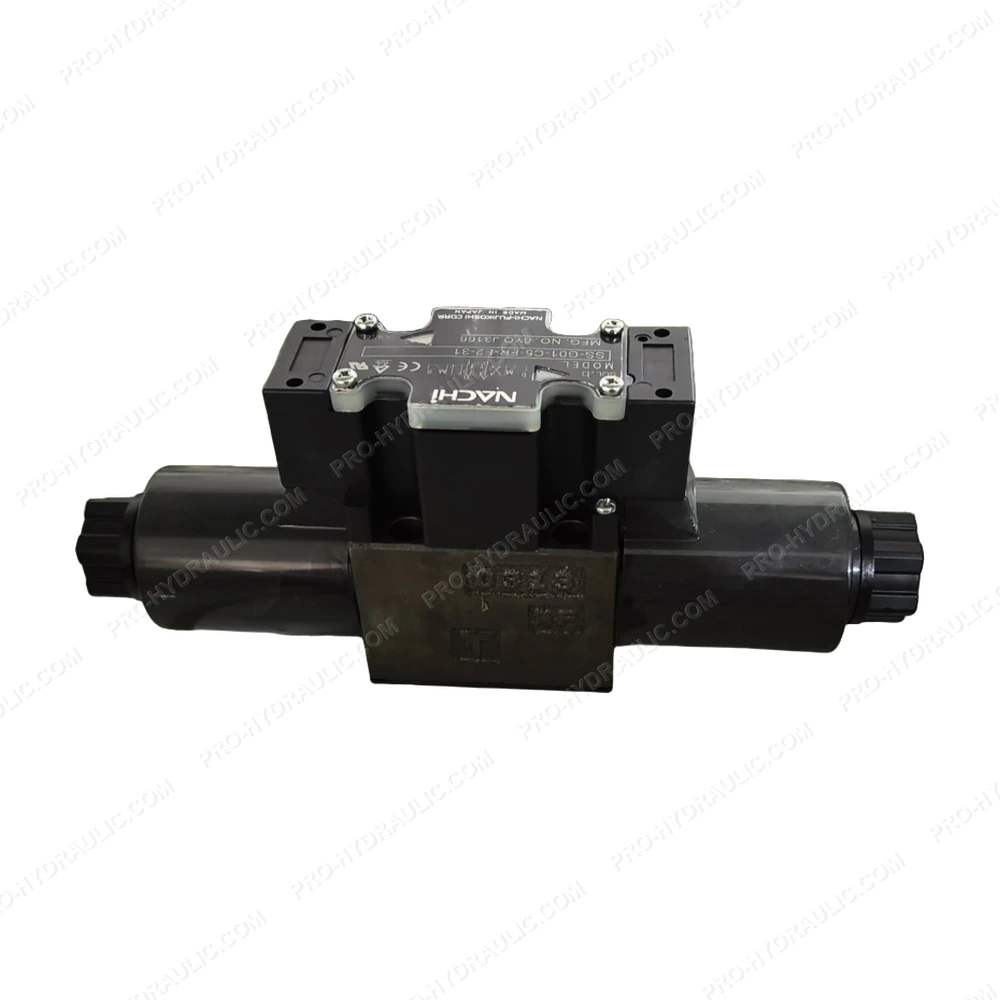

NACHI SS-G01-C5-FR-E2-31 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NACHI SS-G01-C5-FR-E2-31 Solenoid Operated Directional Control Valve. This Japan-made 24V DC hydraulic component features a spring-centered, 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
