The NEW-ERA TZ511T-DC9D-KE is a heavy-duty industrial pneumatic solenoid valve engineered for precise directional control of compressed air in automated process systems. This 5/2-way valve features a robust spool-and-sleeve design with a wet-pin armature and encapsulated DC coil, ensuring rapid response and long service life under continuous duty cycles.
NEW-ERA TZ511T-DC9D-KE Technical Specifications
| Valve Type | 5/2-way pneumatic solenoid valve |
| Actuation | Electrical solenoid, wet-pin armature |
| Coil Voltage | DC 24 V (DC9D coil code) |
| Port Size | 1/4″ NPT (standard) |
| Operating Pressure | 0.15 to 0.8 MPa (1.5 to 8 bar) |
| Flow Rate | 1200 l/min (at 6 bar) |
| Mounting | Inline or manifold, ISO 15407-1 / CETOP 3 |
| Body Material | Anodized aluminum |
| Seal Material | NBR (Buna-N) |
| Media | Filtered compressed air, lubricated or non-lubricated |
| Temperature Range | -10°C to +60°C |
Key Engineering Features
- Wet-pin armature design eliminates dynamic seals, reducing friction and extending cycle life.
- Encapsulated DC coil with high-temperature insulation for reliable continuous operation.
- Precision-ground spool and sleeve provide tight shut-off and minimal leakage.
- Manual override (non-locking) standard for easy commissioning and troubleshooting.
- Compact, lightweight aluminum body with ISO 15407-1 / CETOP 3 mounting interface.
- Surge suppression diode integrated in coil for electrical protection.
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation in food and beverage processing lines
- Directional control in textile and printing equipment
- Material handling and robotic end-effectors
- General industrial automation and process control systems
For technical inquiries, dimensional drawings, or replacement support for NEW-ERA TZ511T-DC9D-KE, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

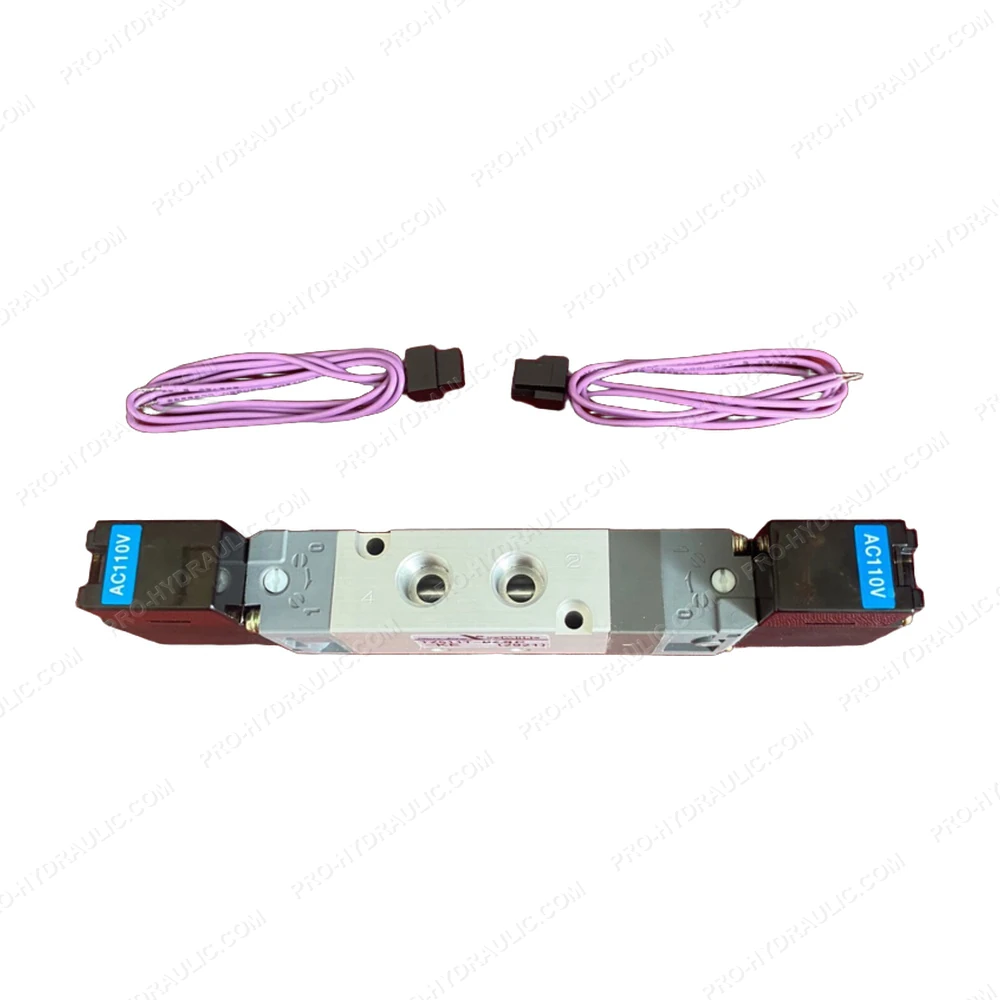

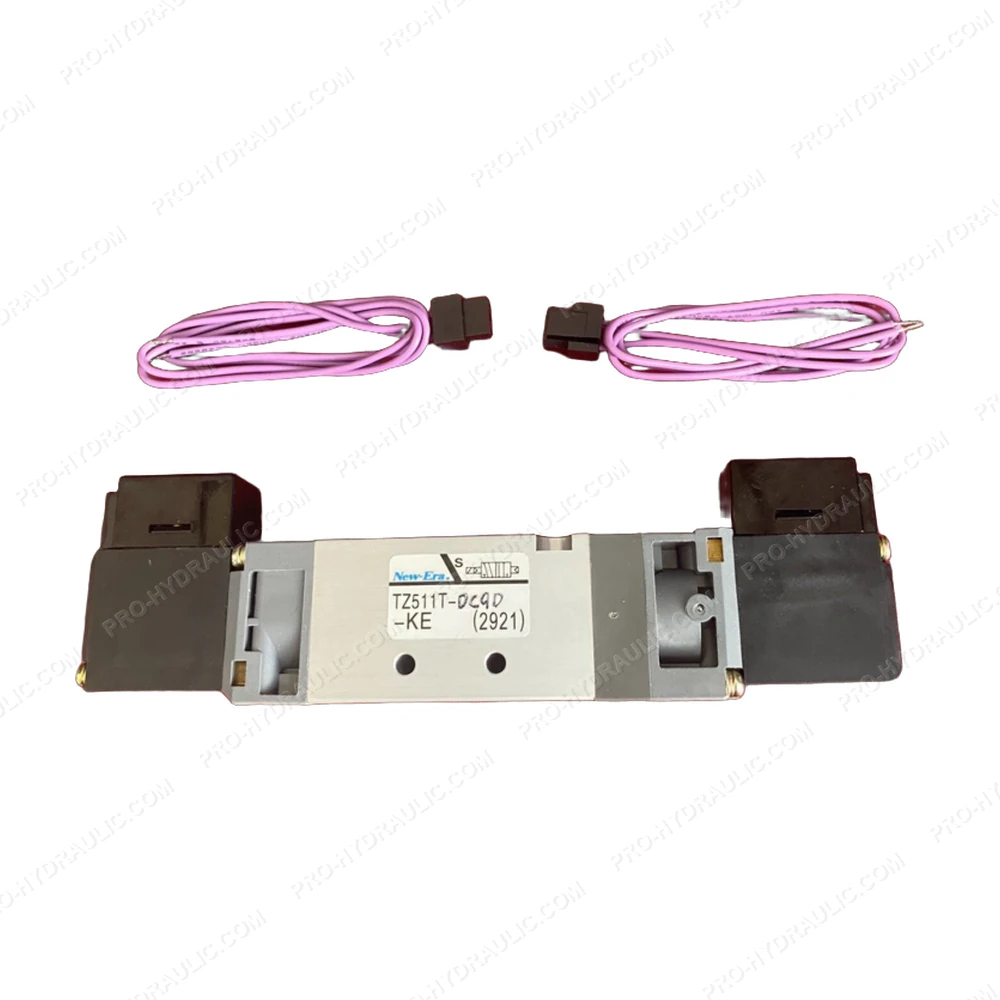

NEW-ERA TZ511T-DC9D-KE Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NEW-ERA TZ511T-DC9D-KE Pneumatic Solenoid Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
