The NOP TOP-1ME200-13MA is a heavy-duty industrial motorized gear pump engineered for continuous hydraulic fluid transfer in demanding machinery circuits. It integrates a positive-displacement external gear pump with a directly coupled electric motor, eliminating separate coupling alignment and reducing installation footprint.
NOP TOP-1ME200-13MA Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Motorized External Gear Pump |
| Displacement | 13 cm³/rev (nominal) |
| Max. Continuous Pressure | 200 bar |
| Peak Pressure | 250 bar |
| Speed Range | 500–3000 rpm |
| Mounting | Flange / Foot mount |
| Port Connections | SAE / BSPP threaded ports |
| Operating Temperature | -20 °C to +80 °C |
| Fluid Compatibility | Mineral oil, hydraulic oil (ISO VG 32–68) |
Key Engineering Features
- Integrated motor-pump assembly with direct drive coupling for reduced alignment error
- High-tensile cast iron gear housing with pressure-balanced bearing blocks
- Hardened and ground gear teeth for low internal leakage and extended service life
- Compact footprint suitable for confined machine envelopes
- Continuous duty rated motor with thermal protection options
Industrial Applications
- Machine tool hydraulic power units
- Press and forming equipment
- Material handling and lifting systems
- Industrial lubrication and circulation circuits
- Mobile and stationary hydraulic power packs
For technical inquiries, dimensional drawings, or replacement support for NOP TOP-1ME200-13MA, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

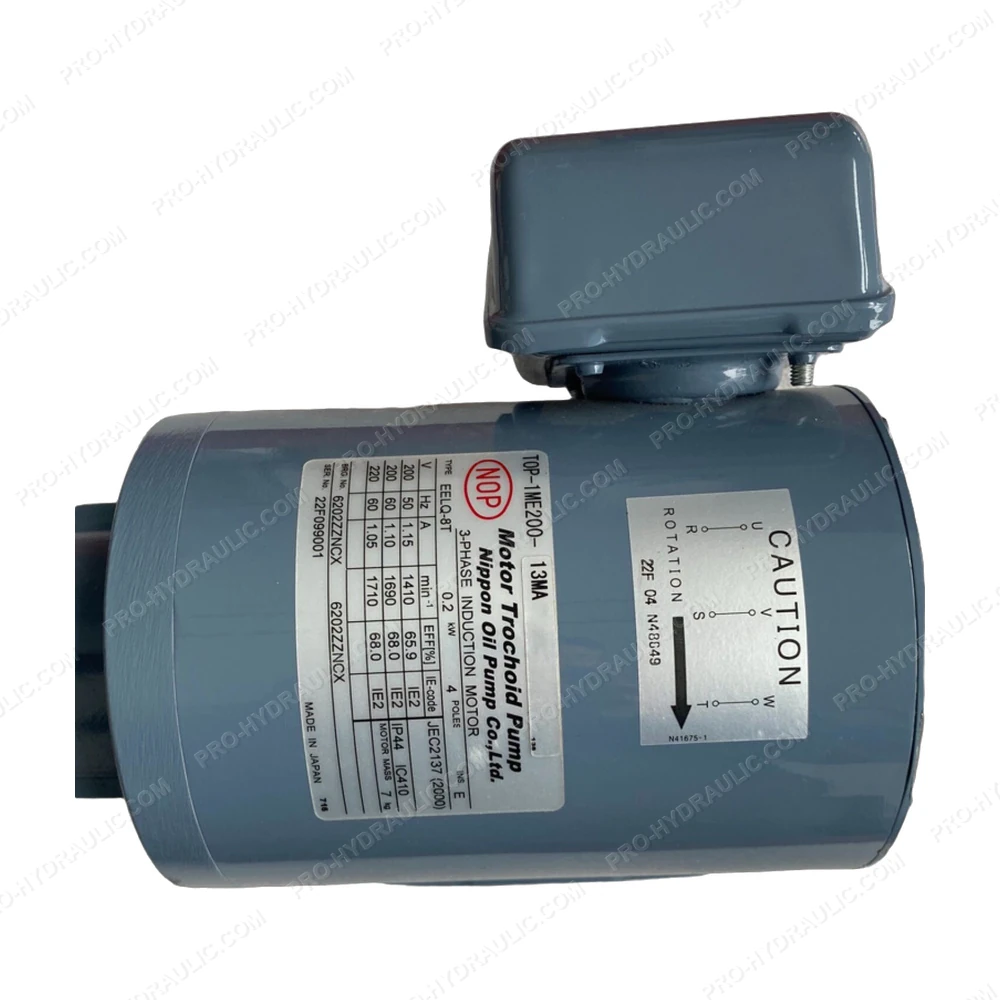

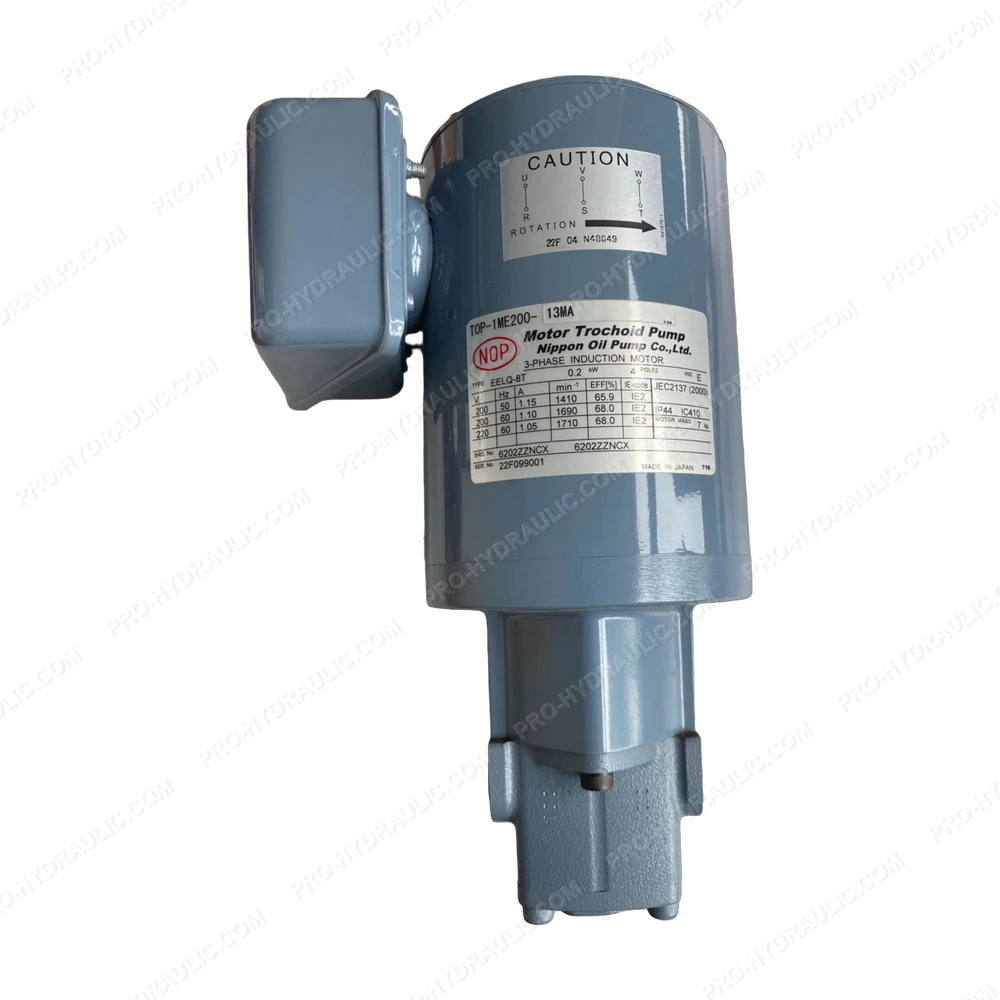

NOP TOP-1ME200-13MA Motorized Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NOP TOP-1ME200-13MA Motorized Gear Pump. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
