The NOR-CAL PRODUCTS 1162-263-01 is a heavy-duty industrial high vacuum angle valve engineered for reliable isolation and conductance control in demanding vacuum process lines. Its angle-body configuration provides a straight-through flow path that minimizes pressure drop and particulate entrapment, making it suitable for semiconductor, coating, and analytical instrumentation applications.
NOR-CAL PRODUCTS 1162-263-01 Technical Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | NOR-CAL PRODUCTS |
| Model | 1162-263-01 |
| Valve Type | High Vacuum Angle Valve |
| Body Configuration | Angle pattern, 90° port orientation |
| Actuation | Manual / pneumatic (per configuration) |
| Flange Type | KF (NW) / CF compatible |
| Leak Rate | < 1 × 10⁻⁹ atm·cc/sec He |
| Materials | Stainless steel body, elastomer or metal seal |
| Mounting | Bolt-on flange, inline installation |
Key Engineering Features
- Angle-body design for high conductance and minimal flow restriction
- Precision-machined sealing surfaces for repeatable vacuum isolation
- Compact envelope suitable for tight manifold and chamber integration
- Compatible with standard KF/CF vacuum flange interfaces
- Robust stem and bonnet assembly for extended cycle life
Industrial Applications
- Semiconductor deposition and etch vacuum systems
- Analytical instrumentation and mass spectrometry
- Thin-film coating and sputtering chambers
- Research and laboratory high-vacuum manifolds
- Industrial vacuum process isolation and roughing lines
For technical inquiries, dimensional drawings, or replacement support for NOR-CAL PRODUCTS 1162-263-01, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

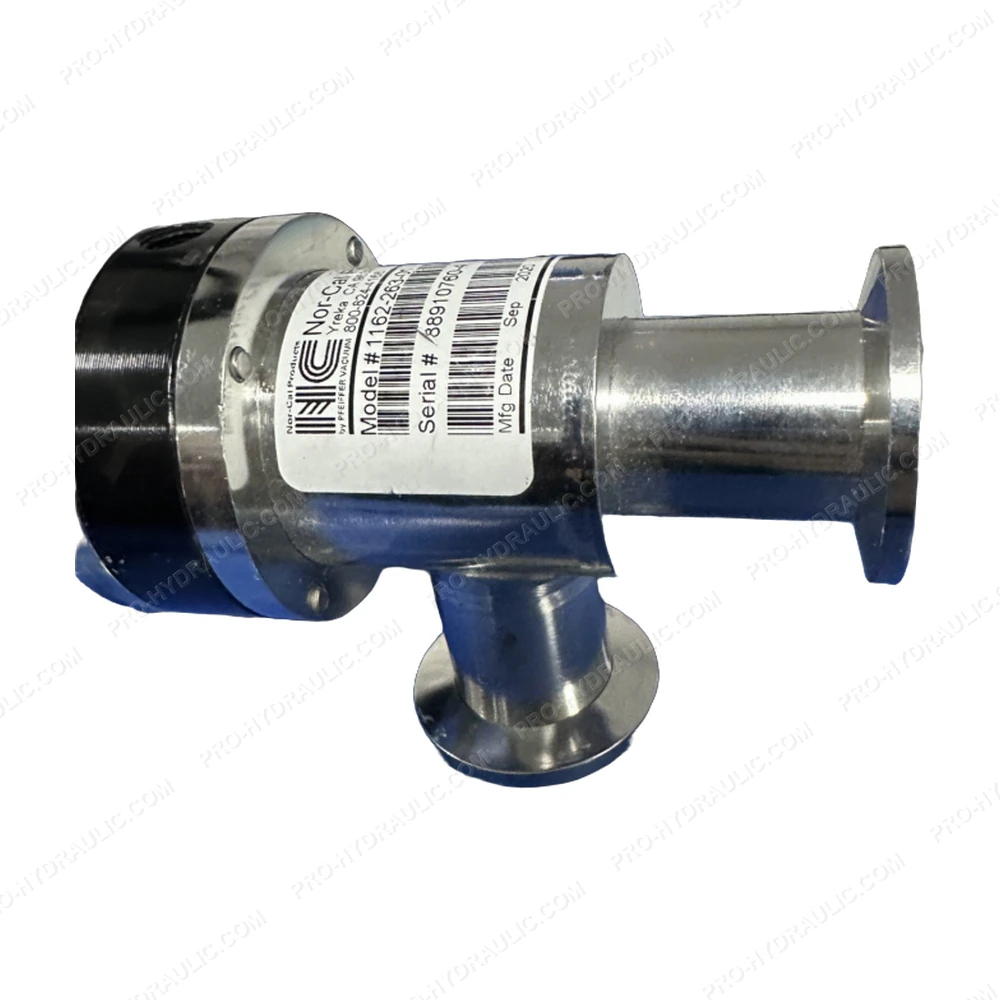

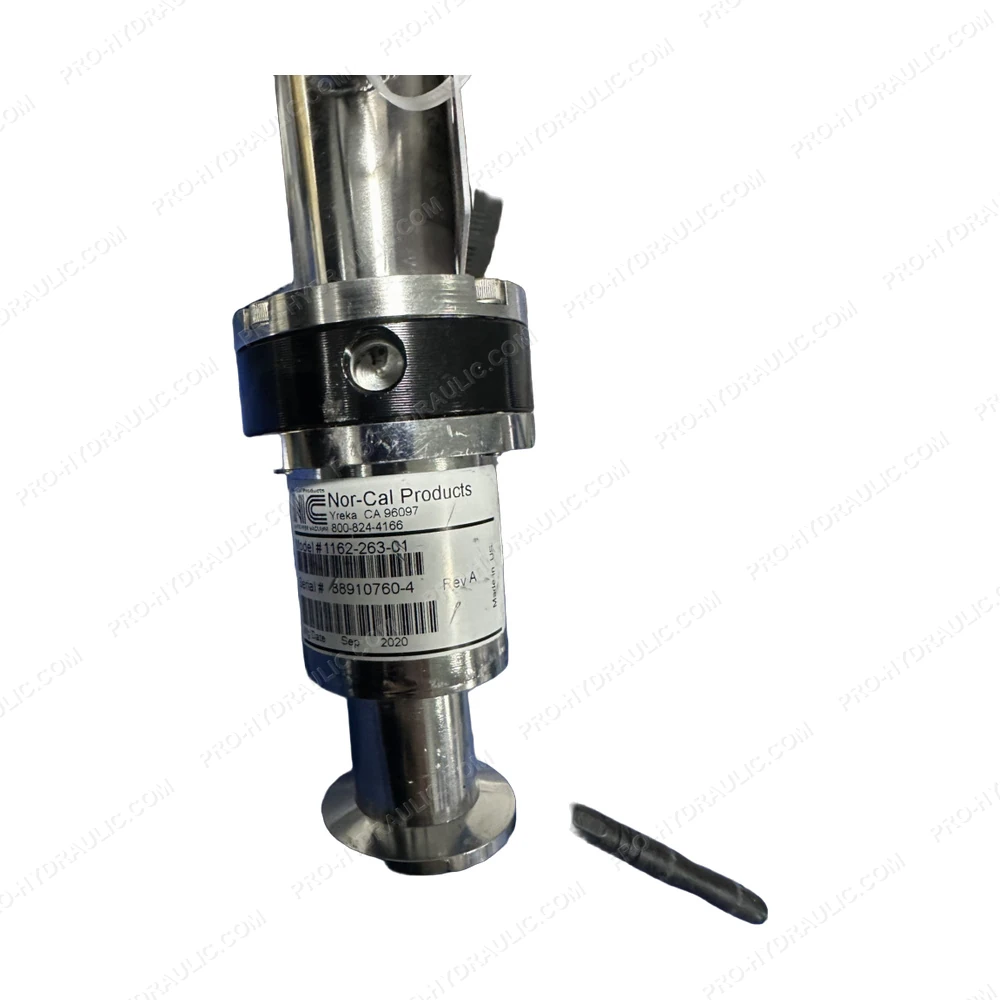

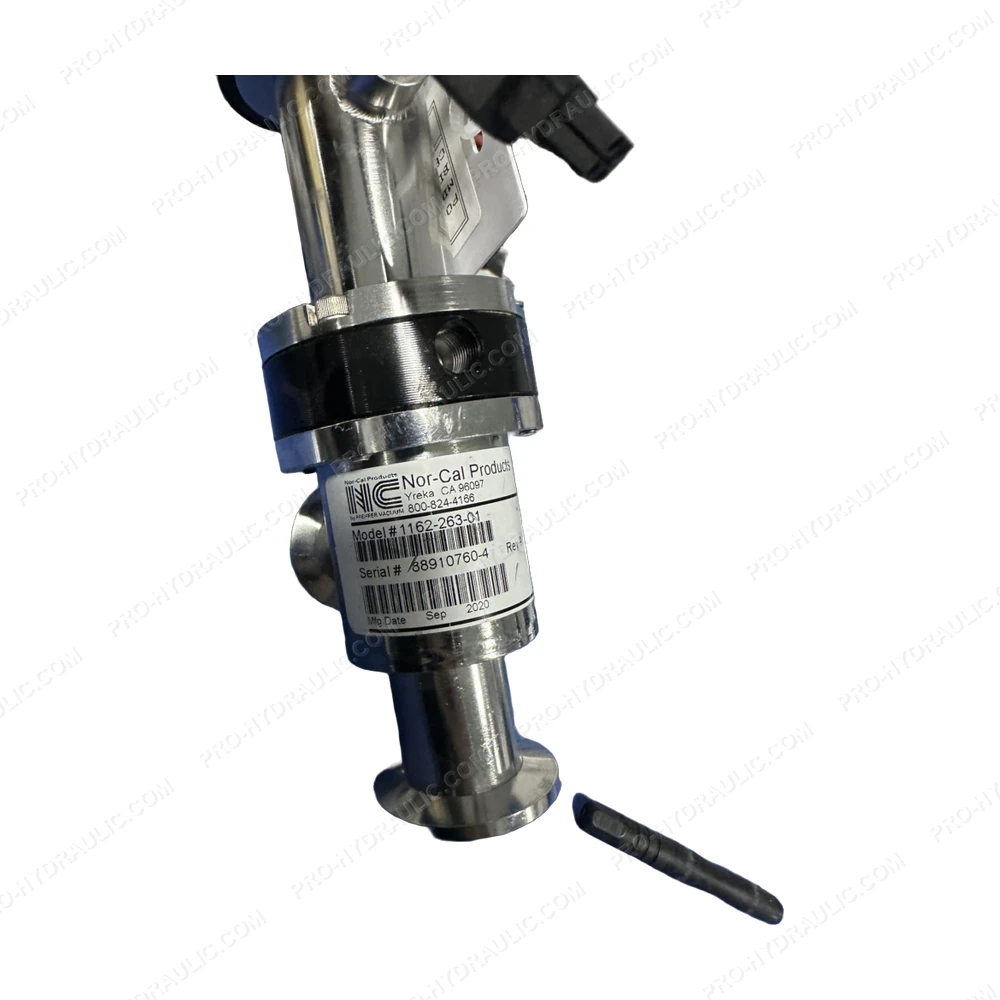

NOR-CAL PRODUCTS 1162-263-01 High Vacuum Angle Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NOR-CAL PRODUCTS 1162-263-01 High Vacuum Angle Valve. This precision-engineered industrial component delivers reliable performance and tight vacuum control for heavy-duty systems.
