The NOR-CAL PRODUCTS 3870-06775 is a heavy-duty industrial high vacuum gate valve engineered for reliable isolation and conductance control in demanding vacuum process lines. It utilizes a mechanical gate closure with a linear actuation mechanism to provide a tight seal against atmospheric pressure, ensuring minimal particle generation and leak-tight performance in high-vacuum environments.
NOR-CAL PRODUCTS 3870-06775 Technical Specifications
| Manufacturer | NOR-CAL PRODUCTS |
| Model | 3870-06775 |
| Product Type | High Vacuum Gate Valve |
| Valve Operation | Pneumatic or Manual Actuation (dependent on configuration) |
| Flange Type | ISO-K / CF / ASA (per model variant) |
| Body Material | Stainless Steel |
| Seal Material | Viton / Buna-N (application-specific) |
| Leak Rate | < 1 x 10-9 std cc/sec He |
| Temperature Range | -20°C to 150°C (depending on seal) |
| Mounting Standard | ISO / CF / ASA flange compatible |
Key Engineering Features
- Mechanical gate closure for high-vacuum isolation
- Linear actuation mechanism for precise positioning
- Low particle generation and minimal outgassing
- Stainless steel body for corrosion resistance
- Compatible with standard high-vacuum flange systems
- Robust construction for repeated cycling in industrial processes
Industrial Applications
- Semiconductor manufacturing equipment
- Vacuum coating and thin-film deposition systems
- Analytical instrumentation and mass spectrometry
- Research and development vacuum chambers
- Industrial vacuum furnaces and heat treatment
- Pharmaceutical and chemical process isolation
For technical inquiries, dimensional drawings, or replacement support for NOR-CAL PRODUCTS 3870-06775, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

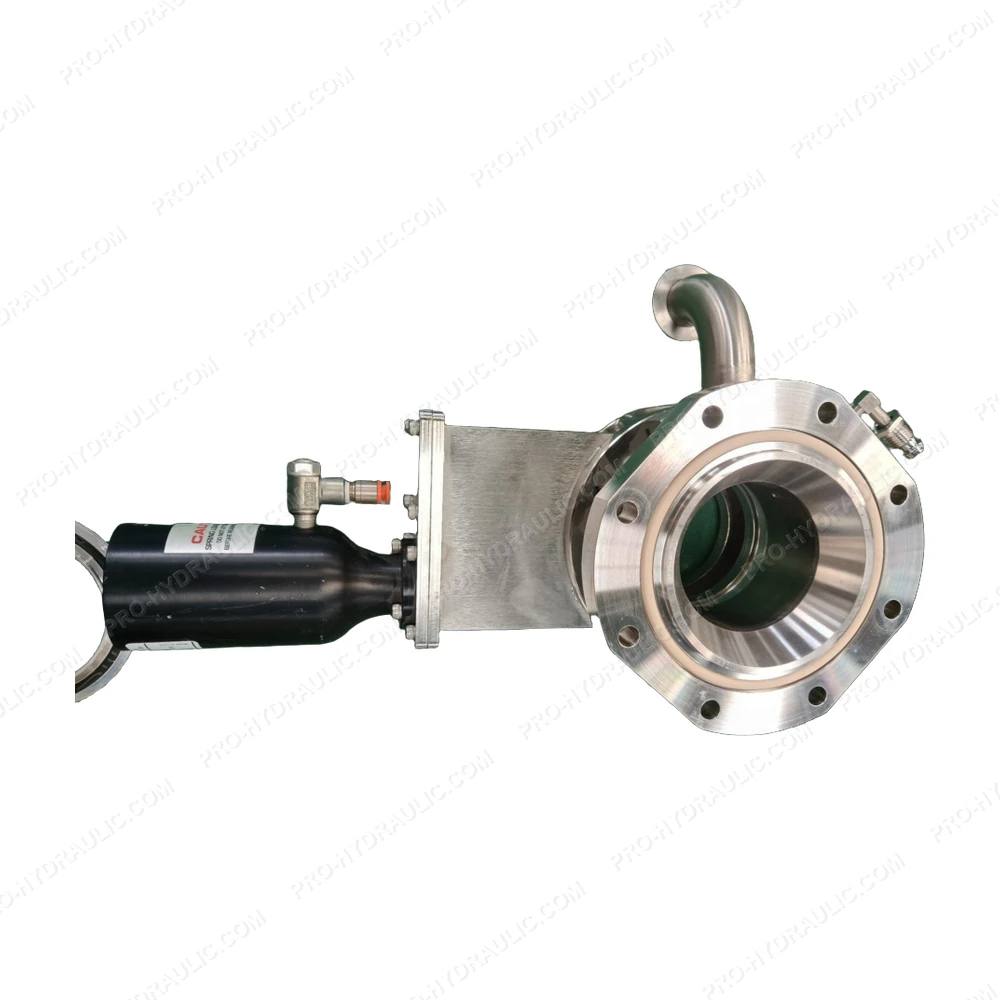

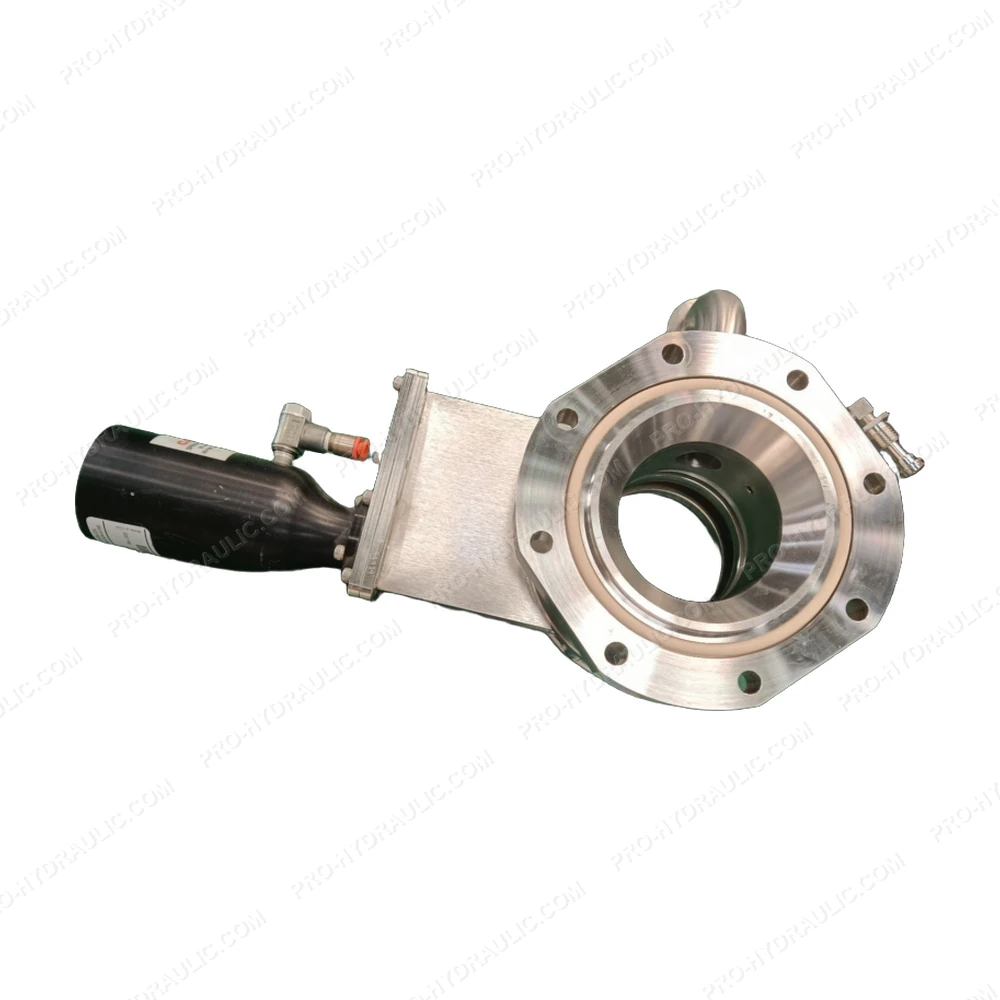

NOR-CAL PRODUCTS 3870-06775 High Vacuum Gate Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NOR-CAL PRODUCTS 3870-06775 High Vacuum Gate Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
