The NORDIC FLOW CONTROL NFC-HD-HF60/CG24M0-DT is a heavy-duty industrial directional control valve engineered for precise hydraulic circuit management in demanding applications. This solenoid-operated, spool-type valve features a robust wet-pin armature design and a high-flow body, ensuring reliable shifting and minimal pressure drop under continuous operation.
NORDIC FLOW CONTROL NFC-HD-HF60/CG24M0-DT Technical Specifications
| Valve Type | 4-way, 3-position directional control valve |
| Actuation | Solenoid operated, wet-pin armature |
| Coil Voltage | 24 V DC (CG24M0 coil) |
| Mounting Interface | ISO 4401 / CETOP 5 (NG10) standard pattern |
| Max Operating Pressure | 350 bar (5075 psi) |
| Rated Flow | 60 L/min (15.8 gpm) nominal |
| Spool Type | Closed center, spring return |
| Fluid Compatibility | Mineral oil based hydraulic fluids |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Key Engineering Features
- Wet-pin solenoid design for efficient heat dissipation and extended coil life
- Hardened, precision-ground spool for minimal leakage and long service life
- Standard ISO 4401 / CETOP 5 mounting for direct drop-in replacement
- High-flow internal passages reduce pressure drop and energy loss
- Spring return and detent options available for fail-safe operation
- Rugged cast iron body withstands high shock and vibration
Industrial Applications
- Mobile hydraulic systems (construction, agriculture, material handling)
- Industrial power units and hydraulic presses
- Machine tool clamping and positioning circuits
- Marine and offshore hydraulic control panels
- Steel mill and heavy manufacturing equipment
For technical inquiries, dimensional drawings, or replacement support for NORDIC FLOW CONTROL NFC-HD-HF60/CG24M0-DT, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

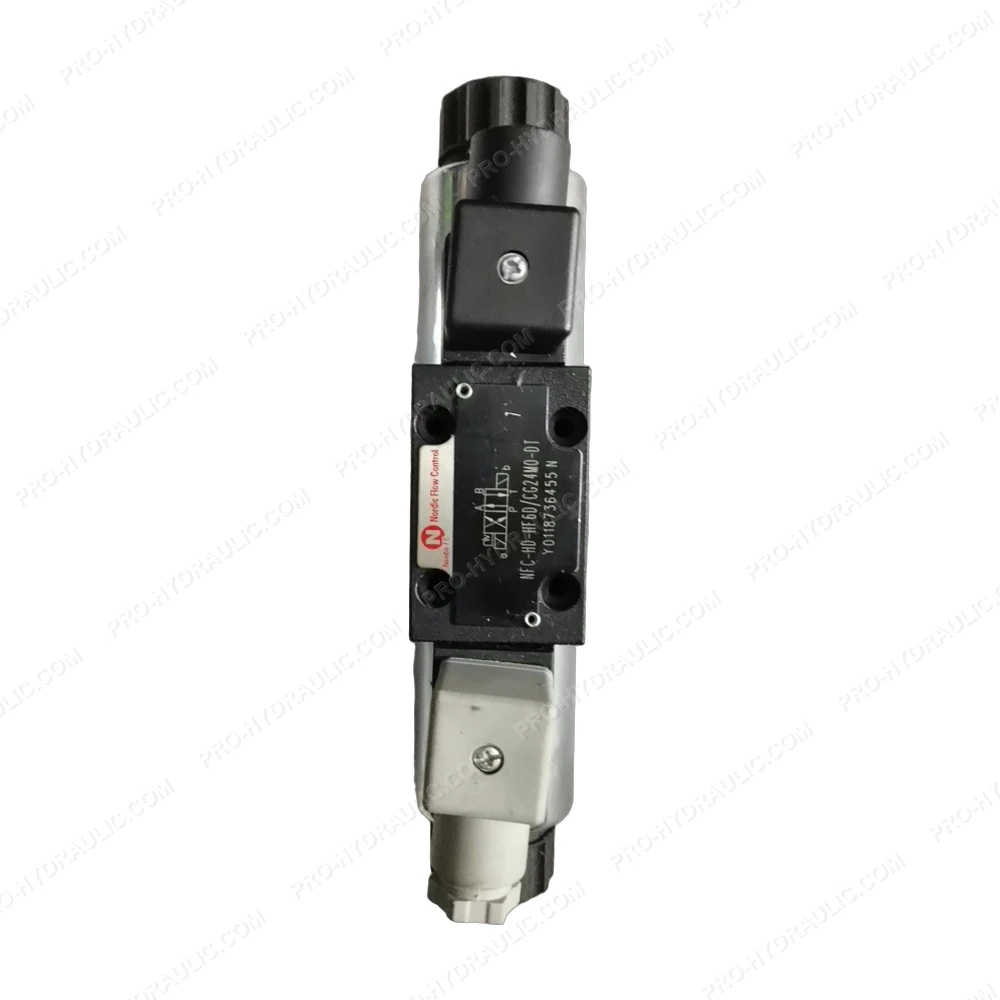

NORDIC FLOW CONTROL NFC-HD-HF60/CG24M0-DT Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NORDIC FLOW CONTROL NFC-HD-HF60/CG24M0-DT Directional Control Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
