Product Overview
The NORDSON EFD VALVEMATE 7194 / 794 is a dedicated electronic dispensing valve controller engineered to regulate the actuation of pneumatic dispense valves used in precision fluid application processes. Operating as an interface between the machine control system and the dispense valve, it converts low-level trigger signals into precisely timed, repeatable pneumatic pulses that open and close the valve. The VALVEMATE series delivers consistent deposit volumes, adjustable open/close timing, and stable cycle-to-cycle repeatability, making it a critical automation component in high-throughput dispensing, potting, and bonding lines. Its compact, panel-mountable enclosure integrates seamlessly into automated workcells, conveyor systems, and robotic dispensing platforms.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Dispensing Valve Controller (Motors, Sensors & Automation) |
| Model Designation | VALVEMATE 7194 / 794 |
| Manufacturer | NORDSON EFD |
| Control Function | Pneumatic valve actuation with adjustable open/close timing |
| Operating Pressure | Standard Industrial Grade (regulated shop air, up to rated bar) |
| Timing Adjustment | Independent valve open and close time control |
| Mounting & Connection | Standard ISO / Manufacturer Interface, panel-mount enclosure |
Engineering Features & Advantages
- Precision Performance: Independently adjustable open and close timing delivers consistent, repeatable deposit volumes across high-speed dispensing cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with stable actuation response and resistance to shop-floor electrical noise.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM VALVEMATE 7194 / 794 controller standards for drop-in integration.
- Flexible Integration: Accepts standard trigger inputs from PLCs, timers, and robotic controllers for seamless automation retrofits.
Typical Industrial Applications
Suited for automated fluid dispensing in electronics assembly and PCB conformal coating lines, adhesive and sealant application in automotive component manufacturing, precision potting and encapsulation of sensors and connectors, and robotic bonding stations within medical device and general industrial assembly operations.
PRODUCT IMAGES

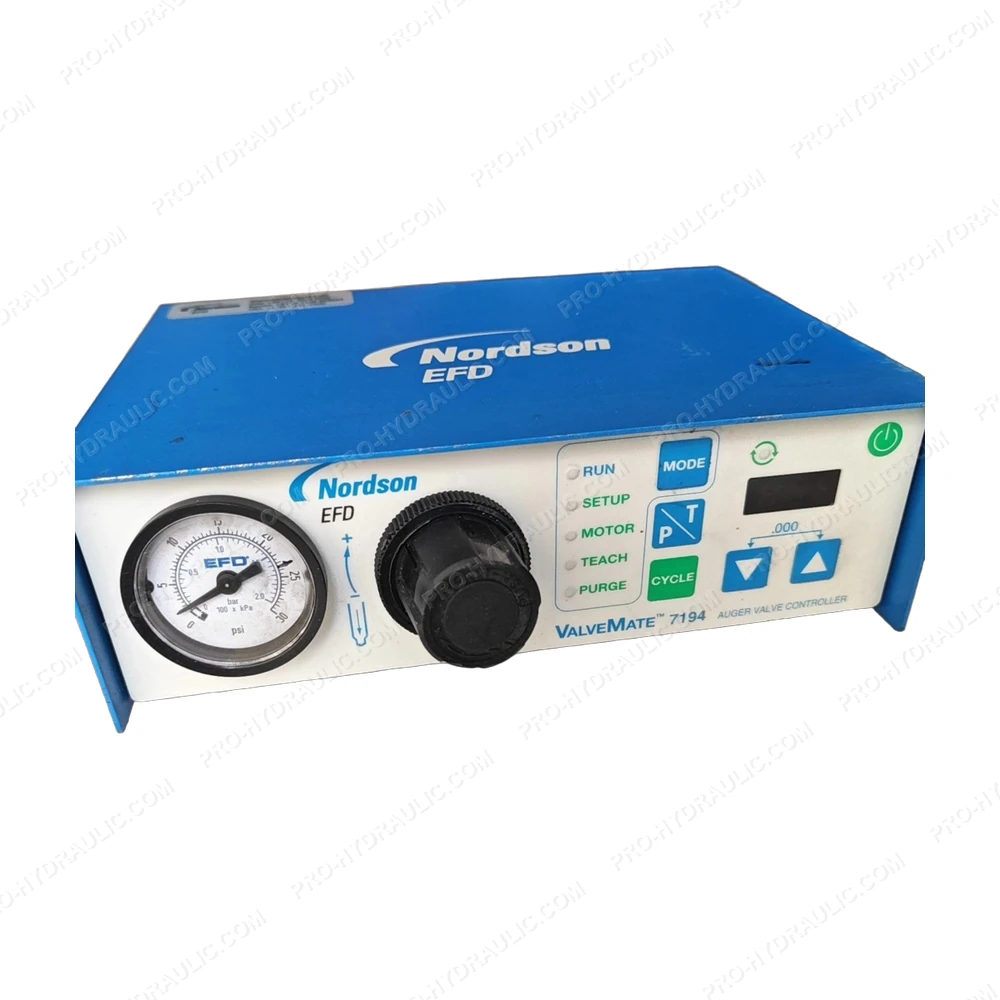

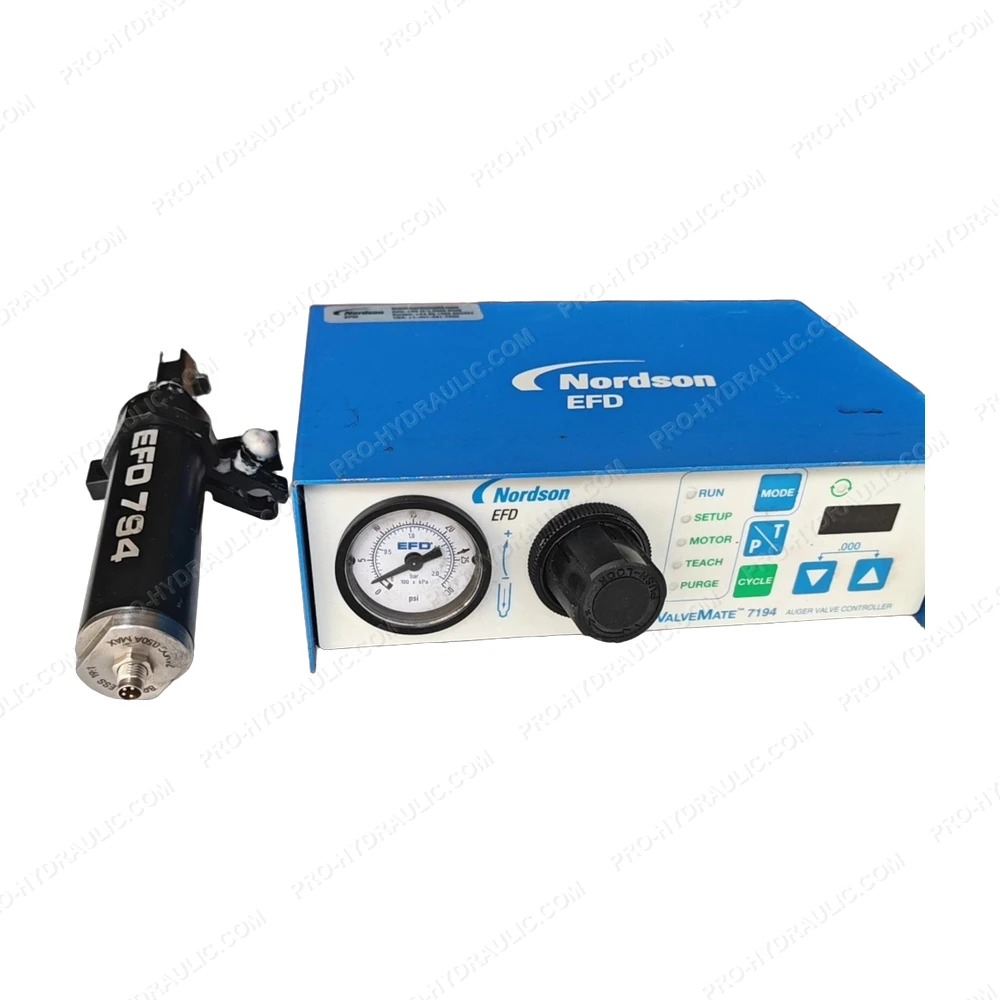

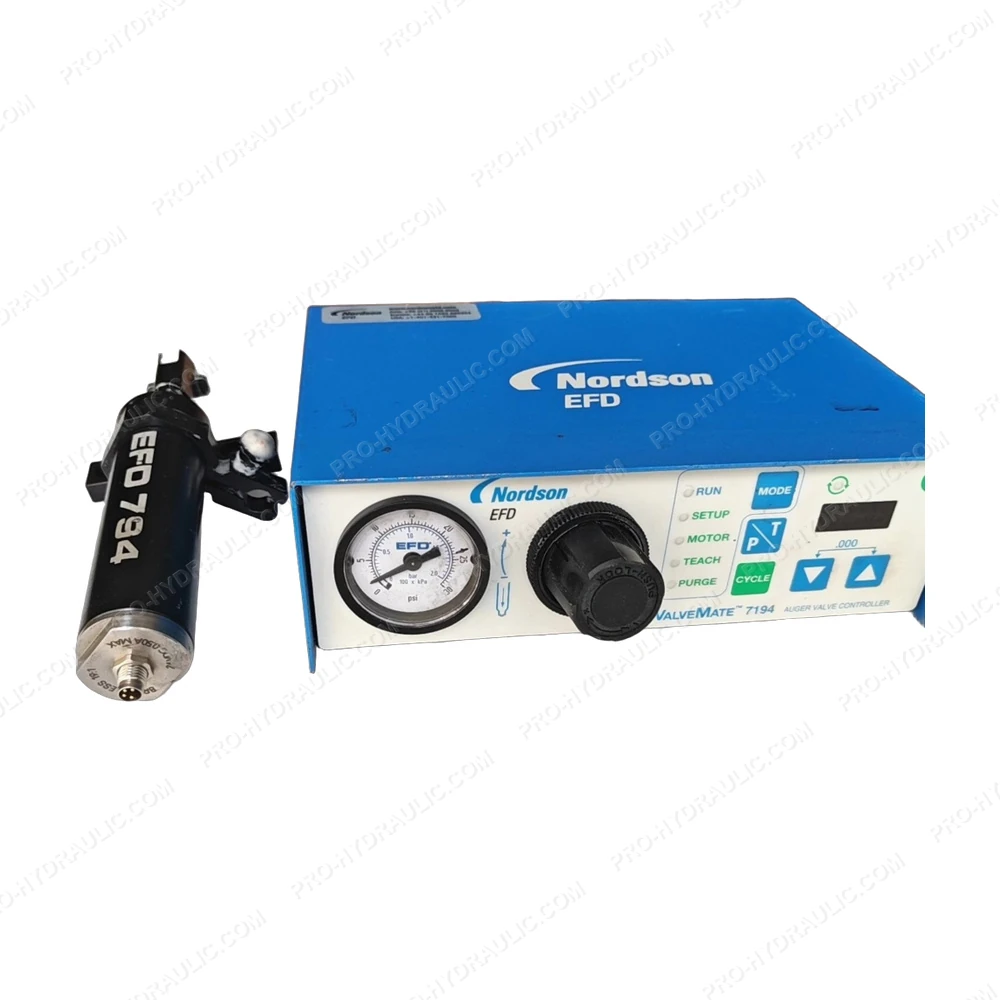

NORDSON EFD VALVEMATE 7194 / 794 Dispensing Valve Controller
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NORDSON EFD VALVEMATE 7194 / 794 Dispensing Valve Controller. This USA-made 24 VDC automation component features a digital timing and control design, delivering precise, reliable fluid dispensing for heavy-duty industrial systems.
