Product Overview
The NORGREN 3046 TM 1702-AT is a precision-engineered pneumatic solenoid valve from the trusted Norgren 3046 series, designed for reliable directional control of compressed air and neutral gases in demanding industrial environments. This direct-acting solenoid valve features a robust spool and sleeve construction that ensures fast, repeatable actuation and precise flow control across a wide range of operating pressures. As a core component in pneumatic automation systems, it serves as the critical interface between electronic control signals and pneumatic actuators, enabling efficient management of cylinders, rotary actuators, and other air-driven equipment. The 3046 series is renowned for its compact footprint, high cycle life, and exceptional sealing integrity, making the TM 1702-AT an ideal choice for OEM and MRO applications where uptime and precision are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 3046 TM 1702-AT |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or Inline) |
| Valve Function | 3/2 or 5/2 Way (Configurable per Model Code) |
| Actuation Type | Electrical Solenoid with Manual Override |
| Seal Material | Nitrile (NBR) / Polyurethane (Standard Pneumatic Media) |
| Body Material | Anodized Aluminum / Composite |
Engineering Features & Advantages
- Precision Performance: The spool and sleeve design delivers fast response times and consistent flow characteristics, ensuring accurate control of pneumatic actuators with minimal pressure drop.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a high cycle life and robust construction that resists contamination and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing for drop-in replacement without modification to existing manifolds or piping.
- Manual Override: Integrated manual override facilitates easy troubleshooting and system testing without the need for electrical power.
- Versatile Media Compatibility: Suitable for use with filtered compressed air and neutral gases, with optional seal materials available for specific media requirements.
Typical Industrial Applications
This Norgren solenoid valve is widely deployed in automated manufacturing and process industries. Common applications include packaging machinery for precise cylinder sequencing, textile equipment for tension and position control, food and beverage processing lines where washdown and reliability are critical, and general factory automation systems requiring dependable directional control of pneumatic actuators. It is also frequently found in material handling systems, assembly stations, and robotic end-effectors where fast, repeatable valve actuation is essential for high-throughput operation.
PRODUCT IMAGES

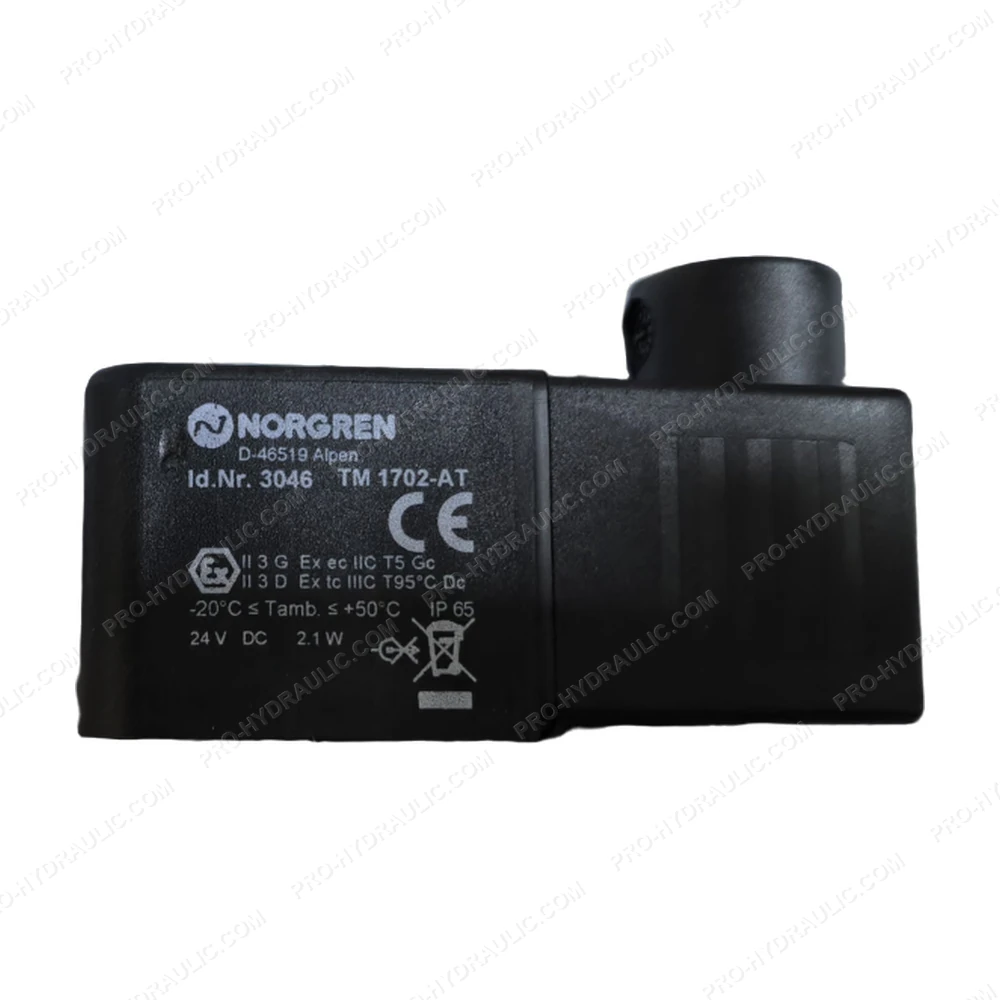

NORGREN 3046 TM 1702-AT Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NORGREN 3046 TM 1702-AT Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
