Product Overview
The NORGREN 9710002 is a precision-engineered pneumatic solenoid valve designed for reliable directional control of compressed air and inert gas media in industrial automation systems. Manufactured by NORGREN, a globally recognized leader in fluid power and motion control technology, this valve utilizes a solenoid-actuated spool mechanism to provide fast, repeatable switching of pneumatic circuits. As a general process and pneumatic valve, it serves as a critical control component in factory automation, packaging machinery, and process control loops, offering dependable performance where precise air flow direction and timing are essential. The 9710002 model is configured for direct integration into manifold or inline installations, ensuring minimal pressure drop and consistent actuation response across demanding duty cycles.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (General Process & Pneumatic Valve) |
| Model Designation | 9710002 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi typical for pneumatic service) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (inline or manifold mount) |
| Actuation Type | Electrical Solenoid with spring return or pilot-assisted operation |
| Media Compatibility | Compressed air, inert gases (filtered, lubricated or non-lubricated) |
| Seal Material | Nitrile (NBR) or equivalent industrial elastomer |
Engineering Features & Advantages
- Precision Performance: The solenoid-actuated spool design ensures rapid, consistent response times and precise directional control of pneumatic flow, minimizing cycle time and improving process repeatability in automated systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the 9710002 features robust coil insulation and wear-resistant internal components to withstand millions of actuation cycles with minimal maintenance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original NORGREN OEM standards, allowing drop-in replacement without modification to existing manifolds, tubing, or electrical connections.
- Leak-Tight Sealing: High-quality elastomer seals provide bubble-tight shutoff, reducing compressed air waste and ensuring energy-efficient operation across the full pressure range.
- Versatile Circuit Integration: Compatible with a wide range of pneumatic control architectures, including 3/2, 5/2, and 5/3 configurations depending on model variant, supporting diverse automation requirements.
Typical Industrial Applications
The NORGREN 9710002 pneumatic solenoid valve is widely deployed in demanding industrial environments, including plastic injection molding machines for mold opening/closing and ejector control, packaging and labeling machinery for precise actuator sequencing, CNC machine tools for tool clamping and coolant air blast circuits, and general factory automation systems requiring reliable directional air control. It is also commonly found in metallurgical handling equipment, textile machinery, and process valve piloting applications where fast response and long service life are critical.
PRODUCT IMAGES

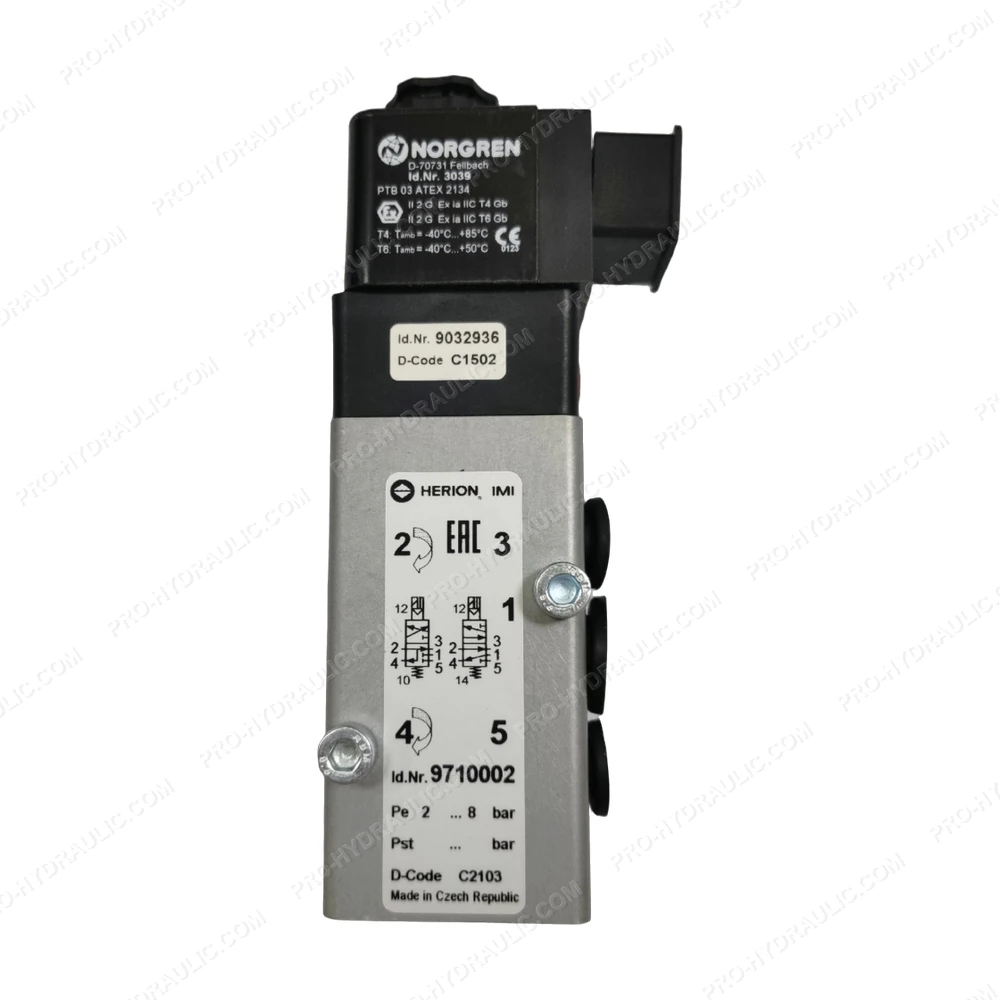

NORGREN 9710002 Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NORGREN 9710002 Solenoid Directional Control Valve. This UK-made 24V DC hydraulic component features a 4/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
