The NORGREN SXE9575-Z71-80-33N is a heavy-duty industrial pneumatic directional valve engineered for precise control of compressed air in demanding automation and process circuits. Featuring a robust spool-and-sleeve design with a wet-pin armature and encapsulated solenoid coil, it ensures rapid, repeatable shifting and long service life under continuous duty. The valve is configured for reliable 5/2 operation, providing dependable directional control for double-acting actuators and pneumatic logic systems.
NORGREN SXE9575-Z71-80-33N Technical Specifications
| Function | 5/2-way directional control valve |
|---|---|
| Actuation | Solenoid pilot, spring return |
| Mounting Standard | CETOP/ISO 5599-1, size 1 |
| Port Size | 1/4″ (G1/4) |
| Operating Pressure | 2 to 10 bar |
| Flow Rate | 1200 l/min (at 6 bar) |
| Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Body Material | Anodized aluminum |
| Seal Material | NBR (Buna-N) |
| Media | Filtered compressed air, lubricated or non-lubricated |
| Temperature Range | -10°C to +50°C |
Key Engineering Features
- Wet-pin armature design for high shifting forces and minimal wear
- Encapsulated solenoid coil with integrated manual override
- Spool-and-sleeve construction ensures low leakage and long cycle life
- CETOP/ISO 5599-1 mounting for direct interchangeability
- High flow capacity with compact footprint
- Corrosion-resistant anodized aluminum body
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation of double-acting cylinders
- Material handling and sorting systems
- Process valve piloting in food and beverage lines
- General factory automation and robotics
For technical inquiries, dimensional drawings, or replacement support for NORGREN SXE9575-Z71-80-33N, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

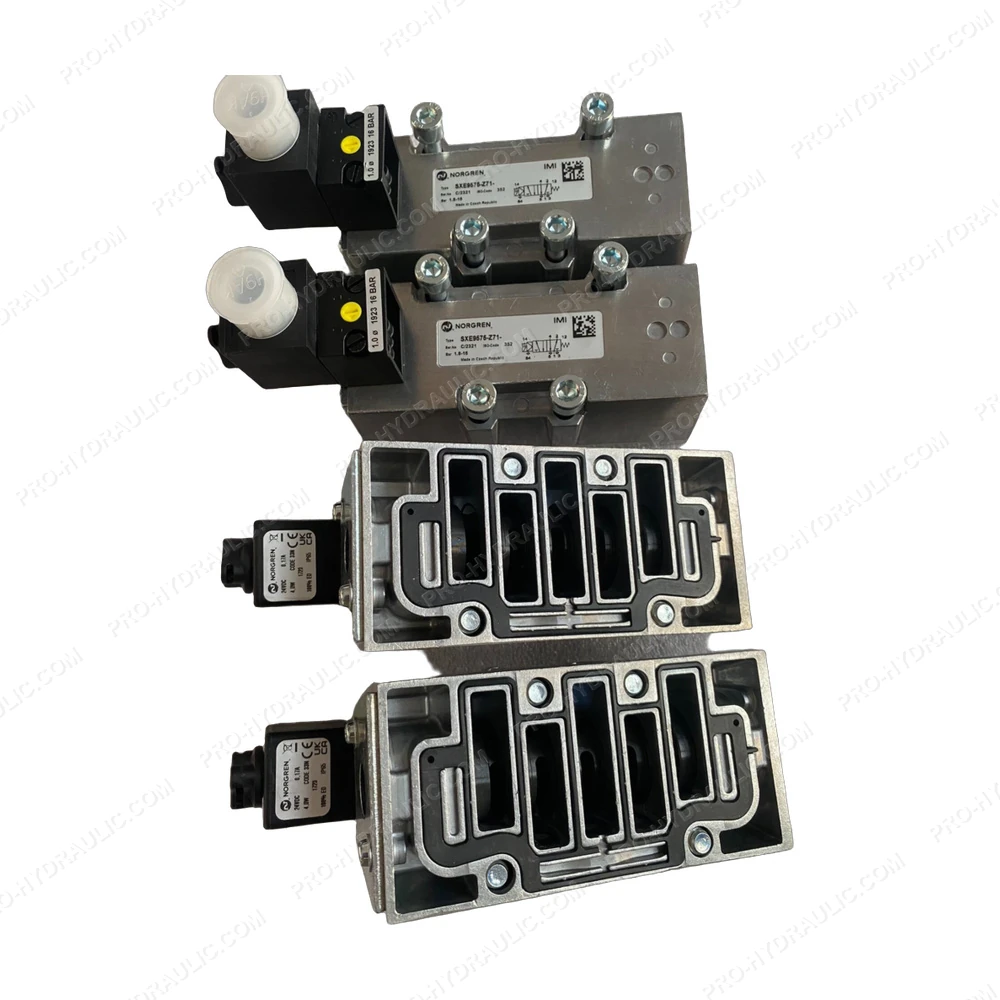

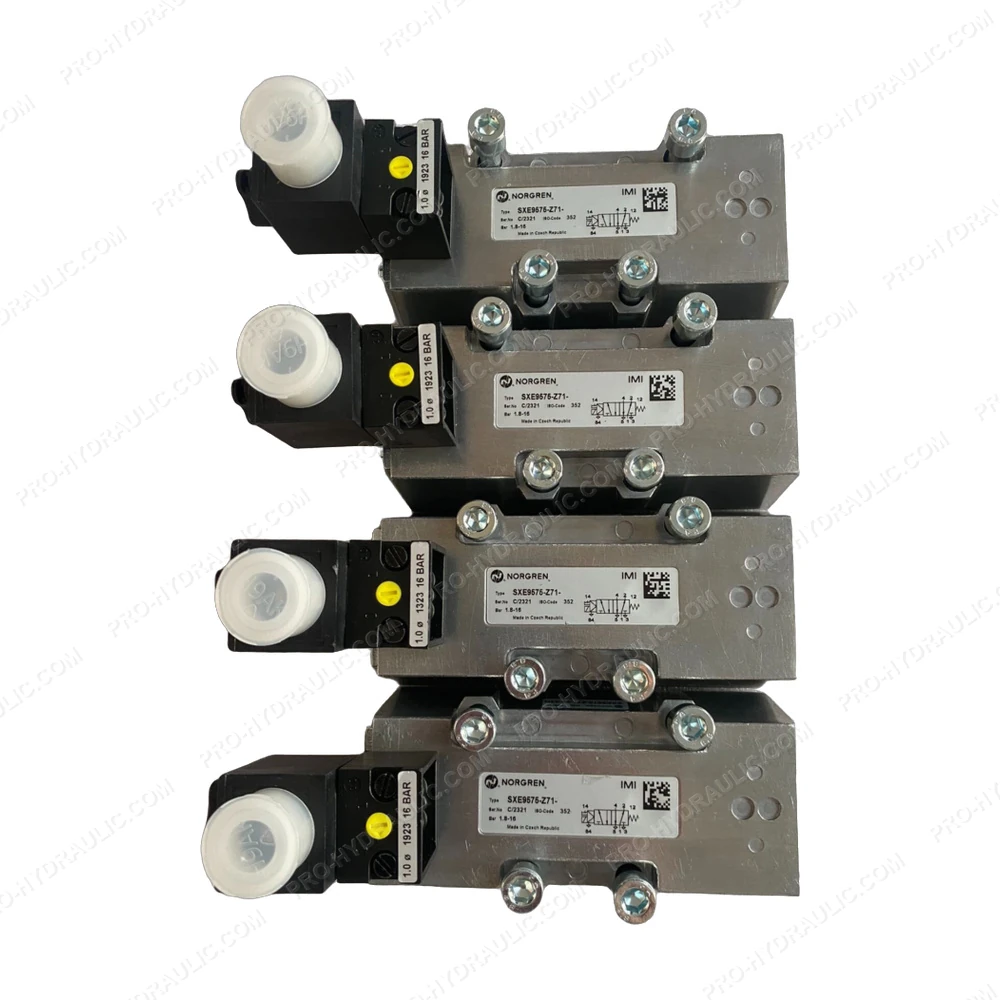

NORGREN SXE9575-Z71-80-33N Pneumatic Directional Valve
