Product Overview
The NORGREN VCB22B517A-AB213J is a high-performance pneumatic solenoid valve engineered for precise directional control of compressed air and inert gas circuits in demanding industrial environments. Manufactured by NORGREN, a globally recognized leader in motion control and fluid power technology, this valve operates on a direct-acting solenoid principle, delivering rapid and reliable spool actuation without the need for minimum pilot pressure. Its robust construction and compact body design make it an ideal choice for integration into centralized pneumatic control panels, valve manifolds, and automated process lines where consistent response time and leak-free operation are critical. The VCB22B517A-AB213J serves as a vital control component, managing the start, stop, and direction of actuator movement in complex pneumatic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control) |
| Model Designation | VCB22B517A-AB213J |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or Manifold Mount) |
| Valve Function | 5/2 Way, 2-Position (Directional Control) |
| Actuation Type | Electrical Solenoid Actuated (Direct Acting) |
| Seal Material | Nitrile (NBR) / Polyurethane (Standard Pneumatic Media) |
| Body Material | Anodized Aluminum / Engineered Composite |
Engineering Features & Advantages
- Precision Spool & Seat Design: The valve features a precision-machined spool and seat assembly that ensures minimal internal leakage and highly repeatable shift characteristics, providing accurate directional control for pneumatic actuators.
- High Cycle Life Solenoid: Equipped with a robust, encapsulated solenoid coil designed for high-frequency switching operations, ensuring long-term durability and consistent magnetic force without overheating.
- Fast Response Time: The direct-acting mechanism allows for rapid opening and closing times, enabling high-speed cycling of pneumatic cylinders and improved overall machine throughput.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a rugged housing that resists vibration, shock, and common industrial contaminants.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original NORGREN OEM standards, ensuring seamless integration into existing pneumatic manifolds and control systems.
Typical Industrial Applications
This pneumatic solenoid valve is widely utilized across heavy industrial sectors requiring reliable air control. Common applications include: Plastic Injection Molding Machines for core pull and ejector sequencing; Packaging & Bottling Lines for high-speed diverter and gripper actuation; CNC Machine Tools for
PRODUCT IMAGES

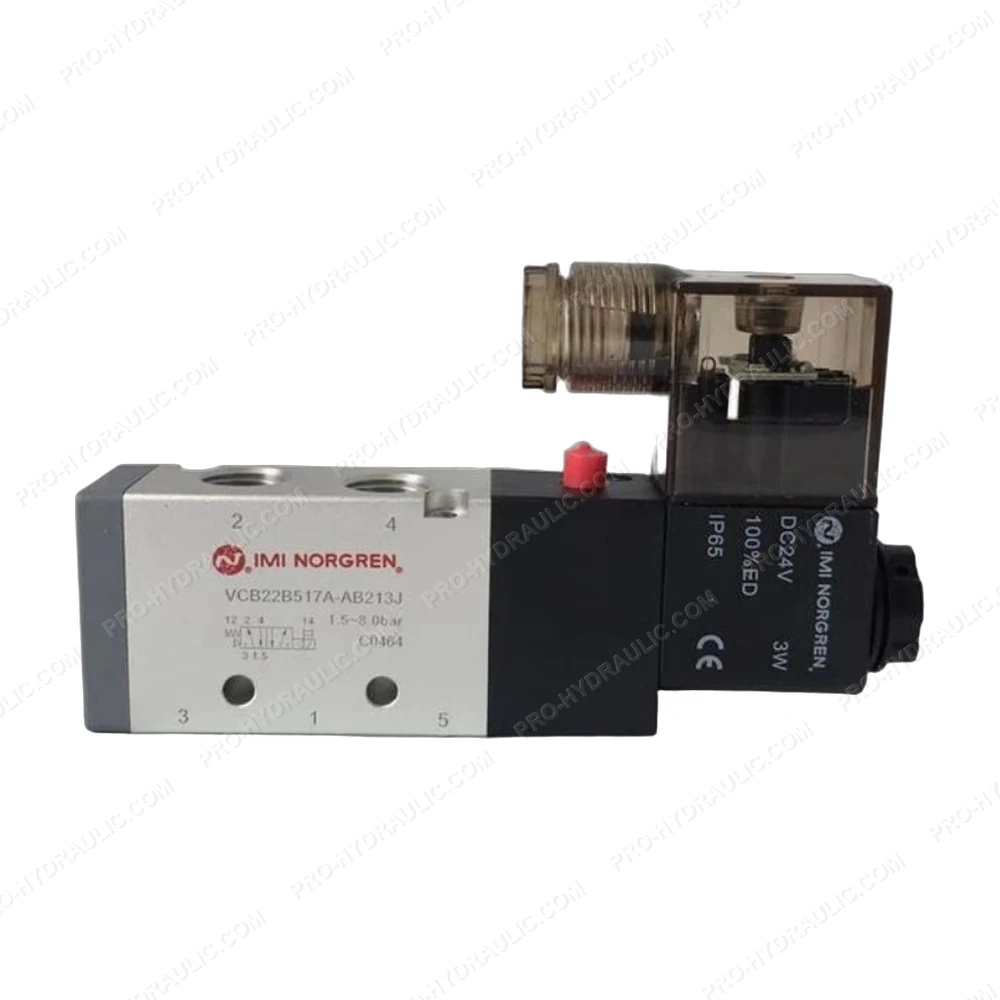

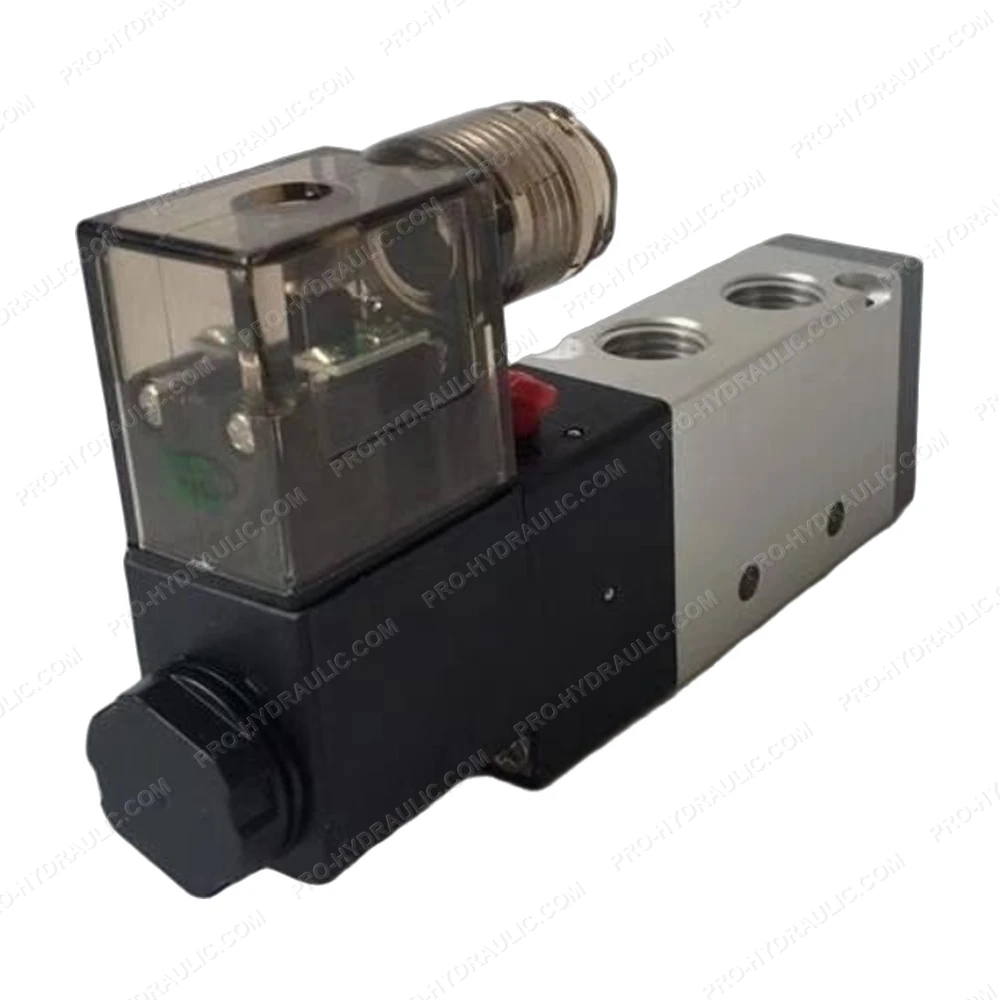

NORGREN VCB22B517A-AB213J Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NORGREN VCB22B517A-AB213J Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
