Product Overview
The NORGREN VM100402102 is a modular pneumatic valve island engineered for centralized control of multiple actuators within industrial automation and process systems. As part of the Norgren VM series, this valve island integrates a bank of solenoid-actuated directional control valves onto a common manifold, allowing compact, space-efficient distribution of compressed air to cylinders, rotary actuators, and other pneumatic consumers. The unit operates on a spool-and-sleeve pilot principle, where electrical signals energize solenoids to shift individual valve spools, directing supply air to the designated outlet ports while exhausting the opposite side. This architecture eliminates the need for discrete valve-to-actuator tubing runs, reduces installation time, and simplifies maintenance through modular valve replacement. The VM100402102 is designed for integration into factory automation, packaging machinery, and process control networks where reliable, repeatable pneumatic switching is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Valve Island (General Process & Pneumatic Valve) |
| Model Designation | VM100402102 |
| Manufacturer | NORGREN (IMI Precision Engineering) |
| Operating Pressure | Standard Industrial Grade (typically 2 to 10 bar / 29 to 145 psi) |
| Actuation Type | Solenoid pilot actuated, spool-type directional control |
| Mounting & Connection | Manifold-mounted modular island; standard ISO / manufacturer interface with push-in or threaded port connections |
| Media | Filtered, lubricated or non-lubricated compressed air |
Engineering Features & Advantages
- Precision Performance: Individual solenoid pilot valves deliver fast, repeatable spool shifting with consistent response times, ensuring accurate sequencing of pneumatic actuators across the island.
- Modular Scalability: The valve island platform allows valve slices to be added, removed, or reconfigured without disturbing the manifold base, simplifying system expansion and spare-part management.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust spool and seal materials resistant to wear and contaminant ingress.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Norgren VM series standards, enabling drop-in service without manifold modification.
- Compact Footprint: Centralized valve clustering reduces panel space and pneumatic tubing complexity compared to discrete valve installations.
Typical Industrial Applications
The NORGREN VM100402102 pneumatic valve island is suited to a wide range of automated industrial scenarios, including packaging and filling machinery, plastic injection molding machines, CNC machine tools and assembly automation, and general factory process control systems requiring centralized, multi-actuator pneumatic switching. It is also commonly deployed in material handling, textile, and food-processing equipment where reliable, repeatable valve actuation is critical.
PRODUCT IMAGES

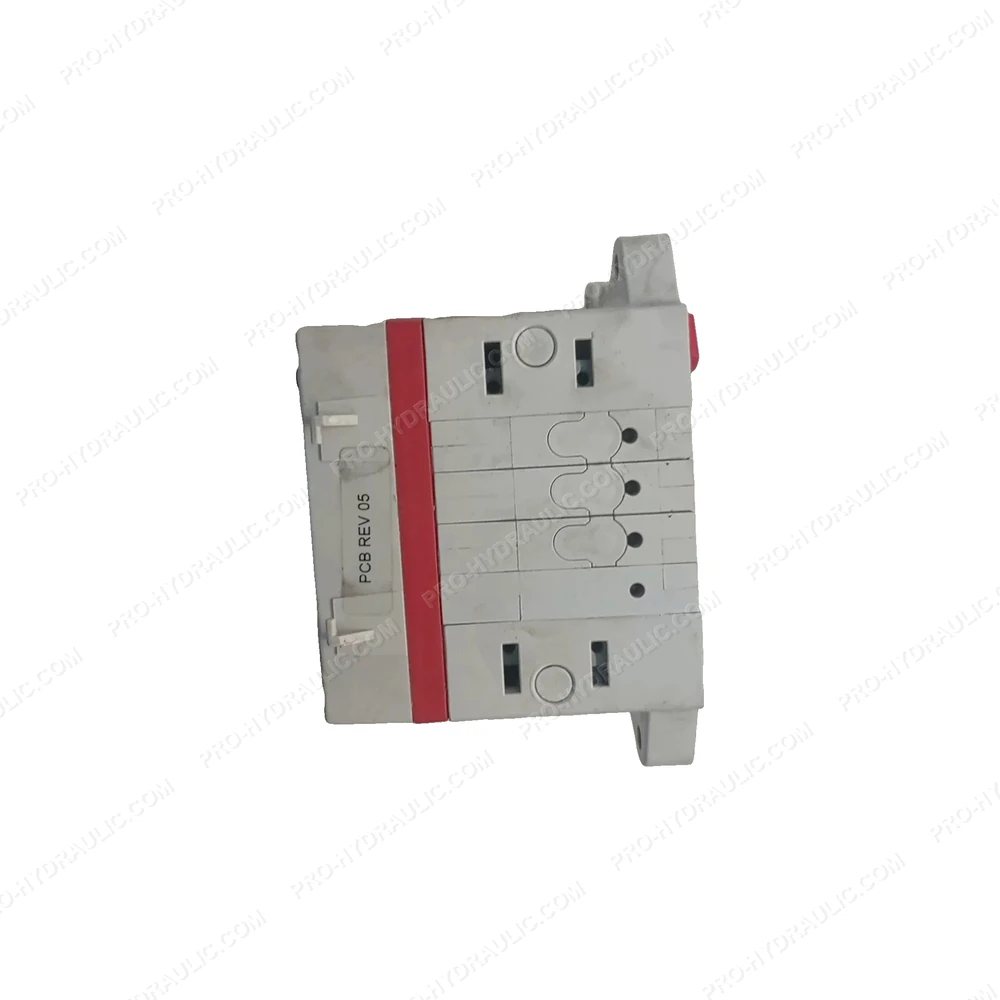

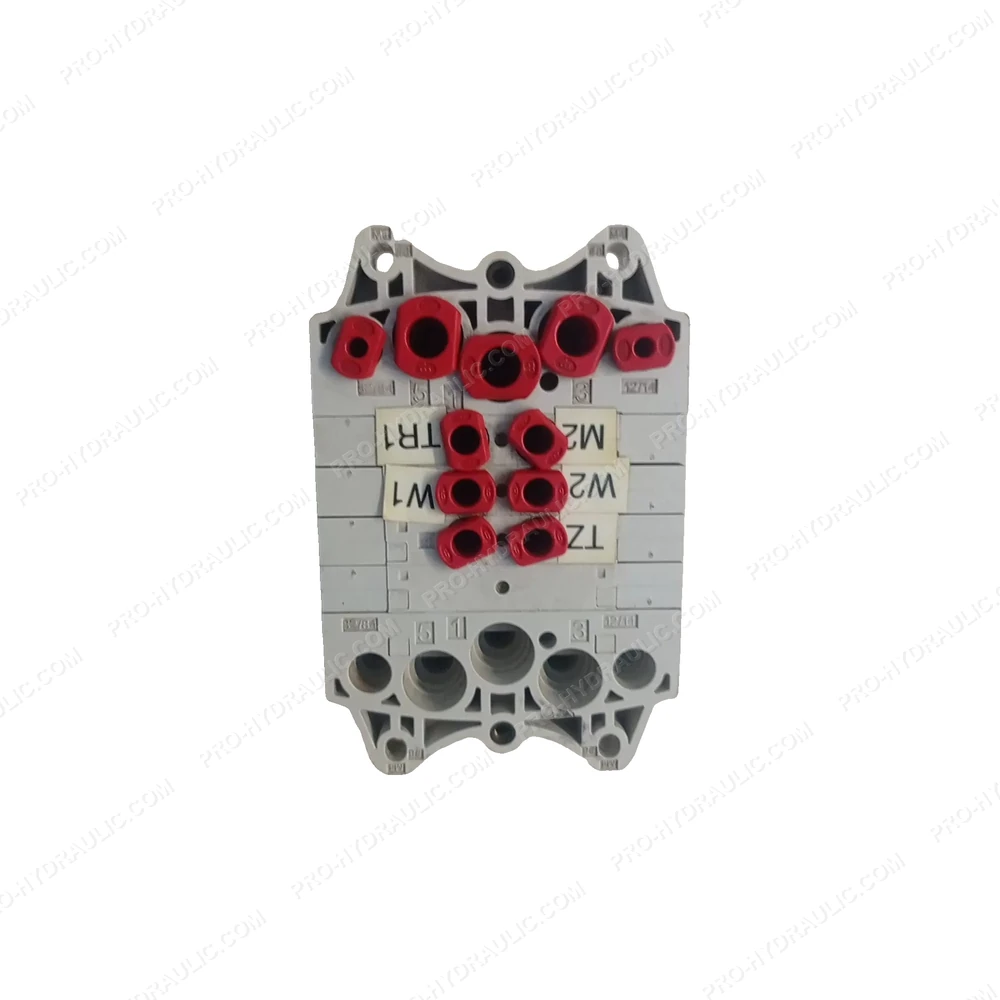

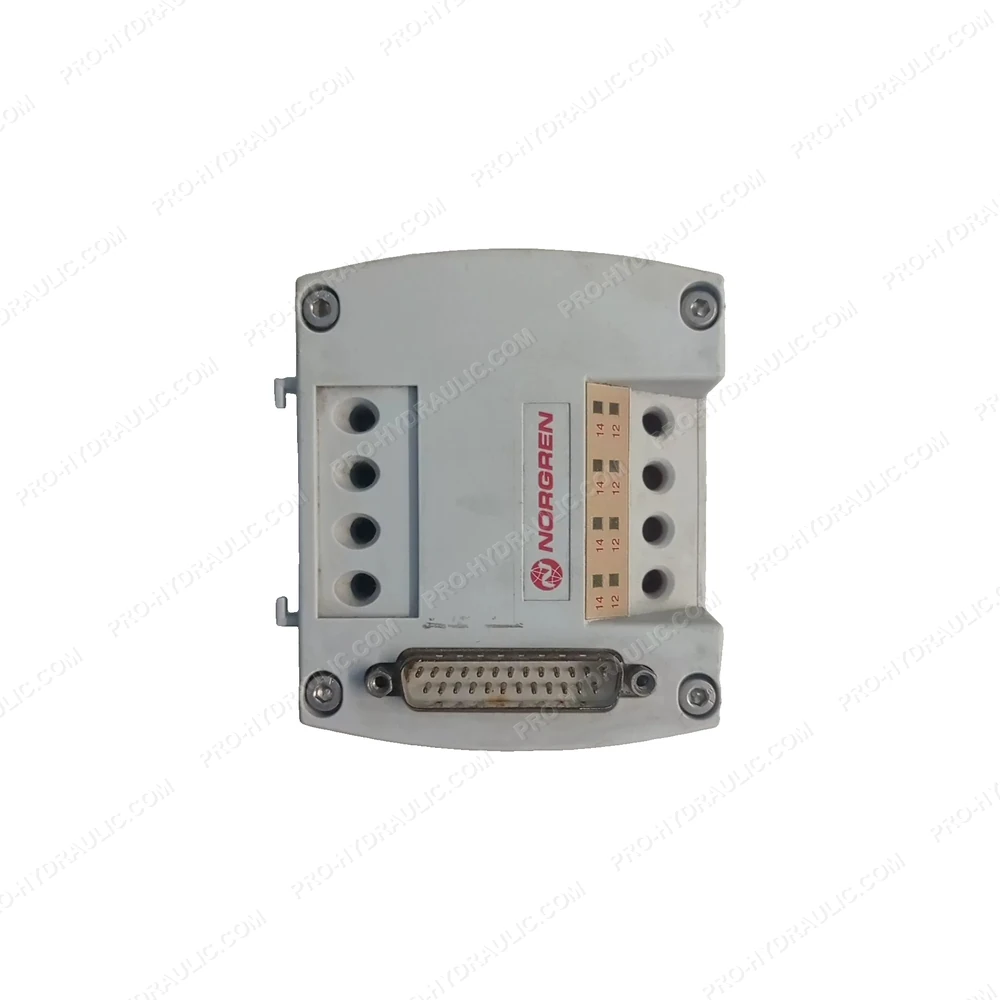

NORGREN VM100402102 Pneumatic Valve Island
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine NORGREN VM100402102 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
