The NORTHMAN SWH-G03-C3-D24-20 is a heavy-duty industrial directional control valve engineered for precise flow management in hydraulic circuits. This solenoid-operated, spring-centered unit features a three-position, four-way spool configuration with a closed-center condition, ensuring stable actuator holding and reliable load control in demanding applications.
NORTHMAN SWH-G03-C3-D24-20 Technical Specifications
| Valve Type | Solenoid-Operated Directional Control Valve |
| Mounting Standard | ISO 4401 / CETOP 3 / NG6 |
| Spool Configuration | 3-Position, 4-Way, Closed Center |
| Actuation | Dual Solenoid, Spring Centered |
| Coil Voltage | 24 VDC |
| Max Operating Pressure | 315 bar (P, A, B ports) |
| Max Flow Rate | 60 L/min |
| Fluid Temperature Range | -20°C to +70°C |
| Hydraulic Fluid | Mineral oil based, ISO VG 32-68 |
| Filtration | ISO 4406 18/16/13 or better |
Key Engineering Features
- Wet-pin armature design for efficient solenoid cooling and extended service life
- Hardened, precision-ground spool and sleeve for minimal internal leakage
- High-strength cast iron body with corrosion-resistant coating
- Standard CETOP 3 mounting interface for direct manifold installation
- Manual override option for emergency operation
- Rated for continuous duty with high cycle rates
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes
- Industrial presses and injection molding machines
- Material handling and lifting equipment
- Agricultural machinery hydraulic circuits
- Machine tool clamping and positioning systems
For technical inquiries, dimensional drawings, or replacement support for NORTHMAN SWH-G03-C3-D24-20, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

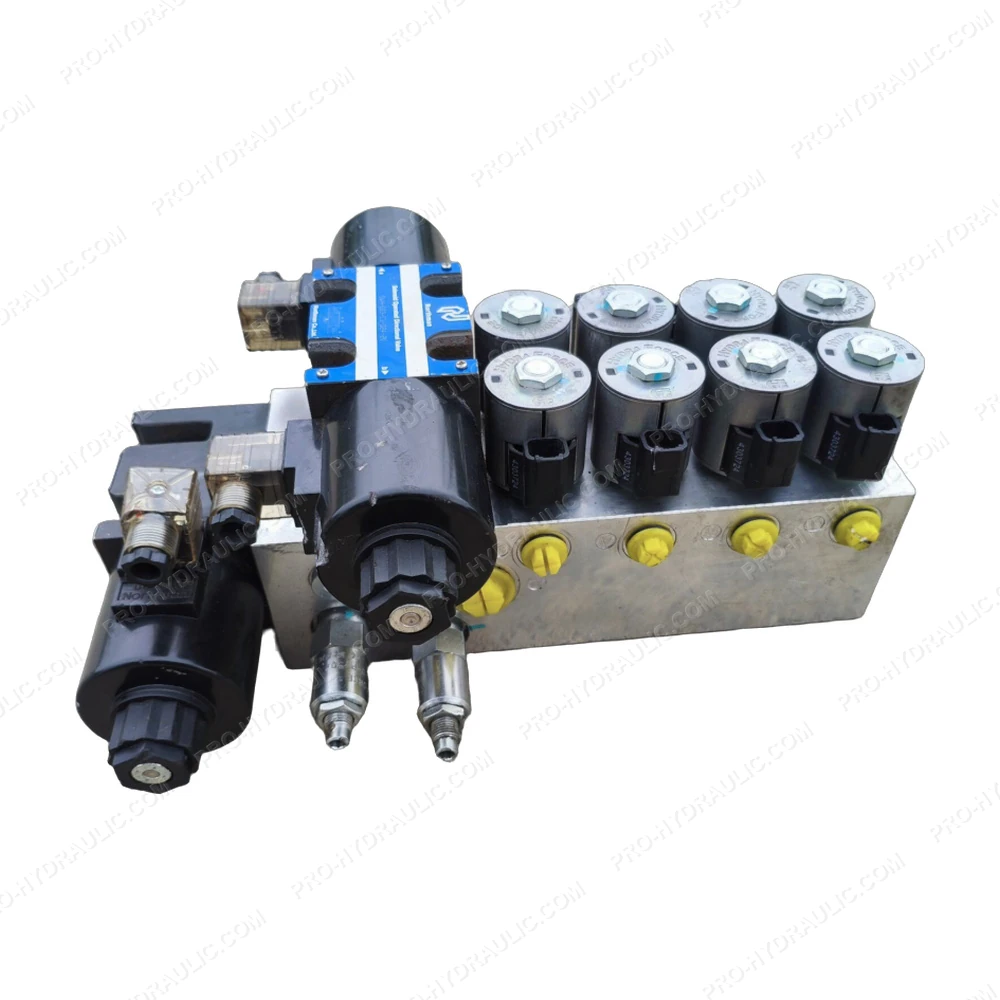

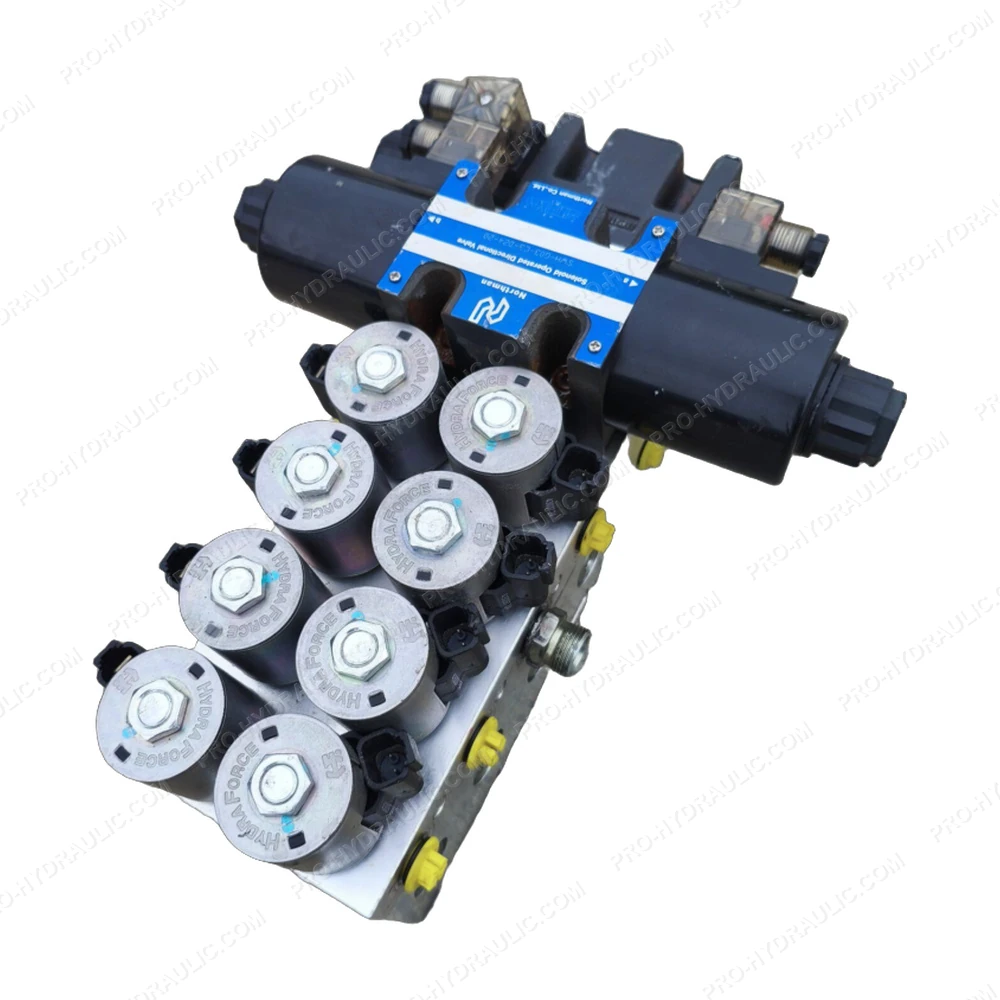

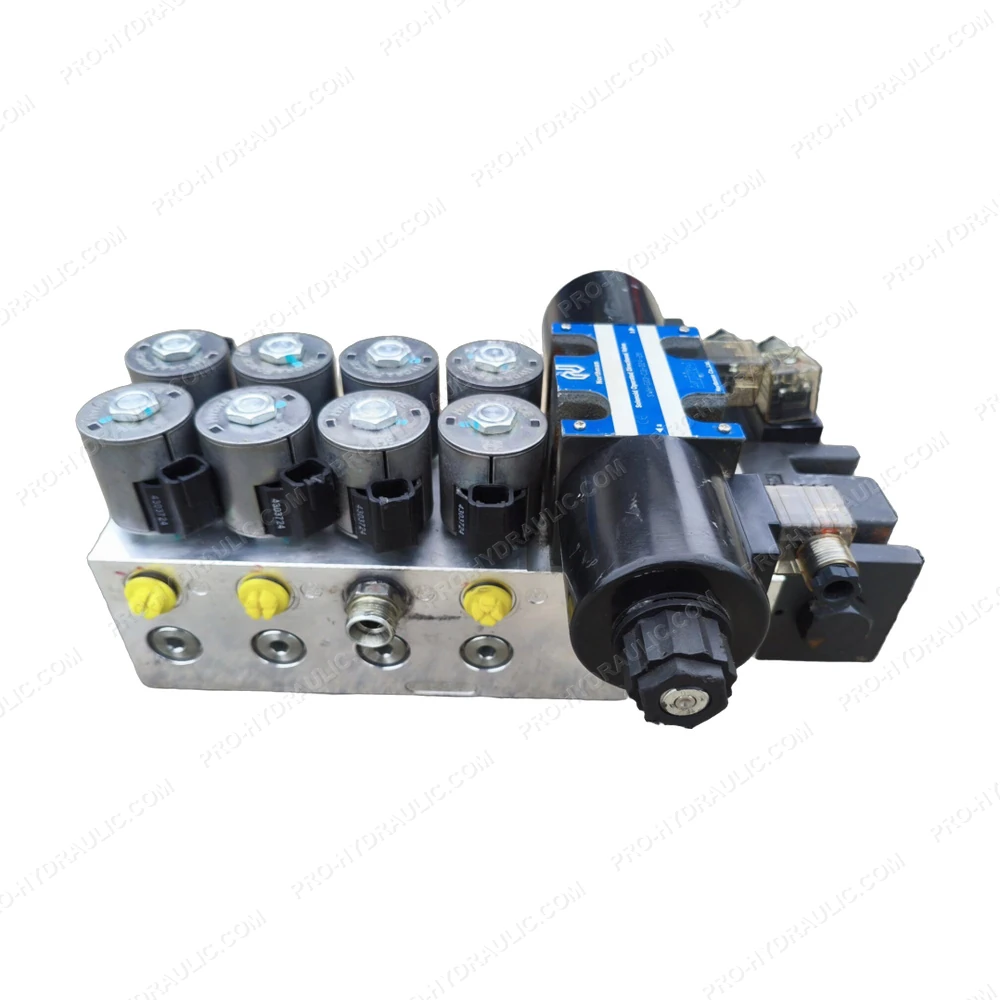

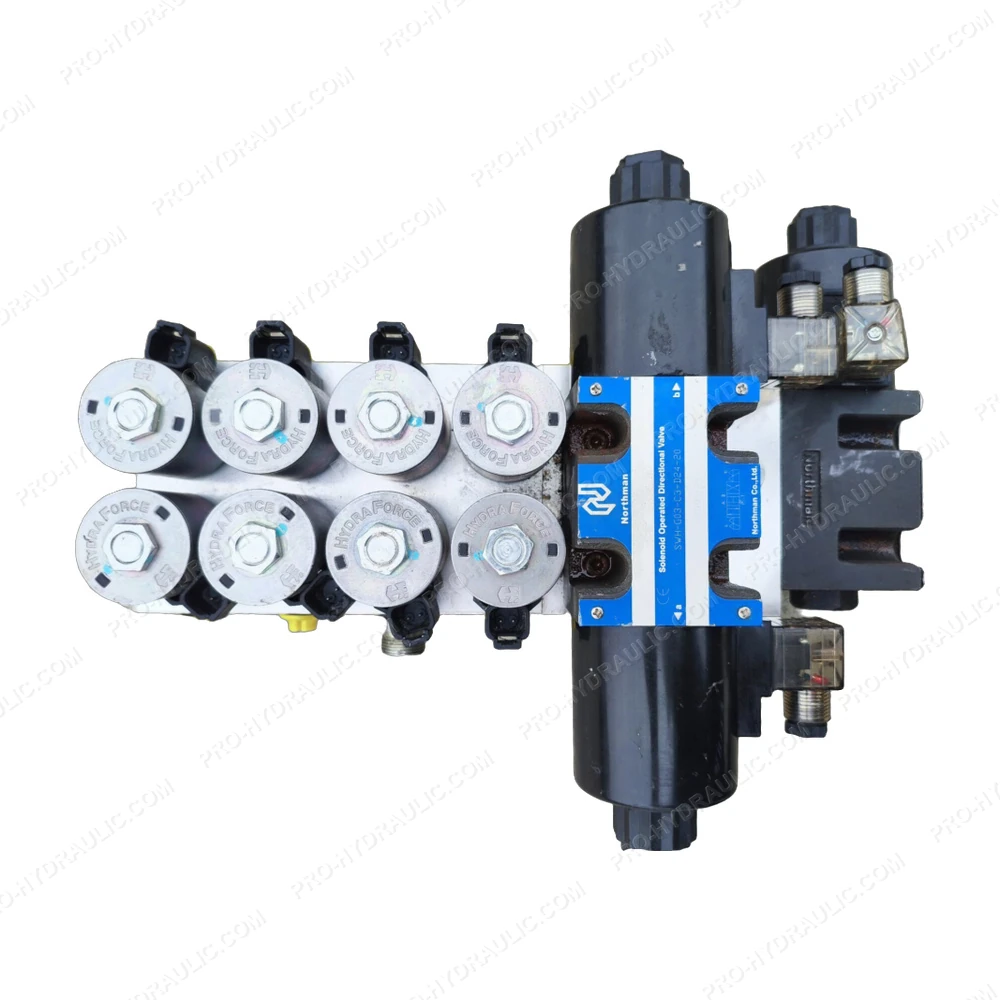

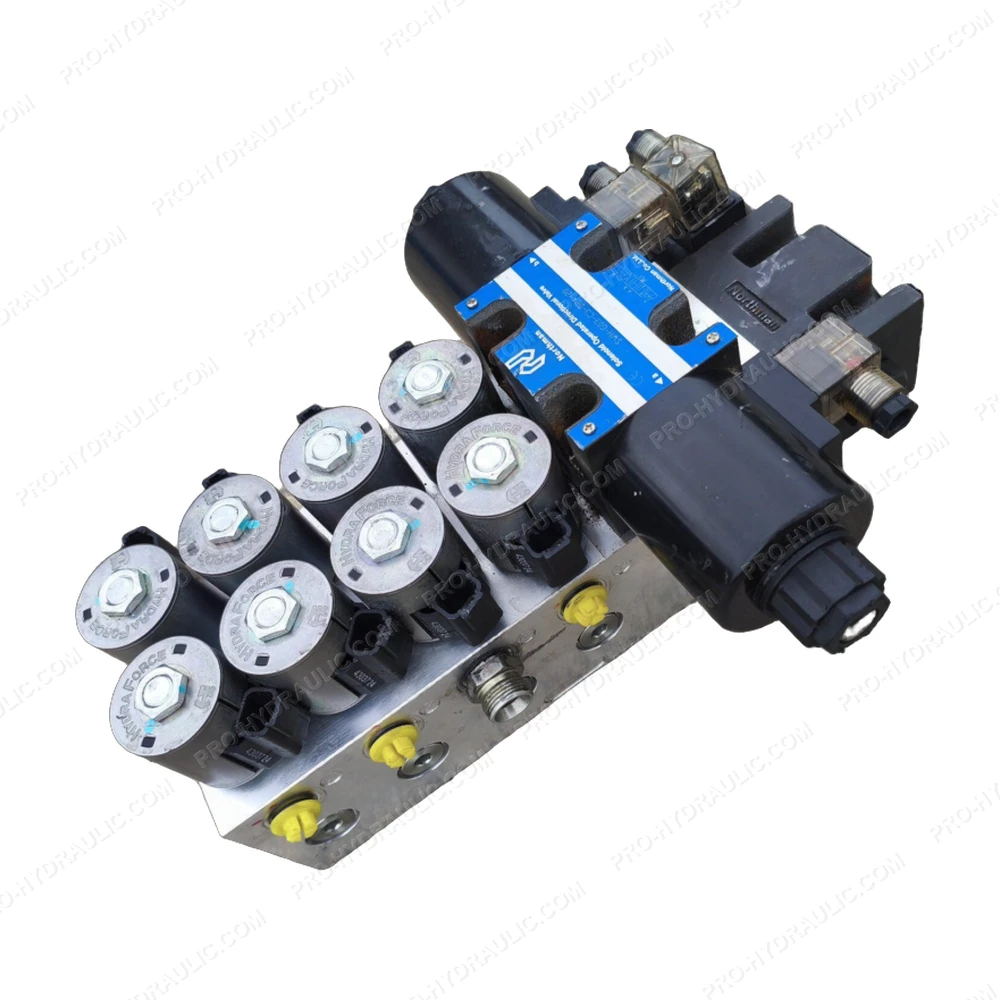

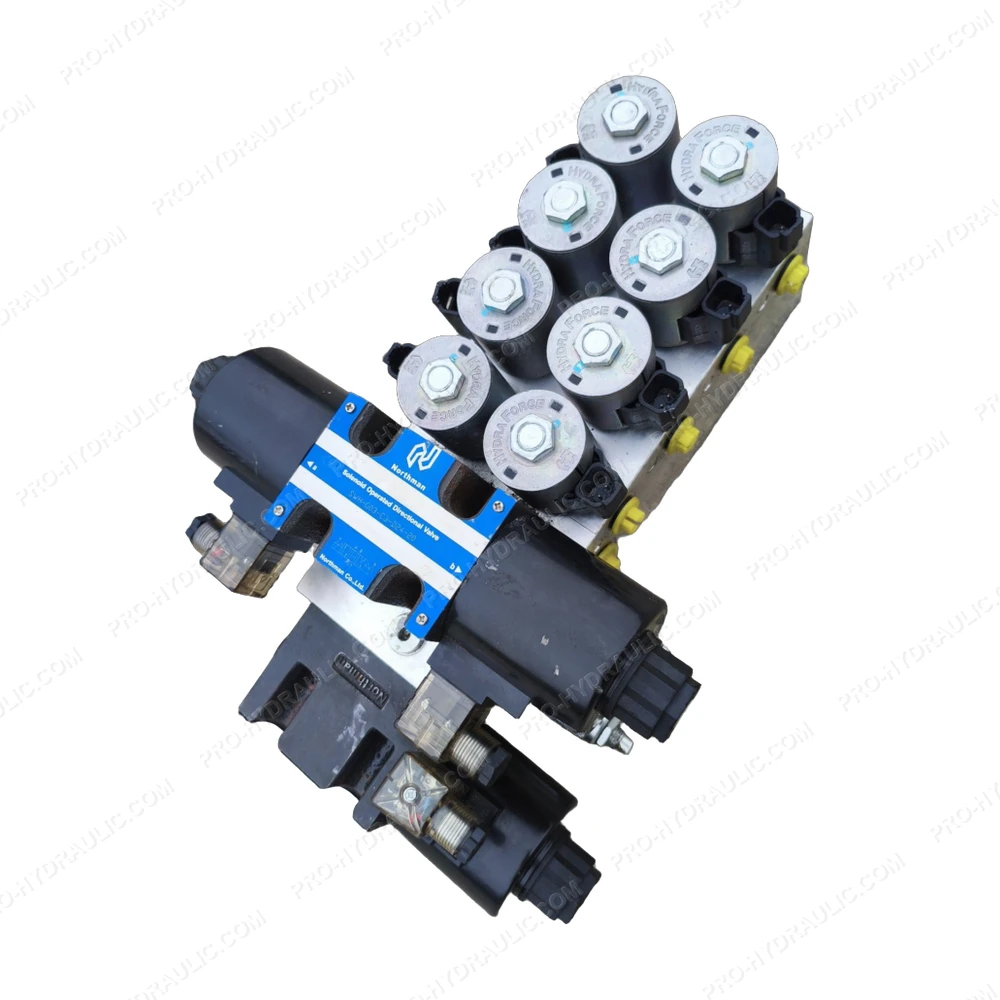

NORTHMAN SWH-G03-C3-D24-20 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NORTHMAN SWH-G03-C3-D24-20 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
