The NUPRO SS-4BY-V35-1C is a heavy-duty industrial process valve engineered for reliable isolation and tight shutoff in analytical and pneumatic fluid systems. This Swagelok NUPRO model features a 1/4 in. Swagelok tube fitting end connection and a poppet-style shutoff design, providing leak-tight performance in high-purity and general industrial applications.
NUPRO SS-4BY-V35-1C Technical Specifications
| Manufacturer | NUPRO (Swagelok) |
|---|---|
| Model | SS-4BY-V35-1C |
| Valve Type | Poppet Shutoff Valve |
| Body Material | 316 Stainless Steel |
| End Connection | 1/4 in. Swagelok Tube Fitting |
| Orifice Size | 0.172 in. (4.4 mm) |
| Flow Coefficient (Cv) | 0.60 |
| Maximum Working Pressure | 3000 psig (206 bar) |
| Temperature Range | -65°F to 450°F (-53°C to 232°C) |
| Actuation | Manual, Hand Operated |
| Seat Material | PCTFE |
Key Engineering Features
- Poppet-style shutoff design for bubble-tight sealing in gas and liquid service
- 316 stainless steel body and stem for corrosion resistance in aggressive media
- PCTFE seat provides low permeability and broad chemical compatibility
- Compact envelope suitable for panel mounting and dense manifold installations
- Swagelok tube fitting ends ensure consistent, leak-free connections without thread sealants
Industrial Applications
- Analytical instrumentation and sample handling systems
- Pneumatic control panels and compressed air distribution
- High-purity gas delivery in semiconductor and laboratory environments
- Chemical processing and petrochemical pilot plants
- Research and development test stands requiring precise flow isolation
For technical inquiries, dimensional drawings, or replacement support for NUPRO SS-4BY-V35-1C, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

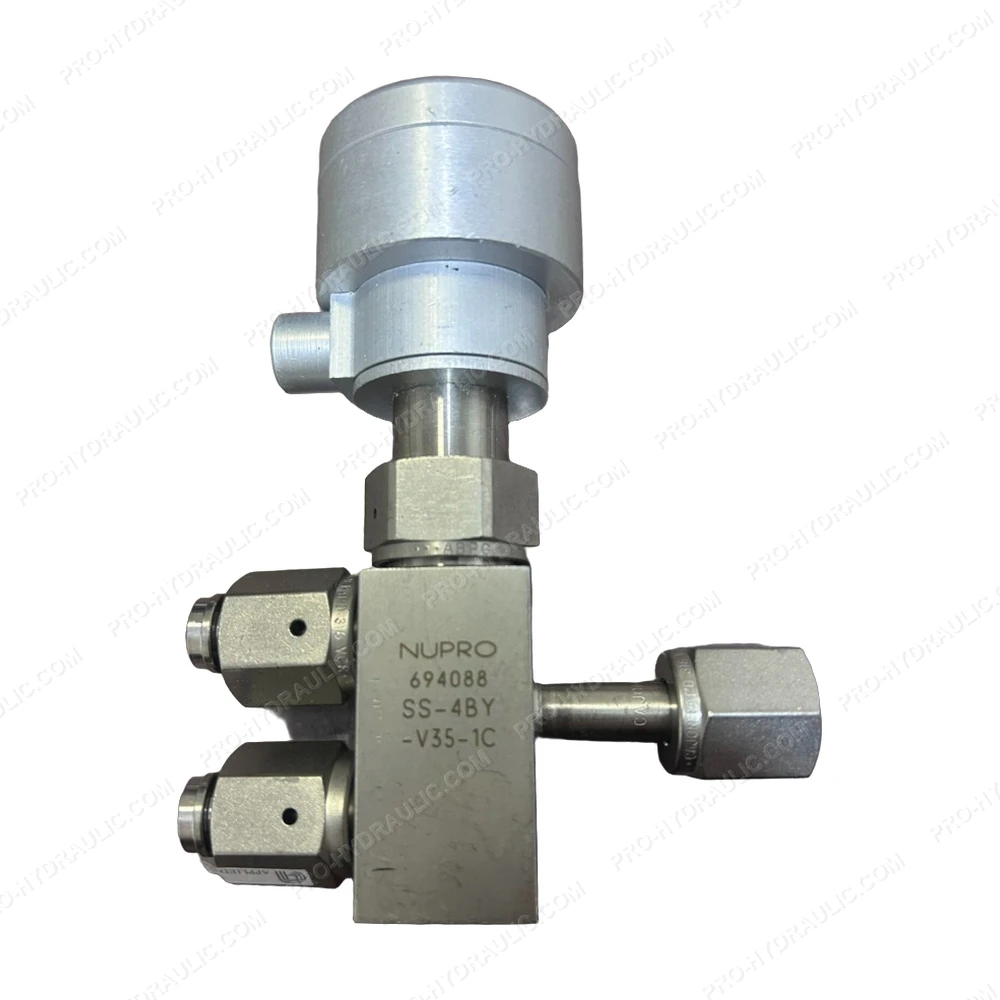

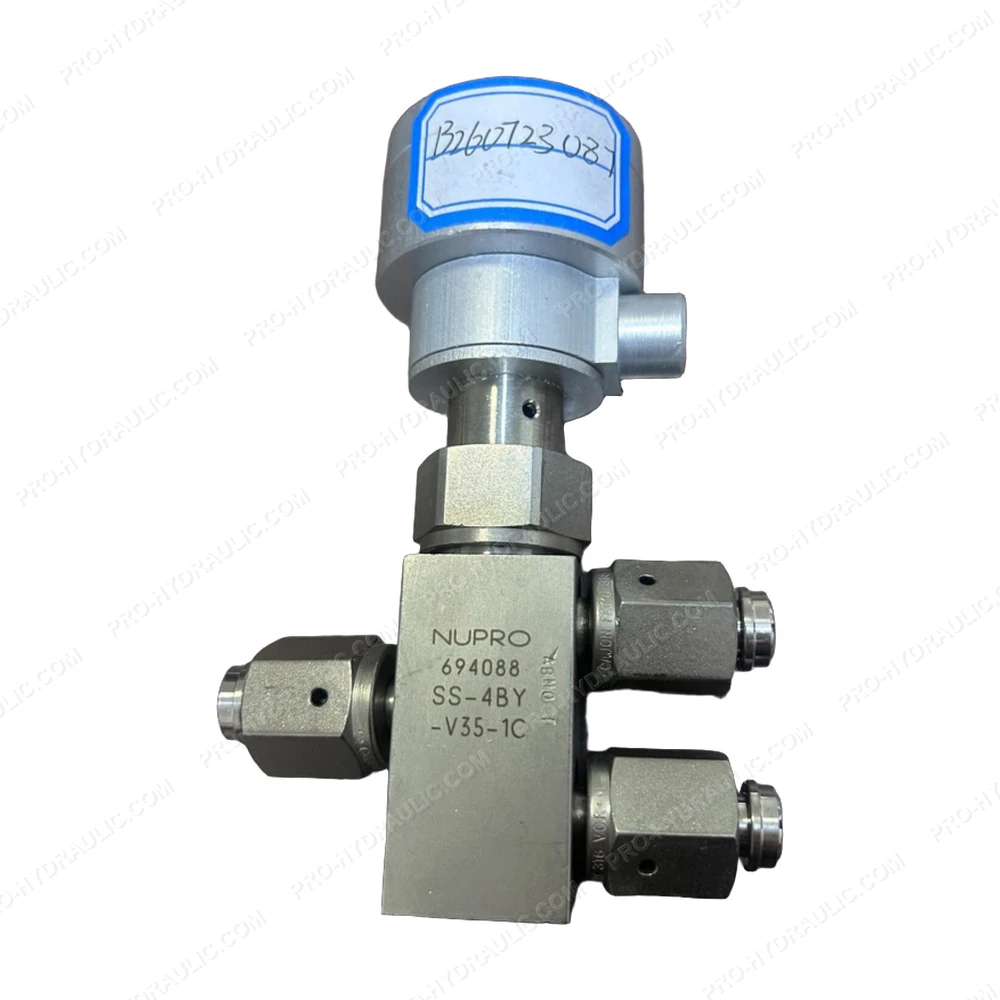

NUPRO SS-4BY-V35-1C Process Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the NUPRO SS-4BY-V35-1C Process Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
