The O.T. PS2337012D is a heavy-duty industrial high pressure gear pump engineered for continuous operation in demanding hydraulic circuits. Its external gear design provides positive displacement with minimal pulsation, ensuring stable flow across a wide pressure range.
O.T. PS2337012D Technical Specifications
| Parameter | Specification |
|---|---|
| Displacement | 12.0 cm³/rev |
| Max. Continuous Pressure | 250 bar |
| Max. Intermittent Pressure | 280 bar |
| Max. Speed | 3000 rpm |
| Min. Speed | 500 rpm |
| Rotation | Clockwise (viewed from shaft) |
| Mounting Flange | SAE 2-bolt, 4-bolt optional |
| Shaft Type | Straight keyed, splined optional |
| Port Connections | SAE split flange, BSPP, or metric |
| Body Material | High-strength cast iron |
| Gear Material | Case-hardened alloy steel |
| Seal Material | NBR (standard), FKM optional |
| Operating Temperature | -20°C to +80°C |
| Filtration Requirement | ISO 4406 18/16/13 or better |
Key Engineering Features
- External gear design with pressure-balanced bearing blocks for high volumetric efficiency.
- Case-hardened and ground gear teeth for reduced wear and extended service life.
- Ductile iron housing withstands high pressure and vibration without deformation.
- Multiple port and mounting configurations available for direct drop-in replacement.
- Low noise operation due to optimized gear profile and tight manufacturing tolerances.
- Compatible with mineral oil, synthetic fluids, and fire-resistant hydraulic fluids (depending on seal selection).
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes, and agricultural machinery.
- Industrial power units: presses, injection molding machines, and machine tools.
- Material handling equipment: forklifts, conveyors, and lifting platforms.
- Marine and offshore hydraulic drives.
- Test stands and specialized high-pressure circuits.
For technical inquiries, dimensional drawings, or replacement support for O.T. PS2337012D, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

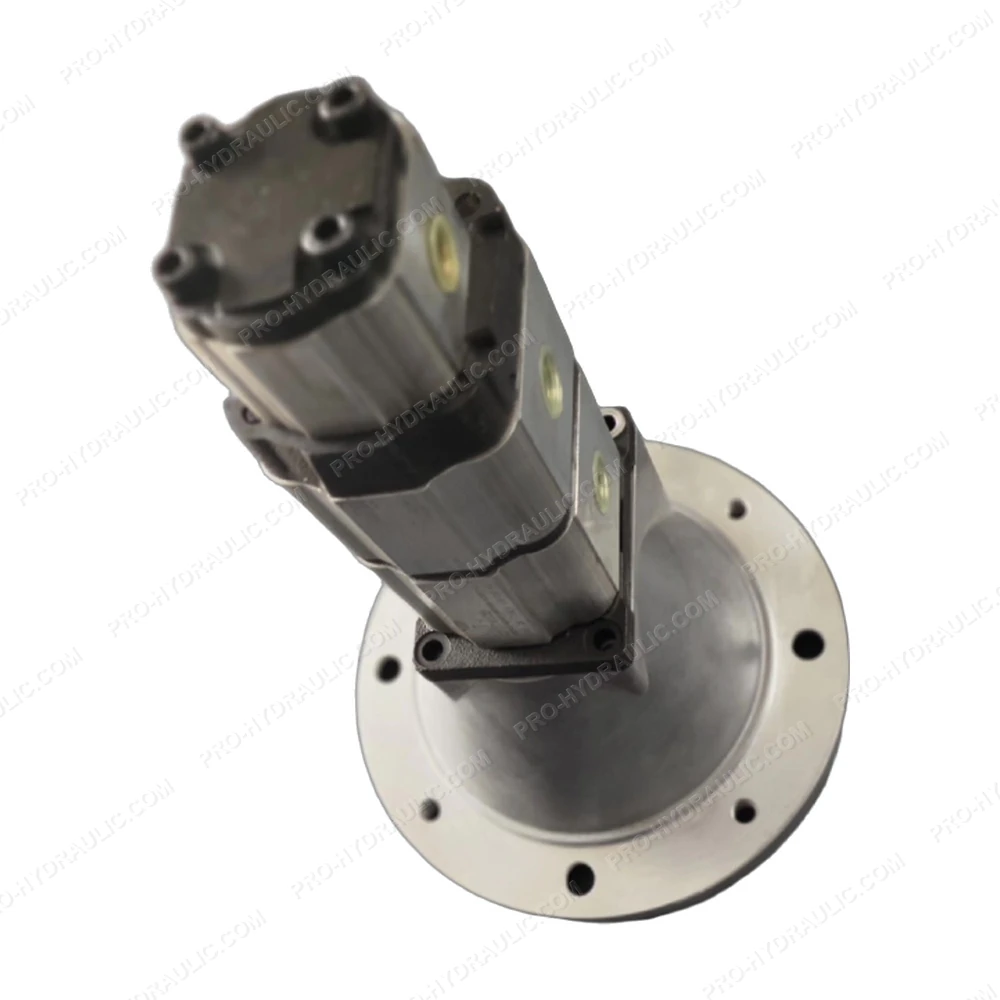

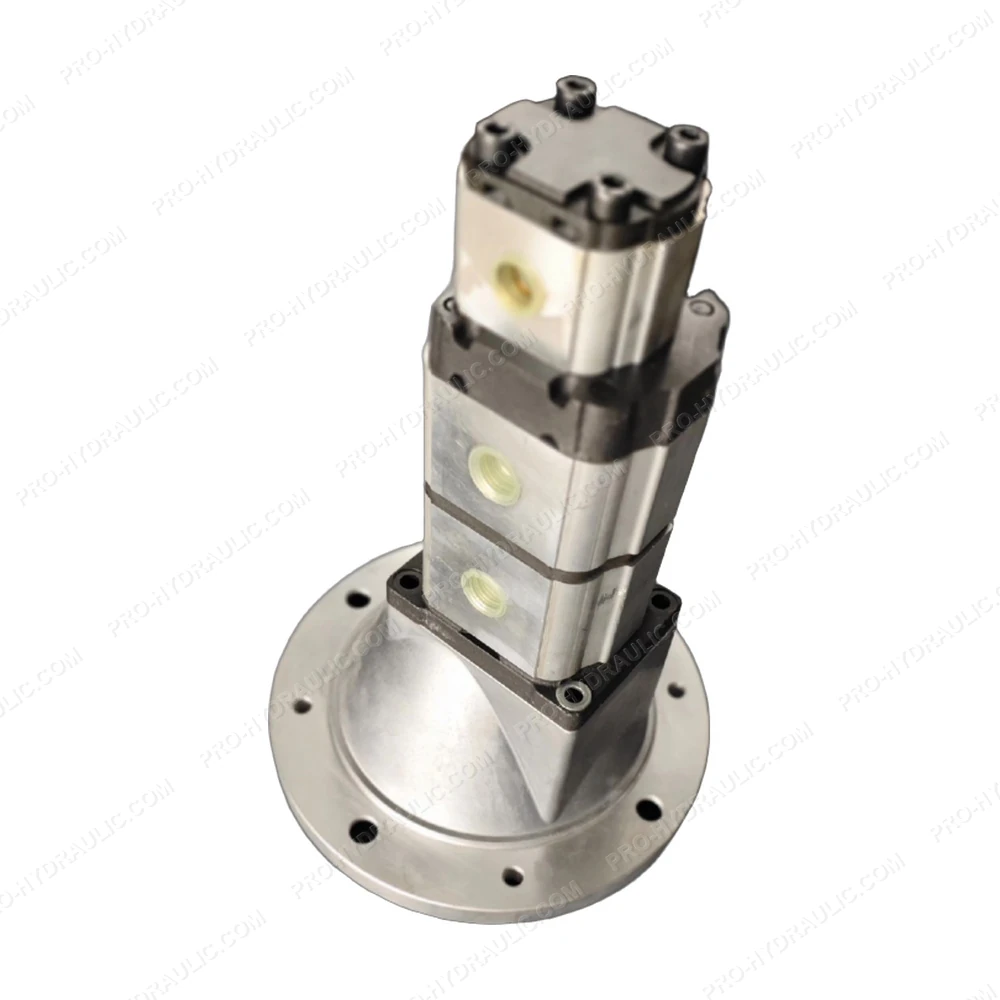

O.T. PS2337012D High Pressure Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the O.T. PS2337012D High Pressure Gear Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
