Product Overview
The OMAL DA045402S is a double-acting pneumatic actuator from OMAL’s rack-and-pinion actuator series, engineered for precise quarter-turn (90°) valve automation in industrial fluid control systems. The “DA” designation identifies a double-acting configuration, meaning compressed air is applied alternately to opposing piston chambers to drive the output shaft through both the opening and closing strokes, delivering positive torque in each direction without reliance on spring return. The model code “045” corresponds to the actuator’s torque class within the OMAL range, while “402S” denotes the specific body and interface variant. Constructed with a hard-anodized aluminum alloy body and precision-machined rack-and-pinion gearing, the DA045402S converts linear piston thrust into rotary motion with high mechanical efficiency and minimal backlash. It serves as a critical spares and accessory component for ball valves, butterfly valves, and plug valves across process, water treatment, and general industrial duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Actuator (Quarter-Turn, Rack-and-Pinion) |
| Model Designation | OMAL DA045402S |
| Actuation Type | Double-Acting (Air-to-Open / Air-to-Close) |
| Operating Pressure | Standard Industrial Grade (typically 2.5 – 8 bar / 36 – 116 psi) |
| Rotation Angle | 90° (adjustable ±5° at both end positions) |
| Body Material | Hard-Anodized Extruded Aluminum Alloy |
| Mounting & Connection | Standard ISO 5211 Valve Mounting Flange; Namur Interface for Solenoid / Accessories |
| Air Port Connection | Namur Standard Interface (G1/4″ typical) |
| Temperature Range | Standard NBR Seals: -20°C to +80°C (consult for high/low temp variants) |
Engineering Features & Advantages
- Precision Rack-and-Pinion Drive: Hard-anodized aluminum body with precision-machined rack-and-pinion gearing delivers smooth, symmetrical torque output in both directions with minimal backlash for accurate valve positioning.
- Double-Acting Efficiency: Air-driven operation in both the open and close strokes provides full rated torque without spring resistance, ideal for applications requiring high cycle rates and consistent actuation force.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with corrosion-resistant anodized surfaces and durable NBR sealing elements for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OMAL standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It serves as a critical spares and accessory component for ball valves, butterfly valves, and plug valves across process, water treatment, and general industrial duty applications.
PRODUCT IMAGES

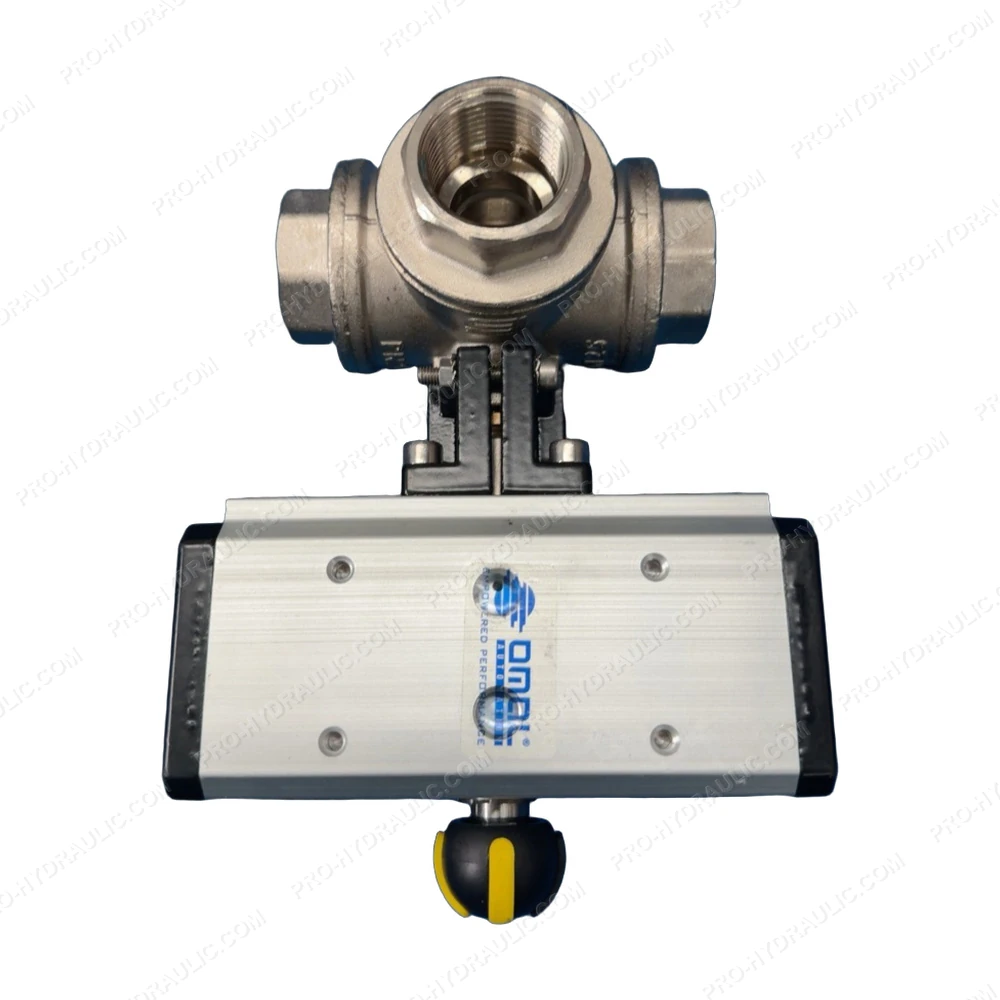

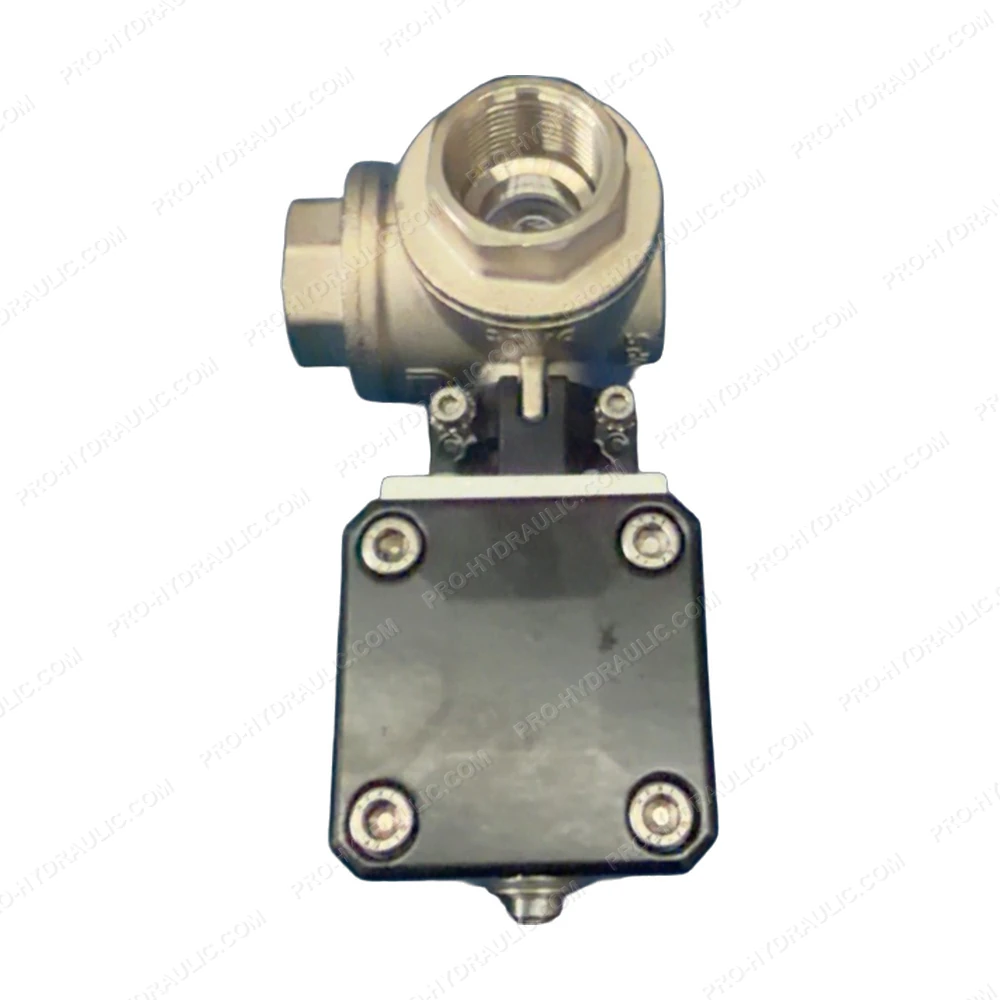

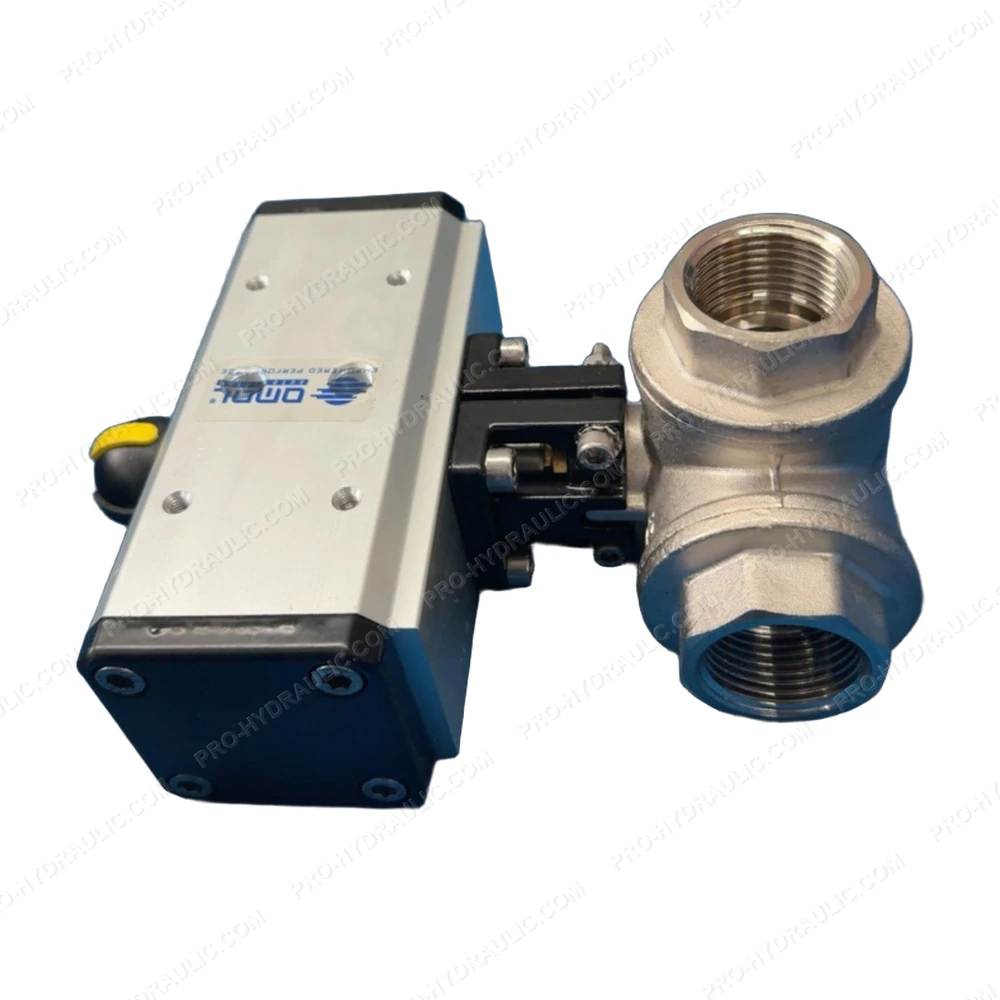

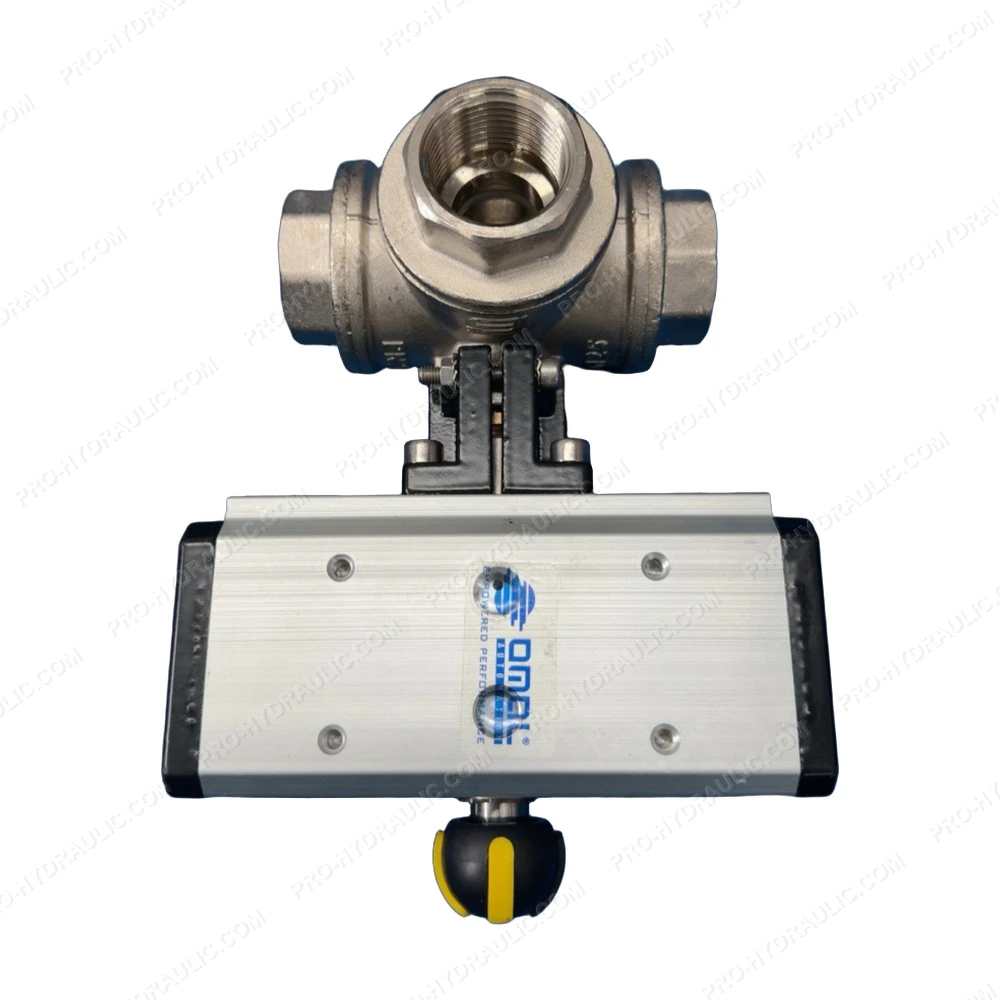

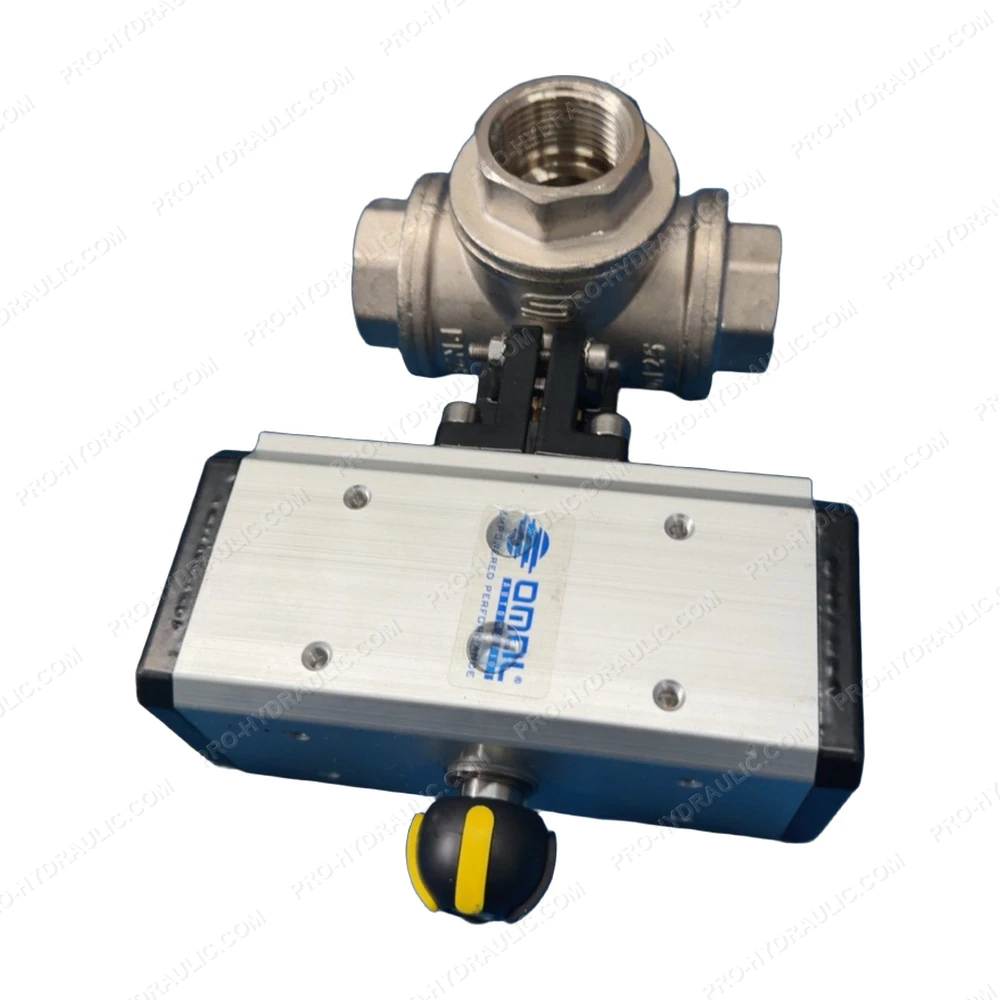

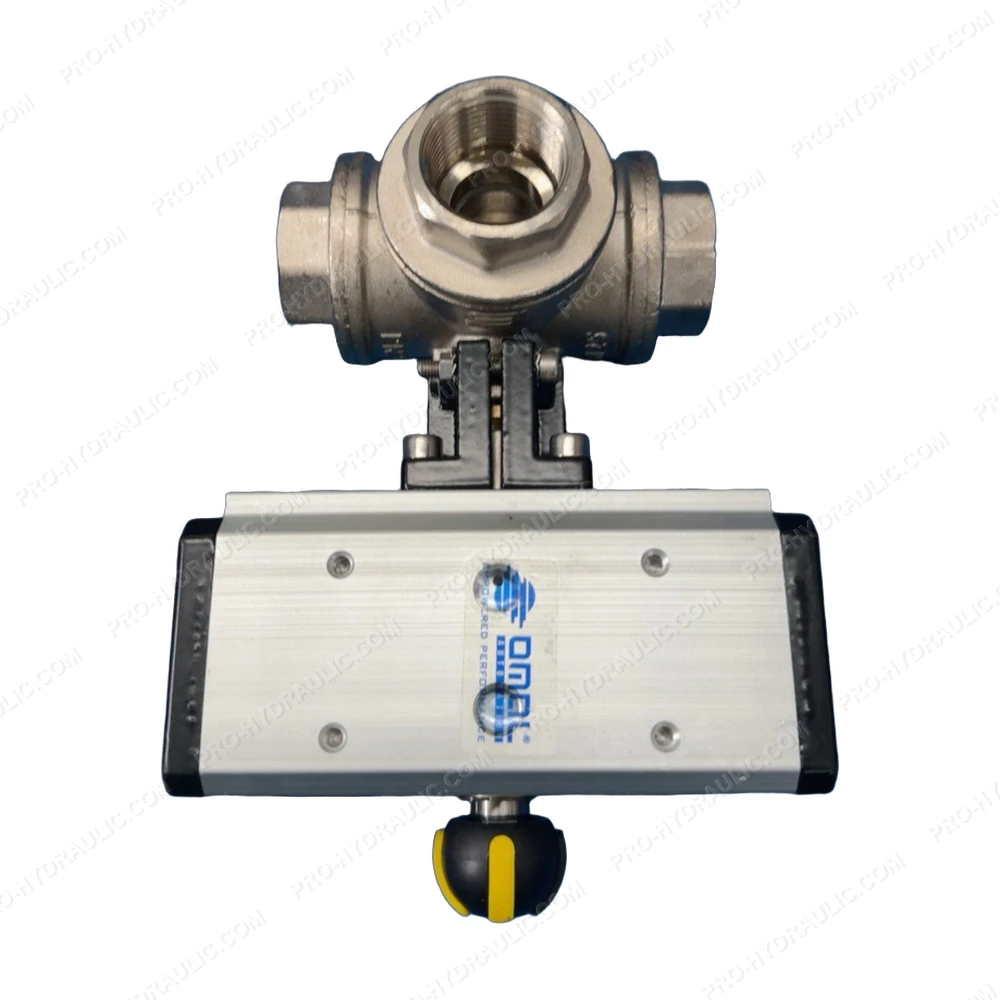

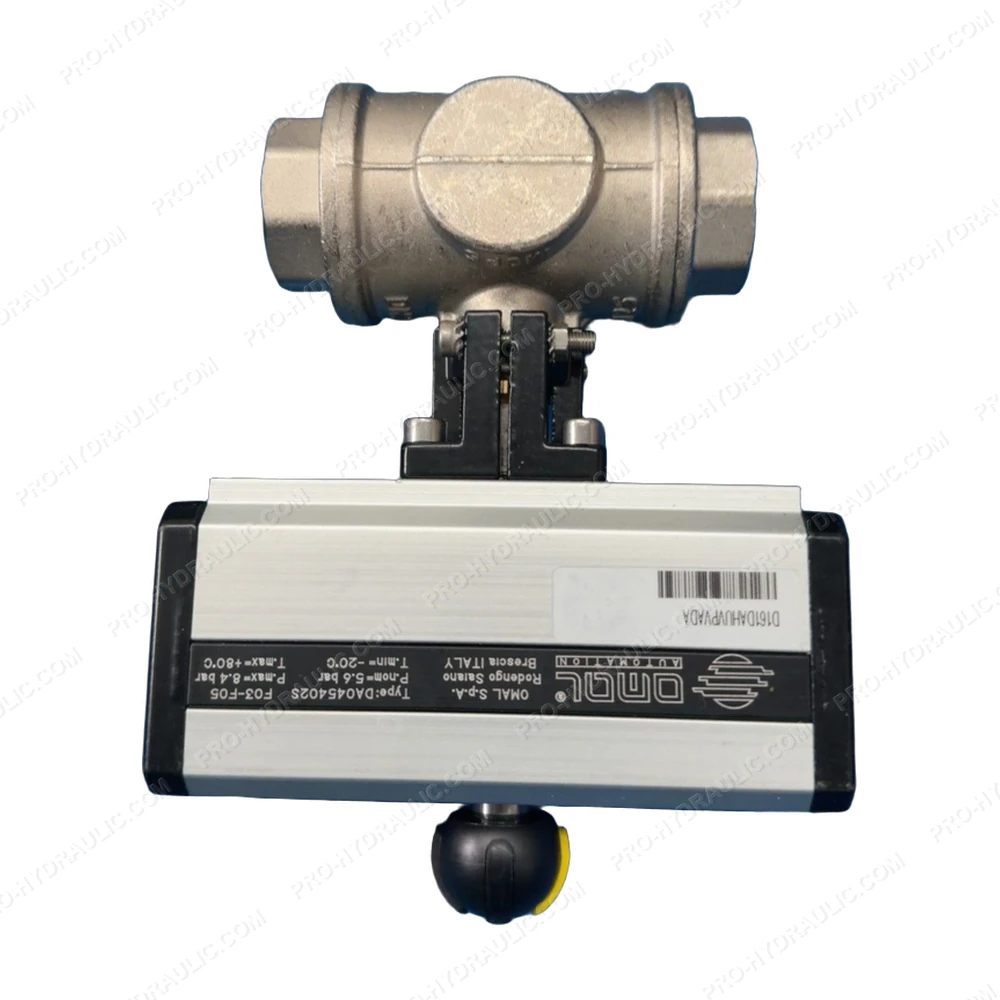

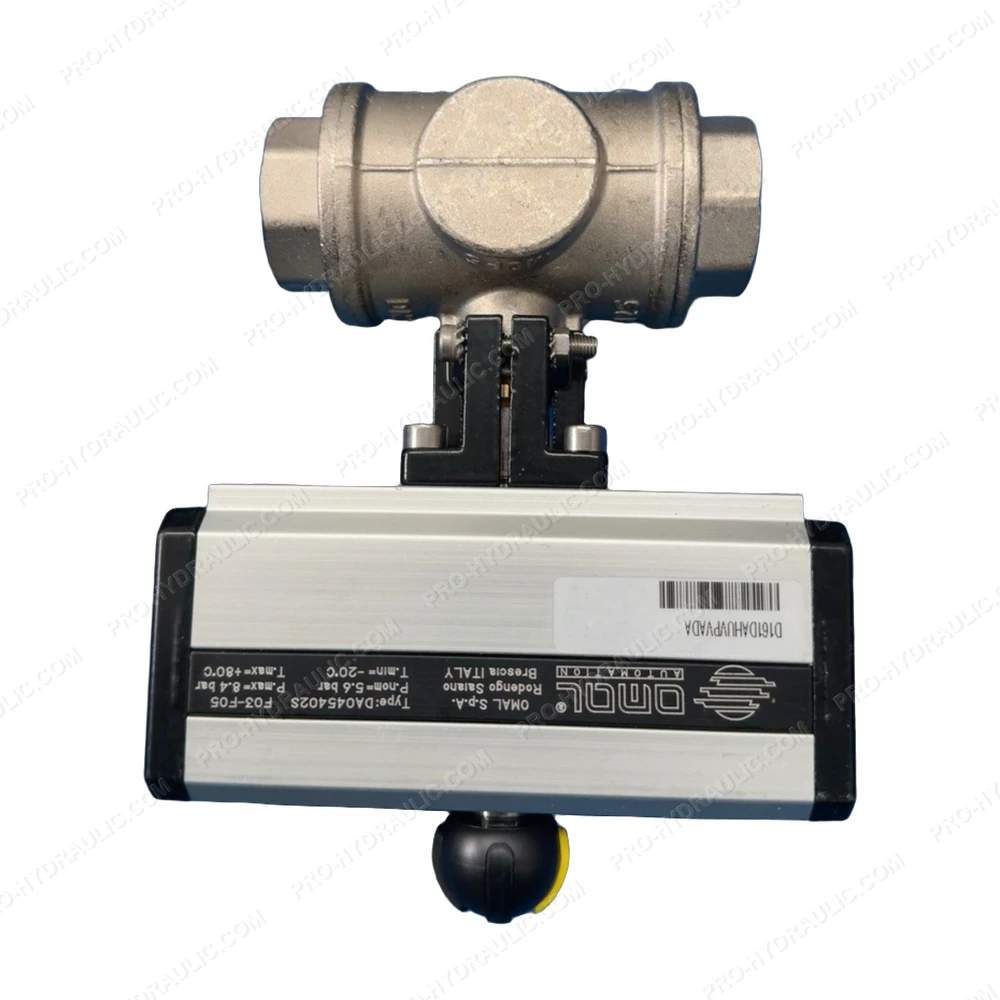

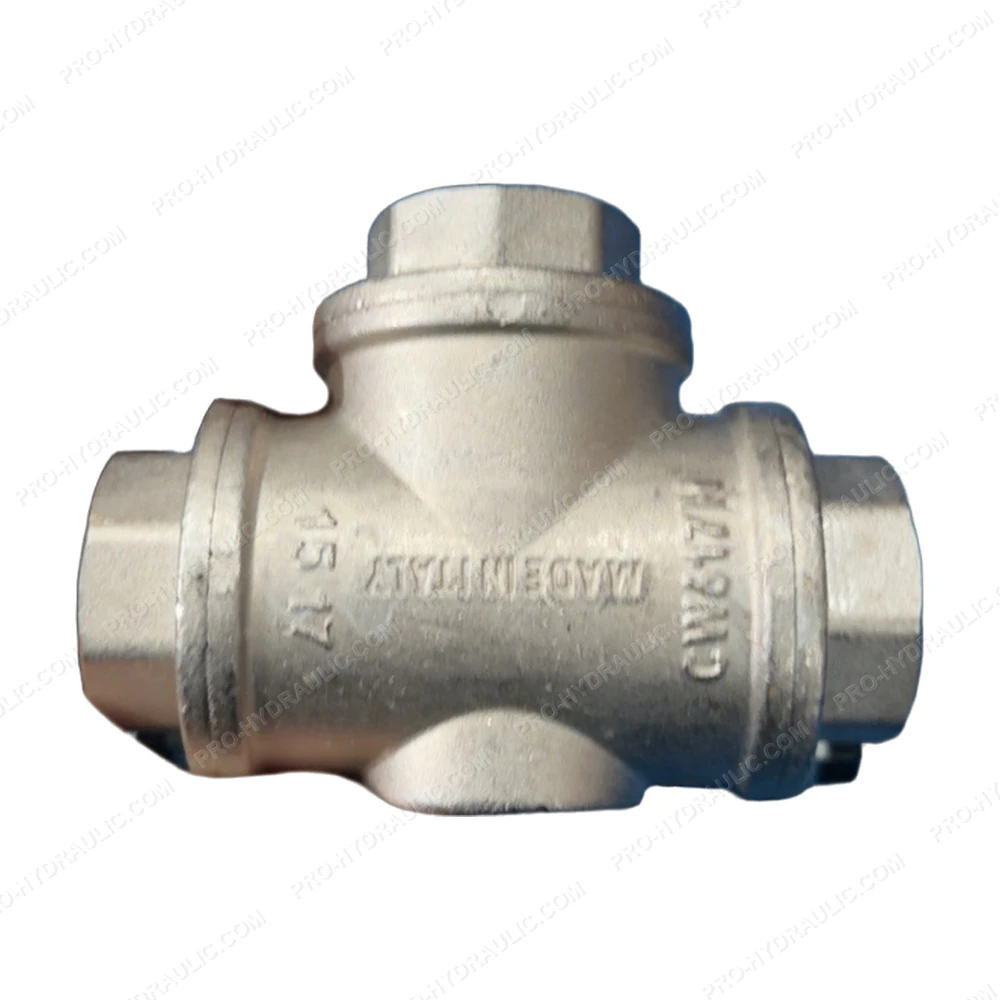

OMAL DA045402S Pneumatic Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine OMAL DA045402S Pneumatically Actuated Ball Valve. This Italy-made pneumatic component features a double-acting actuator, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
