Product Overview
The OMAL J4SPG1603 is a pneumatically actuated angle seat valve engineered for precise on/off control of neutral and aggressive media in industrial process lines. Manufactured by OMAL S.p.A., a recognized specialist in valve automation, this valve utilizes a double-acting or spring-return pneumatic piston actuator acting on an inclined valve stem, delivering high flow rates with minimal pressure loss. The angled body geometry promotes self-draining and reduces turbulence, making it an ideal choice for shut-off and throttling duties in fluid handling systems where reliability and fast response are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Valve (Process & Pneumatic Valve) |
| Model Designation | J4SPG1603 |
| Manufacturer | OMAL S.p.A. |
| Actuation Type | Pneumatic piston actuator (spring-return / double-acting configuration) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per body/seat rating) |
| Pilot Air Pressure | Typical 3–8 bar control air supply |
| Mounting & Connection | Standard threaded / flanged process interface; ISO pneumatic pilot port |
| Body Configuration | Angled seat design for high flow and self-draining |
Engineering Features & Advantages
- Precision Performance: The inclined seat and streamlined flow path deliver high flow coefficients (Kv) with low pressure drop, ensuring efficient media transfer and accurate on/off control.
- Fast Pneumatic Actuation: Compact piston actuator provides rapid response times and reliable cycling, suitable for automated process sequences.
- Industrial Reliability: Robust body and seat materials resist wear and chemical attack, supporting continuous operation under severe industrial conditions.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OMAL J4SPG1603 specifications for drop-in servicing.
- Versatile Media Handling: Suitable for neutral, slightly aggressive, and high-purity fluids depending on seal and body material selection.
Typical Industrial Applications
Commonly deployed in plastic injection molding machines for cooling and media control, metallurgical presses for hydraulic and coolant circuits, construction and marine hydraulic systems for fluid routing, CNC machine tools for coolant and lubrication management, as well as general process industries including chemical dosing, water treatment, and food & beverage lines where reliable pneumatic shut-off is required.
PRODUCT IMAGES

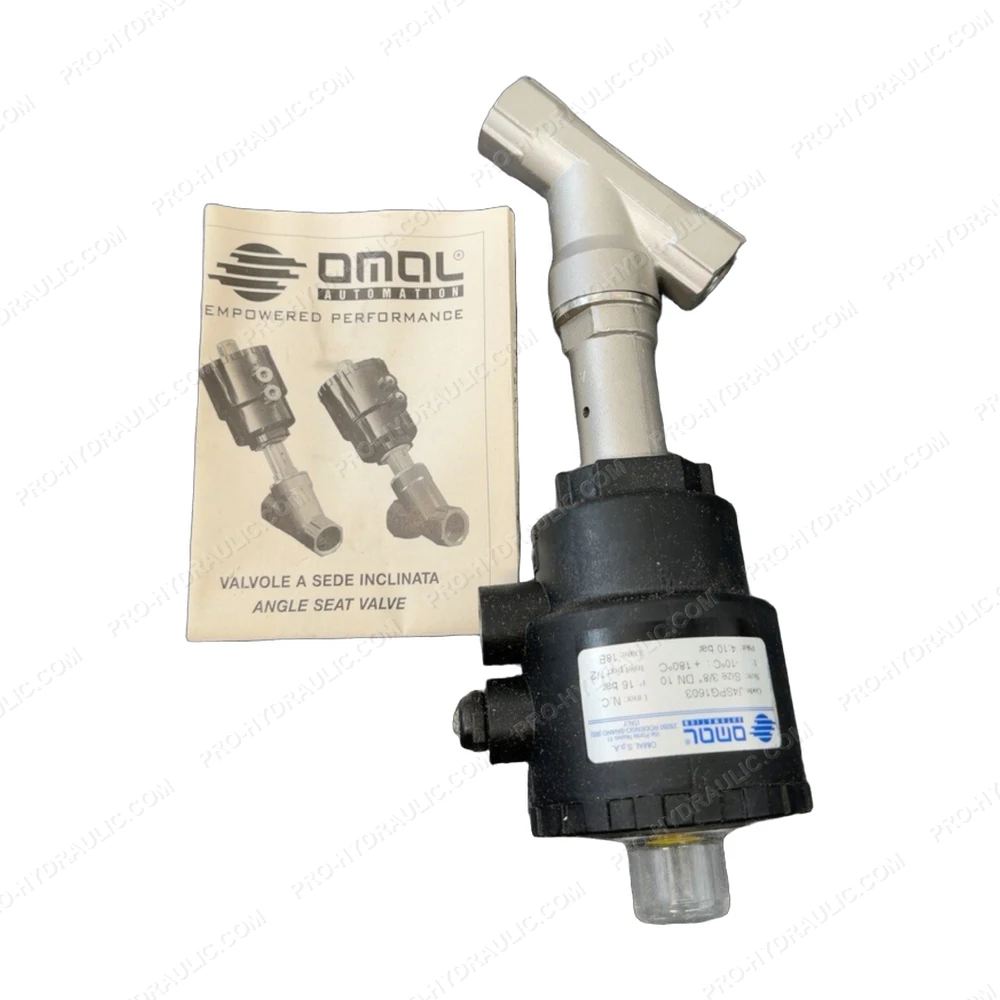

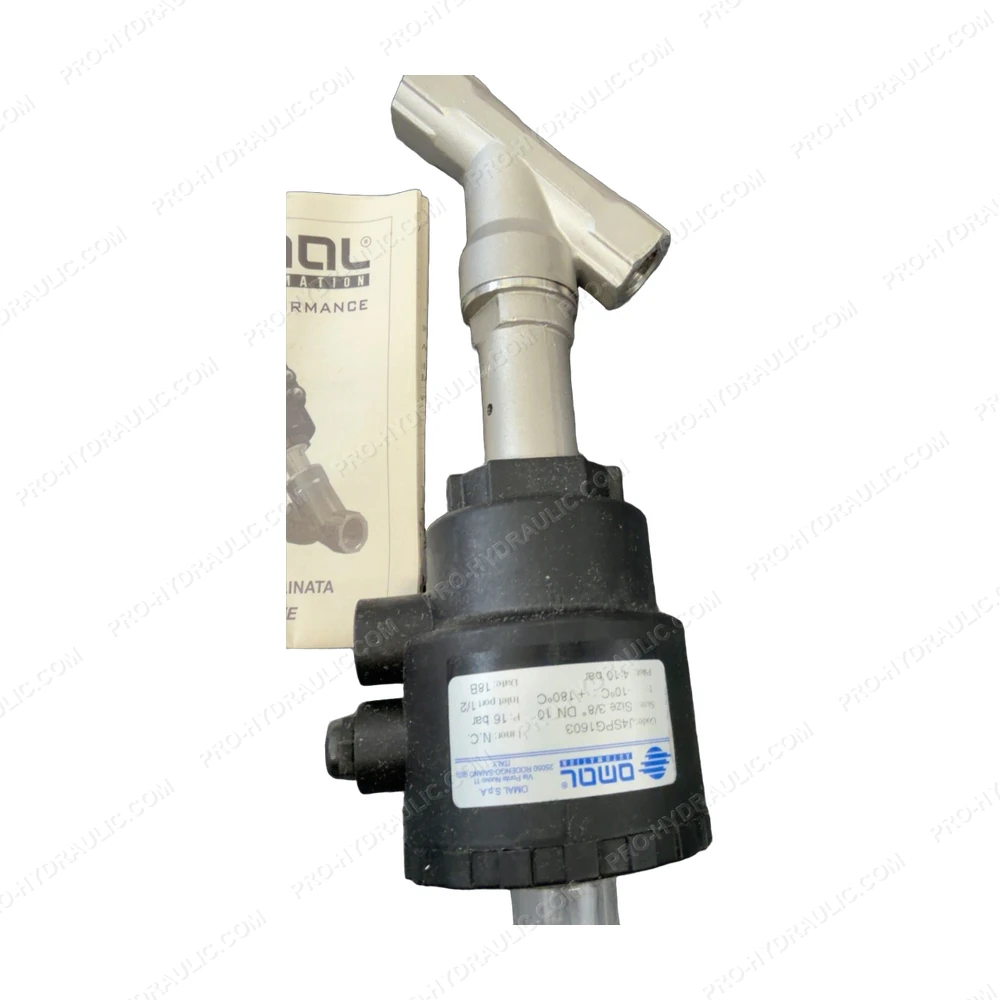

OMAL J4SPG1603 Pneumatic Angle Seat Valve
