Product Overview
The OMAL J9SPG1805 is a pneumatically actuated angle seat valve engineered for precise on/off control of neutral and aggressive media in industrial process lines. Manufactured by OMAL S.p.A., a recognized specialist in high-cycle pneumatic and process valve technology, this valve utilizes a double-acting or spring-return pneumatic actuator acting on a reciprocating valve stem and seat assembly. The angled body geometry (typically 90° between inlet and outlet ports) promotes a straight-through, low-turbulence flow path with minimal pressure drop, making it ideal for high-flow-rate shutoff duties in fluid handling, water treatment, chemical dosing, and steam service circuits. As a process and pneumatic valve, it operates as a final control element within hydraulic and pneumatic systems, not as a fluid power generator.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Valve (Process & Pneumatic Valve) |
| Model Designation | J9SPG1805 |
| Manufacturer | OMAL S.p.A. |
| Actuation Type | Pneumatic piston actuator (spring-return / double-acting configuration) |
| Body Configuration | Angled seat (Y-pattern) with straight-through flow path |
| Operating Pressure | Standard Industrial Grade (up to rated bar, media-dependent) |
| Pilot Air Supply | Standard instrument air range (typically 3–8 bar) |
| Mounting & Connection | Standard ISO / threaded or flanged process interface |
Engineering Features & Advantages
- Precision Performance: The angled seat design delivers high flow coefficients (Kv/Cv) with minimal pressure loss, while the pneumatic actuator ensures fast, repeatable open/close cycling for accurate process control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust stem sealing and wear-resistant seat materials suited to high-cycle pneumatic actuation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OMAL J9SPG1805 mounting, port, and pilot air interface standards for drop-in service.
Typical Industrial Applications
Suitable for a wide range of heavy industrial scenarios, including chemical and petrochemical dosing and shutoff lines, water and wastewater treatment process control, steam and thermal fluid service in food and pharmaceutical processing, and general fluid handling circuits in plastic injection molding, metallurgical, and marine hydraulic support systems where reliable pneumatic on/off control is required.
PRODUCT IMAGES

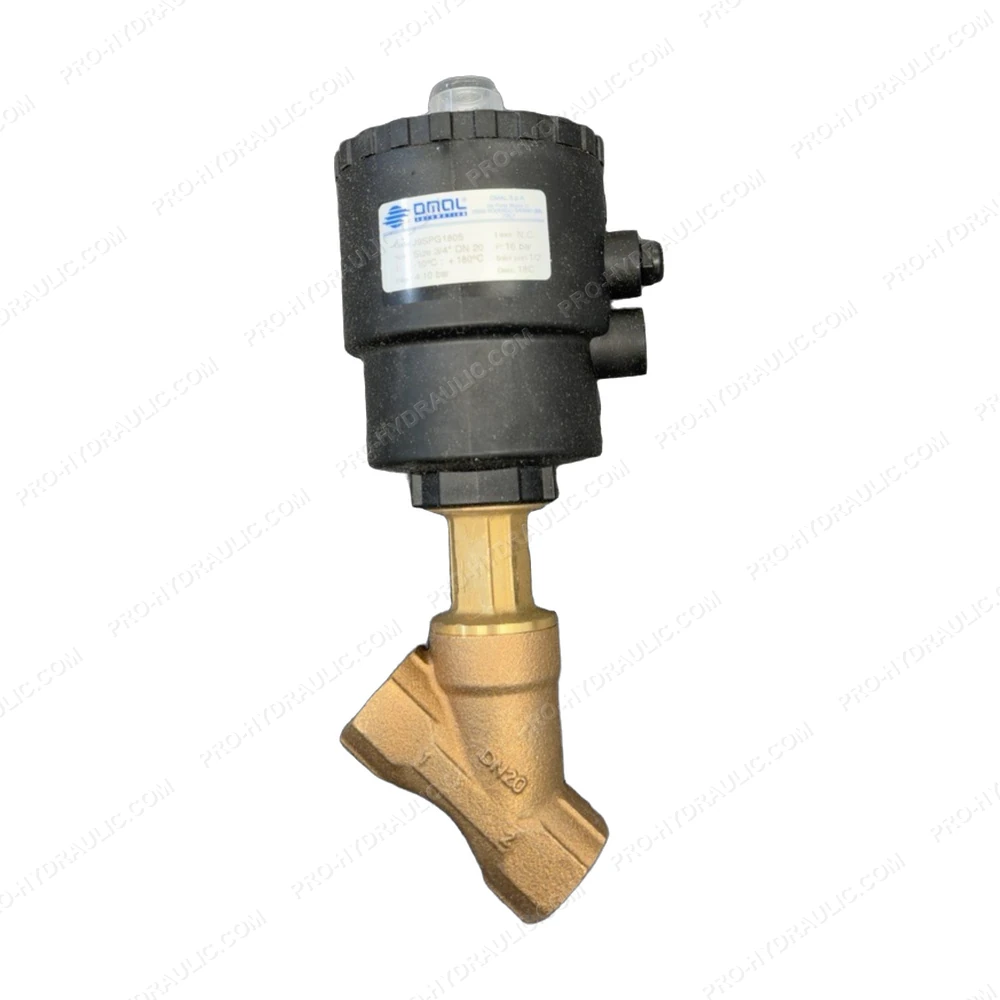

OMAL J9SPG1805 Pneumatic Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine OMAL J9SPG1805 Solenoid Directional Valve. This Italy-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
