Product Overview
The OMAL J9SPG2108 is a pneumatically actuated angle seat valve engineered for precise on/off control of neutral and aggressive media in industrial process lines. Manufactured by OMAL S.p.A., a recognized specialist in valve automation, this 2/2-way angle seat design utilizes a double-acting or spring-return pneumatic piston actuator to drive a PTFE-sealed seat disc against a stainless steel body seat. The angled flow path yields a high flow coefficient (Kv) with minimal pressure drop, while the self-draining orientation and glandless sealed stem make the J9SPG2108 suitable for steam, water, compressed air, and chemically compatible fluids. It serves as a reliable, fast-cycling shut-off element in automated process skids, CIP/SIP systems, and general industrial fluid handling circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Valve (2/2-Way Process Valve) |
| Model Designation | J9SPG2108 |
| Manufacturer | OMAL S.p.A. |
| Actuation | Pneumatic piston actuator (spring-return / double-acting configuration) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, media-dependent) |
| Pilot Air Supply | Filtered dry compressed air, typical 3–8 bar |
| Body & Seat Material | Stainless steel body with PTFE seat seal |
| Mounting & Connection | Standard threaded / flanged process interface per manufacturer standard |
Engineering Features & Advantages
- Precision Performance: The angled seat geometry delivers a high flow coefficient with low pressure loss, while the PTFE seat ensures tight bubble-tight shut-off and precise on/off metering of process media.
- Fast Pneumatic Actuation: Compact piston actuator provides rapid response cycling, making the valve ideal for automated batch sequencing and high-frequency process control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust stainless steel body and self-draining angle design that resists media buildup and extends service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in interchangeability with existing OMAL J9 series installations.
Typical Industrial Applications
The OMAL J9SPG2108 is deployed across heavy industrial scenarios including steam and hot water distribution in process plants, CIP/SIP cleaning circuits in food, beverage, and pharmaceutical production, chemical dosing and neutral media shut-off on process skids, and general automated fluid handling in water treatment, textile, and paper mill systems.
PRODUCT IMAGES

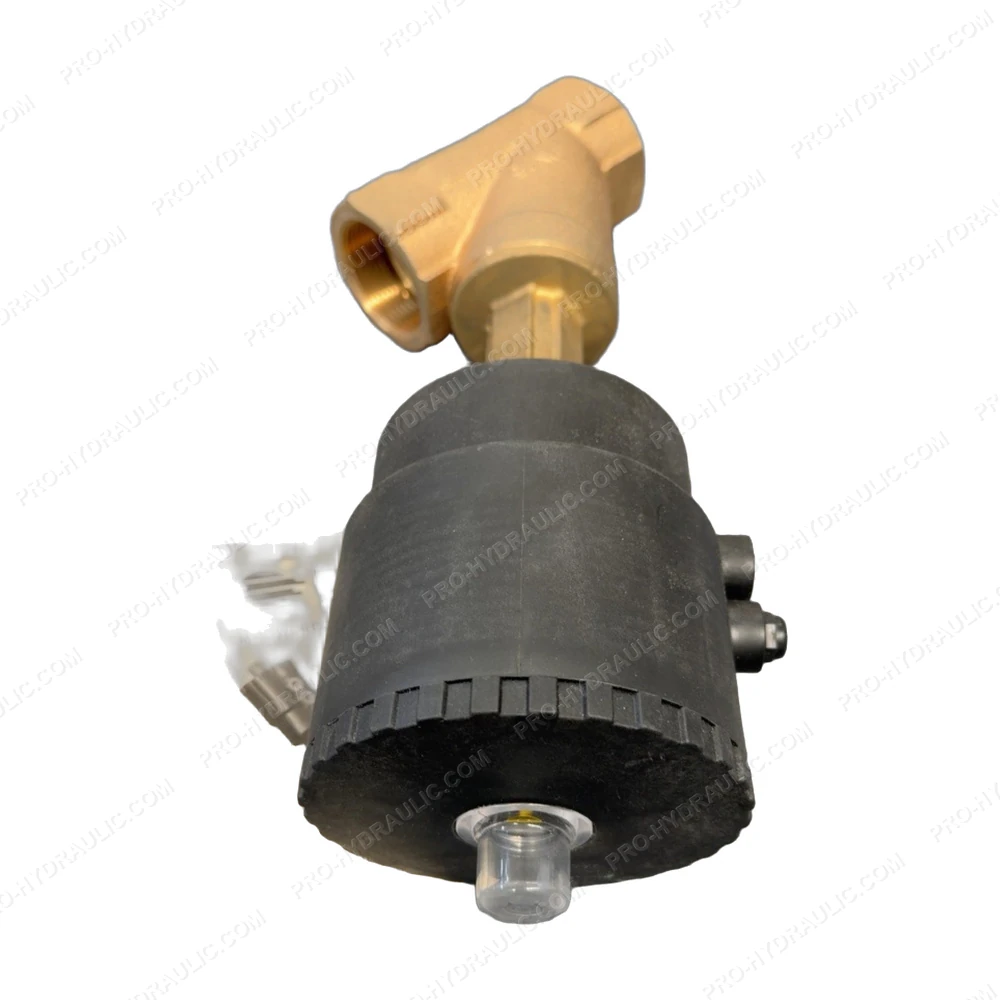

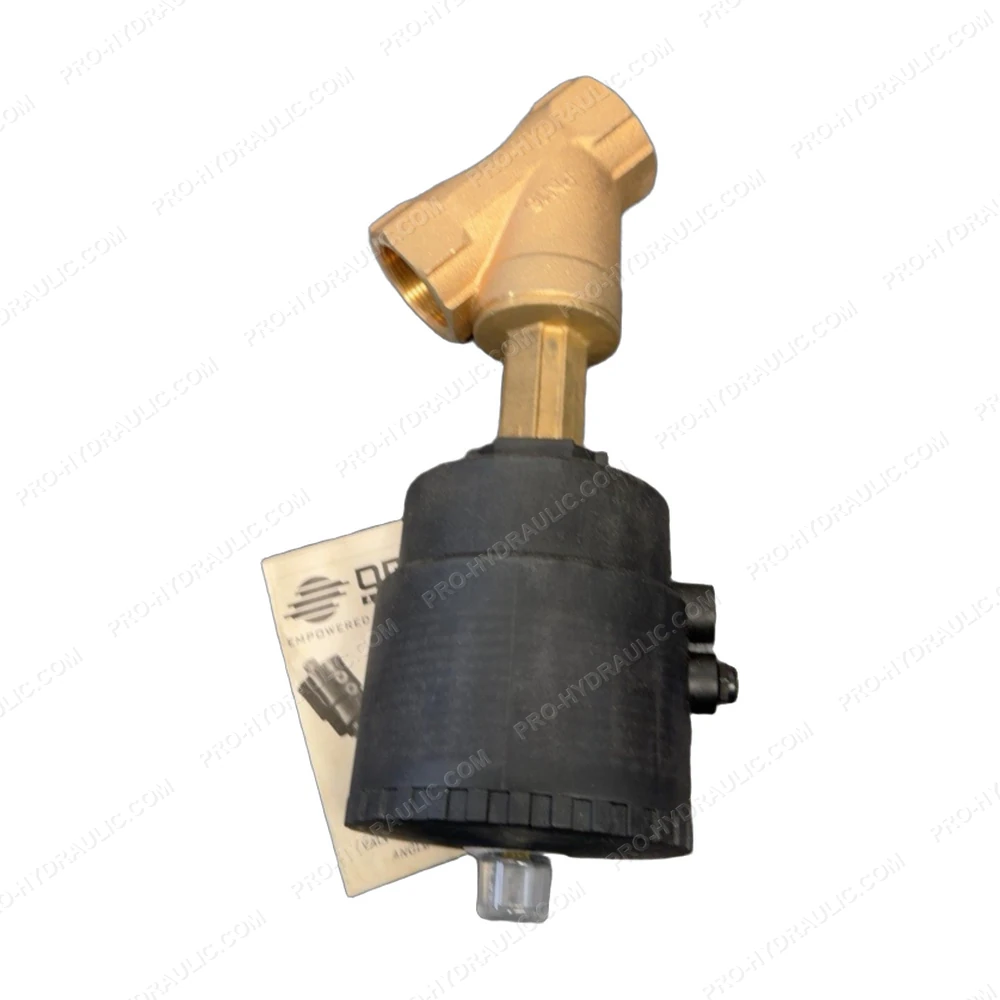

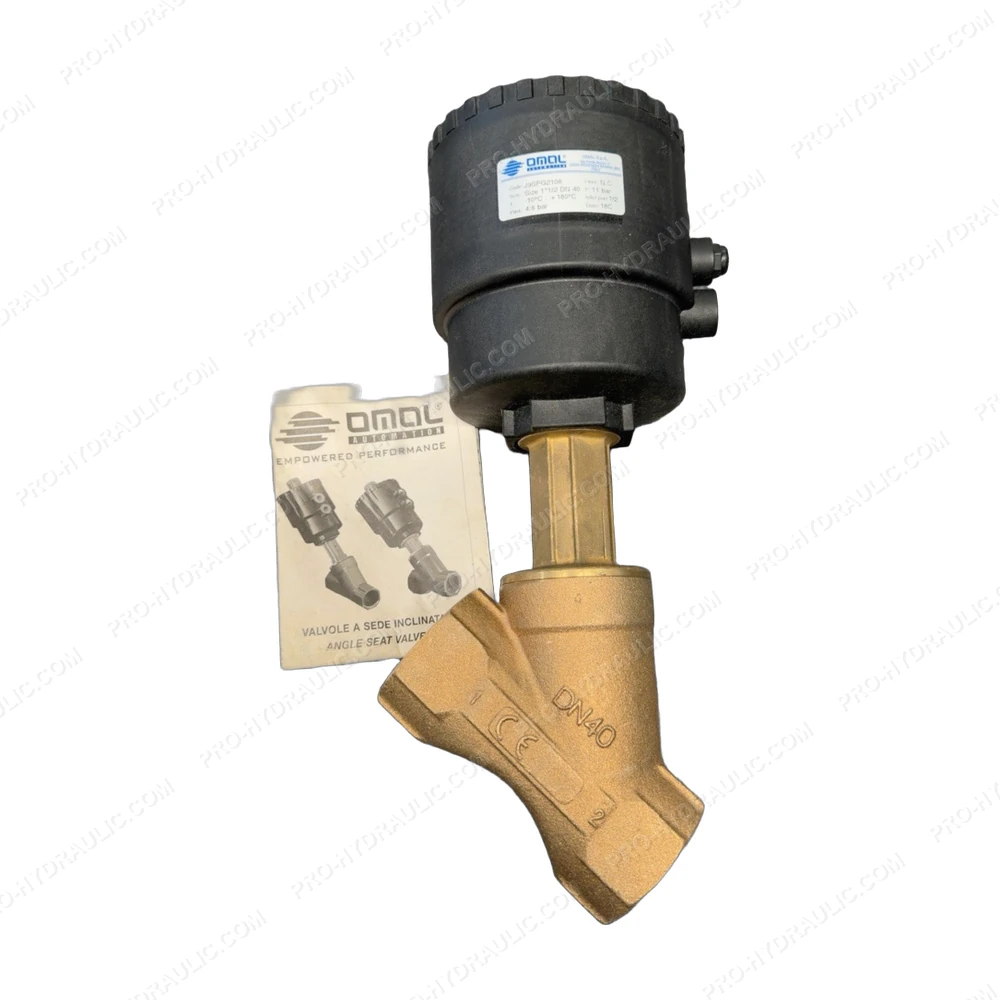

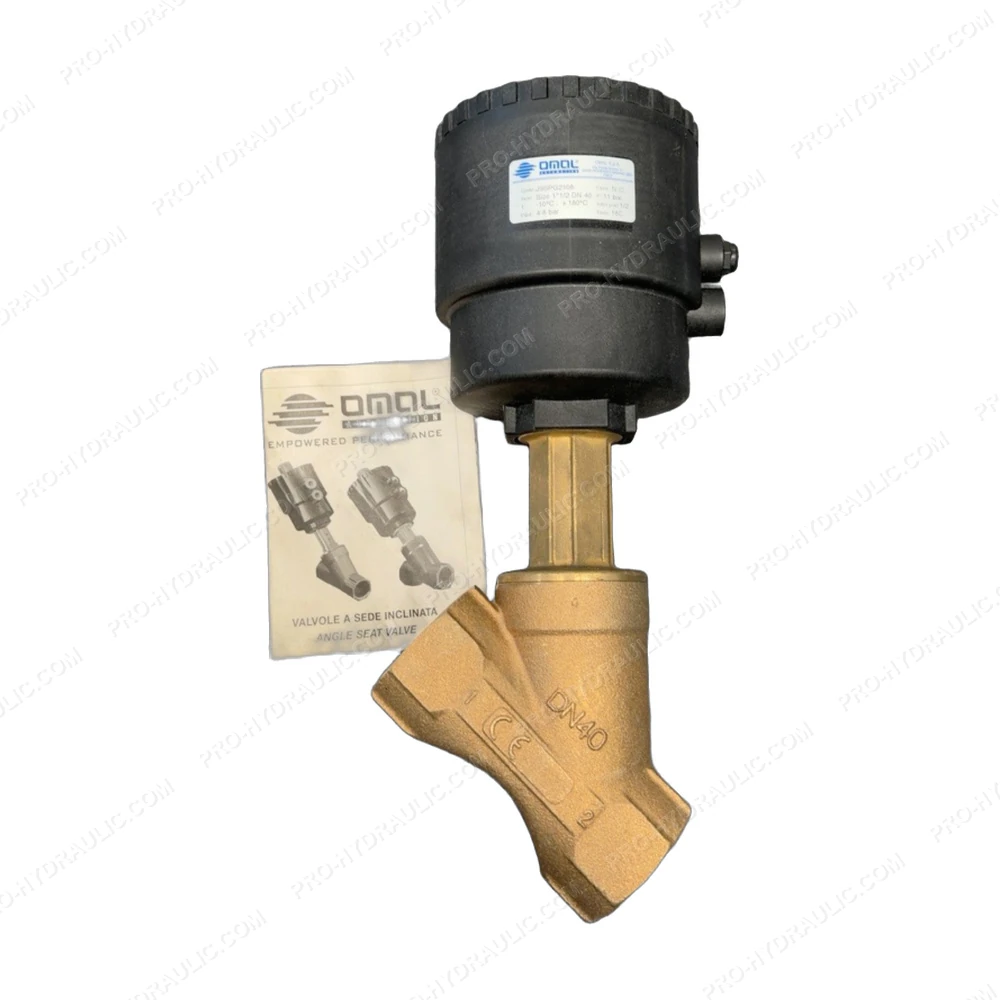

OMAL J9SPG2108 Pneumatic Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine OMAL J9SPG2108 Solenoid Directional Valve. This Italy-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
