Product Overview
The Parker 341L9504 is a high-performance solenoid-operated directional control valve engineered for precise fluid control in demanding industrial hydraulic and pneumatic systems. Manufactured by Parker Hannifin, a global leader in motion and control technologies, this valve utilizes a robust electromagnetic solenoid actuator to shift an internal spool, directing flow between ports with rapid response and minimal pressure drop. The 341L9504 is designed for inline or manifold mounting, providing reliable switching, holding, and directional control functions in process circuits, automation equipment, and general industrial machinery. Its construction emphasizes leak-tight sealing, high cycle life, and consistent performance across a wide range of operating pressures and media.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic / Pneumatic Solenoid Valve (Directional Control) |
| Model Designation | 341L9504 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Parker 341 series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (inline or manifold) |
| Actuation Type | Electromagnetic Solenoid |
| Flow Configuration | Spool-type directional control (2-way, 3-way, or 4-way depending on circuit) |
Engineering Features & Advantages
- Precision Performance: Fast solenoid actuation and precise spool positioning ensure accurate flow direction and minimal internal leakage, optimizing cycle times and system efficiency.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool/bore materials for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to manifolds or piping.
- Versatile Media Compatibility: Suitable for use with mineral-based hydraulic oils and filtered pneumatic air, depending on seal configuration.
Typical Industrial Applications
The Parker 341L9504 solenoid valve is widely deployed in plastic injection molding machines for mold opening/closing and injection control, metallurgical presses for clamping and ejector circuits, construction and marine hydraulic systems for steering and implement actuation, and CNC machine tools for tool changing and workpiece clamping. Its reliable solenoid operation also makes it suitable for general process automation, packaging equipment, and test stands requiring precise directional flow control.
PRODUCT IMAGES

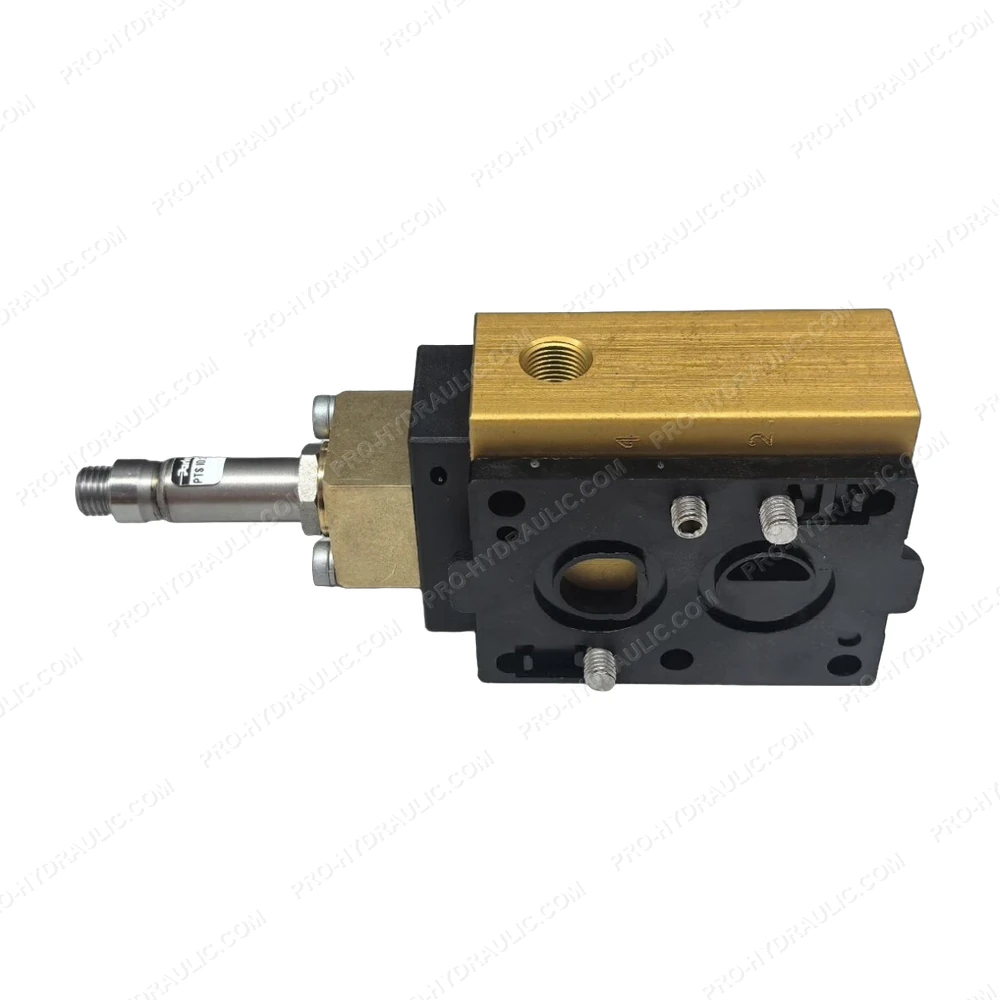

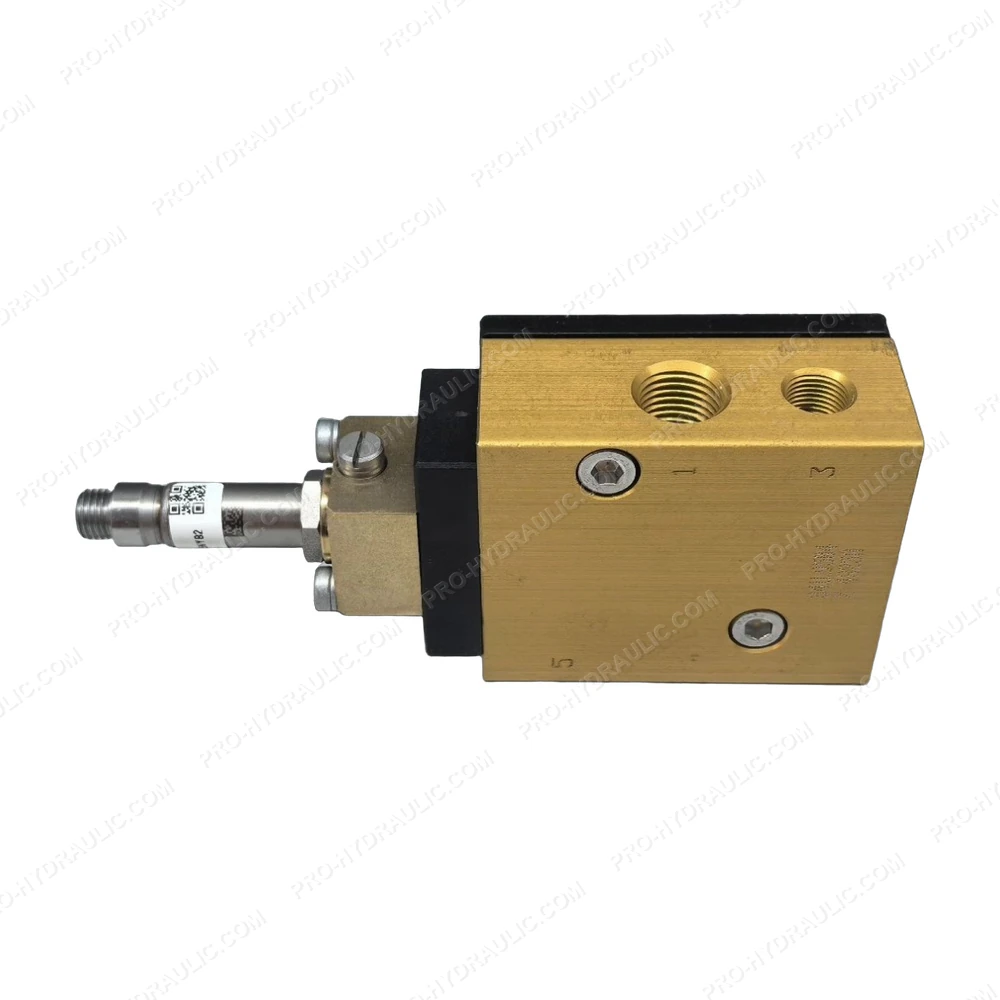

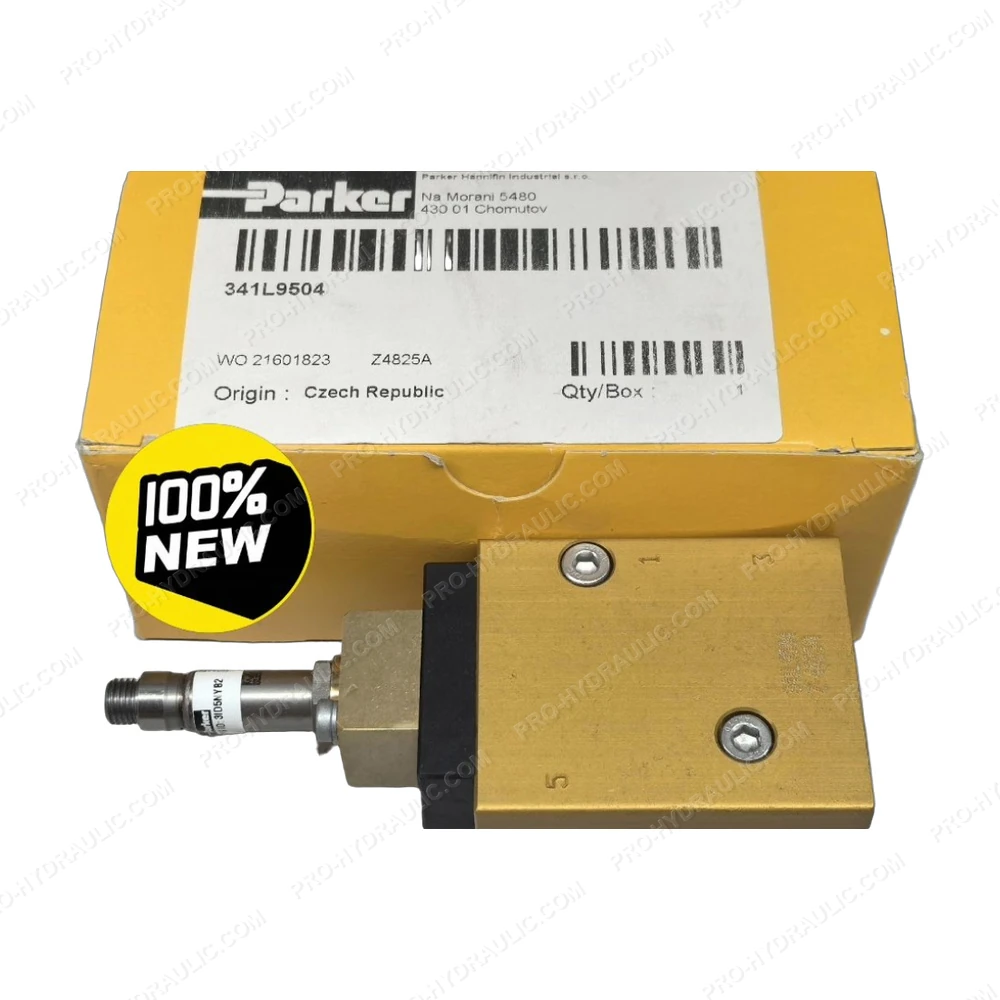

Parker 341L9504 Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker 341L9504 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
