The PARKER 9F600S-11HN is a heavy-duty industrial modular flow control valve engineered for precise regulation of actuator speed and load control within high-pressure hydraulic circuits. As part of Parker’s 9F series modular valve range, it mounts directly between a directional control valve and a subplate or manifold, eliminating the need for inline piping and reducing potential leak points.
PARKER 9F600S-11HN Technical Specifications
| Product Type | Modular Flow Control Valve |
| Series | 9F600S |
| Mounting Interface | ISO 4401 / CETOP 3 (NG6) |
| Maximum Operating Pressure | 350 bar (5075 psi) |
| Maximum Flow Rate | 60 L/min (15.8 US gpm) |
| Adjustment Type | Manual screw with locknut |
| Fluid Compatibility | Mineral oil, HLP, HLVP per DIN 51524 |
| Seal Material | NBR (Buna-N) |
| Body Material | Cast iron / steel |
| Operating Temperature Range | -20 °C to +80 °C |
Key Engineering Features
- Modular sandwich design for direct stacking between directional valve and subplate
- Precision needle and seat for fine flow adjustment and repeatable settings
- Integrated pressure compensation option for stable flow independent of load
- Locknut secures adjustment against vibration-induced drift
- High-strength cast iron body rated for continuous 350 bar service
- Standard ISO 4401 / CETOP 3 interface for broad manifold compatibility
Industrial Applications
- Machine tool hydraulic systems requiring precise actuator speed control
- Injection molding and die-casting machinery
- Presses and forming equipment with meter-in / meter-out circuits
- Mobile and industrial power units using CETOP 3 directional valves
- Test stands and hydraulic power packs needing repeatable flow settings
For technical inquiries, dimensional drawings, or replacement support for PARKER 9F600S-11HN, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

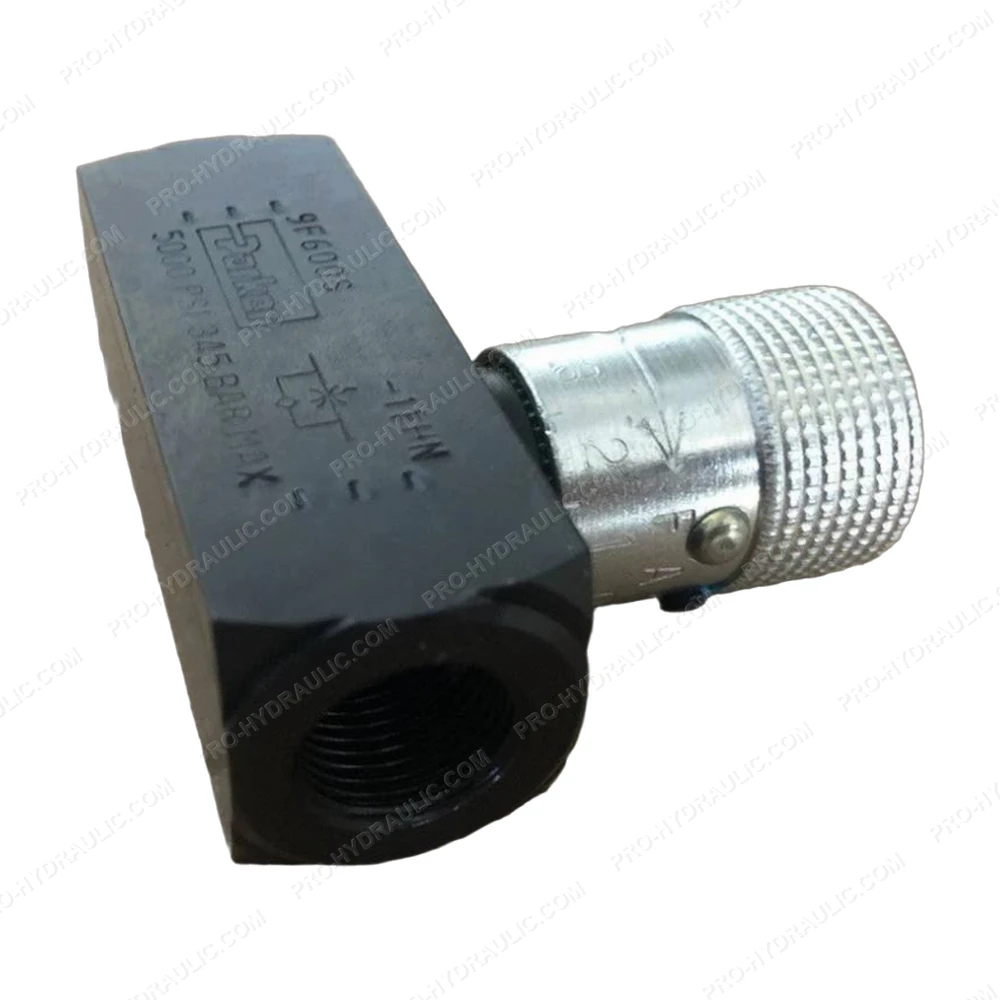

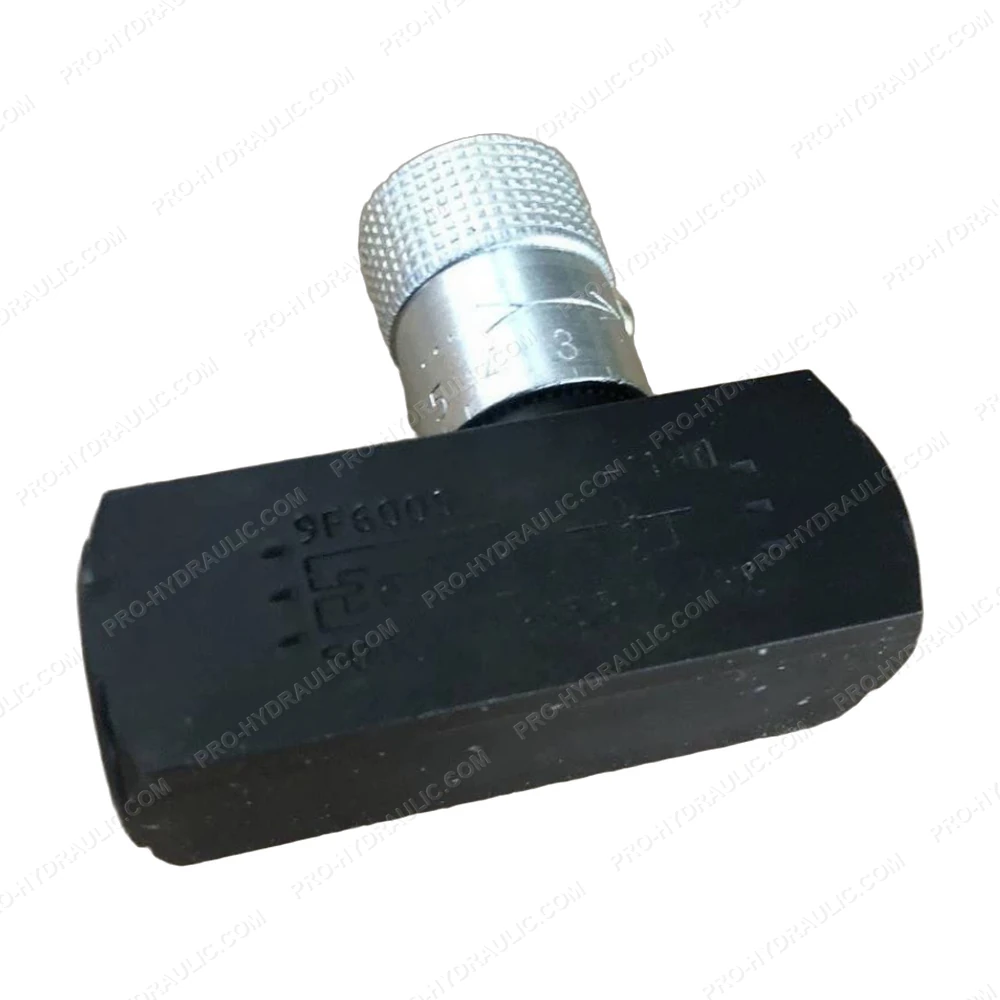

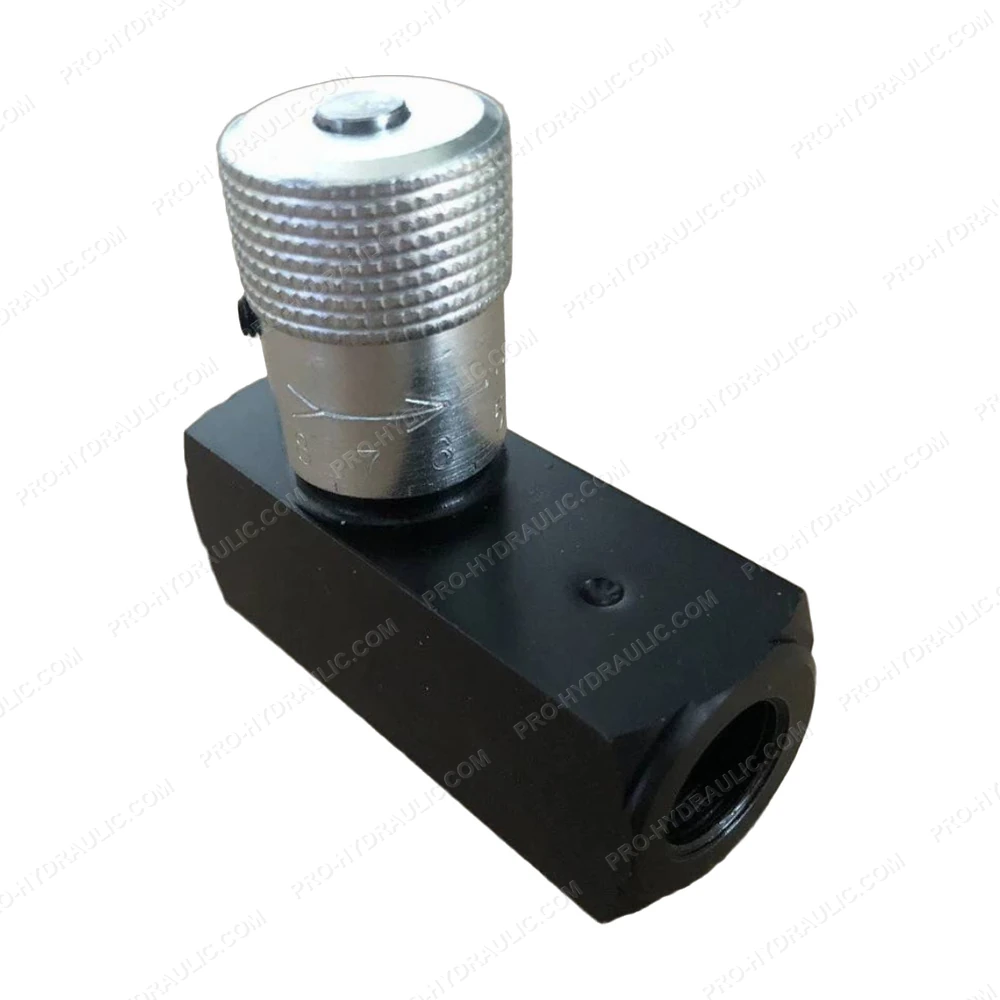

PARKER 9F600S-11HN Modular Flow Control Valve
