Product Overview

The Parker BD15 AAA-NB-10 is a high-performance, two-stage electrohydraulic servo valve engineered by Parker Hannifin for precision motion control in demanding industrial and mobile hydraulic systems. Operating on a torque-motor driven, nozzle-flapper pilot stage that hydraulically positions a precision-ground main spool, this valve delivers exceptionally fast dynamic response, high resolution, and low hysteresis. The BD15 series is designed to translate low-power electrical command signals into highly accurate proportional flow and directional control, making it a critical control element in closed-loop servo systems where precise position, velocity, force, or pressure regulation is mandatory.

Technical Specifications

ParameterSpecification / Feature
Component TypeHydraulic Servo Valve (Two-Stage, Nozzle-Flapper Pilot)
Model DesignationBD15 AAA-NB-10
ManufacturerParker Hannifin
Operating PressureStandard Industrial Grade (Up to 210 bar rated)
Rated Flow CapacityNominal 10 L/min at 70 bar per land (model code dependent)
Pilot Stage TypeTorque motor with dual nozzle-flapper
Spool ConfigurationFour-way, closed-center, critical lapped spool
Mounting & ConnectionStandard ISO 4401 / Subplate Mounting Interface
Electrical Command SignalAnalog current (typically ±10 mA to ±40 mA coil rating)
Hysteresis< 3% of rated current
Threshold< 1% of rated current

Engineering Features & Advantages

  • Precision Performance: The torque-motor nozzle-flapper pilot stage provides extremely high resolution and low threshold, enabling accurate micro-positioning and smooth velocity control in closed-loop servo applications.
  • Fast Dynamic Response: Optimized pilot stage and critical-lapped main spool deliver high frequency response (typically 100 Hz+ at 90° phase lag), essential for high-cycle industrial motion profiles.
  • Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.

Typical Industrial Applications

The BD15 series is designed to translate low-power electrical command signals into highly accurate proportional flow and directional control, making it a critical control element in closed-loop servo systems where precise position, velocity, force, or pressure regulation is mandatory.

PRODUCT IMAGES

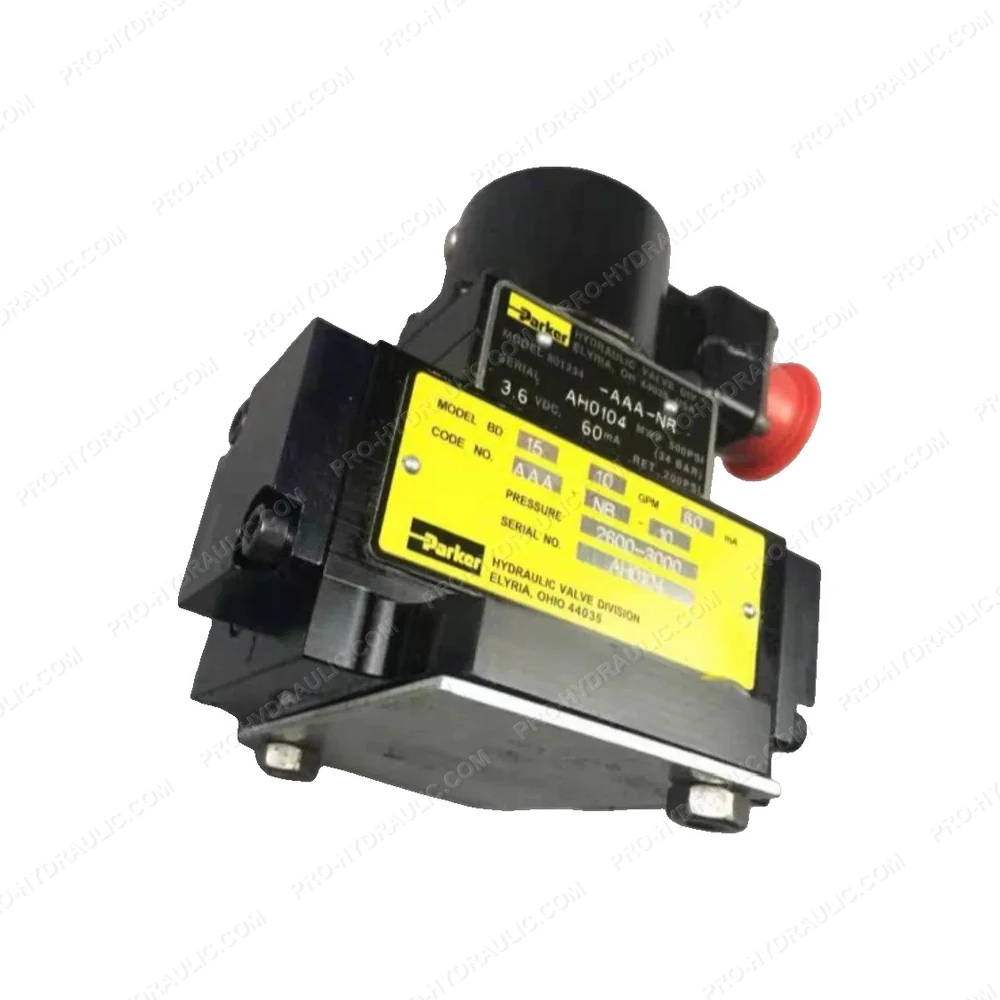

PARKER BD15 AAA-NB-10

PARKER BD15 AAA-NB-10 Servo Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine PARKER BD15 AAA-NB-10 Solenoid Directional Control Valve. This Germany-made hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
