Product Overview
The PARKER CPOM3DDV 50 / SCPOM3DDV is a modular pilot-operated check valve designed for use in manifold-mounted hydraulic systems. As part of Parker’s modular valve range, this unit is engineered to block reverse flow in a hydraulic circuit until a pilot pressure signal is applied, at which point the poppet is hydraulically unseated to allow free flow in the controlled direction. The valve is manufactured to Parker’s exacting tolerances and is intended for direct sandwich mounting between a directional control valve and a subplate or manifold block, eliminating the need for inline piping and reducing potential leak points. With a nominal size of NG10 (CETOP 5 / ISO 4401 size 05), the CPOM3DDV 50 provides reliable load-holding and pilot-controlled release functionality in demanding industrial hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Modular Pilot Operated Check Valve (Sandwich / Manifold Mounted) |
| Model Designation | CPOM3DDV 50 / SCPOM3DDV |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 350 bar (working pressure, dependent on circuit configuration) |
| Pilot Pressure Ratio | Standard pilot ratio (typically 1:4.5 or per Parker CPOM series data) |
| Mounting & Connection | Sandwich plate mounting per ISO 4401 / CETOP 5 interface |
| Sealing | NBR (Buna-N) standard; FKM available on request |
| Fluid Compatibility | Mineral-based hydraulic oils per DIN 51524; other fluids on request |
Engineering Features & Advantages
- Precision Pilot Actuation: The pilot-operated poppet design ensures leak-free load holding in the blocked direction and smooth, controlled opening when pilot pressure is applied, preventing load drop or drift in vertical or clamping circuits.
- Modular Sandwich Construction: Designed for direct mounting between directional valves and subplates, reducing piping complexity, installation time, and potential external leakage points in the hydraulic system.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened poppet and seat components providing long service life and consistent sealing performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing manifold assemblies.
- Compact Footprint: The NG10 sandwich design minimizes space requirements in dense manifold stacks while maintaining full flow capacity.
Typical Industrial Applications
The PARKER CPOM3DDV 50 / SCPOM3DDV modular pilot-operated check valve is widely used in heavy industrial hydraulic systems where reliable

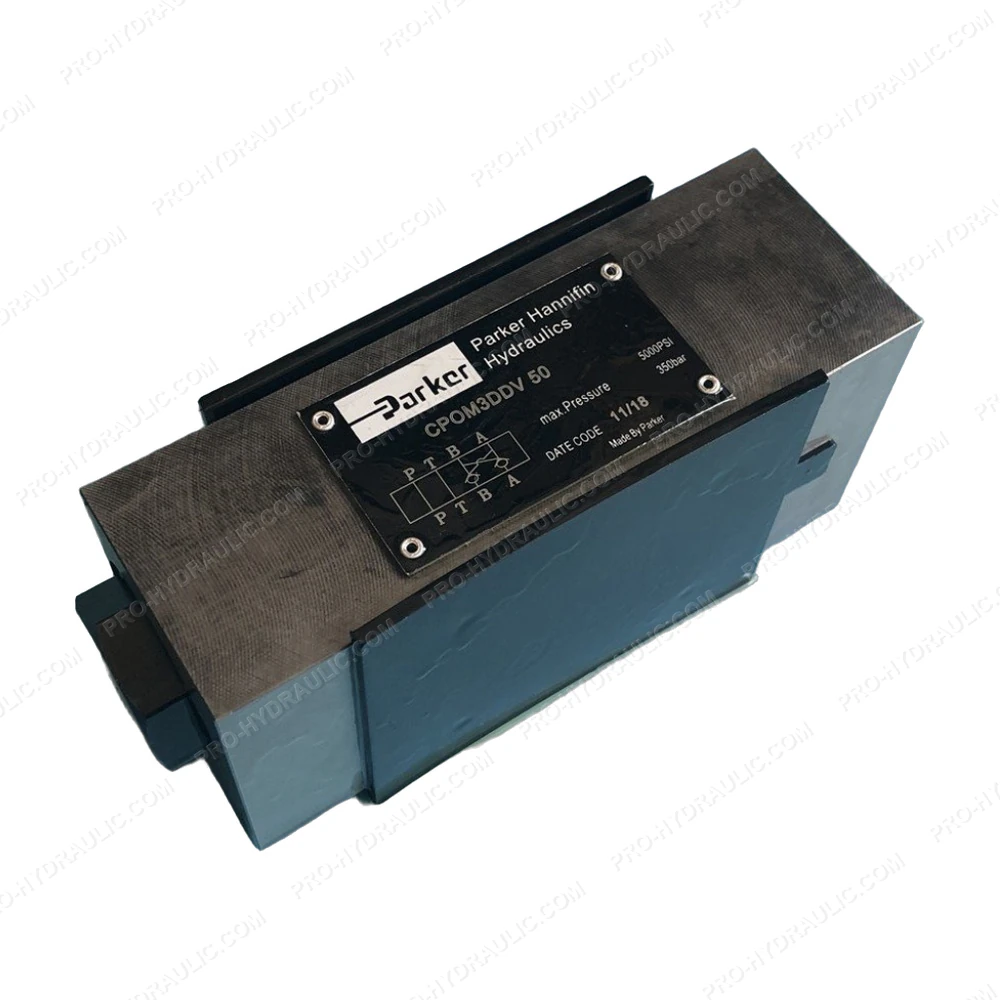

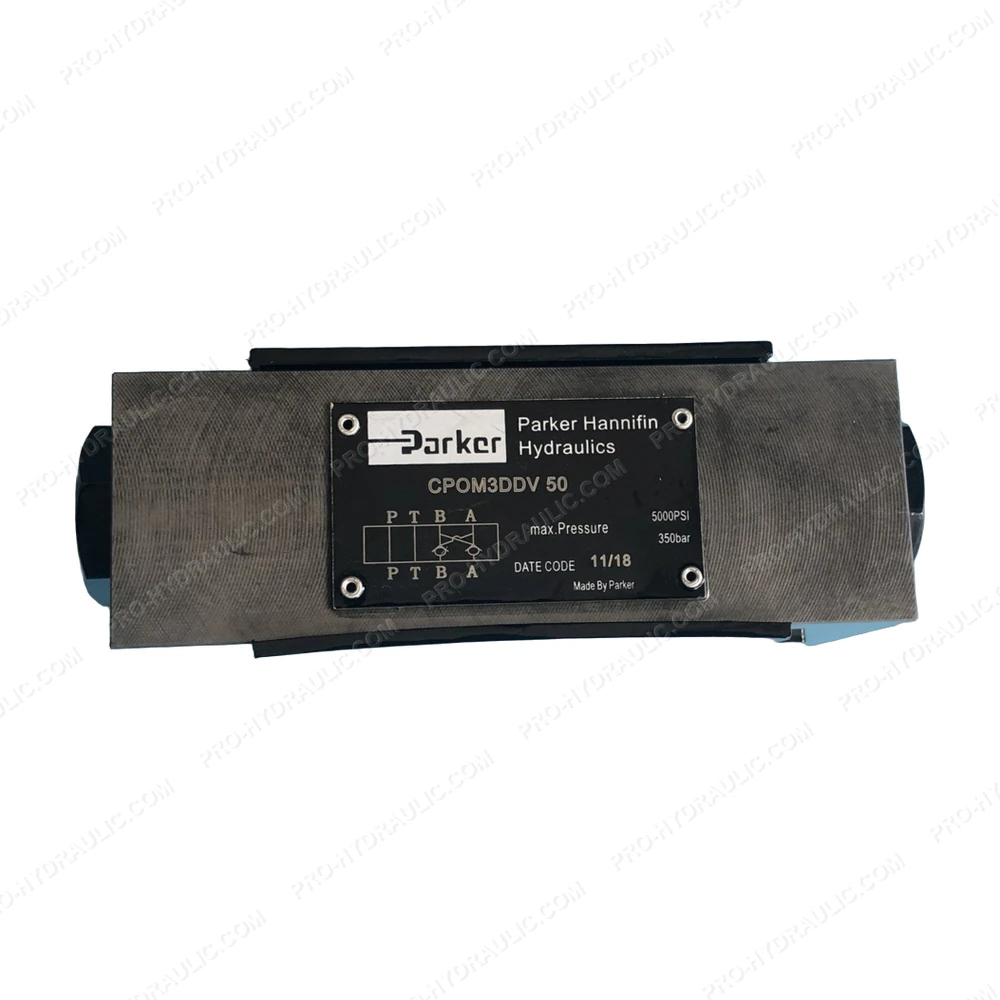

PRODUCT IMAGES


Explore related inventory
Related parts by brand and category
PARKER CPOM3DDV 50 / SCPOM3DDV Modular Pilot Operated Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER CPOM3DDV 50 / SCPOM3DDV Solenoid Directional Control Valve. This USA-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
