Product Overview
The Parker CPOM3DDV50 (part number 1475101) is a pilot operated check valve from Parker’s CPOM series of modular sandwich valves, designed for direct mounting between a directional control valve and its subplate in accordance with ISO 4401 / CETOP 03 (NG6) interface standards. The valve functions by permitting free flow in one direction while positively blocking reverse flow until a pilot pressure signal is applied to the integral pilot piston, which unseats the poppet and allows controlled return flow. This leak-free load-holding capability makes it essential in industrial hydraulic circuits where actuators must remain locked in position against gravity or external forces during idle periods, and where controlled decompression of trapped pressure is required before reverse flow is initiated. The CPOM3DDV50 is a “DD” pilot configuration unit, meaning the pilot signal is internally supplied from port A of the directional valve, providing reliable sequencing in clamping, holding, and load-lowering circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Check Valve (Modular Sandwich Valve) |
| Model Designation | CPOM3DDV50 / 1475101 |
| Manufacturer | Parker Hannifin |
| Size / Interface | CETOP 03 / NG6 / ISO 4401-03 |
| Pilot Configuration | “DD” — Internal pilot from port A |
| Operating Pressure | Up to 350 bar (working pressure, port dependent) |
| Pilot Ratio | Standard pilot ratio (approx. 1:4.5 area ratio) |
| Cracking / Sealing | Poppet-type, leak-free sealing in blocked direction |
| Mounting & Connection | Sandwich mounting, ISO 4401-03 subplate interface |
| Seal Material | NBR (standard); FKM available on request |
| Fluid Compatibility | Mineral-based hydraulic oils (HLP, HLP-D, HM) |
Engineering Features & Advantages
- Precision Performance: The pilot operated check valve (modular sandwich valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This leak-free load-holding capability makes it essential in industrial hydraulic circuits where actuators must remain locked in position against gravity or external forces during idle periods, and where controlled decompression of trapped pressure is required before reverse flow is initiated.
PRODUCT IMAGES

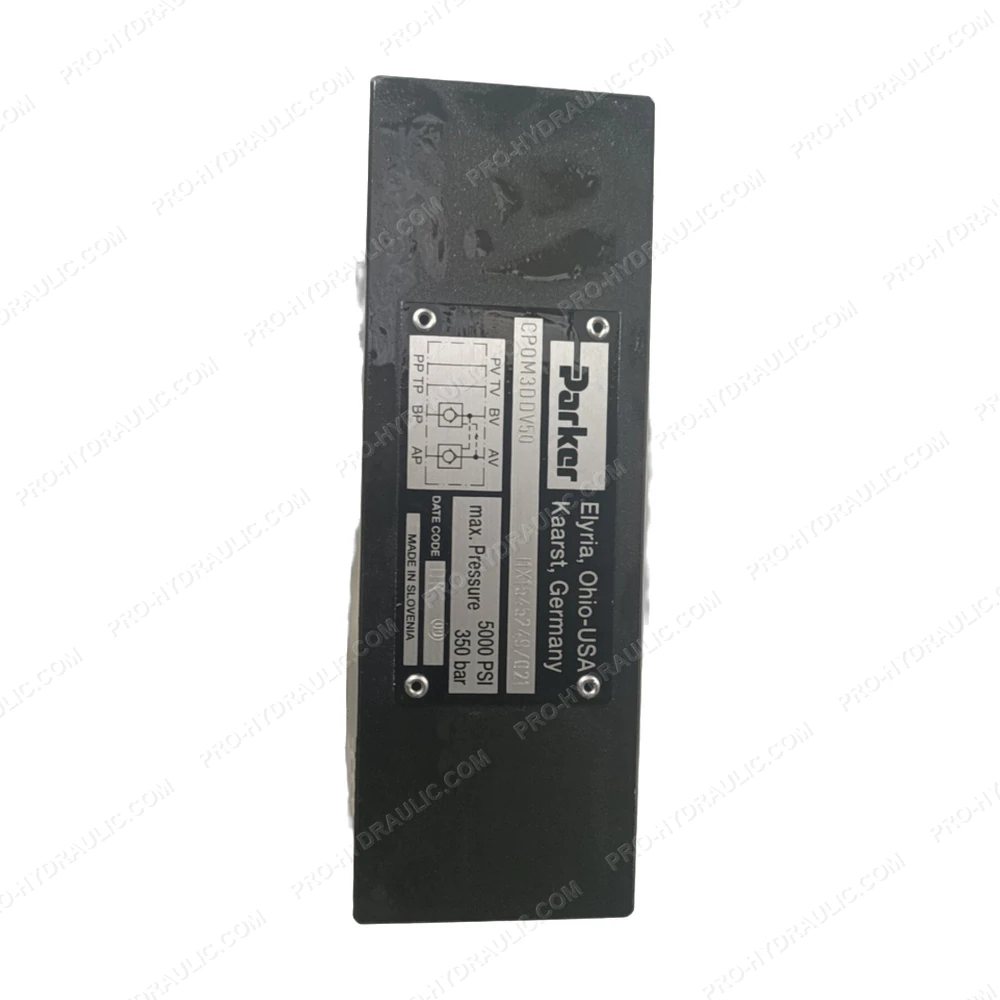

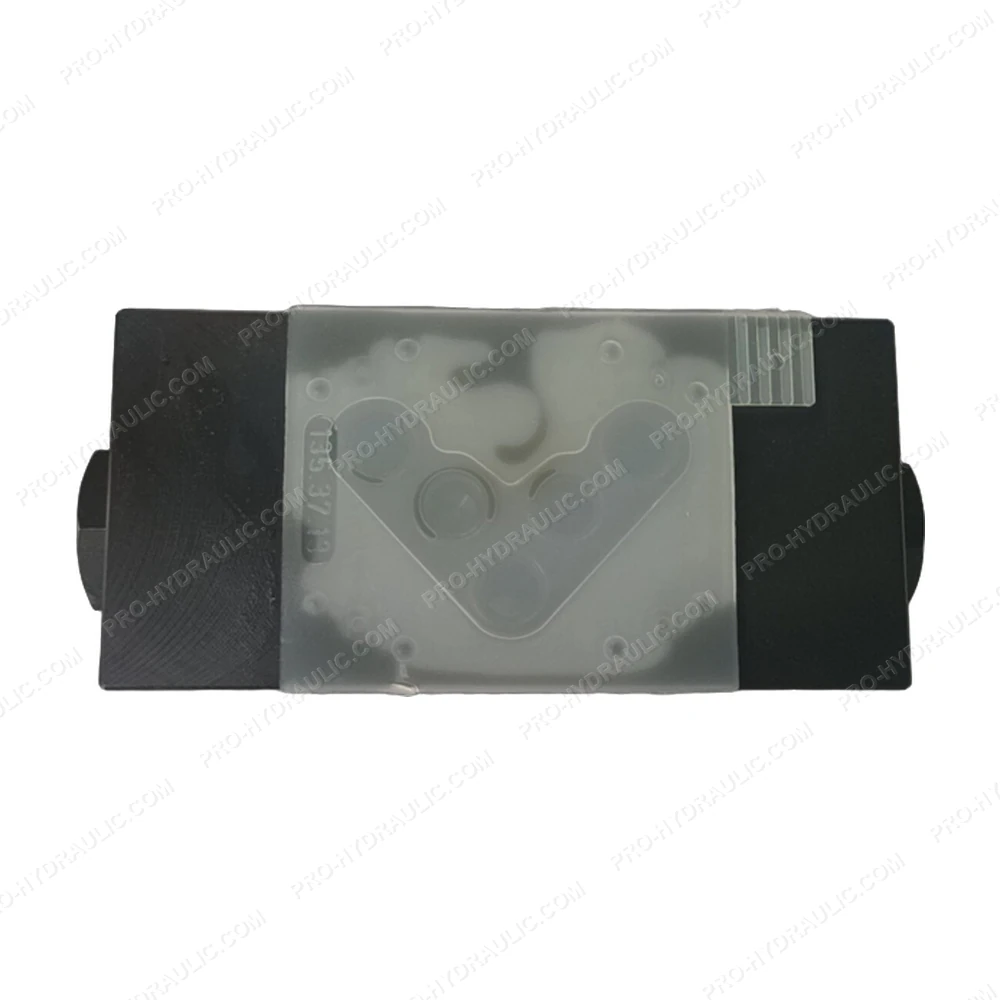

PARKER CPOM3DDV50 / 1475101 Pilot Operated Check Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker CPOM3DDV50 / 1475101 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
