Product Overview
The Parker D1FCE01FC0NMW0 is a high-performance proportional directional control valve from Parker Hannifin’s D1FC series, engineered for precise, infinitely variable control of hydraulic actuator speed, direction, and force. Operating on a direct-operated proportional solenoid principle, the valve modulates spool position proportionally to the electrical input signal, enabling smooth, stepless flow metering in both A and B ports. With a nominal flow capacity of 10 L/min (NG6 / CETOP 3 interface), this valve is designed for demanding industrial motion control circuits where accurate velocity regulation, fast dynamic response, and repeatable positioning are critical. Its robust spool-in-body construction and precision-machined metering lands ensure minimal hysteresis and excellent linearity across the full command range, making it an ideal choice for closed-loop and open-loop proportional control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve |
| Model Designation | D1FCE01FC0NMW0 |
| Series / Size | D1FC Series, NG6 (CETOP 3 / ISO 4401-03) |
| Nominal Flow Rate | 10 L/min (nominal, per port) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar max at T port |
| Actuation Type | Proportional solenoid, single or dual solenoid configuration |
| Spool Configuration | Closed-center, 4-way, 3-position proportional spool |
| Electrical Command Signal | Analog ±10 V DC or 4–20 mA (via proportional amplifier) |
| Hysteresis | ≤ 5% of nominal command signal |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3; DIN 43650 or M12 electrical connector |
| Seal Material | NBR (standard); FKM available for high-temperature / phosphate-ester fluids |
Engineering Features & Advantages
- Precision Performance: The proportional directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 10 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal flow capacity of 10 L/min (NG6 / CETOP 3 interface), this valve is designed for demanding industrial motion control circuits where accurate velocity regulation, fast dynamic response, and repeatable positioning are critical.
PRODUCT IMAGES

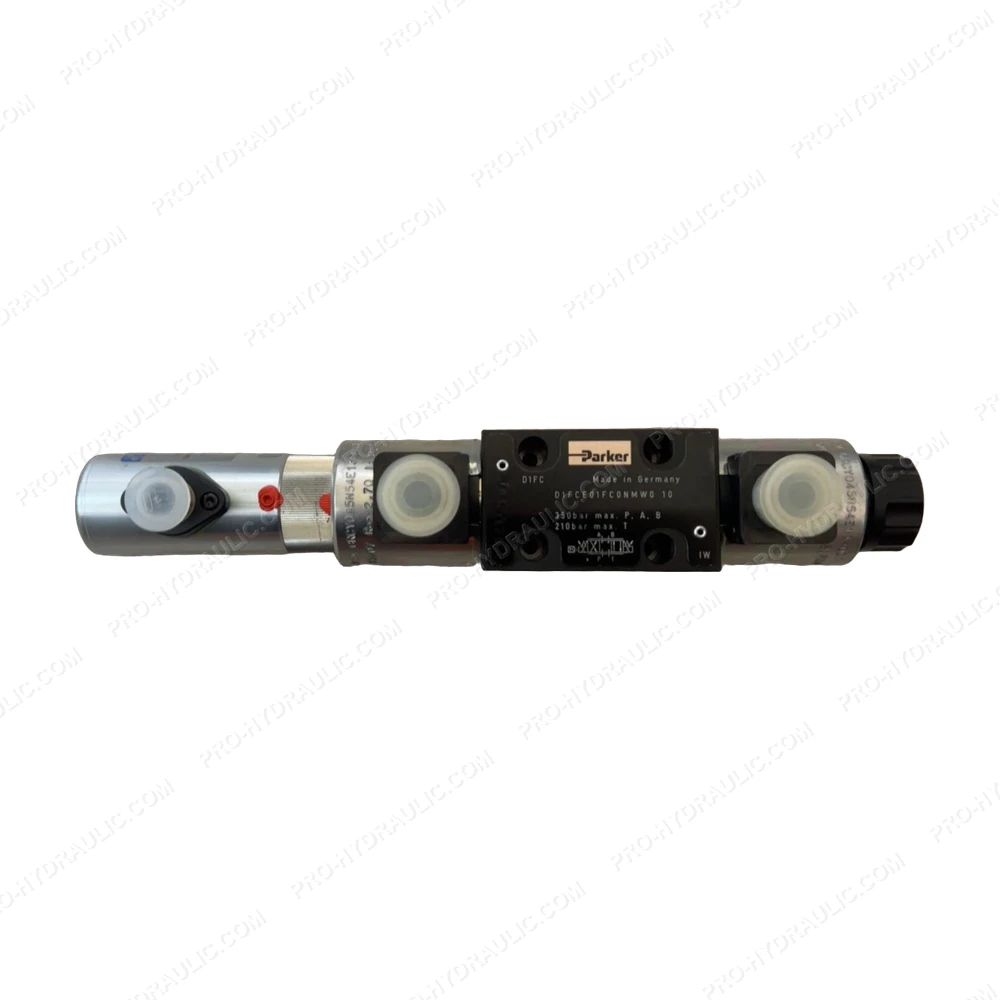

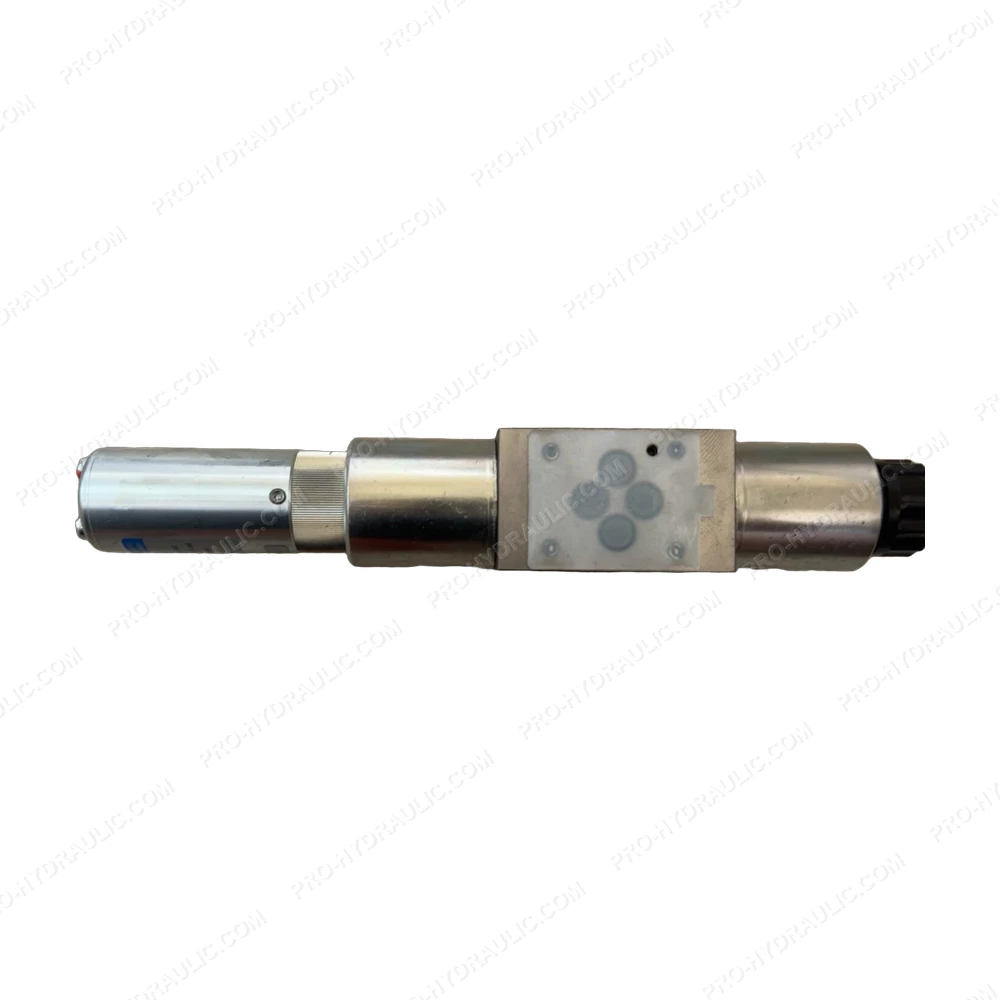

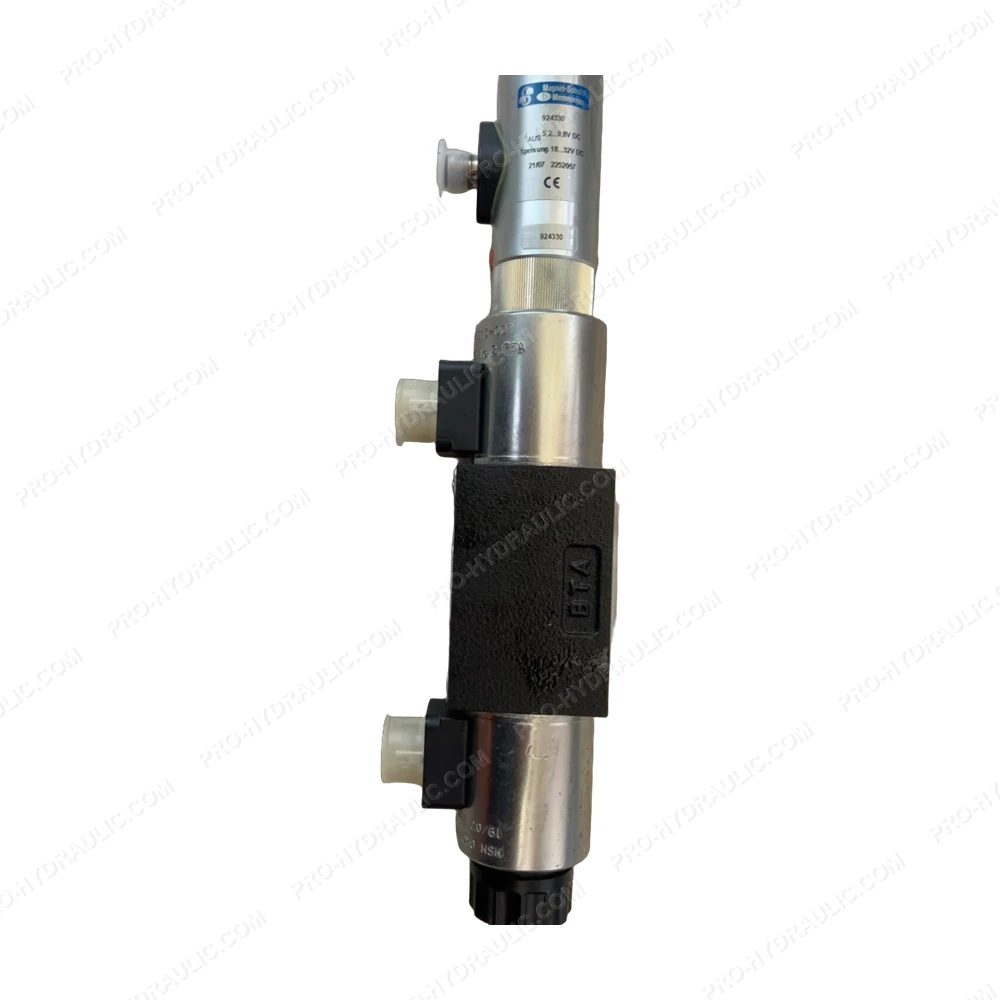

Parker D1FCE01FC0NMW0 10 Proportional Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1FCE01FC0NMW0 10 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
