The PARKER D1FTE02CCNF0051 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. As part of Parker’s D1F series, it features a robust, direct-operated spool design with a wet-pin armature and high-response proportional solenoid, ensuring accurate positioning and repeatable performance under demanding operating conditions.
PARKER D1FTE02CCNF0051 Technical Specifications
| Valve Type | Proportional Directional Valve, 4-way, 3-position |
| Actuation | Proportional solenoid, wet-pin armature |
| Mounting Interface | CETOP 3 / ISO 4401-03 / NG6 |
| Max Operating Pressure | 350 bar (5075 psi) at P, A, B ports |
| Rated Flow | Up to 40 L/min (10.5 gpm) at 70 bar Δp |
| Spool Type | Closed center, overlapping, metering characteristics |
| Coil Voltage | 24 V DC nominal (other voltages available) |
| Electrical Connection | DIN 43650 connector, IP65 protection |
| Fluid Compatibility | Mineral oil, HLP, HLVP, synthetic fluids |
| Operating Temperature | -20 °C to +80 °C (-4 °F to +176 °F) |
| Filtration Requirement | ISO 4406 18/16/13 or better |
Key Engineering Features
- Direct-operated proportional spool with high-resolution positioning for precise flow and direction control.
- Wet-pin solenoid design minimizes wear and ensures consistent force output over millions of cycles.
- Standard CETOP 3 / ISO 4401-03 mounting pattern for drop-in compatibility with existing manifolds.
- Rugged construction with hardened spool and sleeve for extended service life in high-pressure circuits.
- Optional integrated electronics available for closed-loop position feedback and enhanced dynamic response.
Industrial Applications
- Injection molding machines – clamp and injection velocity control.
- Hydraulic presses – precise force and position regulation.
- Machine tools – feed and tool actuation in CNC systems.
- Material handling – smooth acceleration and deceleration of heavy loads.
- Test rigs – accurate flow and pressure profiling for component validation.
For technical inquiries, dimensional drawings, or replacement support for PARKER D1FTE02CCNF0051, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

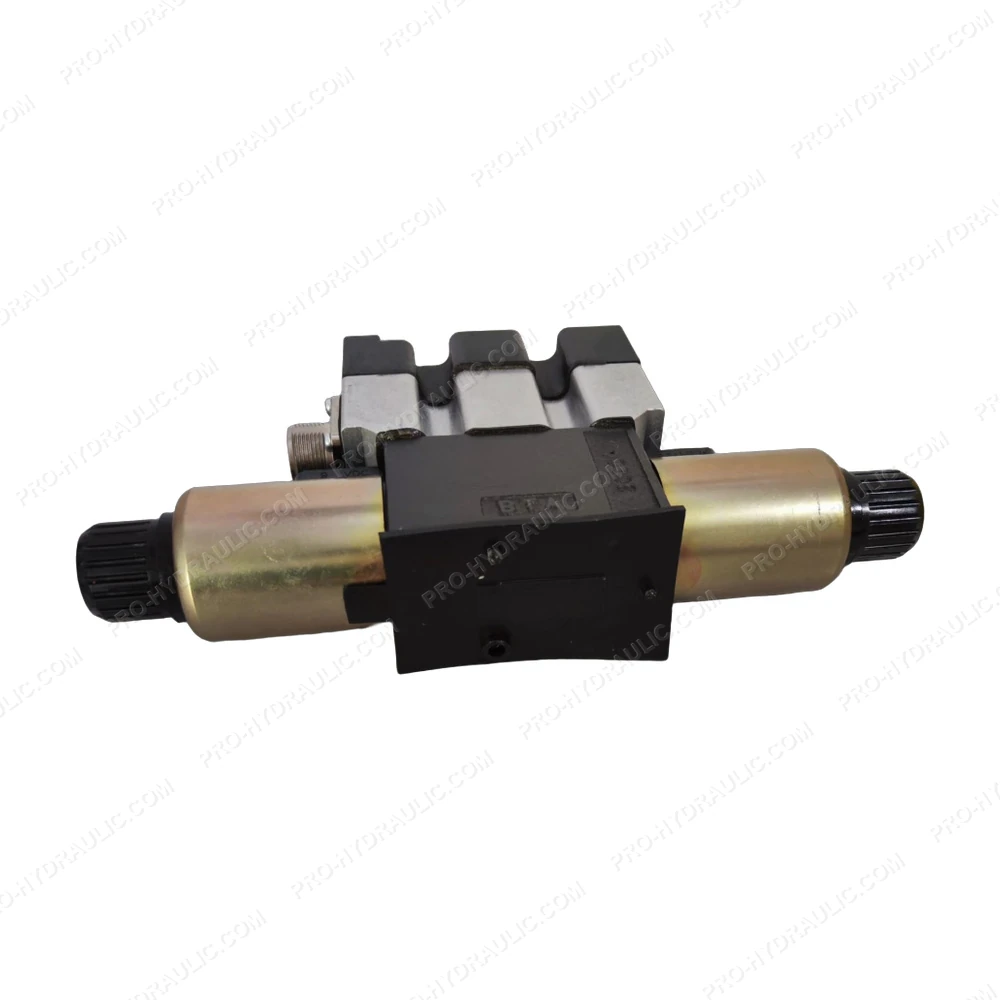

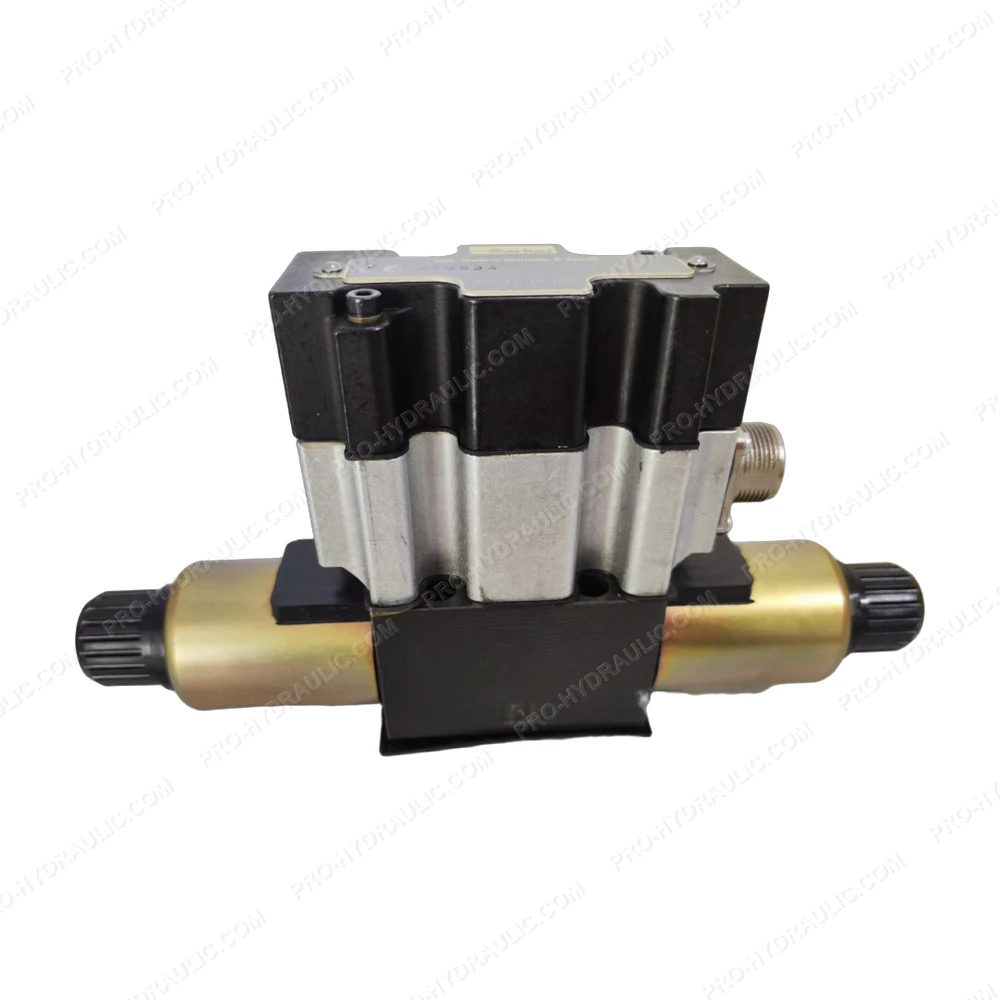

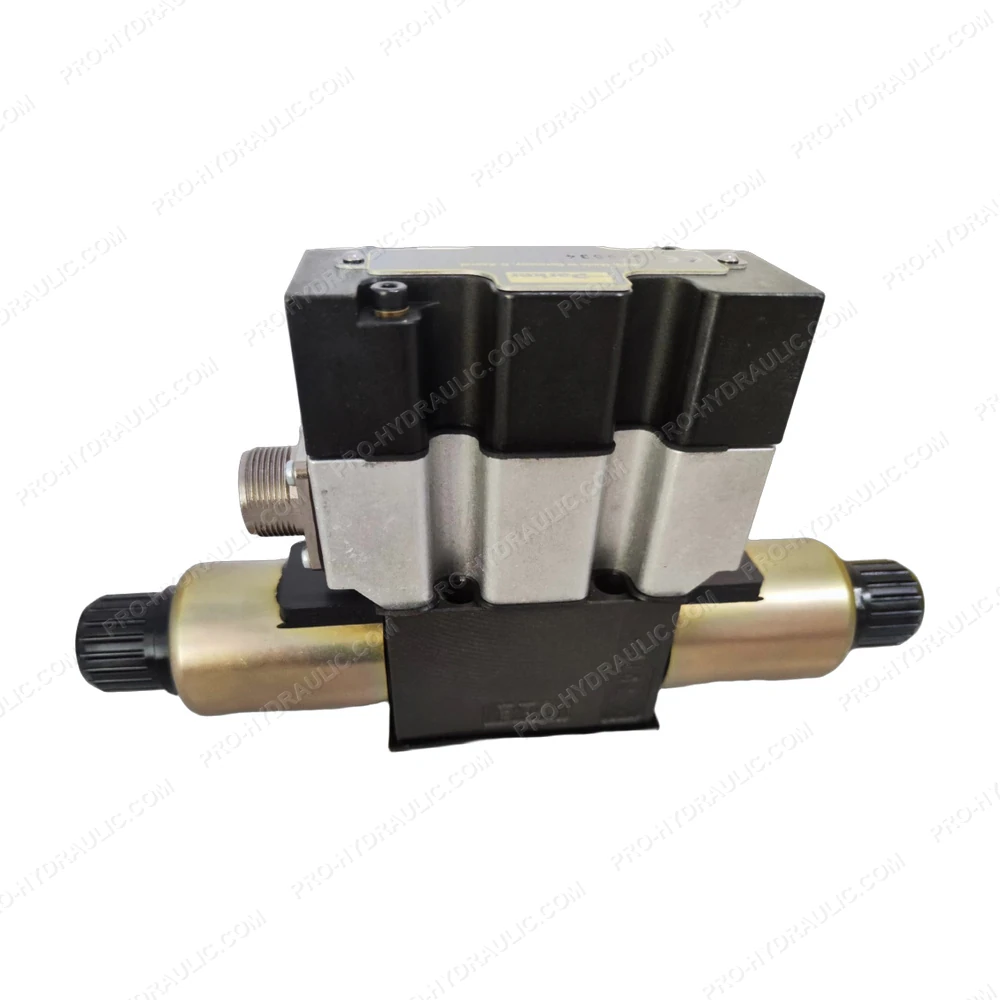

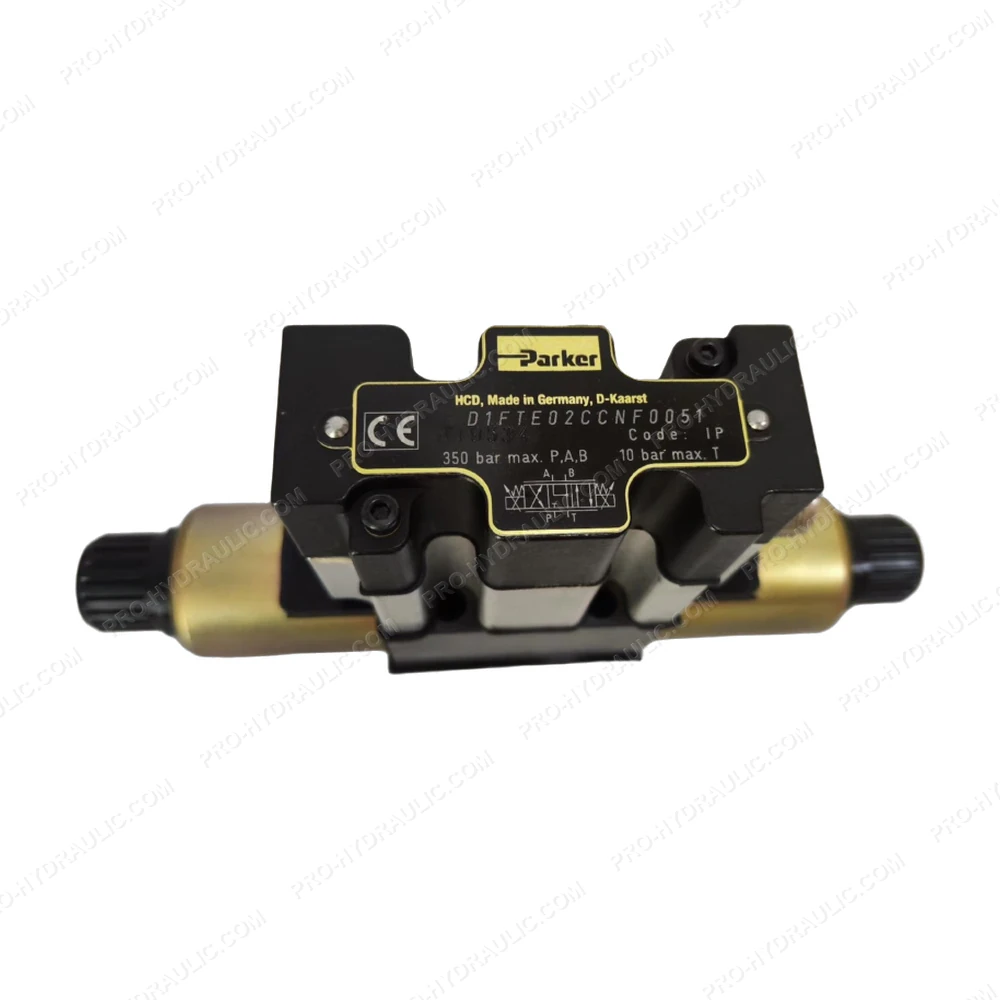

PARKER D1FTE02CCNF0051 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D1FTE02CCNF0051 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
