Product Overview
The Parker D1SE30BNJWXG532 is a high-performance directional seat valve from Parker’s D1SE series, engineered for leak-free load holding and precise flow direction control in demanding industrial hydraulic circuits. Unlike spool-type directional valves, this seat-type design utilizes a poppet-and-seat sealing principle that delivers zero internal leakage in the closed position, making it ideal for applications requiring positive shut-off and reliable load retention. The valve is actuated via a solenoid pilot operator and is configured for direct in-line mounting within manifold or subplate systems. Its robust construction and fast response characteristics make it a preferred solution for clamping circuits, press controls, and safety-related hydraulic functions where pressure integrity is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Seat Valve (Poppet-Type Directional Control Valve) |
| Model Designation | D1SE30BNJWXG532 |
| Series | Parker D1SE Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per D1SE series specification) |
| Actuation Type | Solenoid Pilot Operated |
| Sealing Principle | Poppet-and-Seat (Zero Leakage in Closed Position) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate or Manifold Mounting) |
| Fluid Compatibility | Mineral-Based Hydraulic Oils (Standard Industrial Fluids) |
Engineering Features & Advantages
- Zero Leakage Sealing: The poppet-and-seat design ensures absolutely no internal leakage when closed, providing superior load holding and preventing drift in clamping and positioning circuits.
- Fast Solenoid Response: Solenoid pilot actuation delivers rapid opening and closing transitions, enabling precise timing in sequential hydraulic operations.
- Contamination Tolerance: Seat-type valves are inherently less sensitive to fluid contamination than spool valves, extending service life in real-world industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust materials and proven Parker manufacturing quality.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The Parker D1SE30BNJWXG532 directional seat valve is widely deployed in hydraulic systems requiring leak-free directional control and reliable load holding. Common applications include plastic injection molding machines where precise clamping and injection pressure control are essential, metallurgical presses and forging equipment demanding high-pressure integrity, CNC machine tool clamping and tool-change circuits, and general industrial hydraulic power units where positive shut-off of actuator lines is required for safety and process accuracy.
PRODUCT IMAGES

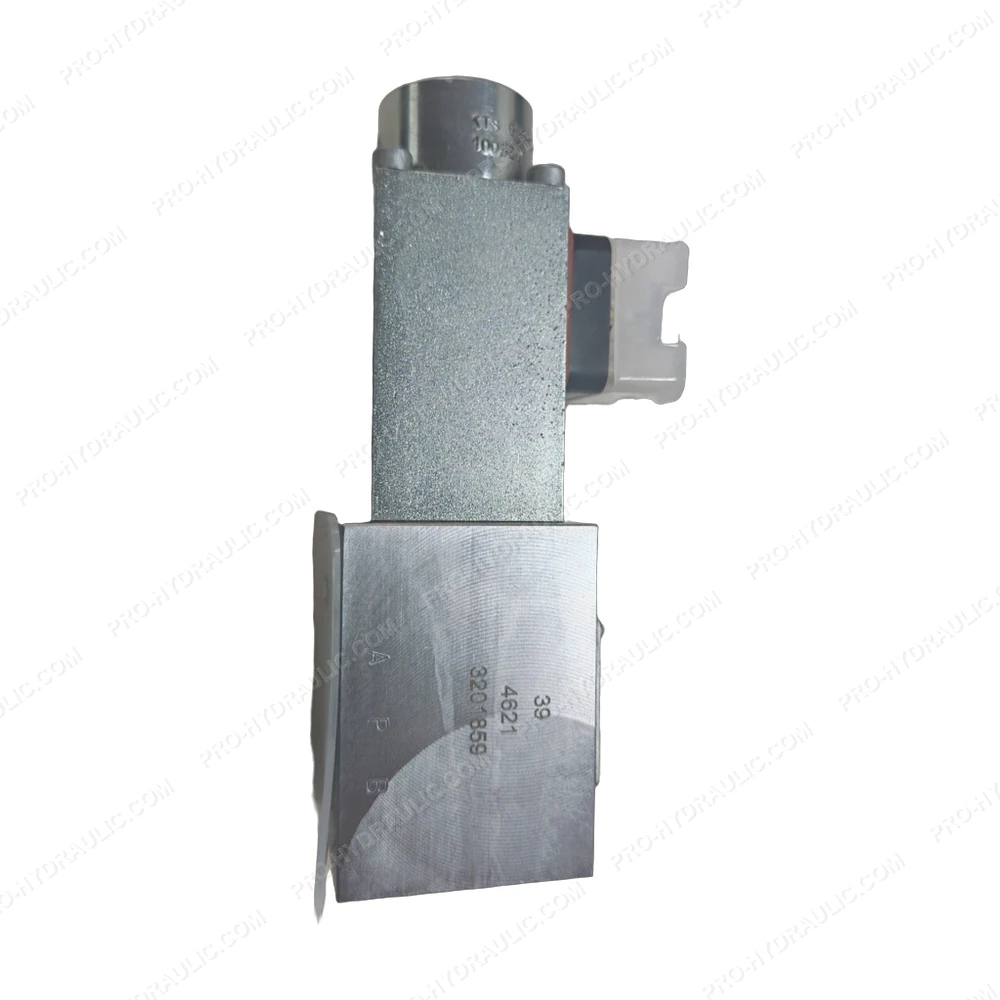

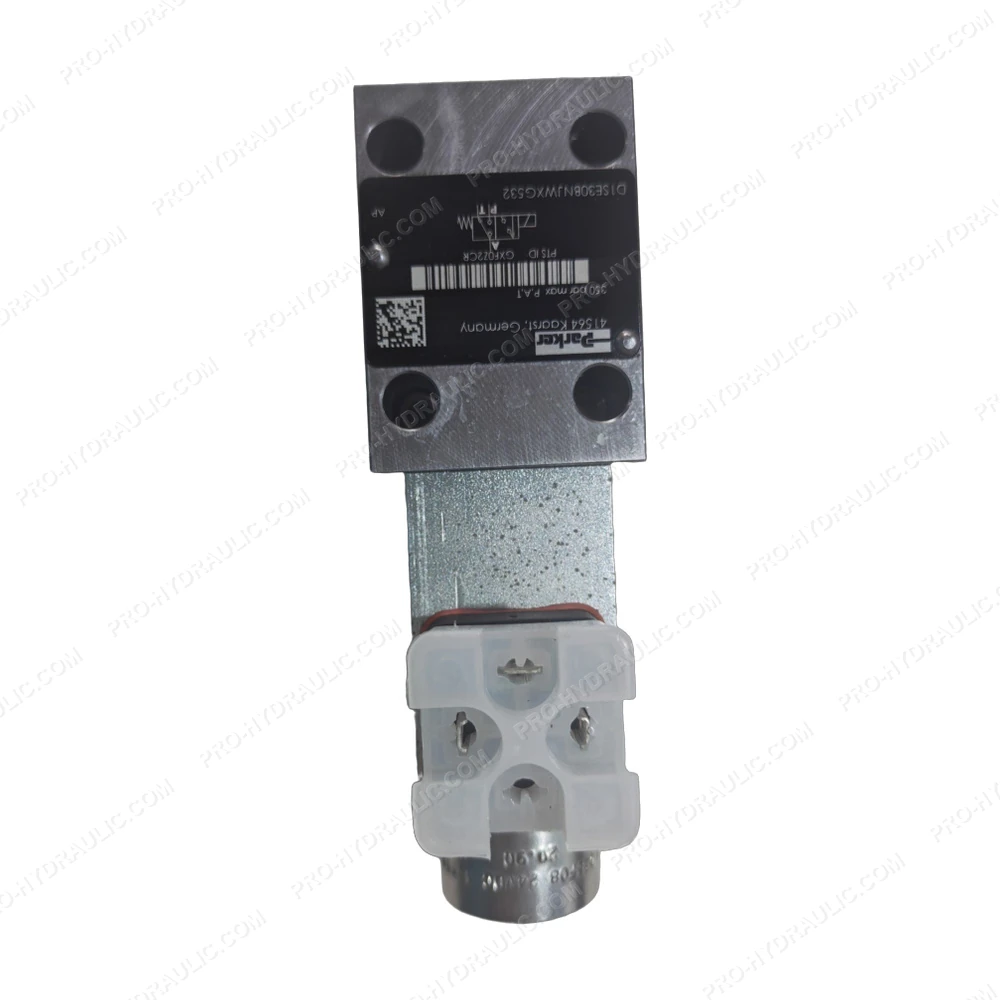

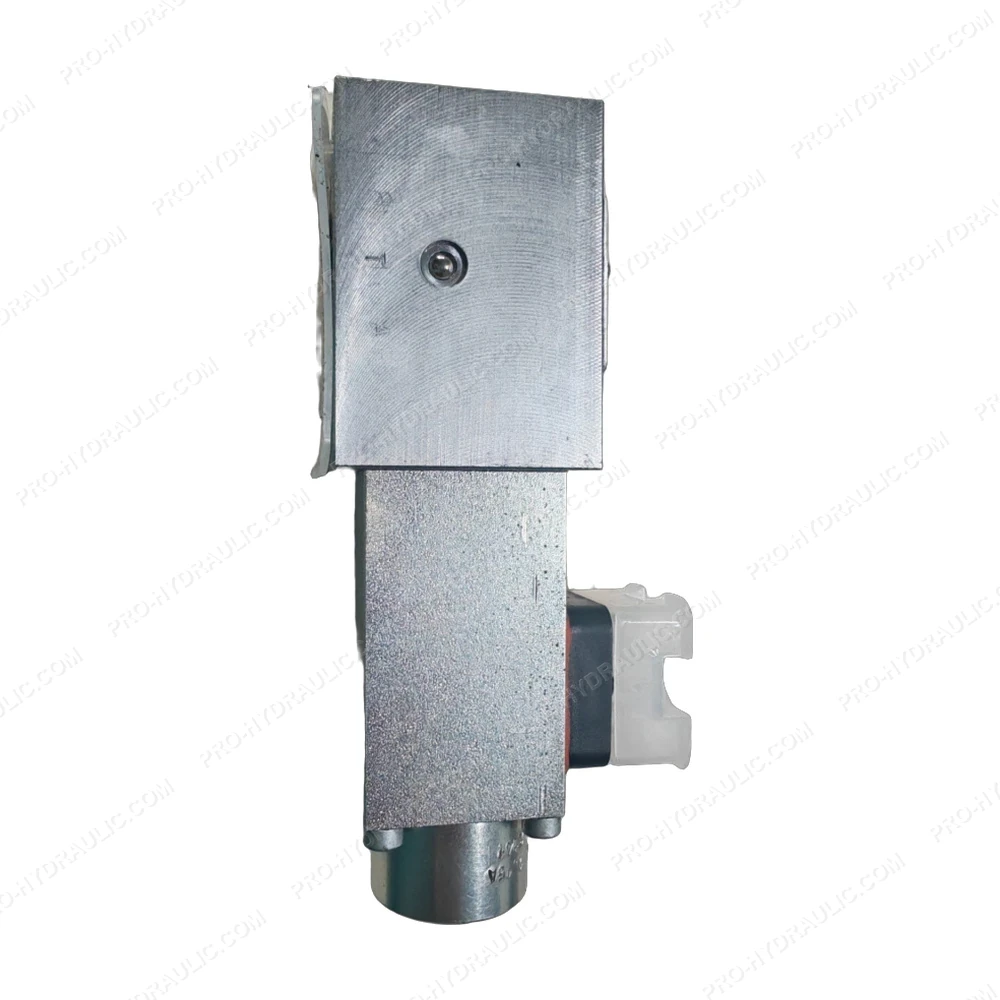

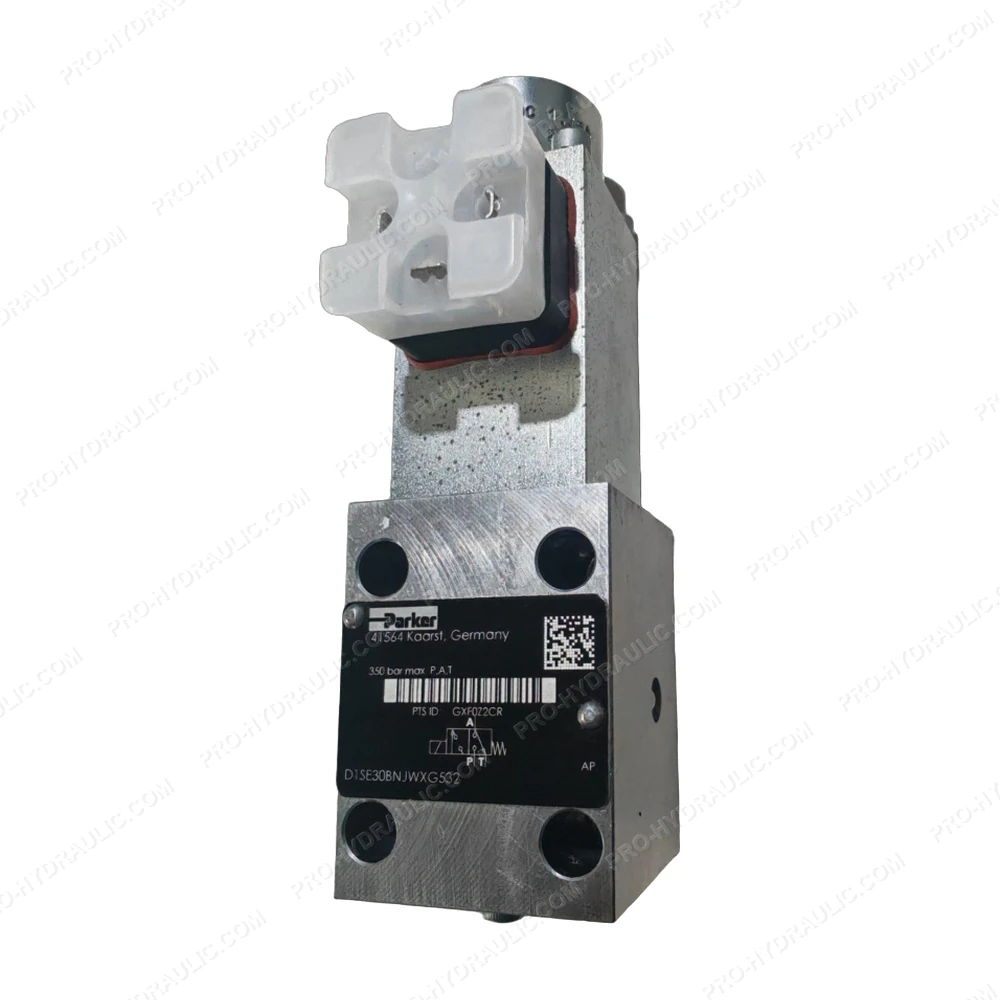

Parker D1SE30BNJWXG532 Directional Seat Valve
