Product Overview
The Parker D1VW001CNTW91 is a high-performance, solenoid-operated directional control valve from Parker Hannifin’s renowned D1VW series. Designed around the industry-standard NFPA D03 / CETOP 3 / ISO 4401-03 mounting interface, this valve directs hydraulic flow to actuate cylinders, motors, and other fluid power actuators within complex industrial circuits. The D1VW001 configuration features a closed-center spool (all ports blocked in the de-energized position), providing reliable load holding and precise control over actuator positioning. With a nominal flow capacity of approximately 35 L/min (9.2 GPM) and a maximum operating pressure of 350 bar (5,000 PSI) on the P, A, and B ports, the D1VW001CNTW91 delivers robust, repeatable performance in demanding hydraulic systems. The “NTW91” suffix denotes a specific solenoid voltage and electrical connection configuration, ensuring compatibility with standard industrial control voltages. This valve is a direct-fit replacement for OEM Parker D1VW series valves and is engineered for millions of reliable cycles in continuous-duty industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | D1VW001CNTW91 |
| Series | Parker D1VW Series |
| Mounting Interface | NFPA D03 / CETOP 3 / ISO 4401-03 / DIN 24340-A6 |
| Spool Configuration | Closed Center (All Ports Blocked in Neutral) |
| Actuation Type | Solenoid Operated (Spring Return / Spring Centered) |
| Nominal Flow Rate | Up to 35 L/min (9.2 GPM) |
| Maximum Operating Pressure (P, A, B) | 350 bar (5,000 PSI) |
| Maximum Tank Port Pressure (T) | 140 bar (2,030 PSI) |
| Solenoid Voltage | Standard Industrial Voltage (Consult “NTW91” Suffix for Specific Rating) |
| Electrical Connection | DIN 43650 / ISO 4400 Standard Connector |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Parker specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 350 bar (5,000 PSI) and flow rates up to 35 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a direct-fit replacement for OEM Parker D1VW series valves and is engineered for millions of reliable cycles in continuous-duty industrial applications.
PRODUCT IMAGES

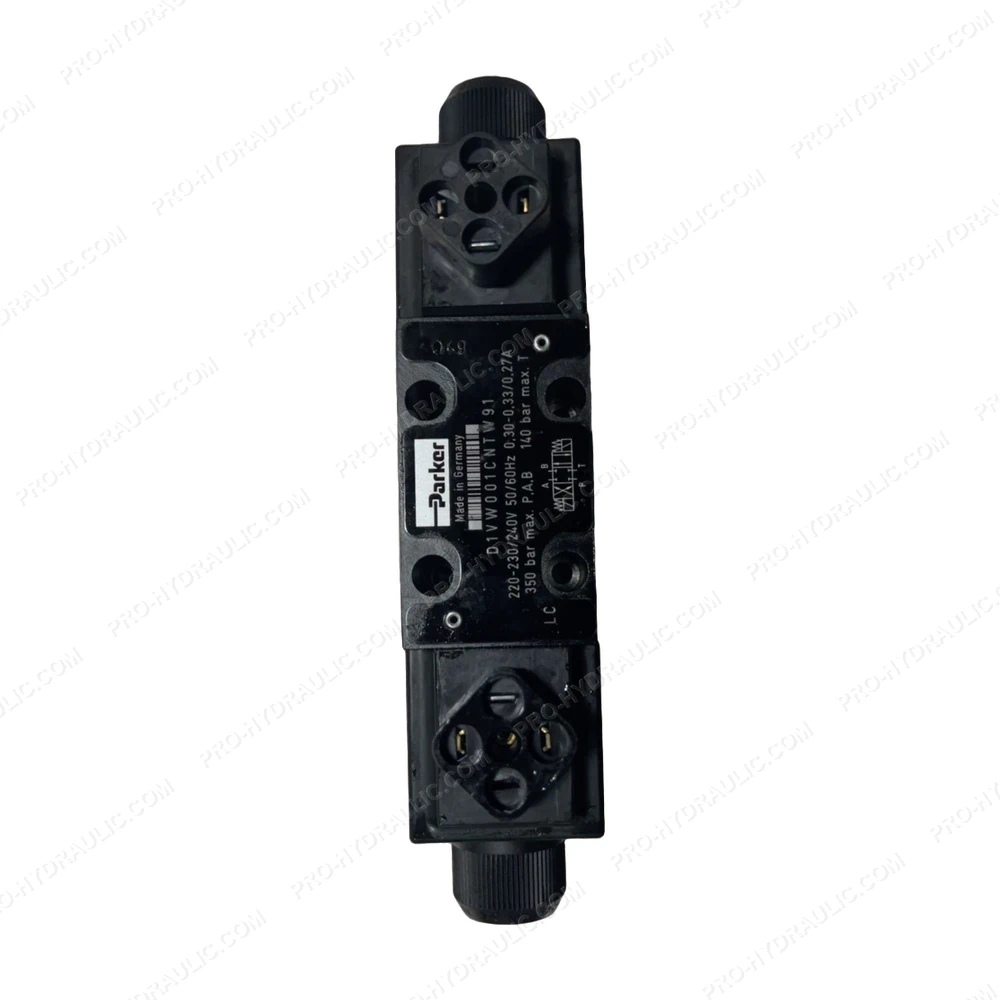

Parker D1VW001CNTW91 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW001CNTW91 Solenoid Operated Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
