Product Overview
The PARKER D1VW002CNJW4N is a high-performance, direct-operated solenoid directional control valve from Parker’s renowned D1VW series (NG06 / CETOP 3 / NFPA D03 interface). Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position valve features a spring-centered spool with a closed-center configuration, ensuring fail-safe operation and reliable load holding. The D1VW series is globally recognized for its robust construction, low-pressure drop, and exceptional switching reliability, making it a cornerstone component in demanding industrial hydraulic systems requiring accurate directional control and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | D1VW002CNJW4N |
| Series / Size | D1VW Series, NG06 (CETOP 3 / NFPA D03) |
| Spool Configuration | 4-Way, 3-Position, Closed Center |
| Actuation Type | Dual Solenoid, Spring Centered |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports |
| Rated Flow | Up to 60 L/min (15.8 GPM) nominal |
| Solenoid Voltage | Standard industrial coil (e.g., 24V DC / 110V AC / 220V AC options) |
| Mounting & Connection | Subplate mounting per ISO 4401 / CETOP 3 / NFPA D03 |
| Seal Material | NBR (Buna-N) standard; FKM optional |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, low hysteresis, and consistent, repeatable shifting performance across millions of cycles.
- High Flow Capacity with Low Pressure Drop: Optimized internal flow paths deliver excellent flow efficiency, reducing energy loss and heat generation within the hydraulic circuit.
- Robust Solenoid Actuation: Parker’s proven solenoid design provides high switching force, fast response times, and reliable operation even under fluctuating voltage and demanding duty cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The D1VW series is globally recognized for its robust construction, low-pressure drop, and exceptional switching reliability, making it a cornerstone component in demanding industrial hydraulic systems requiring accurate directional control and long service life.
PRODUCT IMAGES

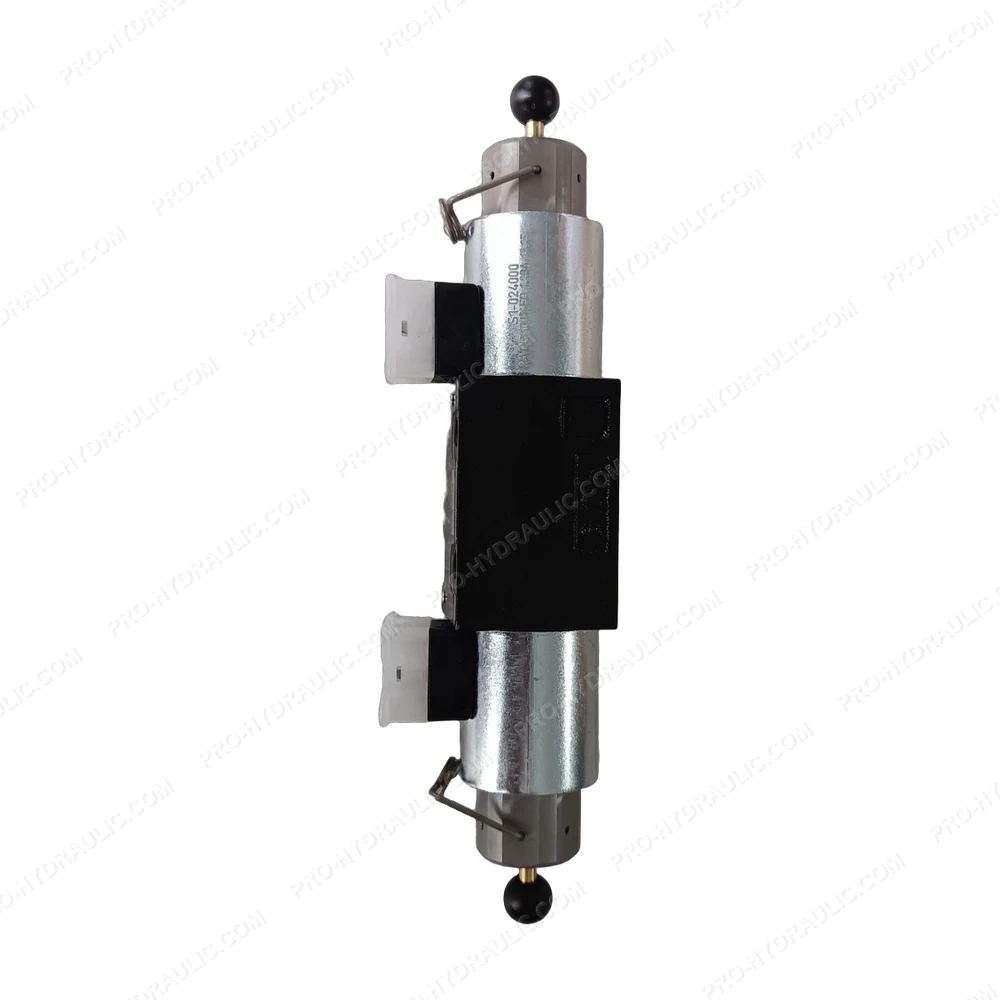

PARKER D1VW002CNJW4N Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW002CNJW4N Solenoid Directional Control Valve. This US-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
