Product Overview
The Parker D1VW002CNJW91 is a high-performance, direct-operated solenoid directional control valve from Parker Hannifin’s renowned D1VW series. Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position valve features a robust spool design that ensures reliable shifting and leak-free operation in demanding industrial environments. The D1VW series is widely recognized for its exceptional response times, low-pressure drop, and long service life, making it a preferred choice for manifold-mounted systems requiring accurate directional control of actuators, cylinders, and motors. This model is configured with a 24V DC solenoid and a spring-centered spool, providing fail-safe return to the neutral position upon de-energization.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | D1VW002CNJW91 |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports; 210 bar at T port |
| Mounting & Connection | ISO 4401 / CETOP 3 (NG6) subplate mounting; DIN 43650 solenoid connector |
| Number of Positions | 3 (spring-centered neutral) |
| Number of Ways | 4-way |
| Solenoid Voltage | 24V DC (standard industrial) |
| Flow Rate | Up to 60 L/min (15.8 GPM) nominal |
| Spool Type | Closed-center (tandem, all ports blocked in neutral) |
| Seal Material | NBR (Buna-N) standard; FKM optional |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Filtration Requirement | ISO 4406 18/16/13 or better |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original PARKER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The D1VW series is widely recognized for its exceptional response times, low-pressure drop, and long service life, making it a preferred choice for manifold-mounted systems requiring accurate directional control of actuators, cylinders, and motors.
PRODUCT IMAGES

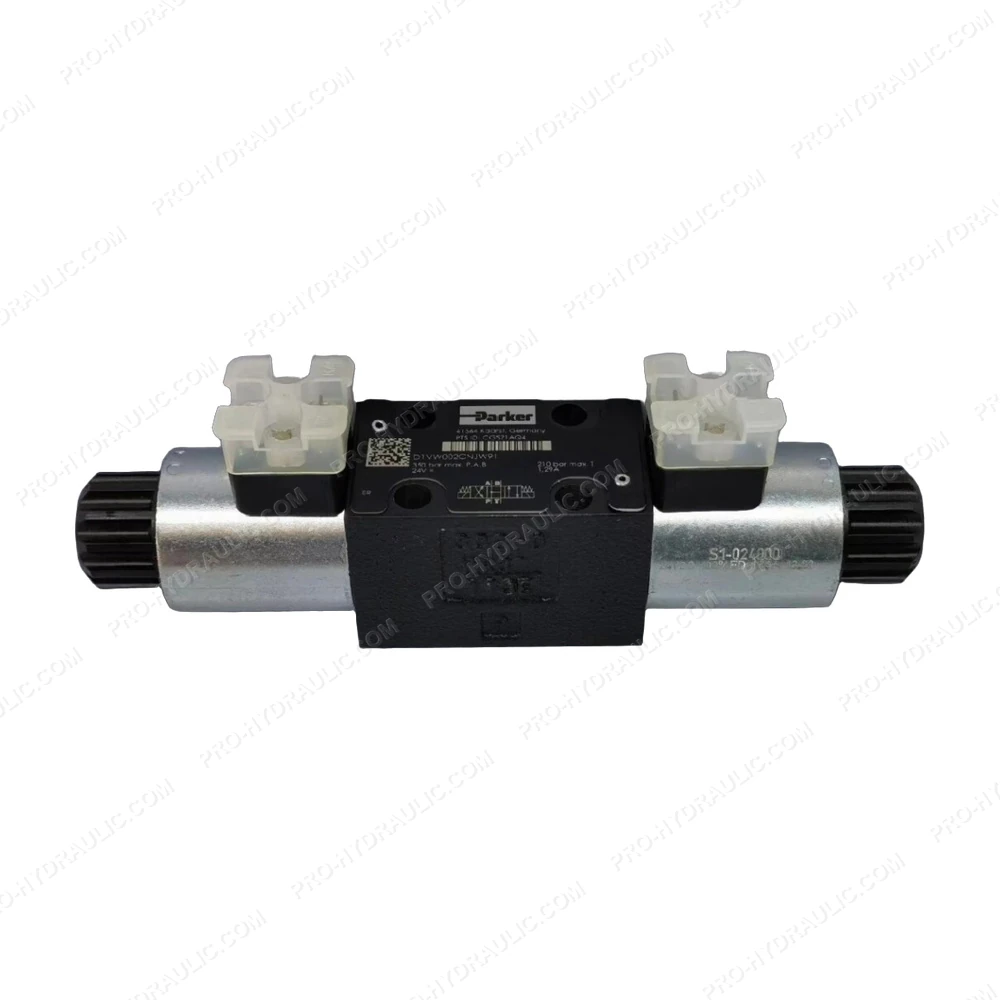

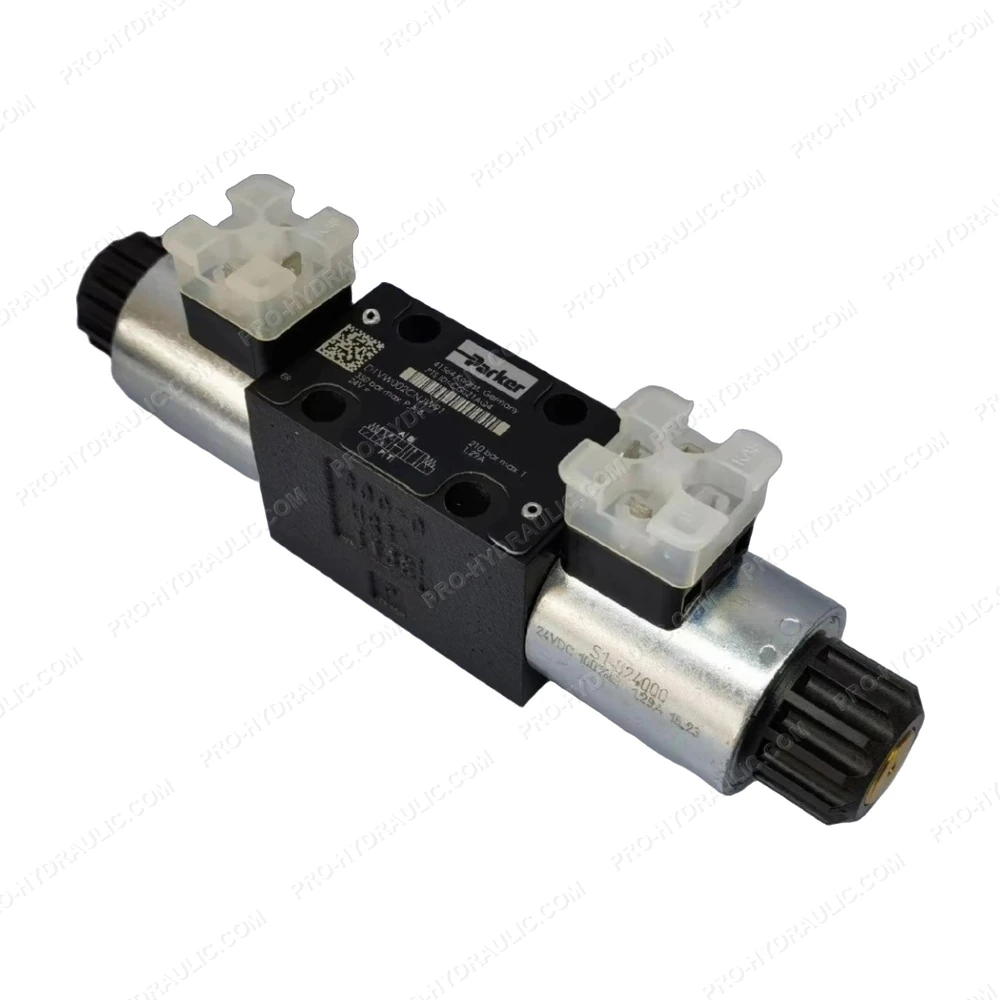

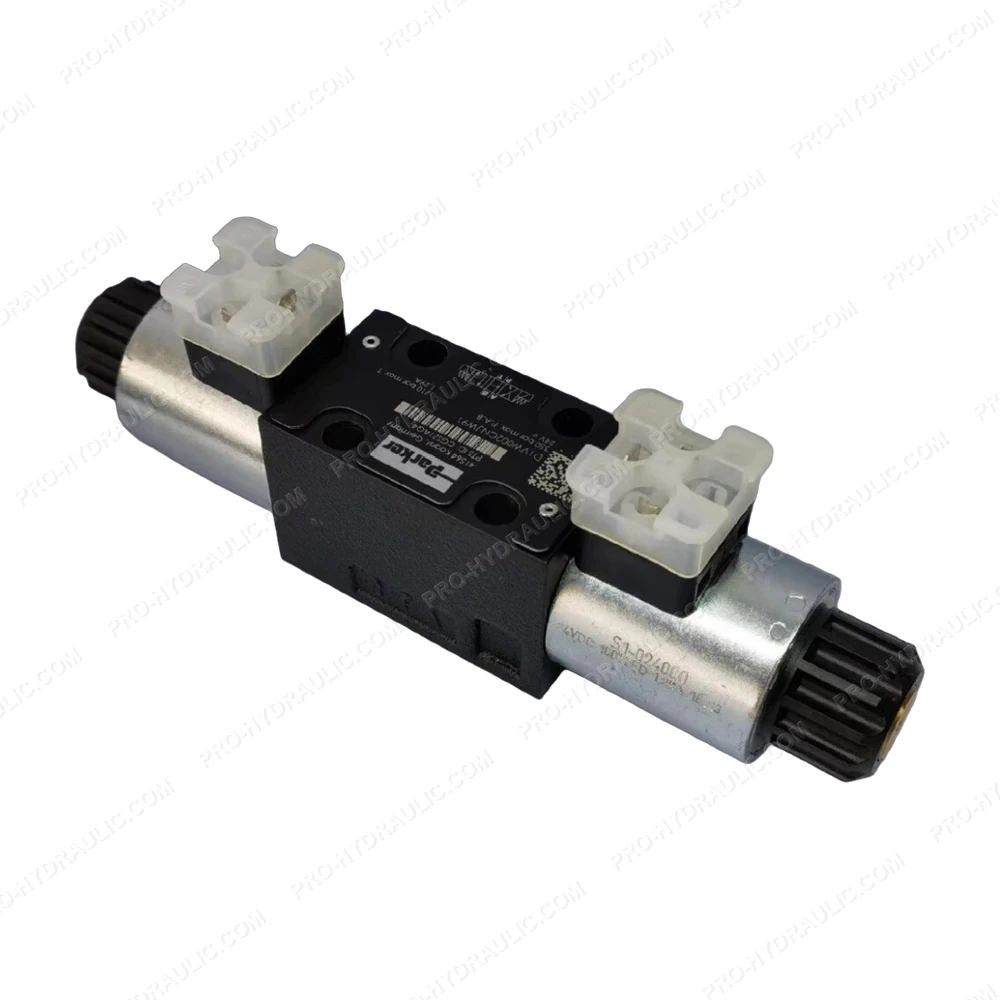

PARKER D1VW002CNJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW002CNJW91 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
