Product Overview
The Parker D1VW002KNJW91 is a high-performance solenoid-operated directional control valve from the proven Parker D1VW series, engineered for precise control of hydraulic fluid flow direction in industrial power units. This 4-way, 3-position (4/3) valve utilizes a robust wet-armature solenoid design to shift a precision-machined spool within a hardened steel body, directing pressurized flow to the designated actuator ports. The D1VW002KNJW91 is configured with a closed-center spool (all ports blocked in the neutral position), making it ideal for holding actuator loads and preventing drift in demanding motion-control circuits. As a direct-acting, spring-centered valve, it delivers reliable, repeatable shifting without the need for pilot pressure, ensuring consistent performance across a wide range of operating conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | D1VW002KNJW91 |
| Spool Configuration | Closed Center (All Ports Blocked in Neutral) |
| Actuation Type | Single or Dual Wet-Armature Solenoid, Spring Centered |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B Ports; 210 bar (3045 psi) at T Port |
| Rated Flow | Up to 80 L/min (21 GPM) at 350 bar Delta P |
| Mounting & Connection | NG6 / CETOP 3 / ISO 4401-03 Subplate Mounting |
| Solenoid Voltage | Standard Industrial DC or AC Voltage (e.g., 24V DC, 110V AC, 220V AC) |
| Electrical Connection | DIN 43650 Connector / Terminal Box |
| Seal Material | NBR (Buna-N) Standard; FKM (Viton) Optional |
| Fluid Compatibility | Mineral-Based Hydraulic Oil, Phosphate Esters, Water Glycols |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The Parker D1VW002KNJW91 is a high-performance solenoid-operated directional control valve from the proven Parker D1VW series, engineered for precise control of hydraulic fluid flow direction in industrial power units.
PRODUCT IMAGES

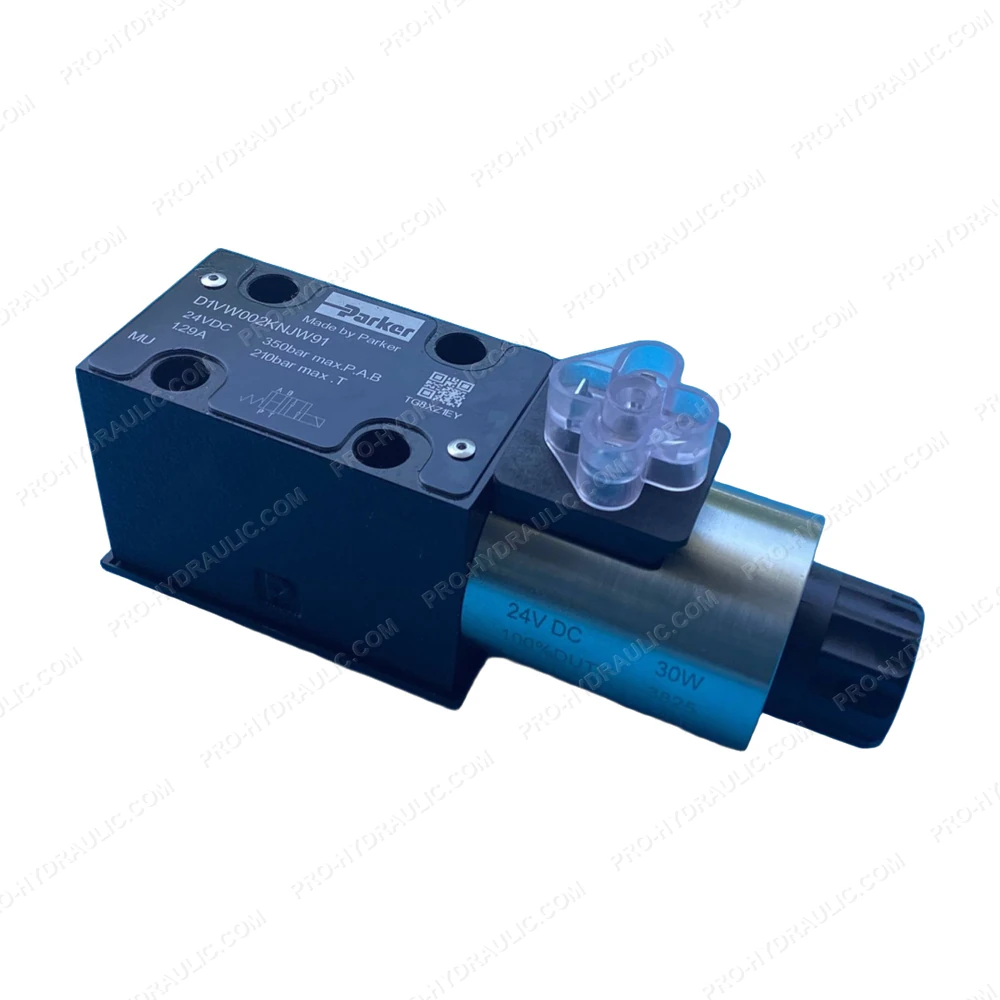

PARKER D1VW002KNJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW002KNJW91 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
