The PARKER D1VW004KNJW91 is a heavy-duty industrial directional control valve engineered for precise hydraulic flow management in demanding circuits. It features a robust 4-way, 3-position spool design with a closed-center configuration, ensuring reliable load holding and actuator control.
PARKER D1VW004KNJW91 Technical Specifications
| Valve Type | 4-Way, 3-Position Directional Control Valve |
|---|---|
| Spool Configuration | Closed Center |
| Actuation | Solenoid, Wet-Pin Armature |
| Mounting Interface | ISO 4401 / CETOP 3 (NG6) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 40 L/min (10.5 gpm) |
| Coil Voltage | 24 VDC (Standard) |
| Electrical Connection | DIN 43650 Connector |
| Seal Material | NBR (Buna-N) |
| Fluid Temperature Range | -20°C to +80°C |
Key Engineering Features
- Wet-pin solenoid design for high switching reliability and long service life
- Closed-center spool provides positive load holding and prevents drift
- ISO 4401 / CETOP 3 mounting for direct integration into standard manifolds
- Hardened, precision-ground spool and sleeve for minimal leakage and wear
- High flow capacity relative to compact NG6 footprint
- Field-replaceable coils and seals for simplified maintenance
Industrial Applications
- Mobile hydraulic systems: boom, arm, and bucket control
- Industrial power units and hydraulic power packs
- Presses, injection molding machines, and machine tools
- Material handling equipment and lift systems
- Agricultural machinery and off-highway vehicles
For technical inquiries, dimensional drawings, or replacement support for PARKER D1VW004KNJW91, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

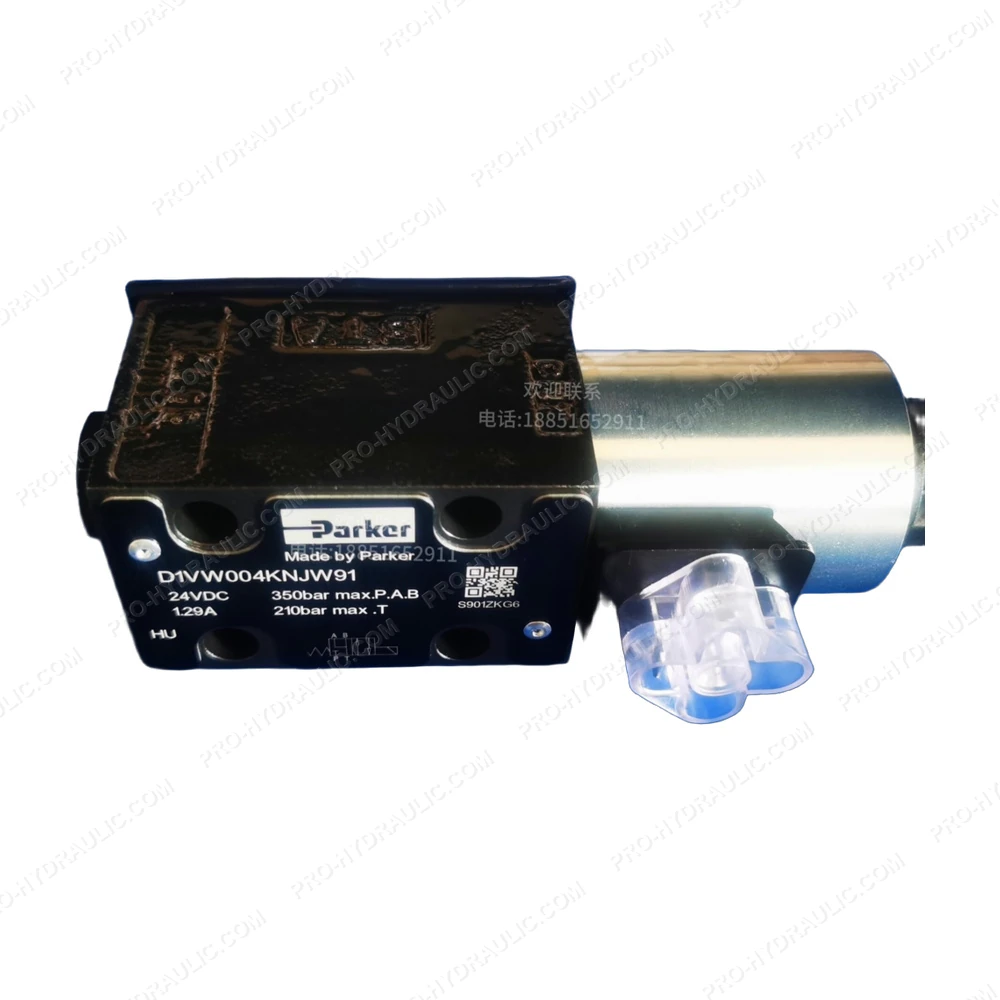

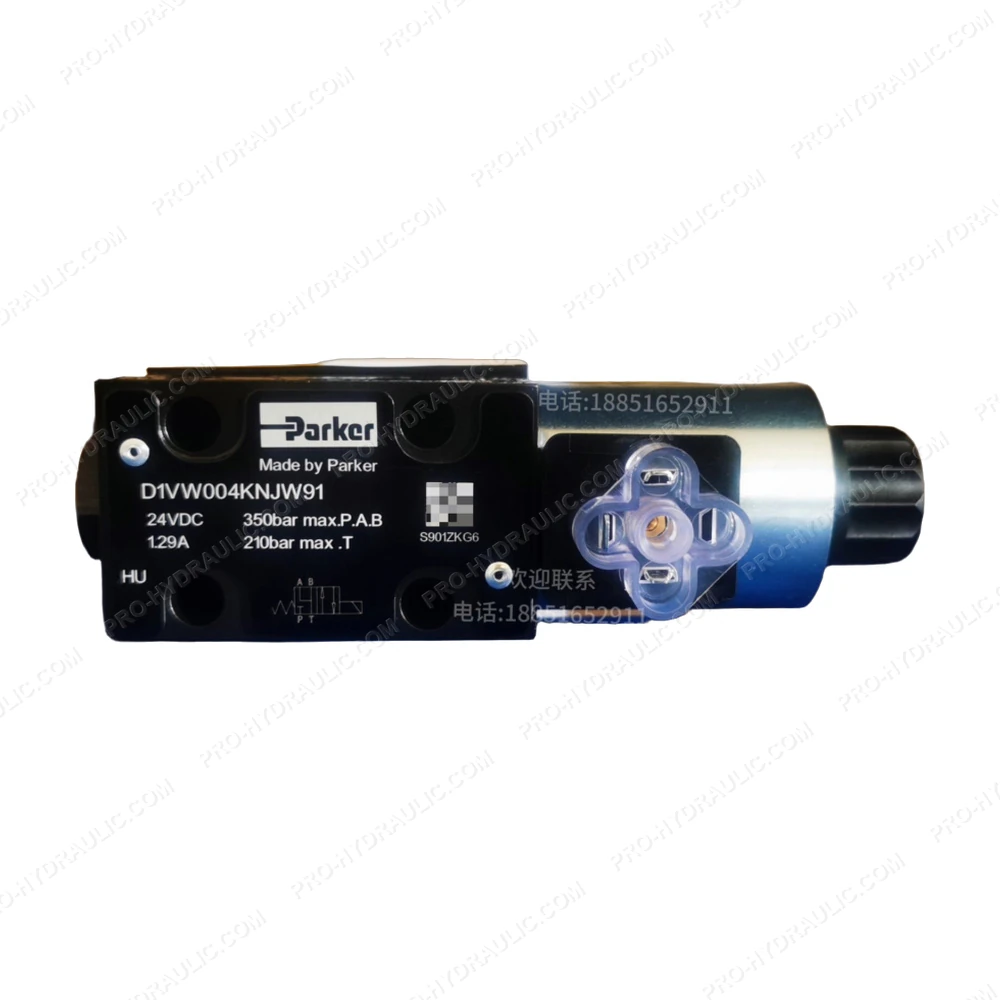

PARKER D1VW004KNJW91 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D1VW004KNJW91 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
