Product Overview
The PARKER D1VW006FNJW91 is a high-performance solenoid-operated directional control valve from Parker’s renowned D1VW series, engineered to deliver precise and reliable flow direction control in demanding industrial hydraulic systems. This direct-acting, four-way directional valve utilizes a robust solenoid actuator to shift a precision-ground spool within a hardened steel body, enabling smooth and repeatable switching of hydraulic flow paths. With a nominal flow capacity of 6 L/min (NG06 / CETOP 3 / NFPA D03 size), the D1VW006FNJW91 is designed for compact hydraulic circuits requiring accurate directional control, fast response, and long service life. Its proven design makes it a preferred choice for manifold-mounted and subplate-mounted installations across a wide range of industrial machinery and mobile equipment applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Four-Way, Direct-Acting Spool Valve) |
| Model Designation | D1VW006FNJW91 |
| Manufacturer | Parker Hannifin |
| Nominal Size | NG06 / CETOP 3 / NFPA D03 |
| Nominal Flow Rate | 6 L/min (nominal) |
| Operating Pressure | Up to 350 bar (5,080 psi) — standard industrial grade |
| Spool Configuration | Four-way, three-position (4/3) with closed-center or application-specific spool type per model code |
| Actuation Type | Solenoid actuated with spring return / spring-centered configuration |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401, CETOP 3, NFPA D03 interface |
| Seal Material | NBR (Buna-N) — compatible with mineral-based hydraulic fluids |
| Electrical Connection | DIN 43650 / ISO 4400 standard solenoid plug connection |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (four-way, direct-acting spool valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its proven design makes it a preferred choice for manifold-mounted and subplate-mounted installations across a wide range of industrial machinery and mobile equipment applications.
PRODUCT IMAGES

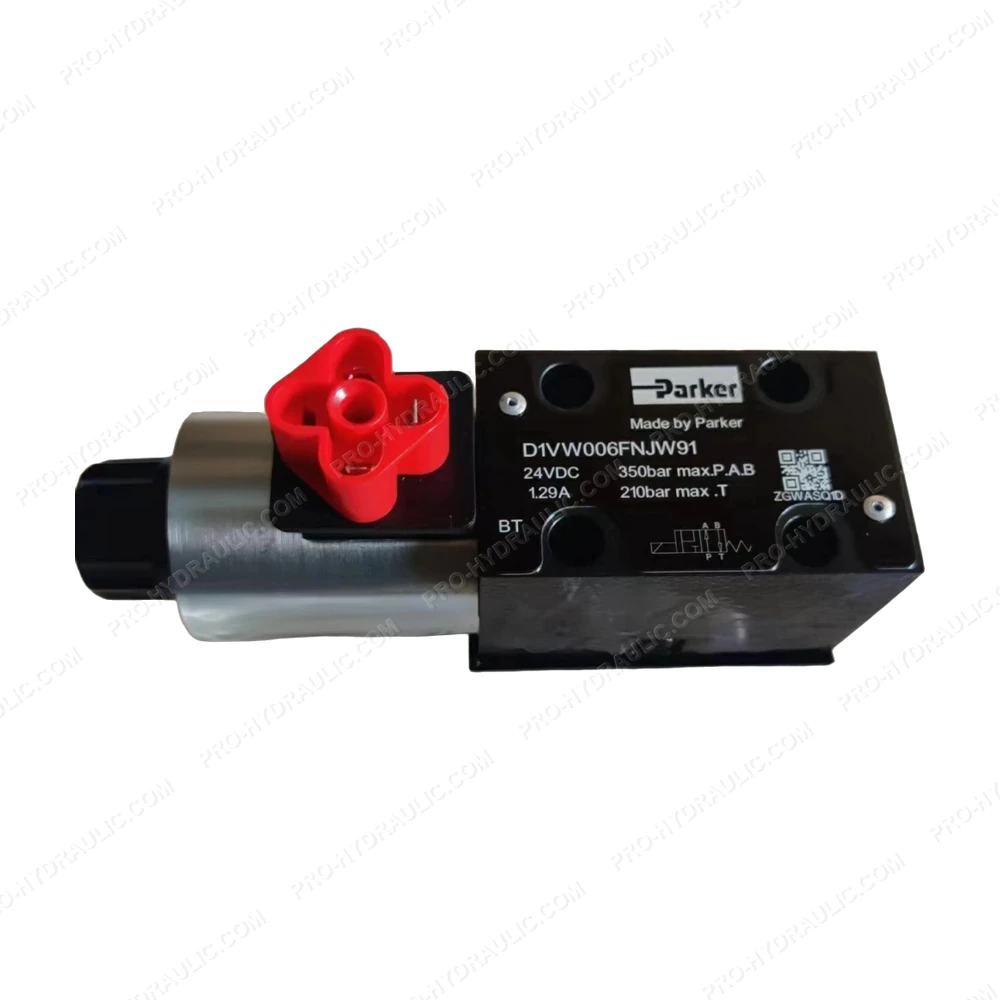

PARKER D1VW006FNJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW006FNJW91 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
