Product Overview
The Parker D1VW006KNJW91 is a high-performance, direct-operated solenoid directional control valve from Parker Hannifin’s renowned D1VW series (NG06 / CETOP 3 / NFPA D03 interface). Designed for precise control of hydraulic fluid flow direction in industrial systems, this 4-way, 3-position valve features a robust wet-armature solenoid design that ensures reliable shifting and long service life. The D1VW series is engineered to deliver consistent performance with minimal pressure drop, making it an ideal choice for demanding applications requiring accurate directional control, rapid response, and leak-free operation. Its compact, modular construction allows for easy integration into manifold-based hydraulic power units and centralized lubrication systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-way, 3-position) |
| Model Designation | D1VW006KNJW91 |
| Operating Pressure | Up to 350 bar (5075 psi) at ports P, A, B; 210 bar (3045 psi) at port T |
| Mounting & Connection | NG06 / CETOP 3 / NFPA D03 subplate mounting; ISO 4401-03-02-0-05 interface |
| Flow Rate | Up to 60 L/min (15.8 GPM) nominal |
| Spool Type | Closed center (K spool) – all ports blocked in neutral position |
| Solenoid Voltage | Standard industrial AC/DC voltages available (e.g., 24V DC, 110V AC, 220V AC) |
| Electrical Connection | DIN 43650 connector with integrated rectifier options |
| Seal Material | NBR (Buna-N) standard; FKM (Viton) available for high-temperature or phosphate ester fluids |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) with standard NBR seals |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: Hardened, ground, and honed spool and sleeve assembly ensures minimal internal leakage, precise metering, and repeatable shifting performance over millions of cycles.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its compact, modular construction allows for easy integration into manifold-based hydraulic power units and centralized lubrication systems.
PRODUCT IMAGES

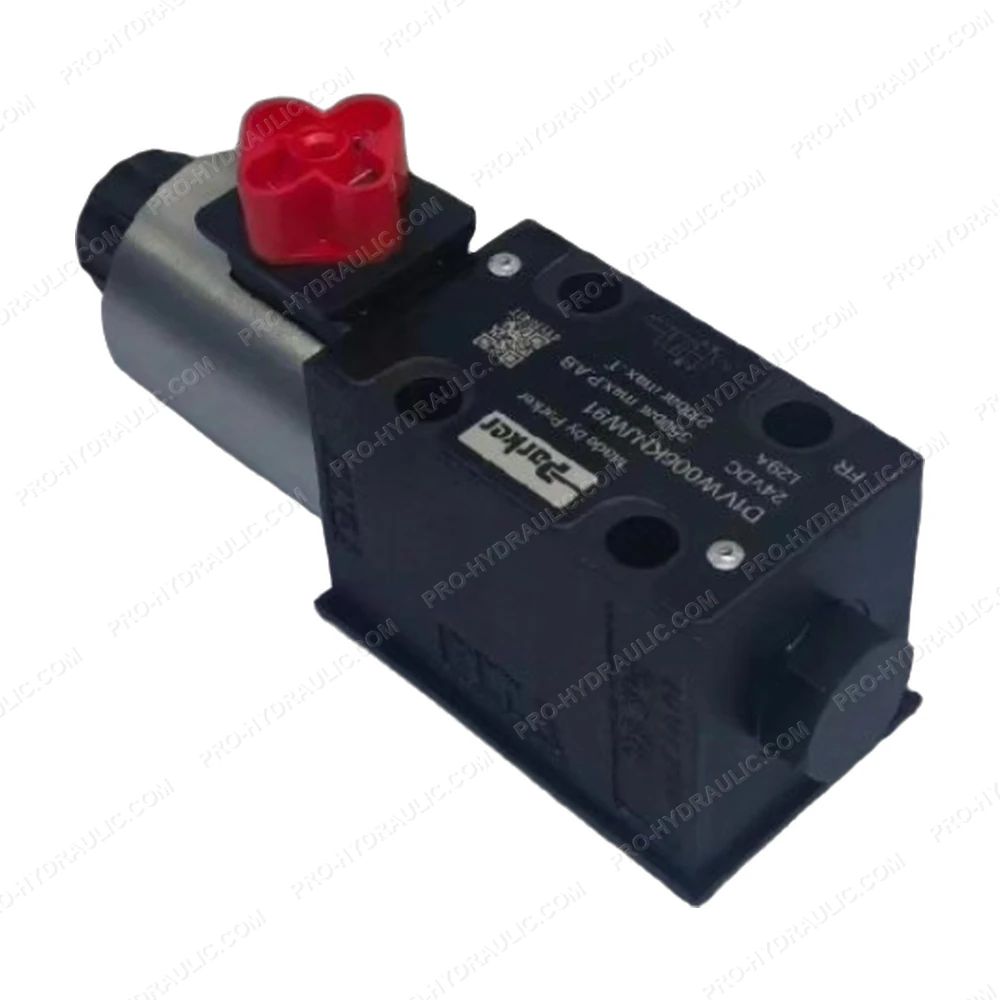

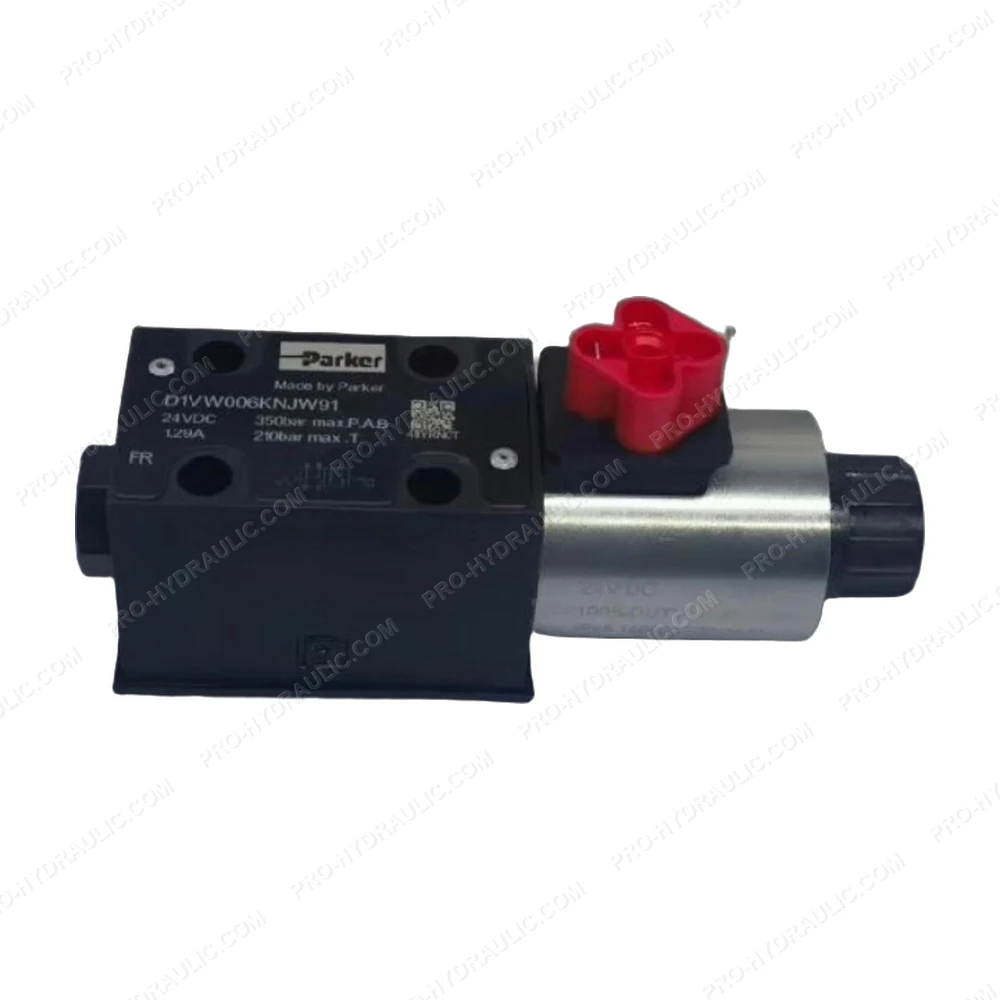

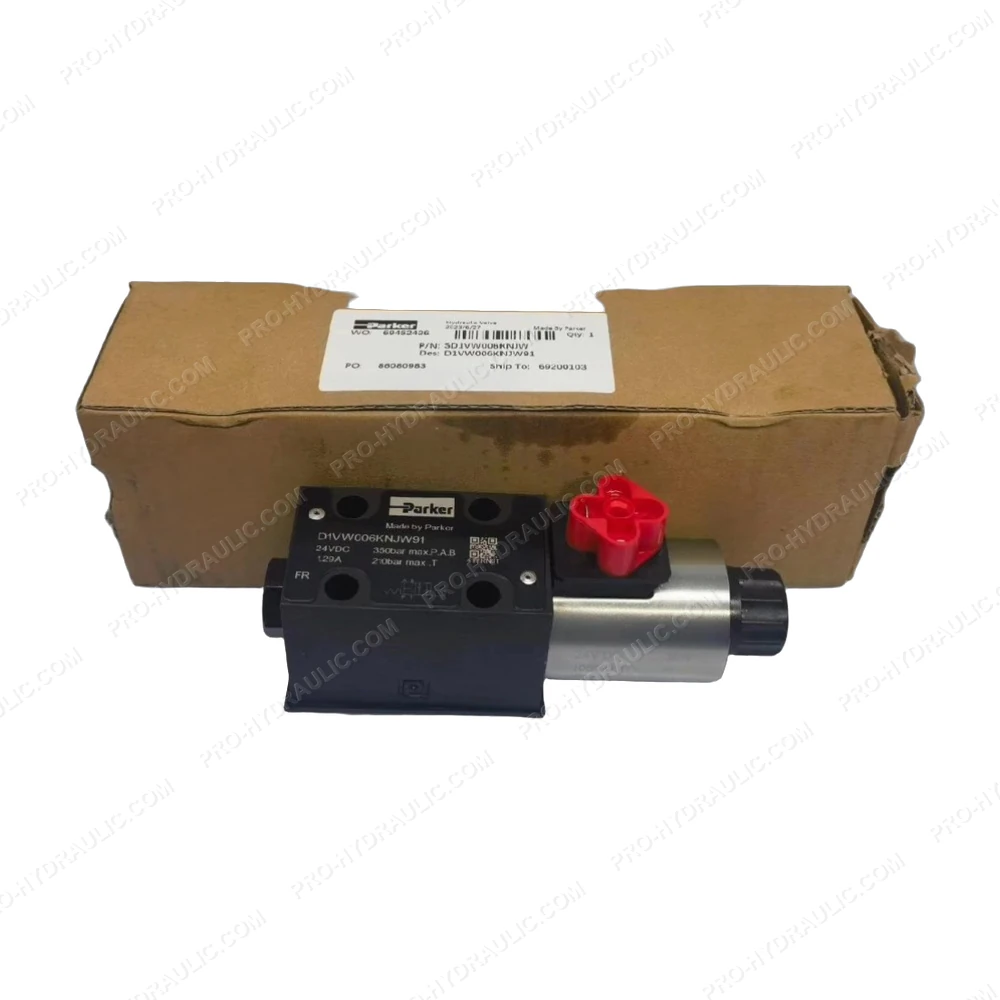

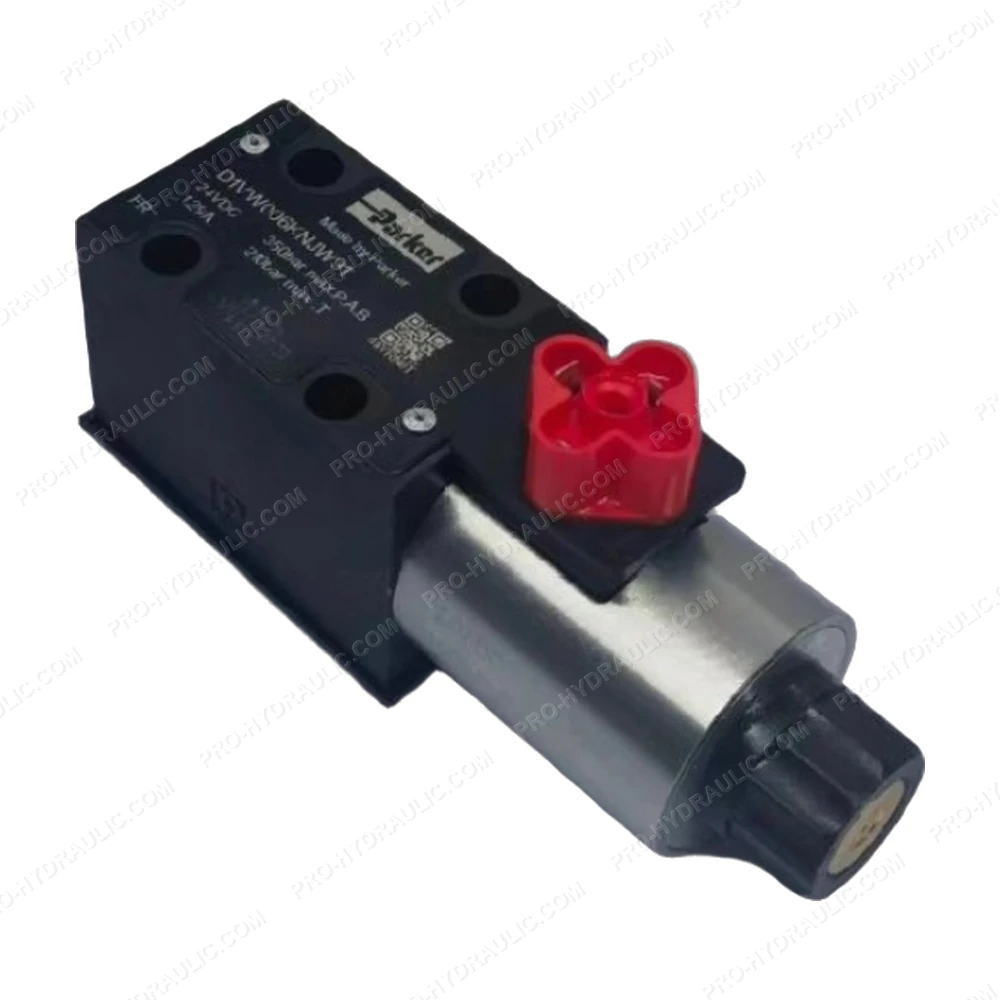

PARKER D1VW006KNJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW006KNJW91 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
