Product Overview
The Parker D1VW006KVJW91 is a high-performance, direct-operated solenoid directional control valve from the renowned Parker D1VW series. Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position (4/3) valve features a robust design that ensures reliable switching and long service life in demanding industrial environments. The D1VW series is globally recognized for its high flow capacity relative to its compact size, low-pressure drop, and excellent repeatability. This valve is a critical component in hydraulic systems, used to direct pressurized fluid to different ports of an actuator (such as a cylinder or motor) to control its movement, stop, or reverse direction. Its solenoid actuation allows for electrical control, making it ideal for integration into automated and PLC-controlled systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4/3 Way) |
| Model Designation | D1VW006KVJW91 |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports; 210 bar at T port |
| Nominal Flow Rate | Up to 60 L/min (15.8 GPM) at 70 bar pressure drop |
| Spool Type | “K” Spool (Closed Center, All Ports Blocked in Neutral) |
| Actuation | Dual Solenoid, Spring Centered |
| Voltage | Standard Industrial Coil (e.g., 24V DC or 110V AC, based on “J91” code) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 (CETOP 3) Interface |
| Seal Material | NBR (Buna-N) for standard petroleum-based hydraulic fluids |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The “K” spool configuration provides a closed-center function, ensuring that all ports are blocked in the neutral position. This allows for precise load holding and prevents drift when the valve is de-energized, enhancing system safety and accuracy.
- High-Performance Solenoids: Parker’s robust solenoid design ensures fast, reliable response times and high switching forces. The coils are encapsulated for protection against moisture, contaminants, and mechanical damage, ensuring consistent operation in harsh environments.
- Low-Pressure Drop: Optimized internal flow paths minimize pressure loss, reducing heat generation and improving overall system efficiency. This is critical for energy savings and maintaining high productivity in continuous-duty applications.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original PARKER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its solenoid actuation allows for electrical control, making it ideal for integration into automated and PLC-controlled systems.
PRODUCT IMAGES

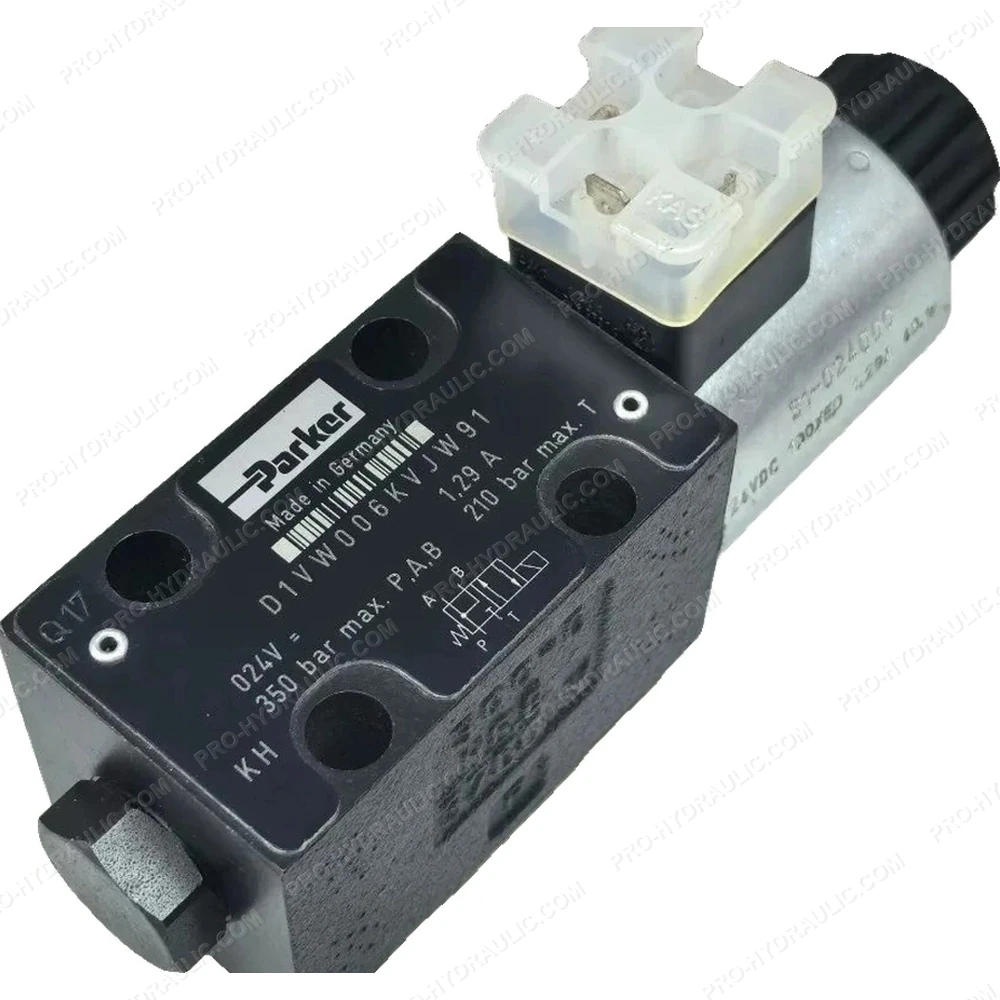

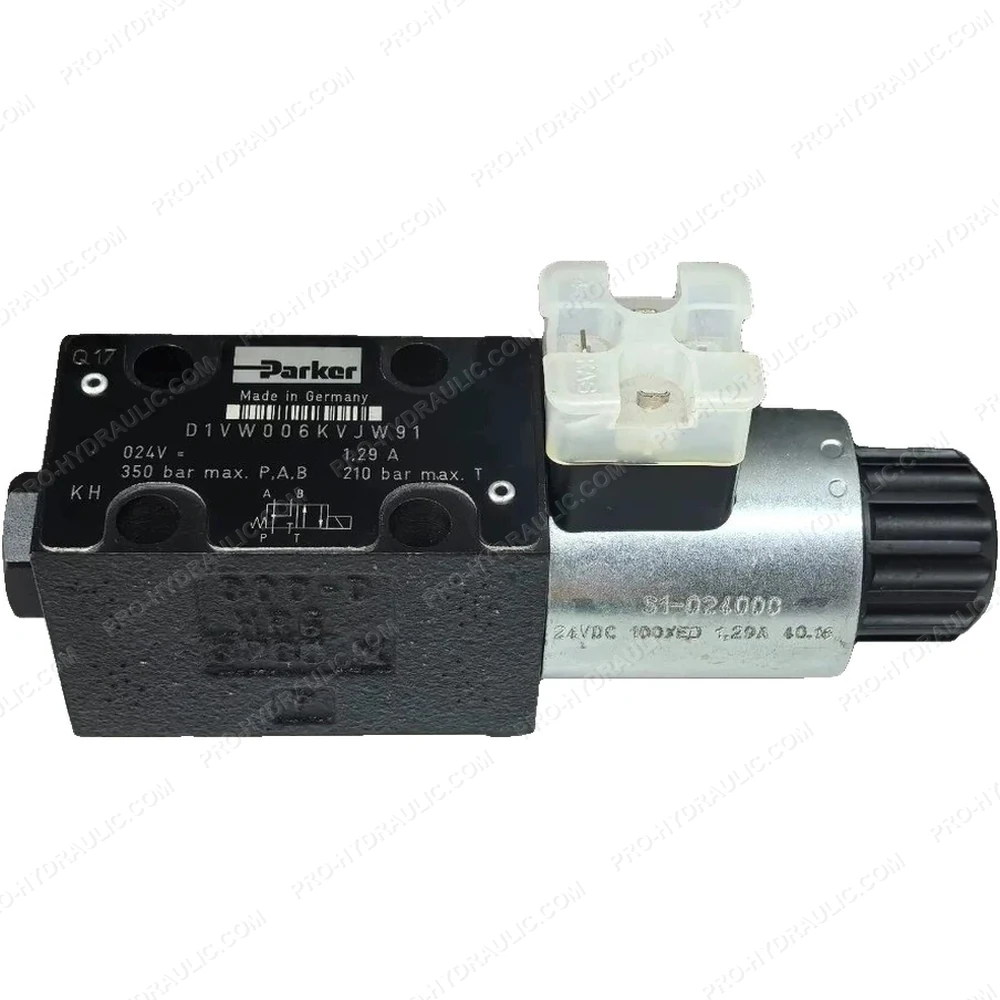

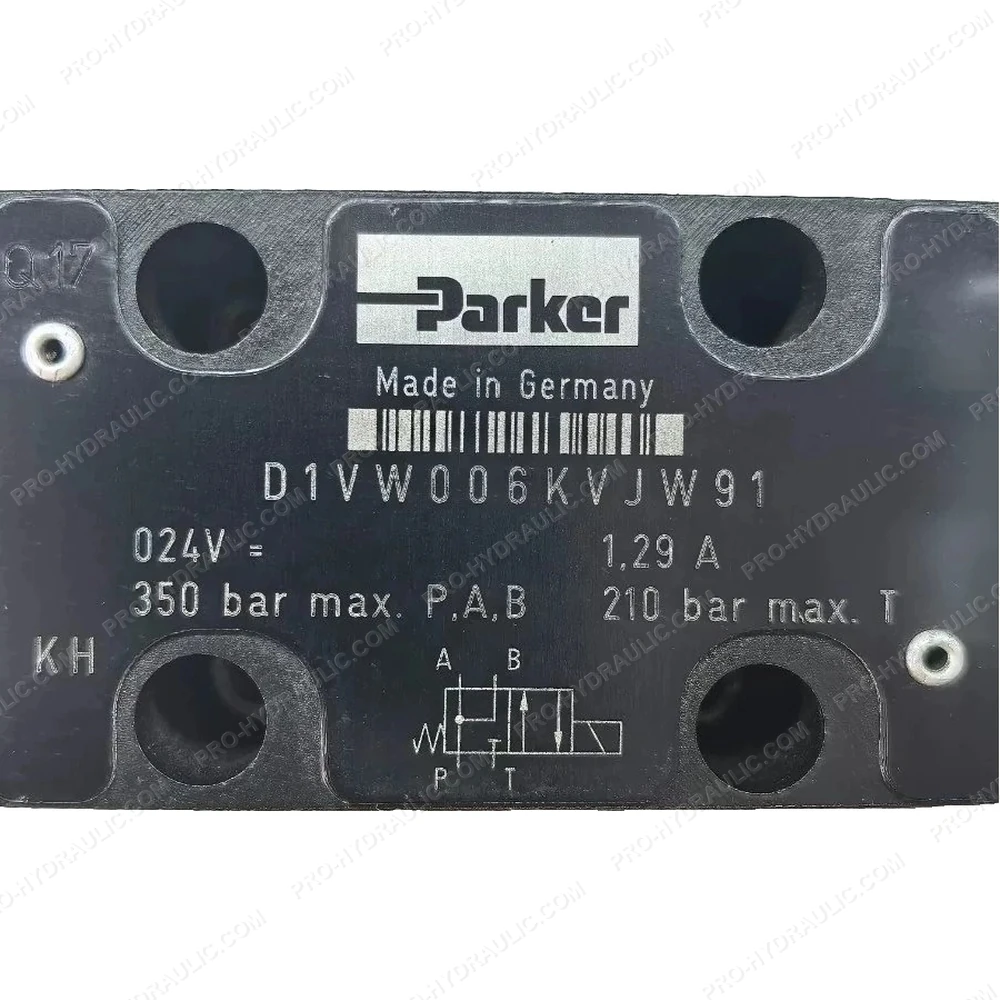

PARKER D1VW006KVJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW006KVJW91 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
